PET Film Screen Printing Machine

Product name: PET Film Screen Printing Machine

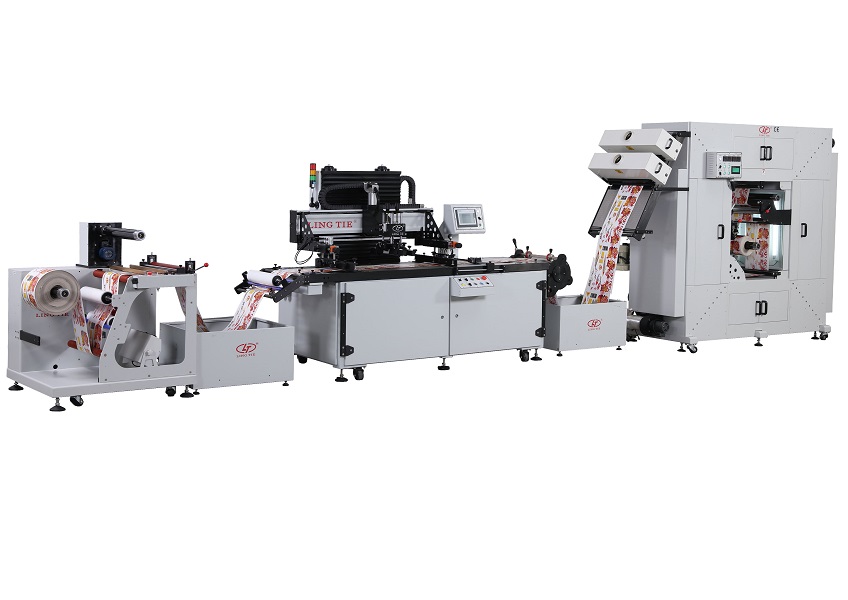

• The PET Film Screen Printing Machine system is composed of a feeding unit, a screen printing station and a hot air dryer in all
• It features an automatic registration system with 3 sensors to ensure high printing precision for multicolor
• It has a vacuum table with air suction to fasten PET film to ensure overprinting precision
• It is equipped with three photocell sensors for automatic registration in X-Y directions
• Automatic screen printing machine printing head is vertical up-and-down for easy change of the silkscreen.
• One operator is enough for the whole production, help you reduce labor cost.
• High productivity, production capacity equal to six sets of the semi-automatic screen printing machine

Specification for LTA-5060 PET Film Screen printing machine

• Max.Print Area: 500 x 600 mm
• Print Speed: 0-2500 impression / h
• Screen Frame Area: 800 x 1000 mm
• Max.Web Width: 520mm
• Air Source: 0.4-0.6 mpa
• Power: 220V, 3KW, 15A
• Web Thickness: 0.02-0.5mm
• Gross Weight: 700kg
• Dimension: 2850 x 1160 x 1650 mm

Application
PET Film Screen Printing Machine is specially designed for printing for film material in roll form, Including PET, PVC, PE, PV, PP, BOPP film, which has been widely used in heat transfer label, adhesive sticker, Vulcanizing label, membrane switches, soft circuit board (flexible printed circuit ), printed electronics, control panels, graphics overlay, IMD (In-mold decoration label, IML, RFID antenna, FPC, ceramic decals, motorcycle helmet decals, nameplate, etc industry.

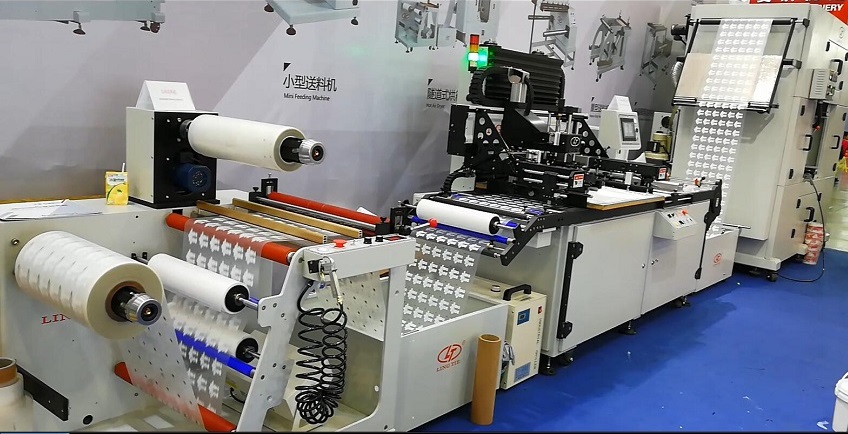

The Feeding Unit Characteristic

• Servo motor for substrate pitch feeding and printing head stroke
• Static electricity elimination (for the special industrial )
• Splice station ( used for material splicing fast )
• Web tension controller ( carry the magnetic powder brake )
• Ionizing Blower
• Dust cleaning rollers
• There have 4 types, such as 900 mm, 700 mm, 600 mm, 480 mm web width

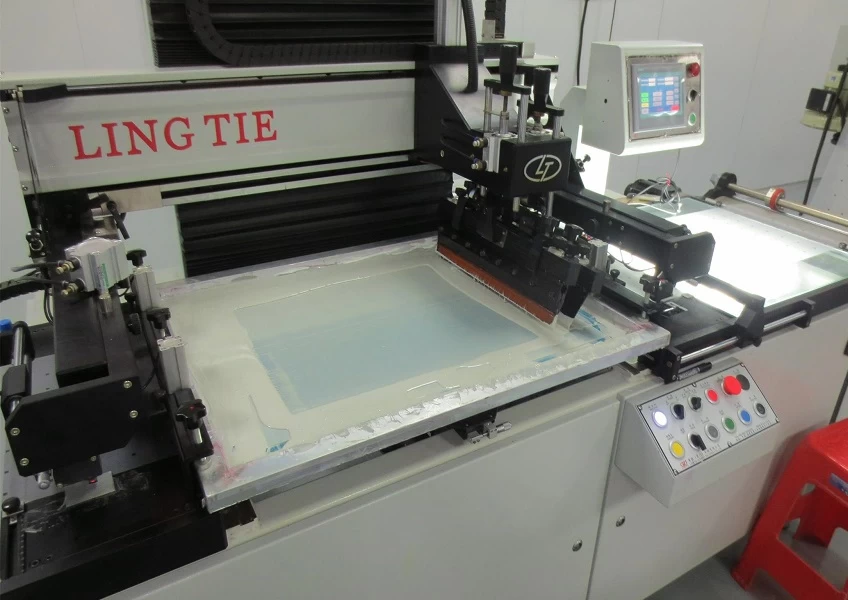

The Screen Printing Unit Features

•    solvent ink, water-based ink, and plastisol ink is OK
•   Powder Coating Machine can be added to the line if necessary.
• It features an automatic registration system with three sensors to ensure high printing precision for multi color overprint.
• Machine automatic stop and alarm when the substrate run out
• Automatic alarm when an error occur and offer the solution
• Touch screen control panel in English (it can change to the user local language)
• Servo motor for substrate pitch feeding and printing head stroke
• Vacuum suction table for efficient workpiece fixing, with blowback function.
• Air suction puller rolling drum driven by YASKAWA servomotor.
• YASKAWA servomotor drives squeegee traveling.
• The squeegees mechanism equipped with a pressure stabilizer ensuring constant pressure all the times.

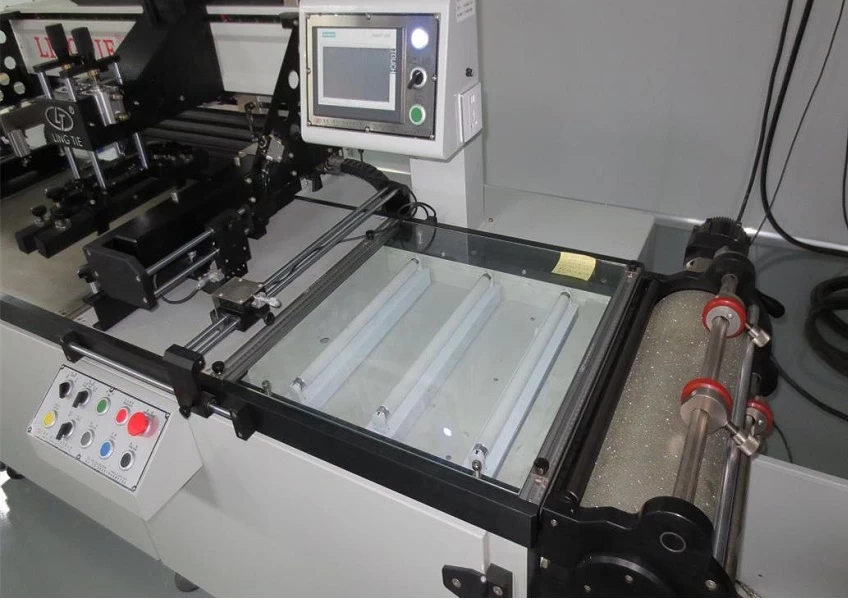

• Glass table for printing quality inspection
• Punching System for option
• We have 9 types of the printing area, such as  300 x 400 mm,350 x 450 mm, 460 x 560 mm, 500 x 600 mm, 550 x 700 mm, 600 x 800 mm, 700 x 600 mm, 500 x 1200 mm, 600 x 1600 mm.

Description for The Hot Air Dryer

• Temperature Range: 37 ℃---140 ℃
• Power: 22 kW
• Insulation Layer Thickness: 50-100 mm
• Inner Loop Lenth: 60 meters( 30 meters, 80 meters for option)
• Uniform Speed Devise for option
• Correction Device for option
• Double-side dust elimination
• Automatic Laminating device-model A / B option
• Dimension: 2930 x 1160 x 2300 mm

FAQ
1, How much printing accuracy can be achieved?

We can reach 0.01 mm overprint precision

2, How many colors do you machine can print?

We can print 1 color, 2 colors, 3 colors, 4 colors, 5 colors, 6 colors, 7 colors and more.

3, What's your printing speed?

10--20 meters /minuter in generally, 600-1200 meters / Hour.

4, What's the power consumption of this roll to roll printing machine system?

It's about 40 KWH /day,  working 8 hours

5, Could you supply the training by your side?

Yes, we  supply Free Training and Installation overseas, but the round airplane ticket is on your side

6, Are you a manufacturer or a distributor?

We are a professional manufacturer for 15-years in China.

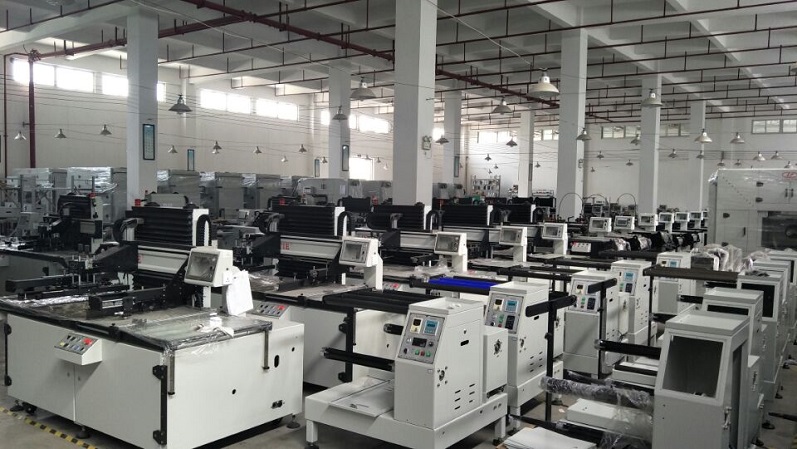

There are so many models of the single color roll to roll screen printing machine in our workshop which ensure short delivery time and can reduce your waiting cost.

 8, What's the roll to roll screen printing machine price?

Tell the truth, the price is not very cheap. As you know, only a reasonable profit can guarantee high quality

10, How can you promise that Each Component, 10-years non-rusting?

We have the Self-Machining CNC Center and each process under the strict quality control,  which is one of the conditions that ensure the stability of the roll to roll screen printing system.

11, How many countries have you installed fully automatic screen printing machine so far?

We had installed the machine more than 20 countries since 2009( get the export and import right in 2009), the below images show our machine in clients'  factory.

12, How many printing area sizes can you print?

We have 9 types of the printing area, such as  300 x 400 mm,350 x 450 mm, 460 x 560 mm, 500 x 600 mm, 550 x 700 mm, 600 x 800 mm, 700 x 600 mm, 500 x 1200 mm, 600 x 1600 mm.
