PET PP Bale Strap Band Making Machine

PP Strap Making Machine the top quality and the turn-key service including installation , testing run and training workers in your local factory , the technique is mature, the product quantity stability, price justice .

  • Weight5T
  • Plastic ProcessedPP
  • ConditionNew
  • Power(W)37KW
  • Dimension(L*W*H)20m*1.8m*2.2m
  • Voltage380V 50HZ 3Phase(Customized)
  • Applicationstrap band
  • WarrantyMore than 5 Years
Facebook Twitter Pinterest LinkedIn 分享

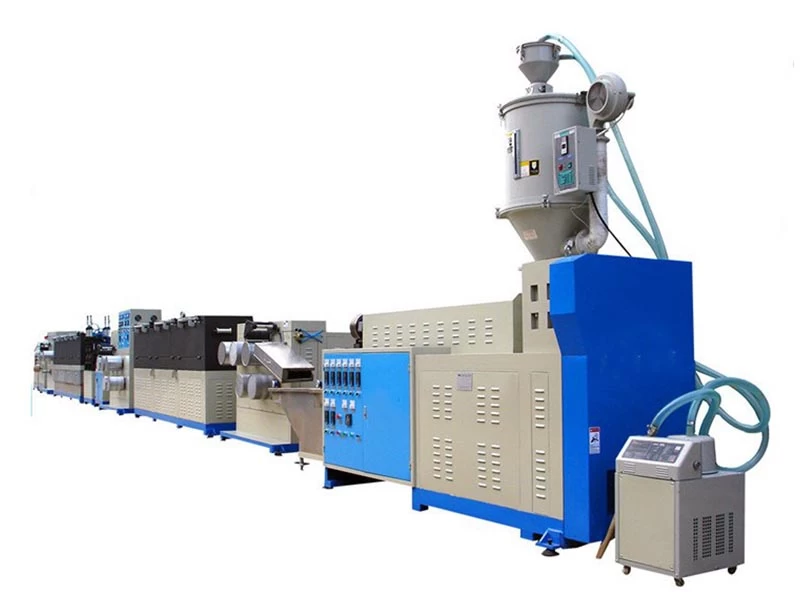

PET PP Bale Strap Band Making Machine

The whole design more reasonable and running smoothly,owe to the perfect quality and good service , our PET / PP strap band making machine win the wide support from our customers .

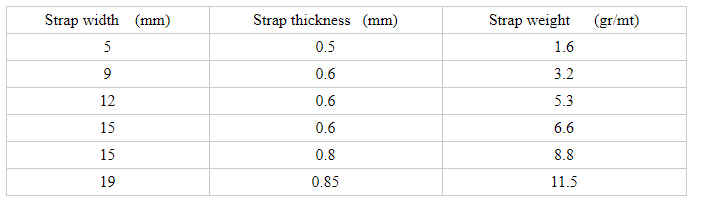

Size and Specification:

Detailed Parameter :
Φ65extruder: one set
Screw: one
Screw diameter: 65mm
Screw L/D: 28:1
Screw style: special
Reducer unit(Gearbox): one
Control power: 22kw
Control style: frequency conversion
Temperature controller: 6
Radiator zones: 4 zones
Electric control cabinet: one

Manual style screen changer: one set
Extruding mould: one ( For extrude two piece strap at same time)(sizes:5~19mm)

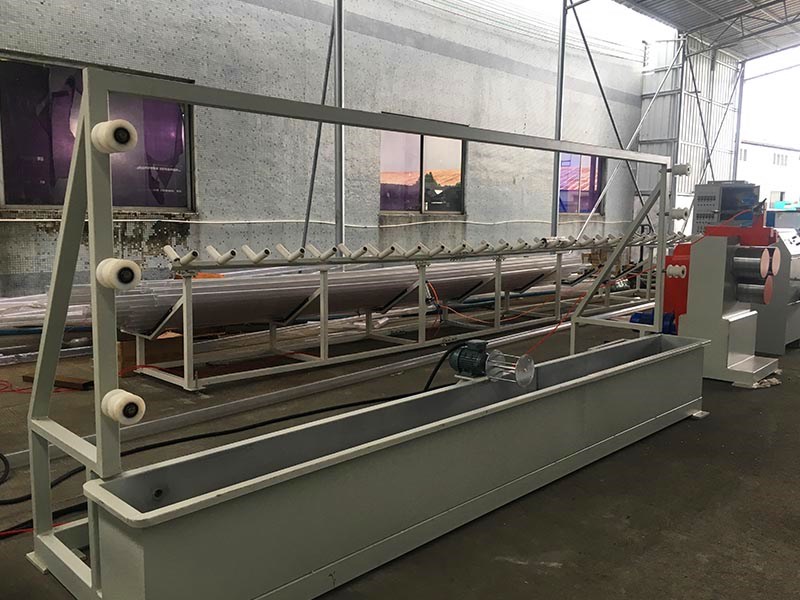

1m stainless steel cooling water bath: one set
Water bath stand: one set
Five-roller haul off machine: one set

Control power: 1.5kw
Control style: frequency conversion
Dual-tier water stretching bath: one set (One bath full of hot water, the other one full of cool water)
Bath stand: one
Dewater vibrator: one
Five-roller haul-off machine: one set
Control power: 5.5kw
Control style: frequency conversion
Embossing unit: one set
Two-shaft winder: one set
Driver: 2HP motor with a inverter control

PP Strap Making Machine Advantage:
Dual coils work alternatively; the coil is token down by hand; the packing is easy (diameter of coil is decided by customers)
Gear motor decides the good winding work.
The counter equipped with a coder is able to alarm automatically when the length of the pipe comes to the set value.
Linear speed: 40-80m/min
Automatic Grade:Fully Automatic
Screw Design:Single-screw
Certification:CE ISO
Brand Name:Reliable
