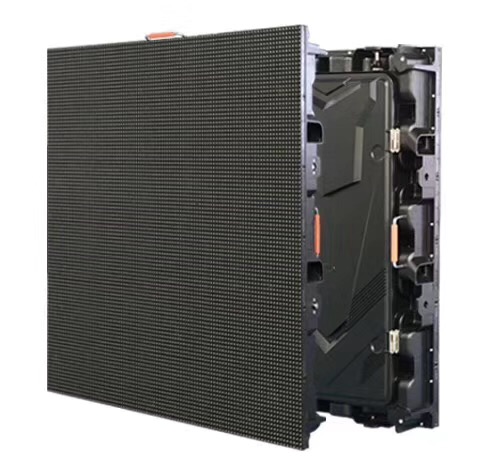

PH5 Outdoor SMD LED Display Aluminum 960 x 960 Panel Size

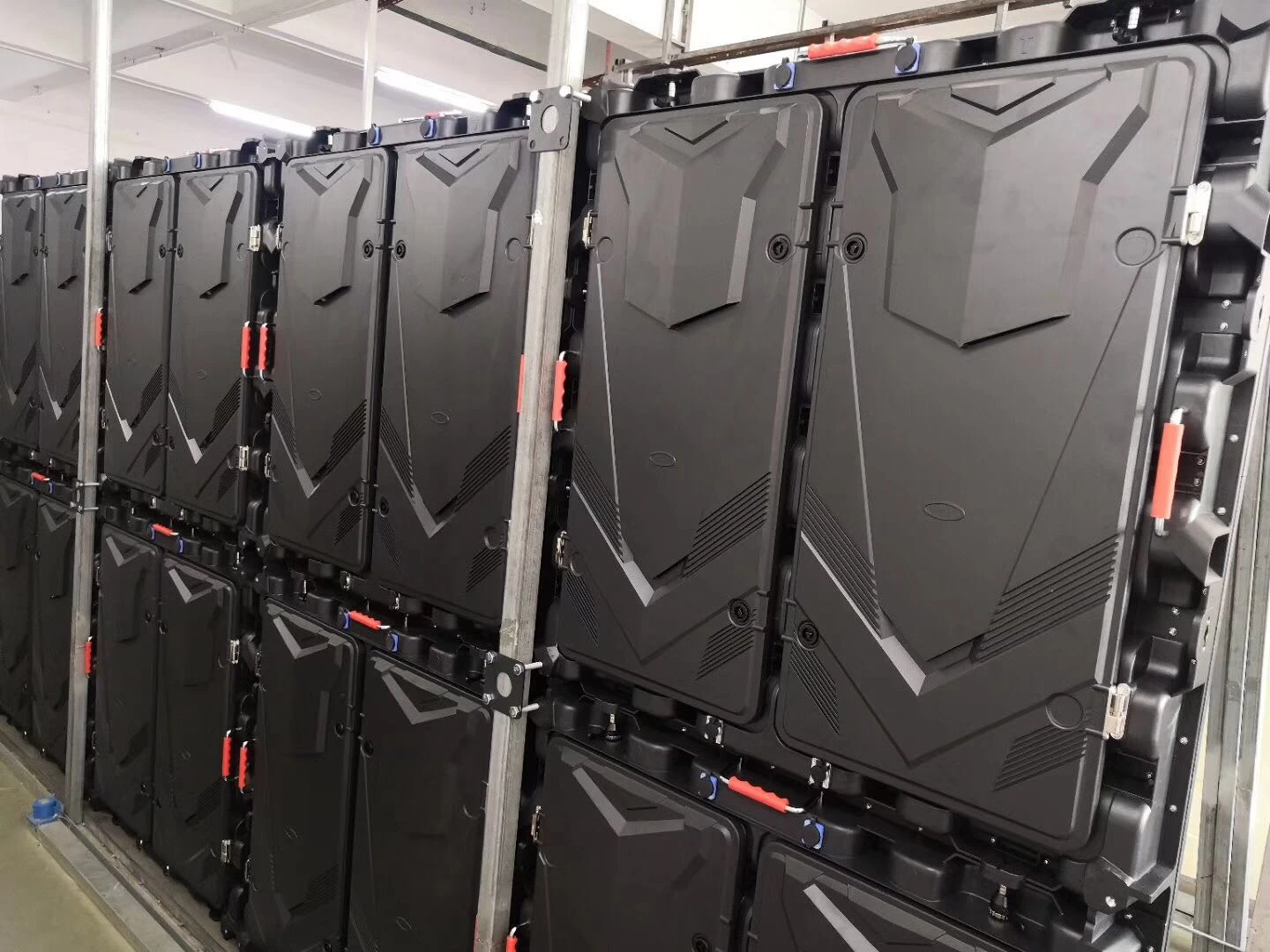

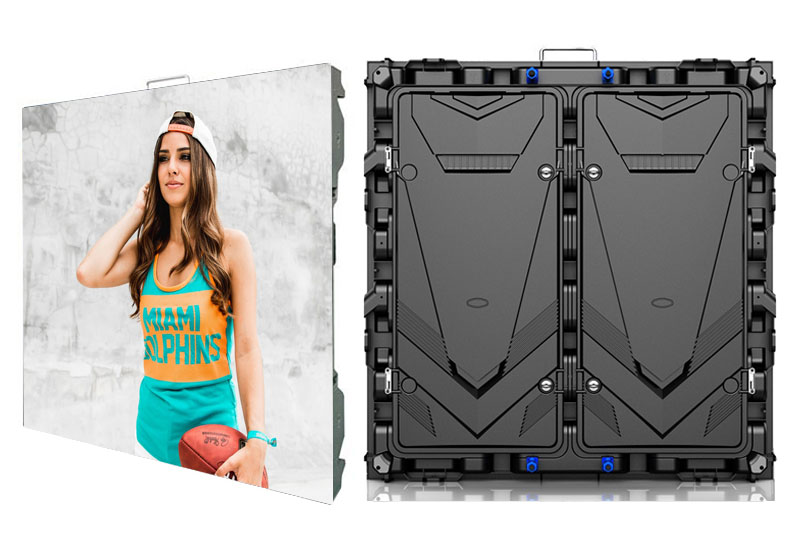

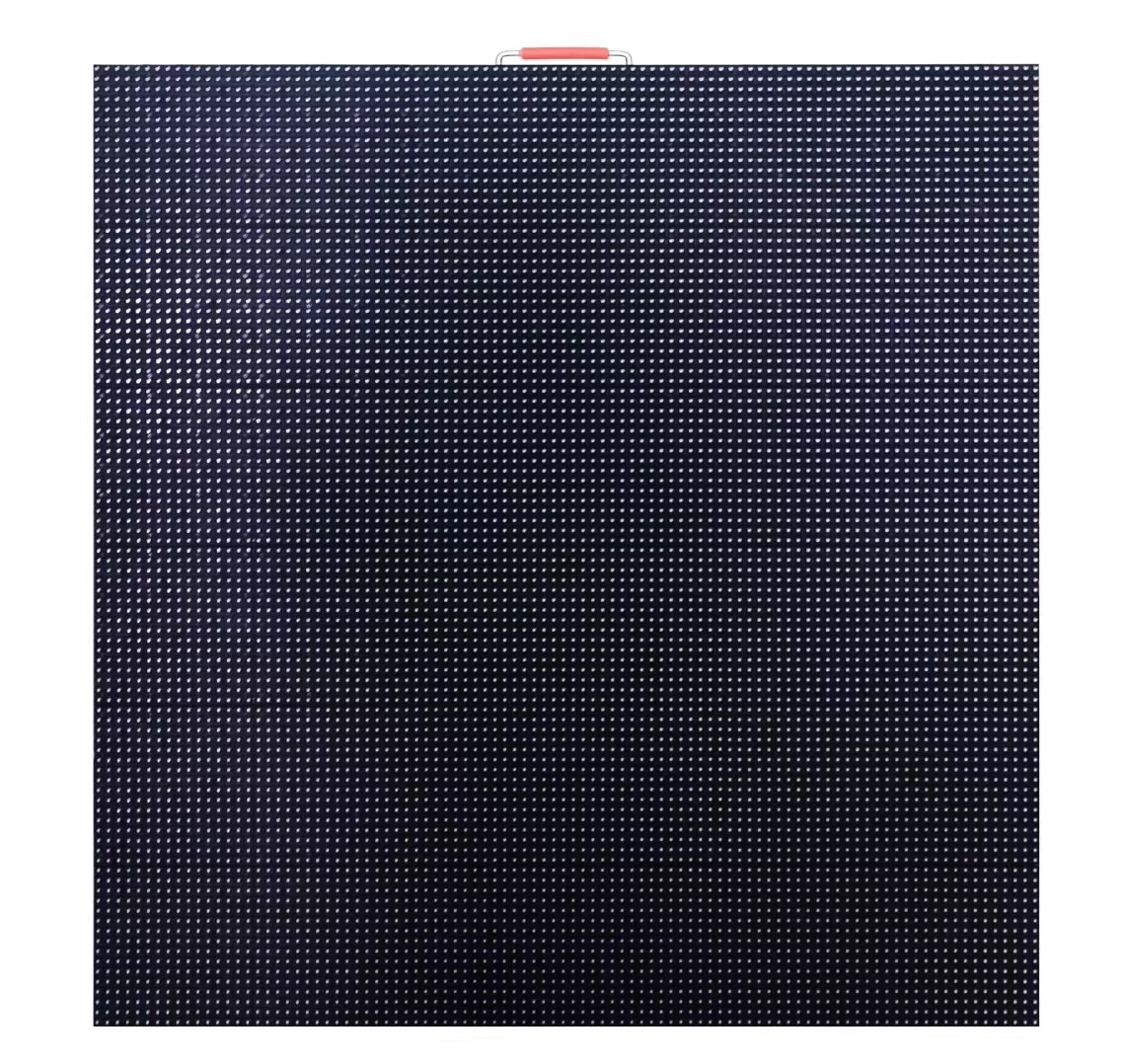

New Design P5mm outdoor led displays Standard Size 960mmx960mm, Die Casting Aluminum Less Weight Magnesium Alloy LED Display Panel For Fixed led screen Installation outside
Features:
Nationstar SMD Gold Wire LED Chips
LED Lamp SMD3535 or SMD2727
Driving IC MBI5124
4 Layer PCB Board
Novastar Controller Cards
Meanwell PSU
High Quality LEDs
The Outdoor LEDs we choose Nationstar LED that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.
Driving IC
To achieve the best visual performance of our indoor and outdoor led display,we use the Best Driving IC,such as MBI5124,SUM16136 with high refresh rate,high grey level with latest technology. and config the best Brightness Efficiency by the LED Screen Software.

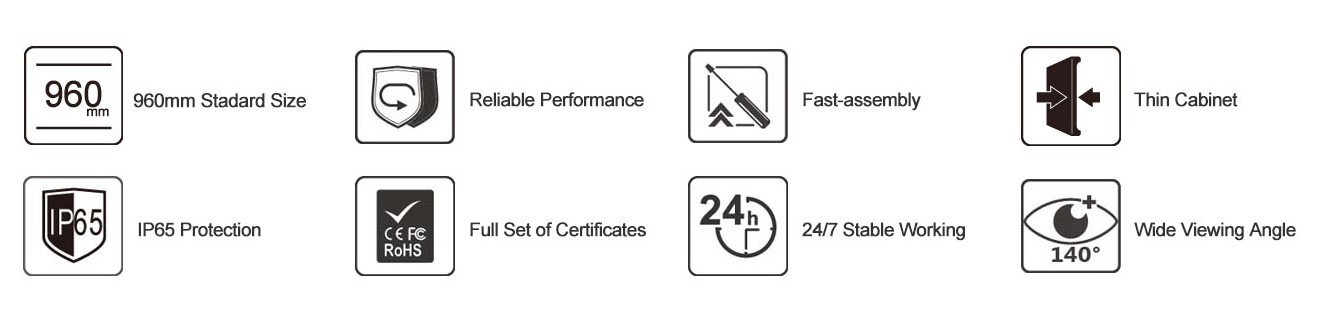

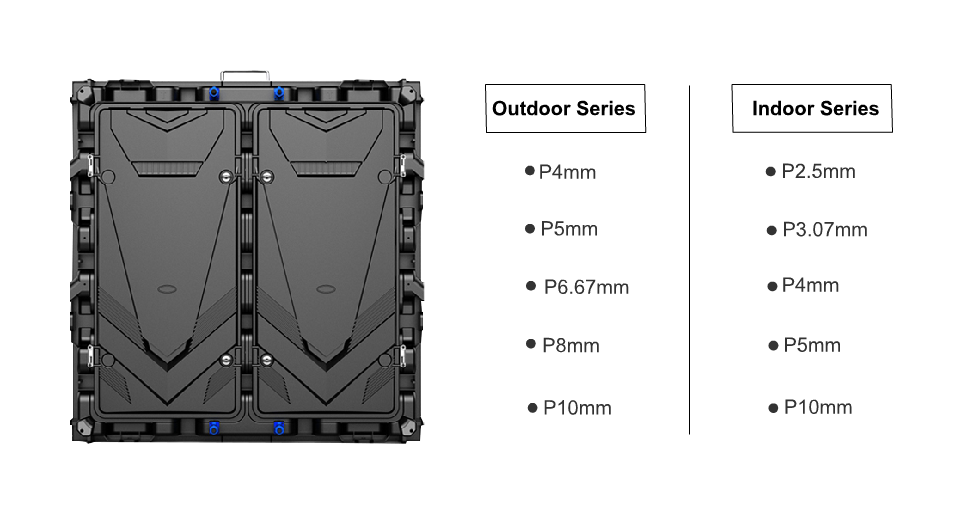

Standard outdoor led display module Advantage
1) Unify the standard led display Module Size: 320mmx160mm.
2) Unify the Standard LED Display Cabinet Screw Holes for all Kinds of standard led module.
3) Pay more attention to the standard led screen display performance.
4) Pay more attention to the Quick Assembling and Maintenance.

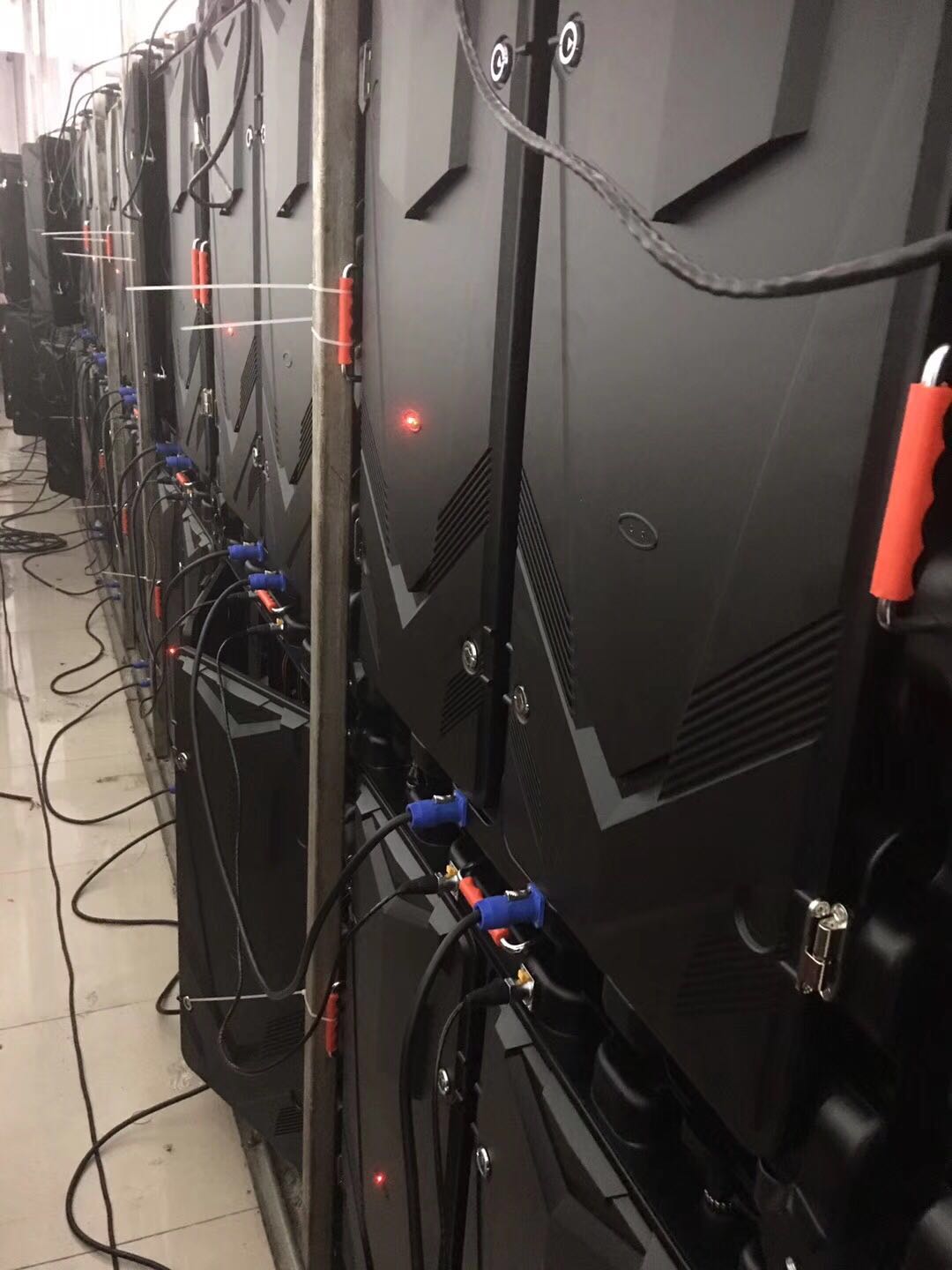

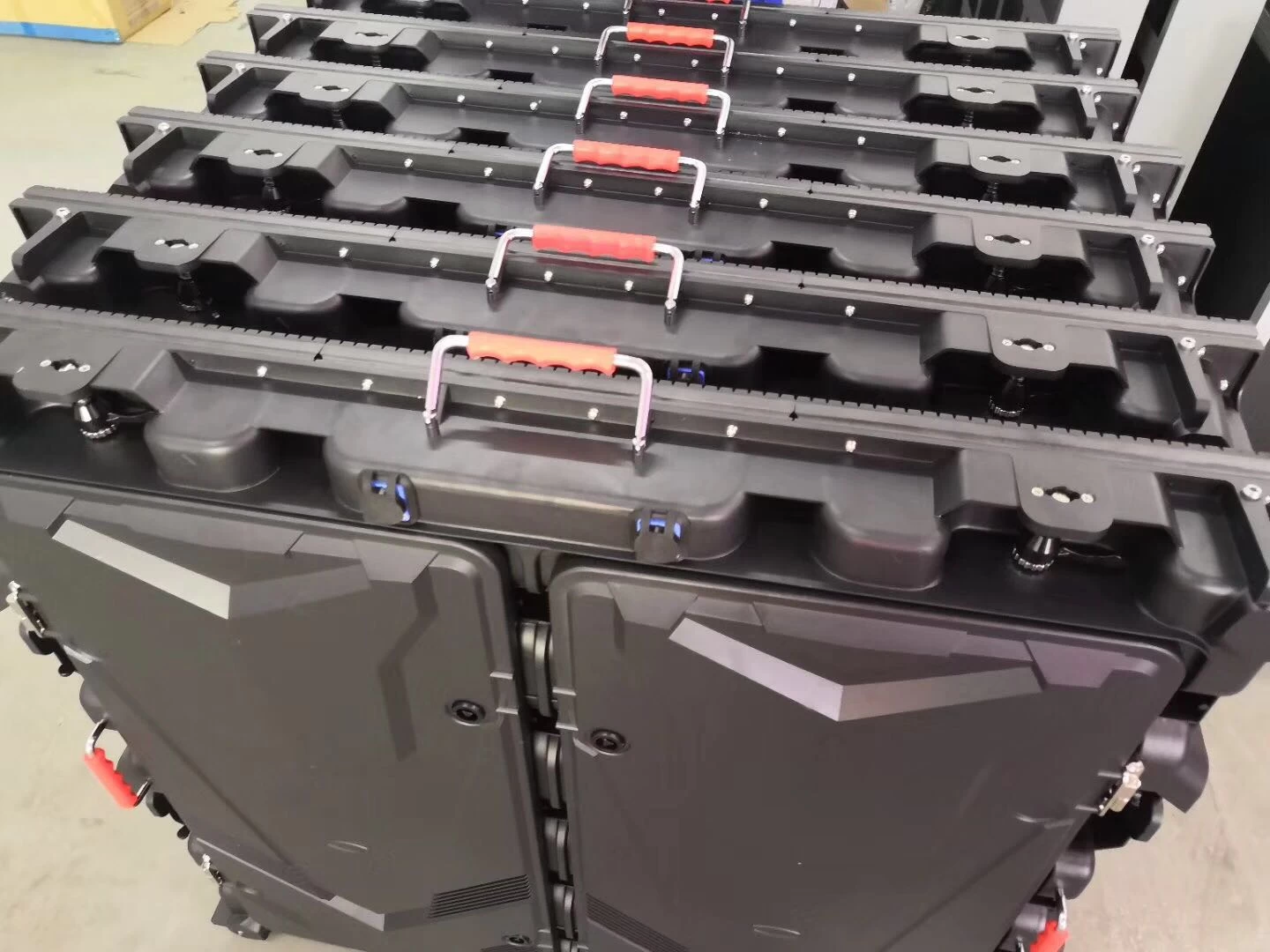

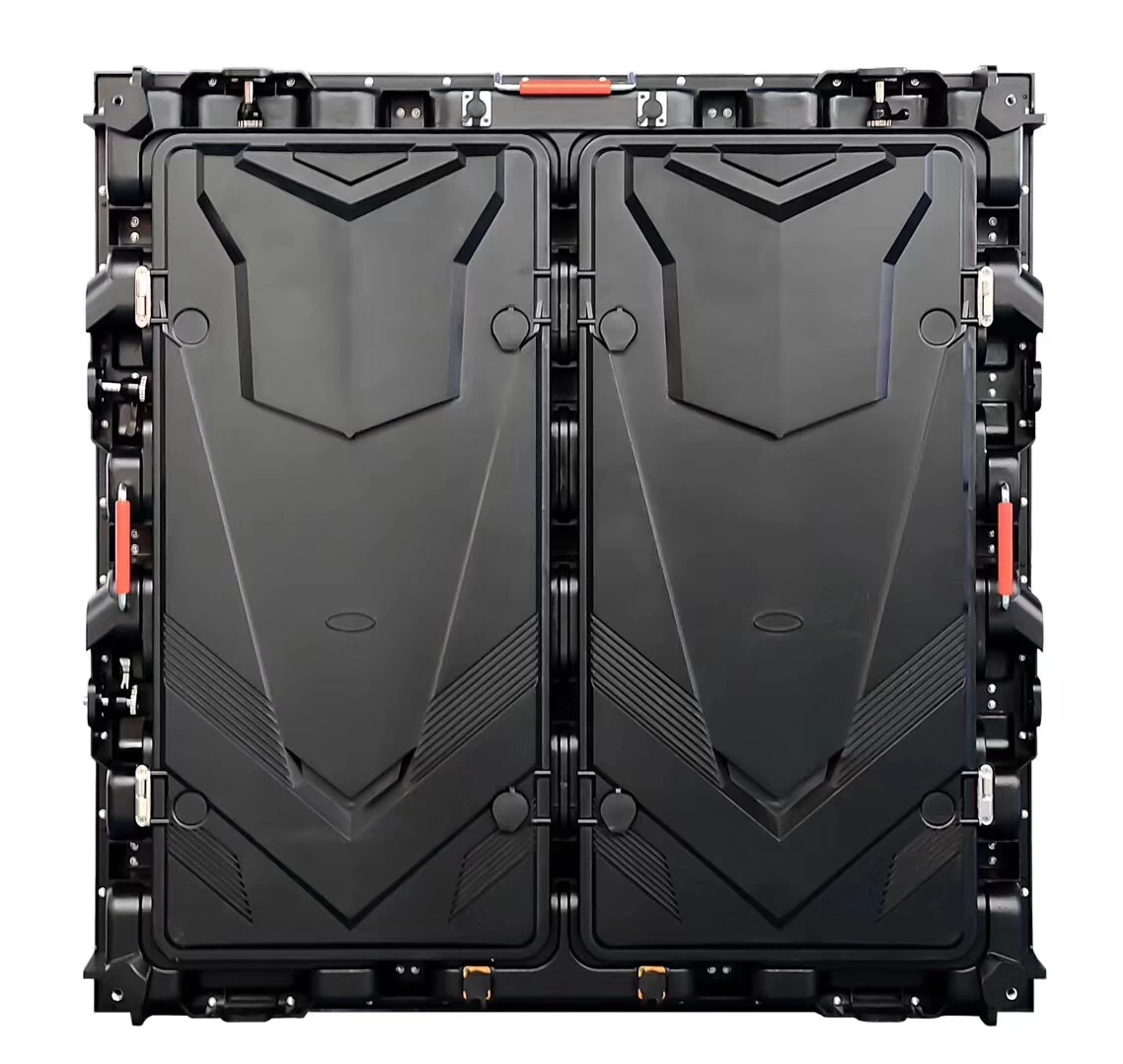

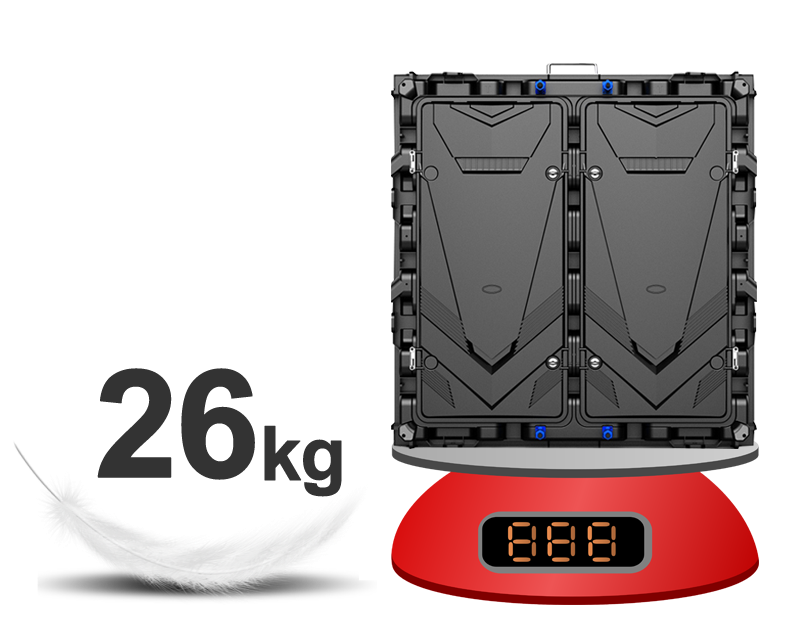

Less weight led display cabinet with quick locks,delicate structure for easy installation without Gaps.
led display screen can be widely used for indoor and outdoor application, for fixed led screen or for rental led display purpose.
High light LED lamps and A-class material plastic parts.
The chip packaging using pure gold wire welding, red chips use double golden wires ensure the stability.
Copper plated with silver holder; Gold-plated signal and power connectors, Butterfly clasp environmentally pure copper cable; Pure copper power cable.
Dedicated high-end outdoor black face glue, ink brush five-sided lamp beads, black plastic irrigation to ensure Screen screen color consistency
P5 Outdoor SMD and P5 Full Color Process Features LED Discrete Control Technology
Because of the paramenter differences of LED light material and long- term use attenuation resulting in poor uniformity of LED pixels and mosaic,which become a common problem at the LED display industry.
BARCOLED use "LED discrete control technology" to improve the original method of the current regulation of the entire screen, luminescent materials to be procured before processing sub-unified file, the same grade of material concentrated in a particular area of the display body by regulatory region of luminance and chrominance synthesis to achieve uniformity of the entire screen to adjust.At the same time, using the single point/single color adjustment technology, greatly improving the brightness of the screen body/uniformity.
Arrange / Process technology
Technicians through long-term experience concluded that use unique equal space technology apply to LED single light in order to achieve good mixing effect.Ensure the LED display video image is clear, softy.
The application of fixing mask
Adopt Fixed Mask in order to make sure LED single light in-line and position precision and meanwhile ensure the screen background color consistency and uniformity under black screen situation.
LED Lamp Parameters
|
Item
|
Luminous Intensity
|
Viewing Angle(H/V)
|
Wavelength
|
Test Condition
|
|
Red LED
|
500-900mcd
|
160º/140º
|
620-630nm
|
25℃,20mA
|
|
Green LED
|
1800-2200mcd
|
160º/140º
|
520-535nm
|
25℃,20mA
|
|
Blue LED
|
250-500mcd
|
160º/140º
|
465-475nm
|
25℃,20mA
|
LED Display Module Parameters
|
Pixel Pitch
|
5mm
|
|
Pixel Configuration
|
1R1G1B SMD 3in1
|
|
Module Resolution
|
64dots*32dots for real
|
|
Module Pixels
|
2048 dots
|
|
Module Size
|
320mm*160mm Or 160mm*160mm
|
|
Module Weight
|
0.5KG
|
LED Display Cabinet Parameters
|
Cabinet Size(W*H*D)
|
960*960*80(mm)
|
|
Cabinet Resolution
|
64dot*32dot for real
|
|
Module Quantity
|
18 pcs
|
|
Cabinet Pixels
|
9216 dots
|
|
Pixel Density
|
36864 dot/sqm
|
|
Avg. Power Consumption
|
300W/sqm
|
|
Max. Power Consumption
|
800W/sqm
|
|
Material
|
Iron or Aluminum
|
|
Cabinet Weight
|
40KG for iron cabinet;
30KG for aluminum cabinet
|
LED Video Screen Parameters
|
Brightness
|
≥7000cd/sqm
|
|
Contrasts (Max. /Min.)
|
1.1:1
|
|
Driving Method
|
Static
|
|
View Angle
|
Horizontal 160° Vertical 140°
|
|
Optimal Viewing Distance
|
5m to 100m
|
|
Brightness Control
|
Red, Green and Blue 256 Grade/Each
|
|
Fresh Frequency
|
≥3840Hz
|
|
Frame Frequency
|
50 - 60Hz
|
|
Input Voltage
|
AC220V/50Hz or AC110V/60Hz
|
|
Defects Rate
|
≤0.00001
|
|
Screen Weight
|
≤40kg/sqm for Iron cabinet /30kg/sqm for Aluminum cabinet
|
|
MTBF
|
>10,000 hours
|
|
Life Span
|
≥100,000 hours
|
|
Brightness Uniformity
|
<3%
|
|
Earth Leakage Current
|
<3mA
|
|
Protective Grade
|
IP65
|
|
Temperature-operating
|
﹣40°C to 60°C
|
|
Humidity-operating
|
10% to 90%
|
|
Operating System
|
Windows98/me/2000/NT/XP/win7/win8/win10
|
