Pharmaceutical stability test chambers
XCH CSD Series Biomedical stability pharmaceutical chambers, Two case independent control,CSD series, A Chamber has three functions: temperature, humidity and illumination. near ultraviolet lamp tube can be optional,Meet the requirements of the stability test guidelines of the 2020 edition of pharmacopoeia; B Chamber can only control and record temperature and humidity.
Key Features:
Stability Test System:
-
CSD series: A with function of illumination, Illumination Range: 100 ～ 8000Lux,Near Ultraviolet Range: 0.84 ～ 5w / m2 ,Illuminance deviation: 4500±500Lux
-
Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.
-
Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance.
-
Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean
-
Refrigerating System: The imported fully enclosed industrial compressor, long-life, low noise
Temperature Control and Safety Monitoring：
-
Temperature Fluctuation ≤ ±0.5℃
-
Temperature Deviation ≤ ±1.0℃
-
Installed Power: AC220V±10% 50HZ
-
Environment temperature: +5~35℃
Humidity Control:
-
Humidity Fluctuation ≤ ±3%RH
-
Humidity Deviation ≤ ±3%RH
-
Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free
Easy to Operate:
-

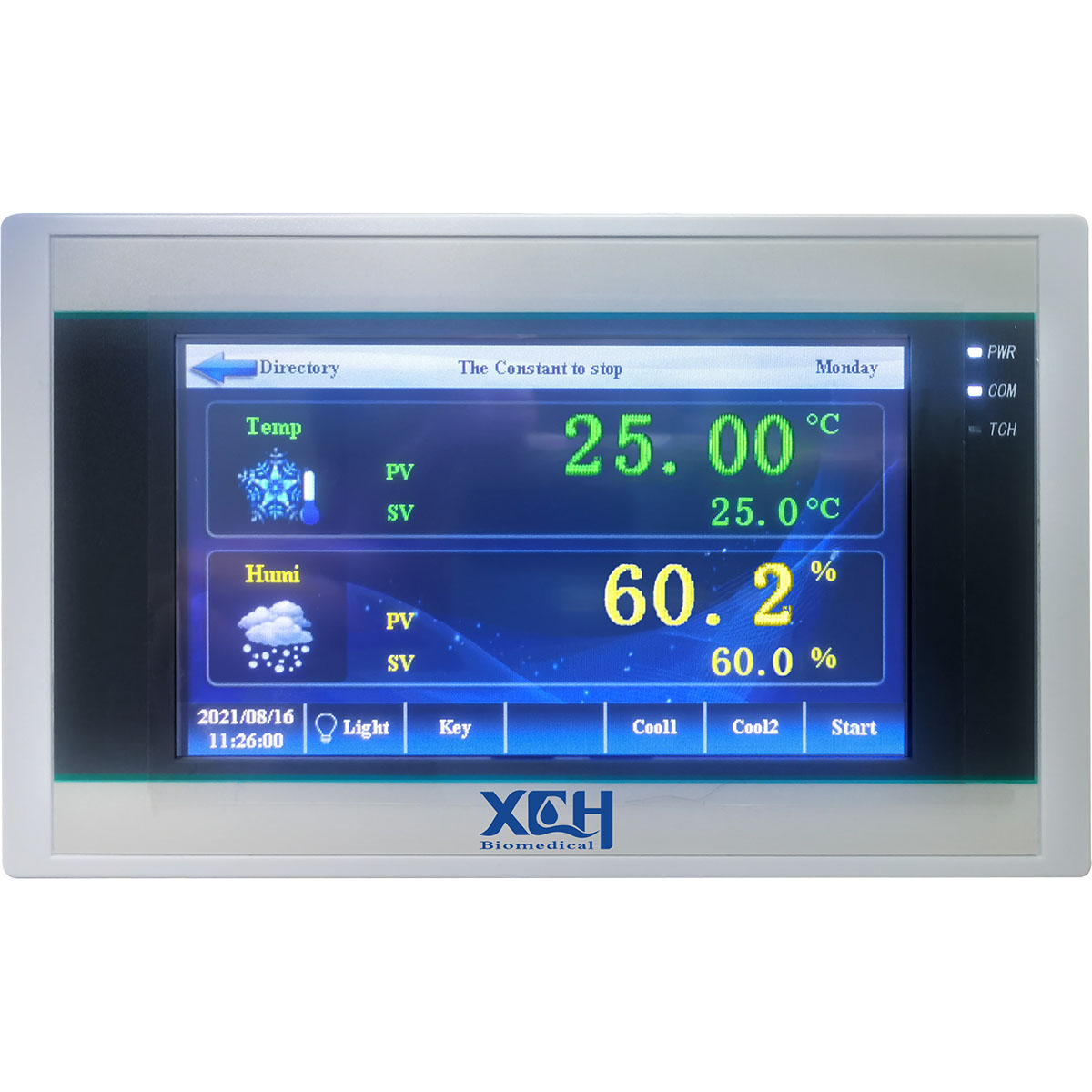

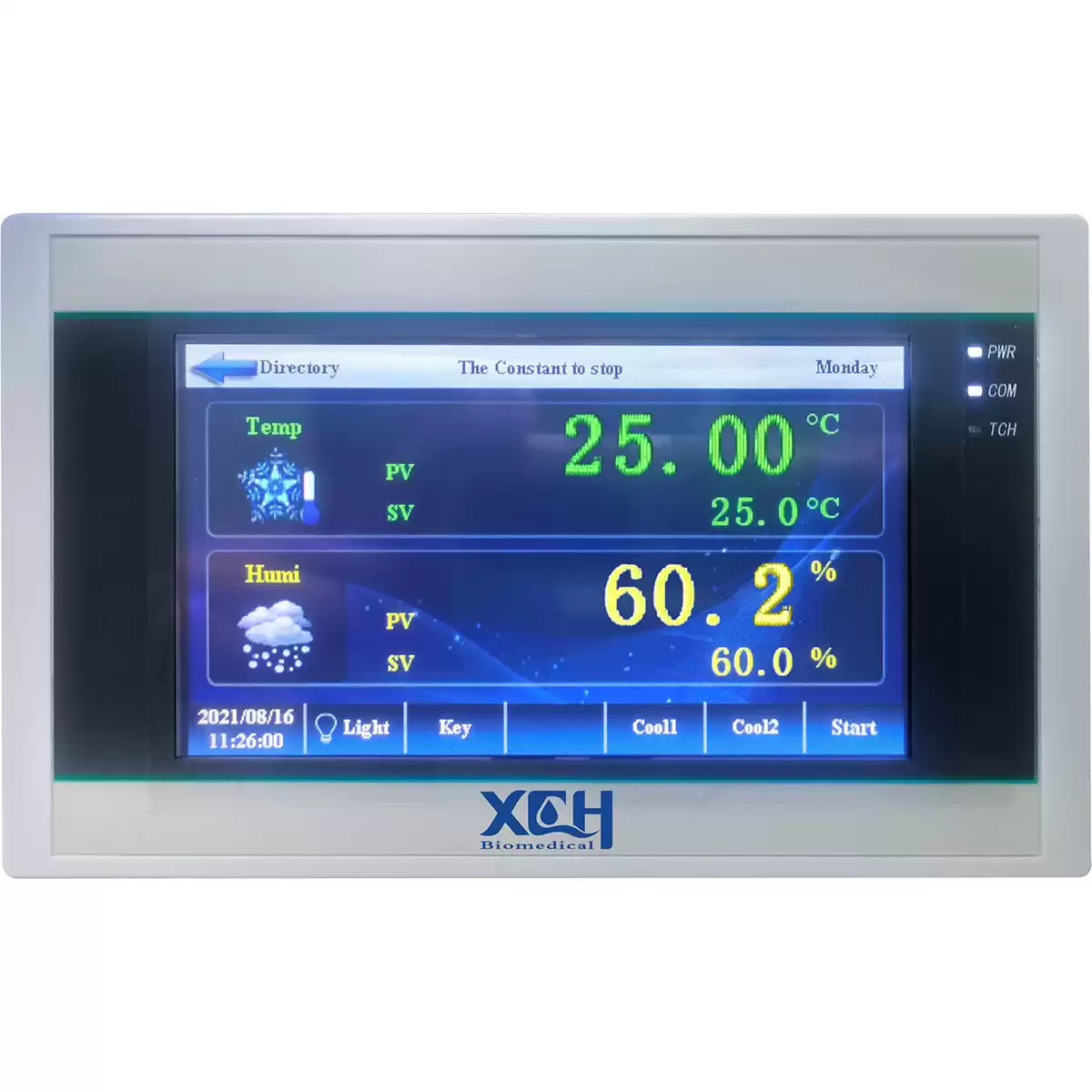

Control System: Two sets color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail
-
Illumination System: Equipped with illumination sensor,direct illumination display, equipped with illumination storage and printing system
-
Data Record: Equipped with data collection system conform to GMP requirements,Two sets Needle micro printer and USB output port as standard
Safety Control:
-
Safety device: compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection.
-
Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.
-
Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply
-
Meet a criterion: Meet ICHQ1A(R2)、Q1B、Chinese Pharmacopoeia 2020 edition
-
SMS alarm: Optional
Stability chamber specification:
|
MODEL
|
TEMP CONTROL RANGE(℃)
|
HUMIDITY CONTROL RANGE
|
CAPACITY(L)
|
INTER DIMEN
W×D×H(mm)
|
EXTER DIMEN
W×D×H(mm)
|
POWER(KW)
|
Shelf (Standard)
|
Shelf (Standard)
|
Remarks
|
|

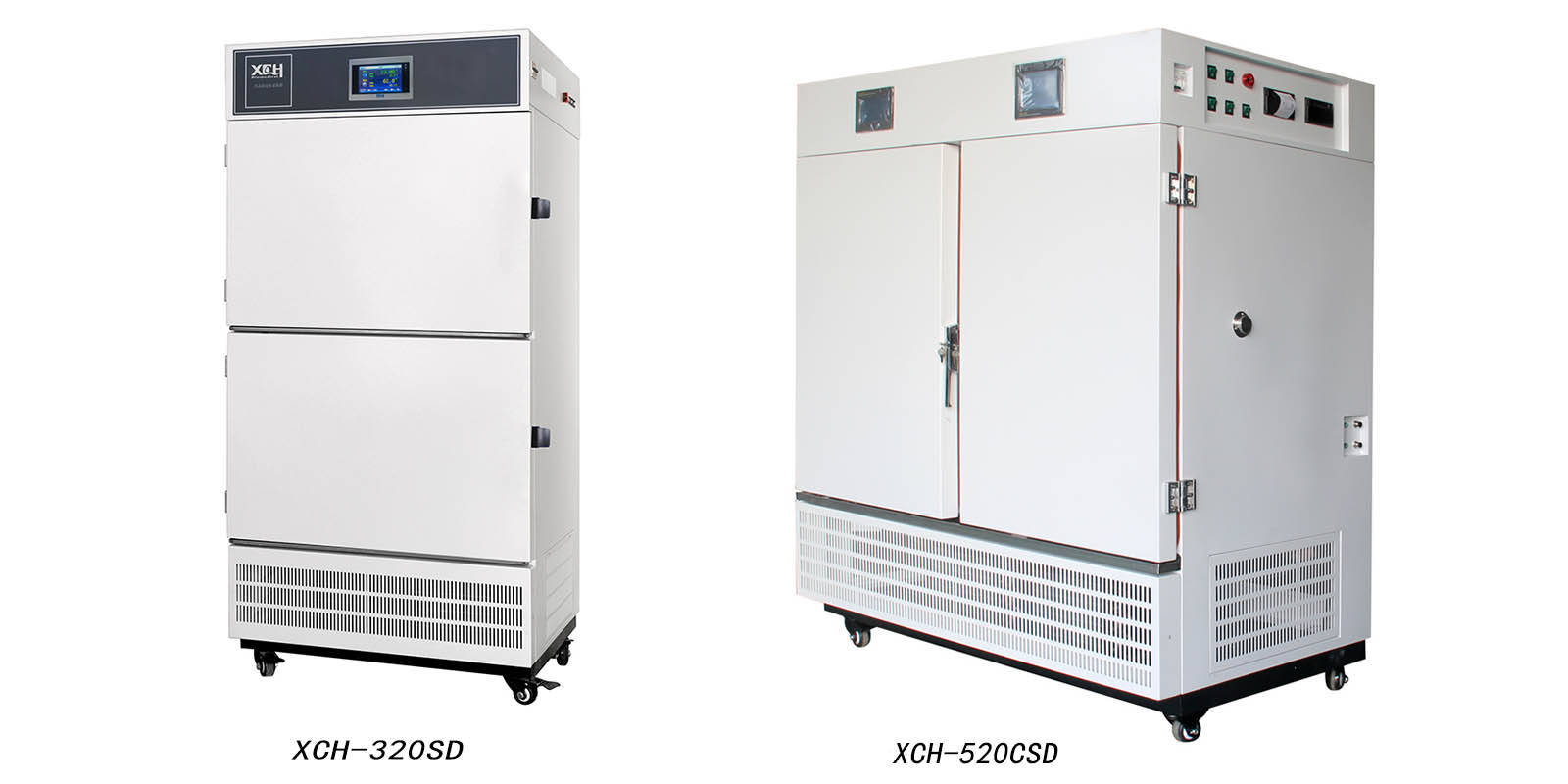

XCH-320SD
|
10 ～ 65
|
20 ～ 95%
|
150
|
680×500×460
|
840×840×1880
|
2.5
|
2
|
Up
|
A box (temperature + humidity)
|
|
10 ～ 65
|
20 ～ 95%
|
150
|
680×500×460
|
2.5
|
2
|
Down
|
Box B (Temp + Humidity)
|
|
XCH-520SD
|
10 ～ 65
|
20 ～ 95%
|
250
|
600×500×830
|
1560×870×1650
|
3.0
|
3
|
left
|
A box (temperature + humidity)
|
|
10 ～ 65
|
20 ～ 95%
|
250
|
600×500×830
|
3.0
|
3
|
Right
|
Box B (Temp + Humidity)
|
|
XCH-620SD
|
10 ～ 65
|
20 ～ 95%
|
300
|
600×500×1000
|
1560×870×1820
|
3.2
|
3
|
Left
|
A box (temperature + humidity)
|
|
10 ～ 65
|
20 ～ 95%
|
300
|
600×500×1000
|
1560×870×1820
|
3
|
Right
|
Box B (Temp + Humidity)
|
|
Double chamber, independent control
|
|
MODEL
|
TEMP CONTROL RANGE(℃)
|
HUMIDITY CONTROL RANGE
|
CAPACITY(L)
|
INTER DIMEN
W×D×H(mm)
|
EXTER DIMEN
W×D×H(mm)
|
POWER
|
Shelf (Standard)
|
Shelf (Standard)
|
Remarks
|
|

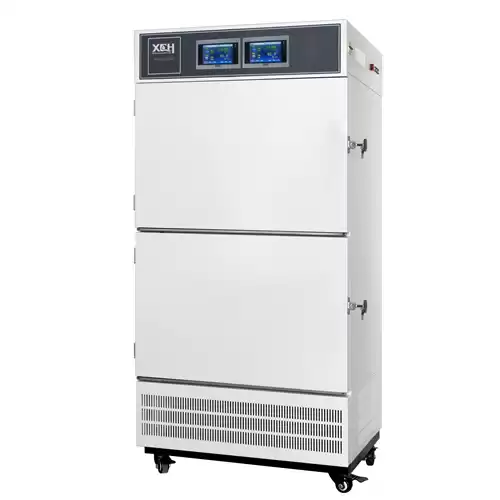

XCH-320CSD
|
15 ～ 65
|
20 ～ 95%
|
150
|
680×500×460
|
840×840×1880
|
2.5
|
2
|
Up
|
A box (temperature + humidity + visible light)
|
|
150
|
680×500×460
|
2.5
|
2
|
Down
|
Box B (Temp + Humidity)
|
|

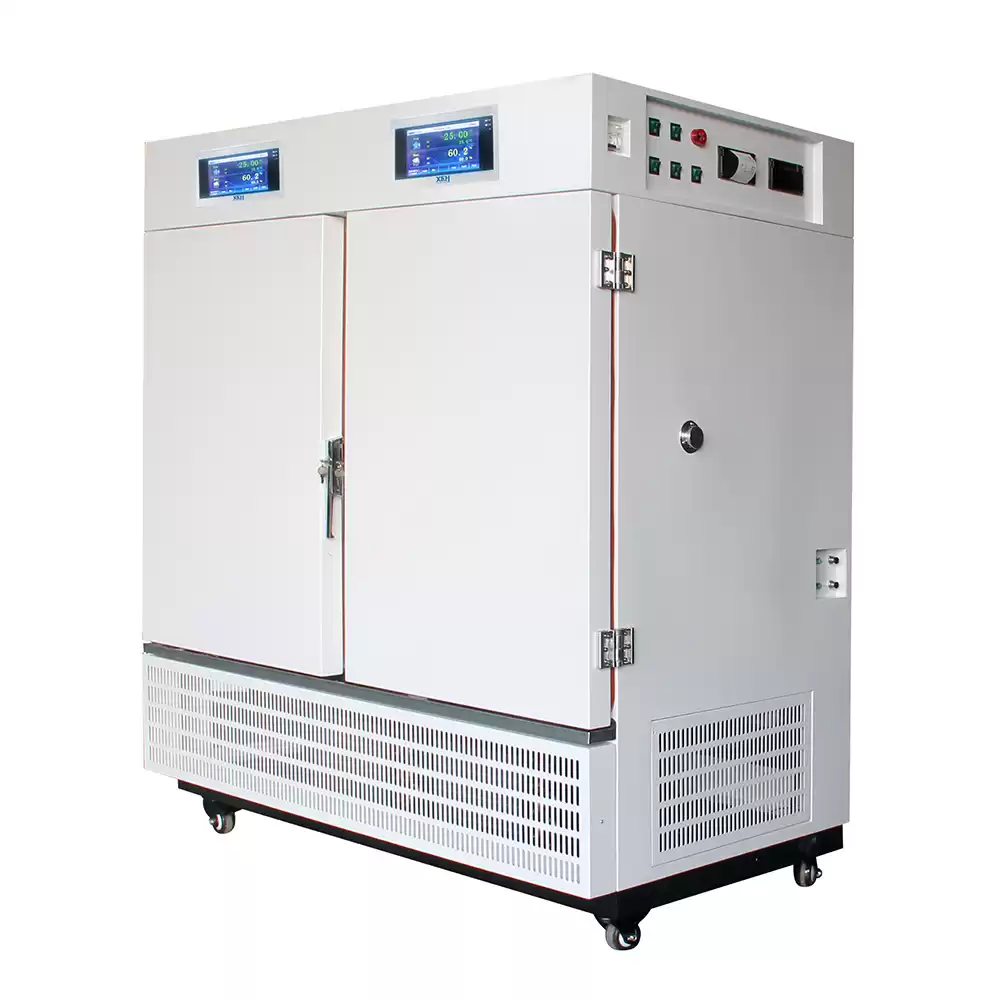

XCH-520CSD
|
15 ～ 65
|
20 ～ 95%
|
250
|
600×500×830
|
1560×870×1650
|
3.0
|
3
|
Left
|
A box (temperature + humidity + visible light)
|
|
250
|
600×500×830
|
1560×870×1650
|
3
|
Right
|
Box B (Temp + Humidity)
|
|
XCH-620CSD
|
15 ～ 65
|
20 ～ 95%
|
300
|
600×500×1000
|
1560×870×1820
|
3.2
|
3
|
Left
|
A box (temperature + humidity + visible light)
|
|
600×500×1000
|
1560×870×1820
|
3
|
Right
|
Box B (Temp + Humidity)
|
|
|
Double chamber, independent control
|
Remark:
CSD series A equipped with temperature, humidity, visible light and NUV light four functions,Illumination measurement standard with visible and near ultraviolet sensors.Visible and near ultraviolet values are automatically printed and stored;Visible Range: 100 ～ 8000Lux，4500±500Lux，The total illumination of the light test shall not be less than 1.2×106 Lux·hr Near ultraviolet range: 0.84 ～ 5w/㎡，Near ultraviolet energy shall not be less than 200w·hr//㎡
Application:
XCH-SD series Medicine Stability Testing Chamber Dual Chamber provide long-term stable temperature, humidity and light environment to detect the expiration date of drugs, used for long-term test, accelerated test, high humidity test, strong light irradiation test and drug stability test.
Advantages:
Sensitive, small system error
Two boxes of independent control
No pollution source and is easy to clean
Low cost
