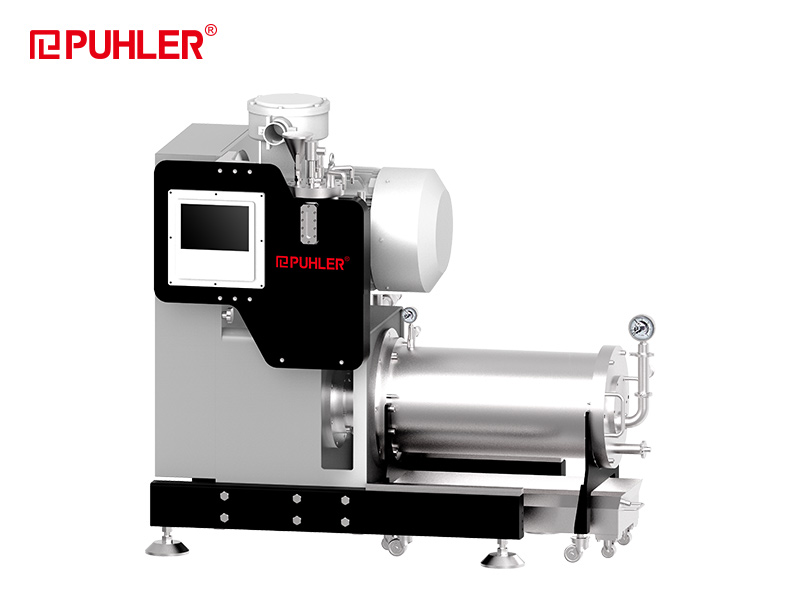

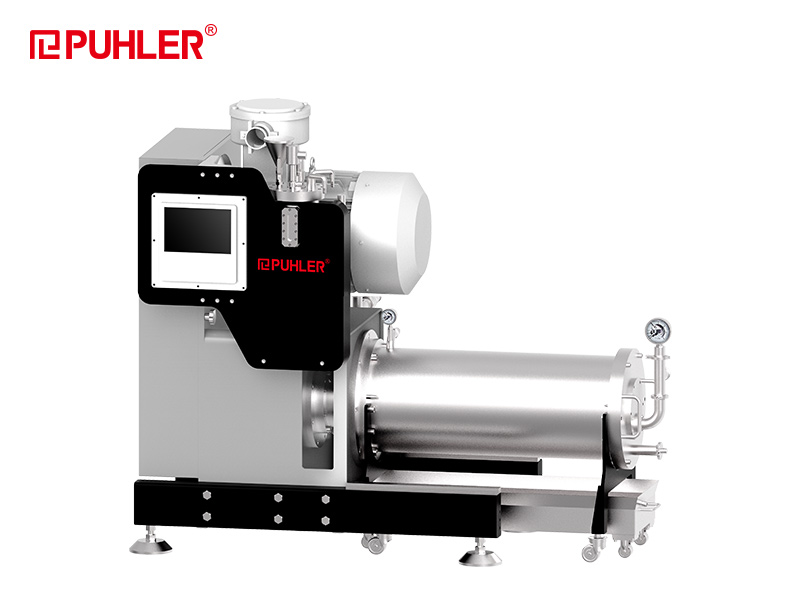

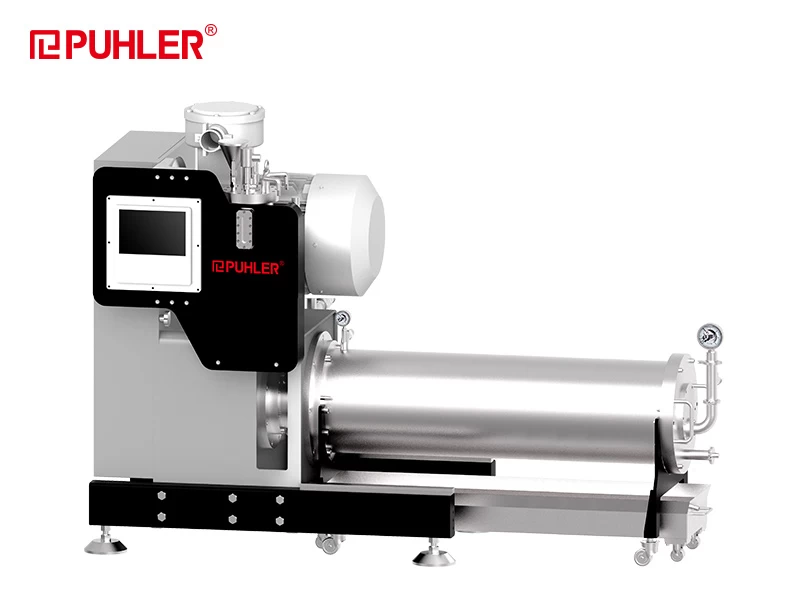

PHE SuperMaxFlow®+H is an bead mill with centrifugal force separation device. The product outlet is at the back end of the grinding
chamber, beside the mechanical seal. The traditional SCS large-flow sieve drum centrifugal separator and dynamic classifier perfectly
combine to form SMF+ efficient centrifugal dynamic separation system, which can be applied to the grinding of materials with
maximum viscosity of 20000cps.
PHE SuperMaxFlow®+H is suitable for continuous or large-flow circulation ultra-fine grinding and dispersing, solid suspended particle
material or products with high fineness requirements, such as UV ink, automotive paint, wood paint, water-based paint, carbon black
and other medium and high viscosity products.
The structural design and arrangement of PHE SuperMaxFlow® +H series grinding elements are conducive to improving grinding and
dispersion efficiency. Within the dynamic classifier, SMF+ (SuperMaxFlow Dynamic Separator system) and the grinding pin are fixed
on the stirring shaft through screw and rotated together, forming a new efficient centrifugal dynamic separation system, which can
ensure the safe separation and discharge of grinding medium and materials even in the case of large flow or high viscosity. The outlet
is designed under the flange, avoid the separator blockage caused by the material precipitation, and the trouble of residue of too much slurry.
TECHNICAL PARAMETER:
|
Model [L]
|
|
5
|
15
|
30
|
60
|
100
|
200
|
300
|
500
|
1000
|
1200
|
|
Productivity enlarged
proportion factor
|
|
0.25
|
0.6
|
1
|
2
|
4
|
6
|
8
|
12
|
18
|
22
|
|
PHE SuperMaxFlow®+H
|
|
—
|
coming 2020
|
○
|
○
|
○
|
—
|
—
|
—
|
—
|
—
|
|
Volume [L]
|
|
—
|
—
|
33
|
73
|
151
|
—
|
—
|
—
|
—
|
—
|
|
Effective Volume [L]
|
|
—
|
—
|
26
|
50
|
90
|
—
|
—
|
—
|
—
|
—
|
|
Motor Power [KW]
|
*
|
7.5~11
|
15~18.5
|
18.5~22
|
37~45
|
45~55
|
75~90
|
90~132
|
132-200
|
280~315
|
315~355
|
|
Rotation Speed [rpm]
|
|
800~2300
|
700~1500
|
700~1500
|
700~1500
|
600~1450
|
600~1450
|
600~1450
|
600~1450
|
250~900
|
250~900
|
|
Diameter of
grinding medium [mm]
|
|
0.3-1.6
|
0.3-1.6
|
0.3-1.8
|
0.3-1.8
|
0.3-1.8
|
0.3-2.0
|
0.3-2.0
|
0.3-2.0
|
0.3-3.0
|
0.3-3.0
|
|
Filling rate of
grinding medium
[vol.%]
|
*
|
70~85%
|
70~85%
|
70~85%
|
70~85%
|
70~85%
|
70~85%
|
70~85%
|
70~85%
|
70~85%
|
70~85%
|
|
Batch of processing [L]
|
|
20~120
|
50~260
|
120~550
|
200~1000
|
500~2500
|
1000~3000
|
1000~3000
|
1000~5000
|
2000~10000
|
2000~10000
|
|
Rate of flow [L/h]
|
*
|
20~210
|
60~800
|
120~1600
|
300~2500
|
700~3500
|
800~4500
|
800~4500
|
1000~5500
|
4000~12000
|
4000~14000
|
|
Material of
grinding disk
|
ZrO2
|
○
|
○
|
○
|
○
|
○
|
—
|
—
|
—
|
—
|
—
|
|
PU
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
|
Alloy
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
|
Material of
inner chamber
|
SiC
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
—
|
—
|
—
|
|
ZrO2
|
○
|
○
|
○
|
○
|
○
|
—
|
—
|
—
|
—
|
—
|
|
Alloy
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
|
PU
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
○
|
|
Measurement [mm]
|
Length
|
1382
|
1536
|
1540
|
2147
|
2200
|
2700
|
2900
|
3800
|
5815
|
6795
|
|
Width
|
780
|
1010
|
1065
|
950
|
950
|
1100
|
1250
|
1350
|
2645
|
1345
|
|
Height
|
1455
|
1642
|
1945
|
1550
|
1550
|
2255
|
1850
|
2500
|
1680
|
2470
|
|
Weight [kg]
|
|
≈350 kg
|
≈750 kg
|
≈850 kg
|
≈1650 kg
|
≈2000 kg
|
≈2500 kg
|
≈2500 kg
|
≈8000 kg
|
≈9800 kg
|
≈10800 kg
|
|
o Optional - Unavailable * Depend on the viscosity, separation model and pump size
|
