Phenolic Contton Fabric Laminated Tube:

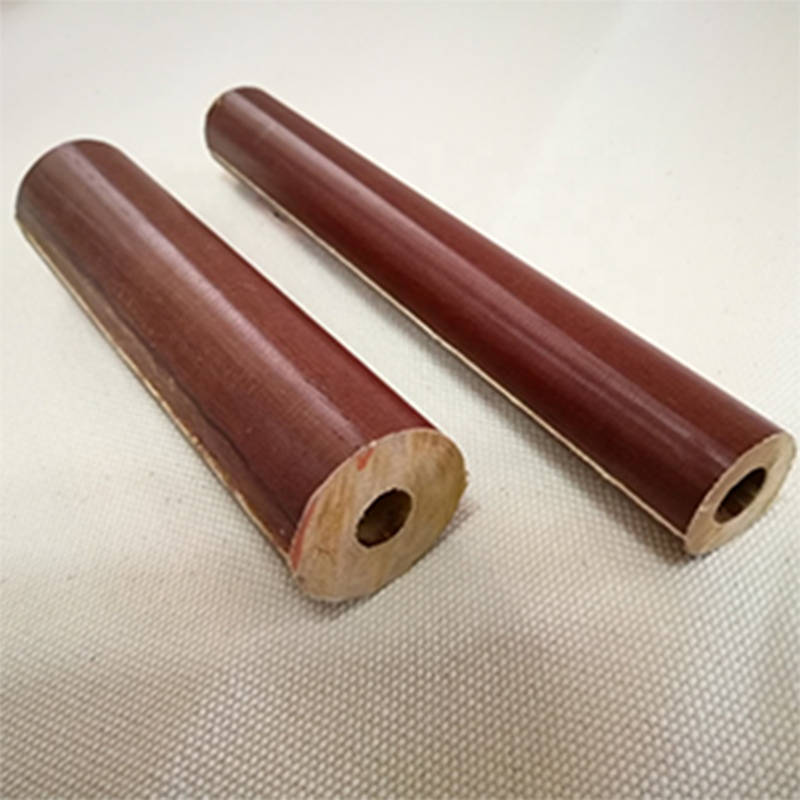

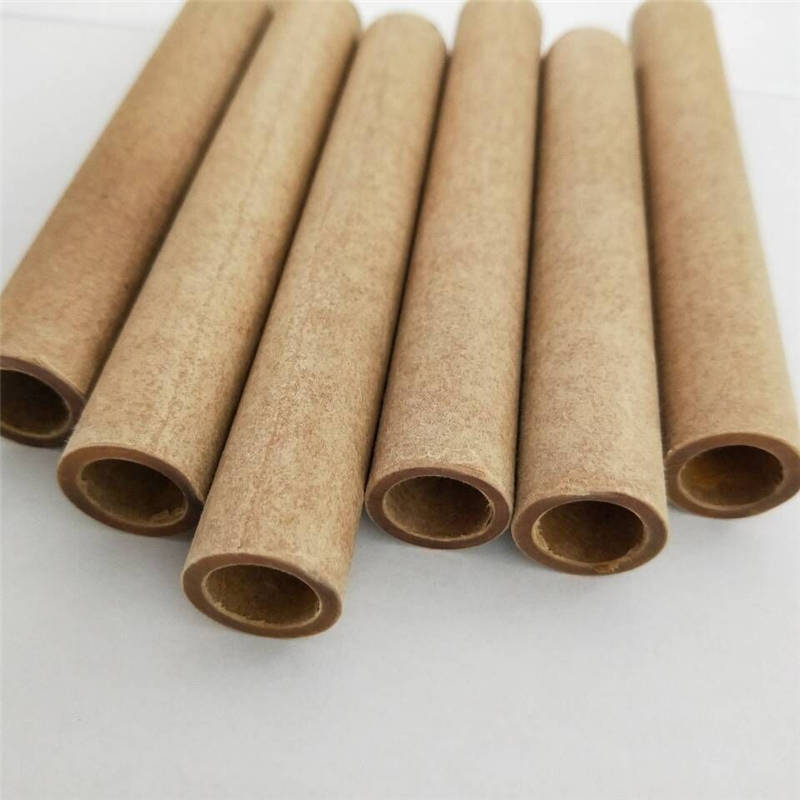

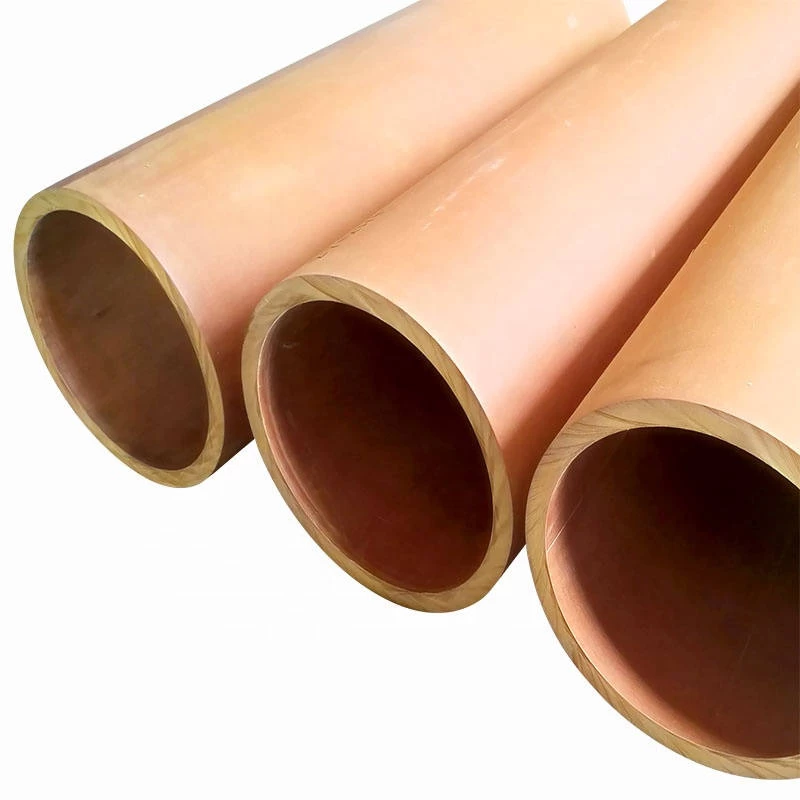

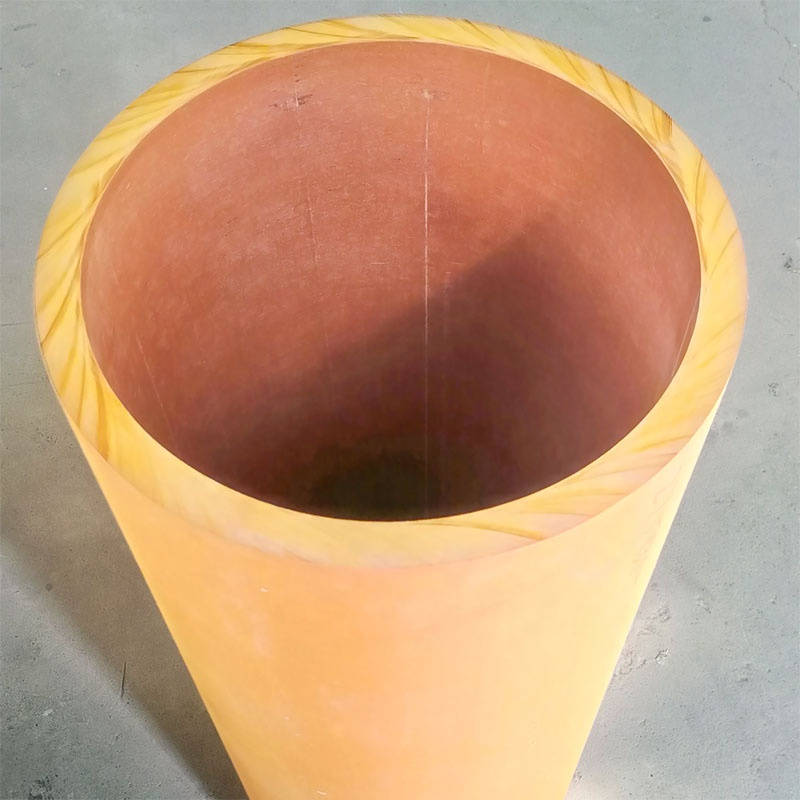

High quality phenolic cotton cloth / Paper tubes made of cotton fabric / paper impregnated with phenolic resin hot rolling and form into laminated tube.Also know as thermoset.The inner and outer surfaces of the phenolic cotton tube shall be free of edges, and there shall be no cracks, delaminations or sandwiches between the two ends of the tube, and the ends shall be cut neatly.
Offer high electrical and mechanical performance, including good electrical insulating properties, high moisture resistance, good dimentional stability, much better machinability than other phenolics.
Phenolic plastics can be machined, drilled, polished, tapped, turned, milling and cut.Its dielectric properties make it an excellent insulator for applications from transformers to circuit boards.Phenolic tubes also can be used for insulating washers, carrying electrical wiring or switchboard panels and they can be threaded, tapped, drilled or machined with equipment for wood or soft metals.JY Machinery supplies phenolic/micarta in sheet,rod and tube for all applications.
TYPICAL PROPERTIES of PHENOLIC LAMINATES:
|
ASTM or UL
test
|
Property
|
Paper
|
Canvas
|
|
D792
|
Density (lb/in³)
(g/cm³)
|
0.049
1.35
|
0.050
1.37
|
|
D570
|
Water Absorption, 24 hrs (%)
|
2
|
2.5
|
|
D638
|
Tensile Strength (psi)
-lengthwise
-crosswise
|
15,000
12,000
|
11,000
9,000
|
|
D790
|
Flexural Strength (psi)-lengthwise
-crosswise
|
16,000
13,200
|
17,500
15,000
|
|
D790
|
Flexural Modulus (psi)-lengthwise
-crosswise
|
1,100,000
900,000
|
1,600,000
1,500,000
|
|
D256
|
IZOD Notched Impact (ft-lb/in)-
lengthwise
-crosswise
|
0.65
0.60
|
1.70
1.50
|
|
D695
|
Compressive Strength (psi)
|
32,000
|
37,000
|
|
D785
|
Hardness, Rockwell M
|
M100
|
M100
|
|
D696
|
Coefficient of Linear Thermal
Expansion
(x 10-5 in./in./°F)
-lengthwise
-crosswise
|
0.80
1.20
|
1.10
1.22
|
|
-
|
Max Operating Temp (°F / °C)
|
257 / 125
|
257 / 125
|
|
C177
|
Thermal Conductivity
(BTU-in/ft²-hr-°F)
(x 10-4 cal/cm-sec-°C)
|
2.03
7.0
|
2.03
7.0
|
|
UL94
|
Flammability Rating
|
H-B
|
H-B
|
|
D149
|
Dielectric Strength (V/mil) short
time, 1/8" thick
|
750(XX)
|
550(CE)
|
|
D150
|
Dielectric Constant at 1 MHz
|
5
|
5
|
|
D150
|
Dissipation Factor at 1 MHz
|
0.045
|
-
|
|
D495
|
Arc Resistance (sec)
|
110
|
15
|
FAQ:
Q:What is Pultrusion?
A:Pultrusion is a method of manufacturing continuous fiber reinforced composites profiles. The manufacturing process is that where molten plastic or metal is pushed through a die. However,
with pultrusion, the material is "pulled" through a die.
Q:How to choose the right material for your project?
A:The materials you choose will affect the use of the products.Therefore, JY Machinery provides g10/f4 Garolite sheet/rod/tube as well as other phenolic options.Choosing the right materials for your project requires careful consideration of the following factors:
1)How the parts will be used and the stresses they will be subjected to
2)In what environment will it be used
3)What grade of dimensional tolerance is required
4)Your budget and your timeline for completion
5)What's the requiremnts of surface treatment?
6)Wha's the working temperature for the part?
Checking the material properties of G10 / FR4 should be the first step in determining if it is right for you.JY machinery has decades of experience in plastic material processing, and is more than willing to provide our advice for your design choices based on the machinability, stability and availability of materials.For help or other technical help, talk to us today
