Philippines custom made 5tons street cleaning sweeper truck Isuzu
Basic Description
Philippines Isuzu street sweeper truck (also called as Road sweeper truck, sanitaiton vacuum road sweeper truck, street cleaning truck, brush road sweeper, dustbin road sweeper, compact road sweeper, Isuzu vacuum street sweeper, Japan brand Isuzu 4x2 road cleaning truck, Isuzu road sweeper truck with spray dust equipment)

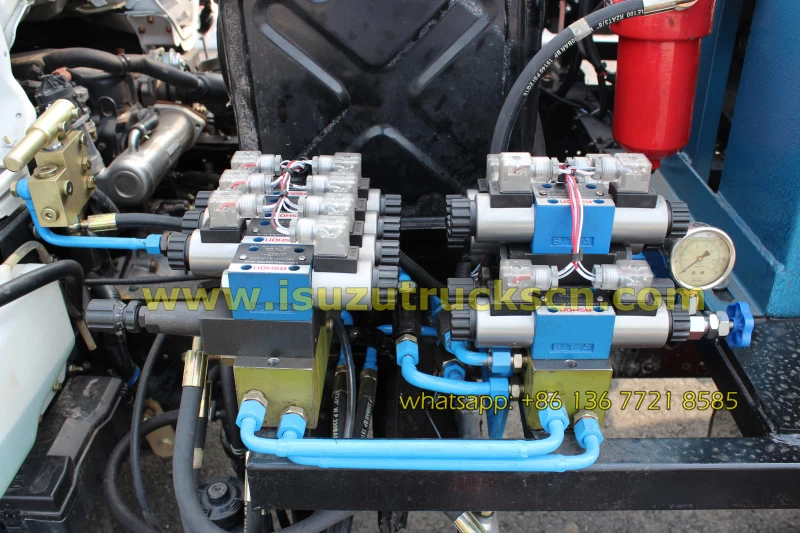

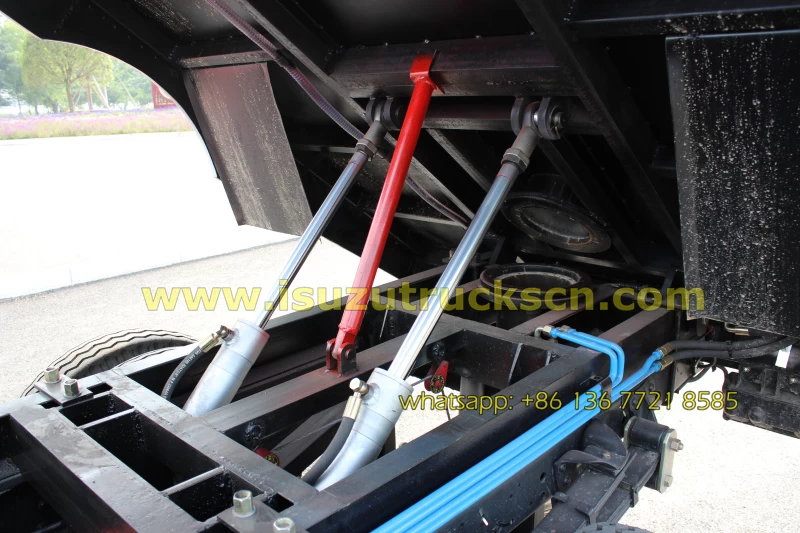

Isuzu Road Sweeper Truck PT5070TSL adopts the way of suction and sweeping combination, wet dust removal, electro-hydraulic control and hydraulic dumping unloading to clean the road.

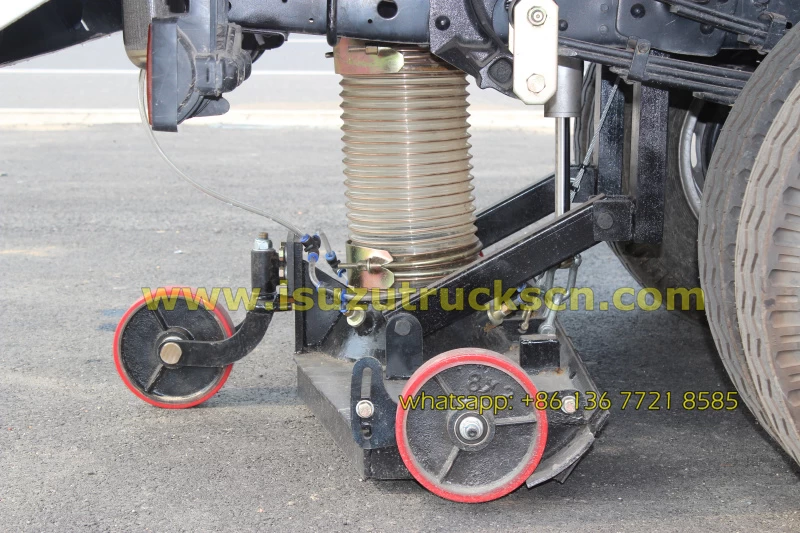

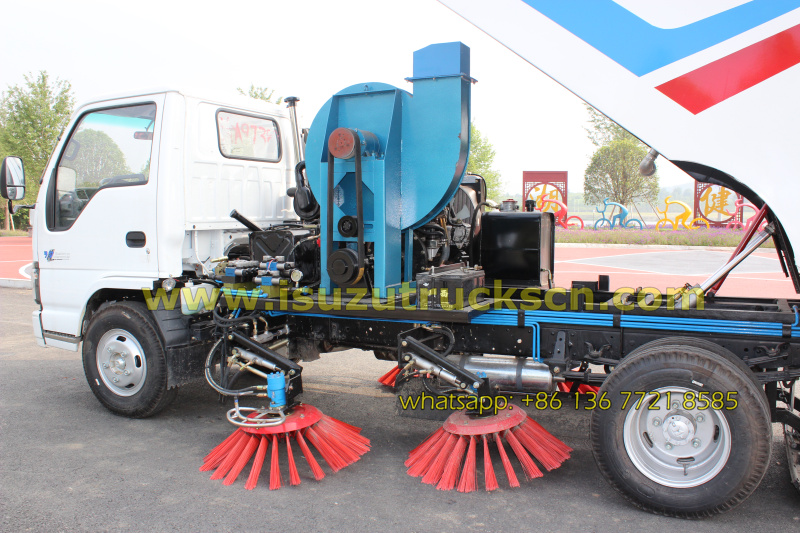

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
An automatic clutch is set up on the transmission between the vice-engine and the fan, which can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown. Also simplified the operation, reduced the impact on vice-engine and improved the reliability and service life of vice-engine.
The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
Key Features
ISUZU NKR Chassis, Durable & Performance.
Sweeping, Sprinkling and garbage transportation
Stainless steeel garbage bin & Stainless water tank, longer service life
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on road sweeper truck exporting.
Technical drawings:
Huge experience on tank design and manufacturing
Quickly delivery the truck, and ship to worldwide with safety
Easy use and long service life
Main specifications
|
Item
|
Parameter
|
|
Model
|
PT5070TSL
|
|
Chassis Model
|
Isuzu NKR77LL
|
|
Cab
|
Equipped with heating/cooling air conditioning
system
|
|
Dimension and Weight Parameter
|
Overall dimension (L×W×H mm)
|
5650×2000×2445
|
|
Wheel tread (mm)
|
Front wheel (mm)
|
1504
|
|
Rear wheel (mm)
|
1425
|
|
Wheelbase (mm)
|
3360
|
|
Front/rear suspension (mm)
|
1015/1275
|
|
Approach angle
|
24°
|
|
Departure angle
|
25°
|
|
Minimum ground clearance (mm)
|
190
|
|
Minimum turning radius (m)
|
6.8
|
|
Maximum gradability
|
30%
|
|
Maximum gross vehicle weight (kg)
|
6436
|
|
Rated laden weight (kg)
|
1676
|
|
Curb Weight (kg)
|
4630
|
|
Performance Parameter
|
Stainless steel water tank volume (L)
|
1
|
|
Stainless steel garbage bin volume (m3)
|
3
|
|
Maximum sweeping width (m)
|
3
|
|
Operating speed (km/h)
|
3-15
|
|
Sweeping capacity (m2/h)
|
45000
|
|
Maximum suction capacity
|
Suction density (g/cm3)
|
2.0
|
|
Suction fineness (mm)
|
100
|
|
Garbage dump angle (°)
|
50
|
|
Fuel consumption of the engine
|
Running (L/100km)
|
11
|
|
Sweeping (L/10000m2)
|
1.3
|
|
Maximum running speed (km/h)
|
100
|
|
Rated passenger capacity
|
2
|
|
Sweeping efficiency
|
≥96%
|
|
Maximum airflow velocity of the suction port (m/s)
|
35
|
|
Chassis Engine
|
Model
|
4KH1-TC
|
|
Rated power (kW)/(r/min)
|
96/3400
|
|
Maximum torque (Nm)/(r/min)
|
280/1700
|
|
Displacement (L)
|
2.999
|
|
Auxiliary Engine
|
Model
|
JMC Four-Cylinder JX493G3
|
|
Rated power (kW)/(r/min)
|
57/3600
|

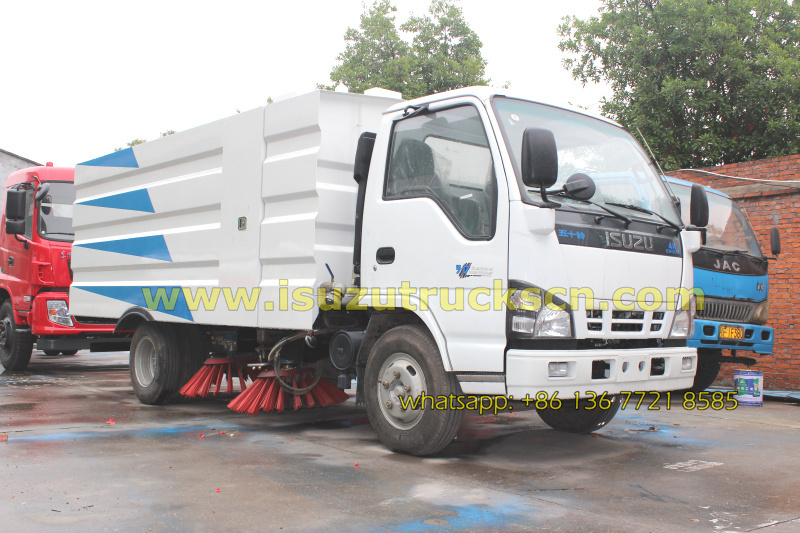

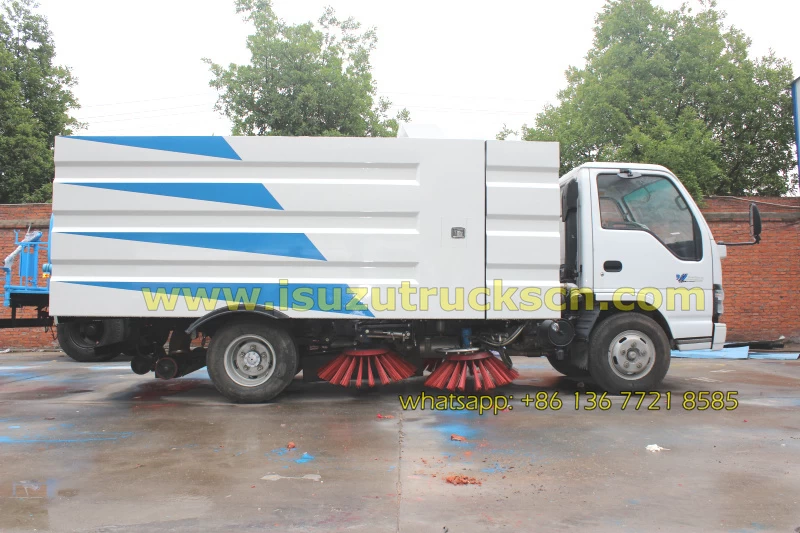

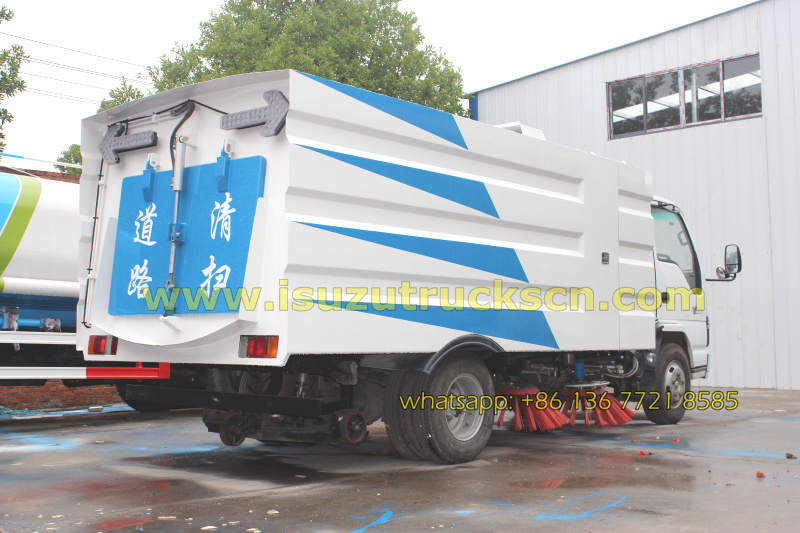

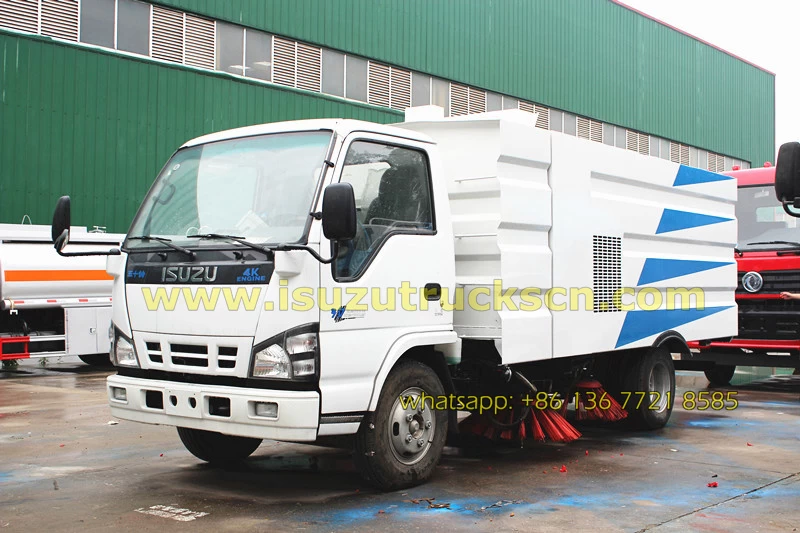

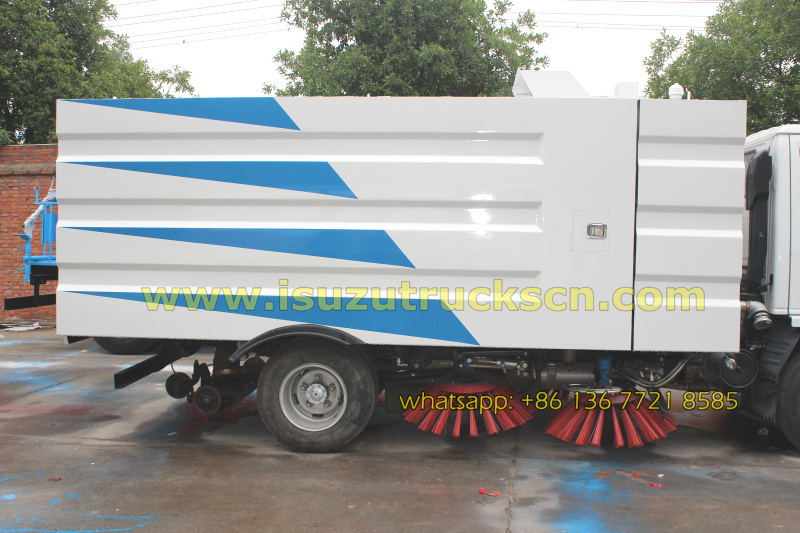

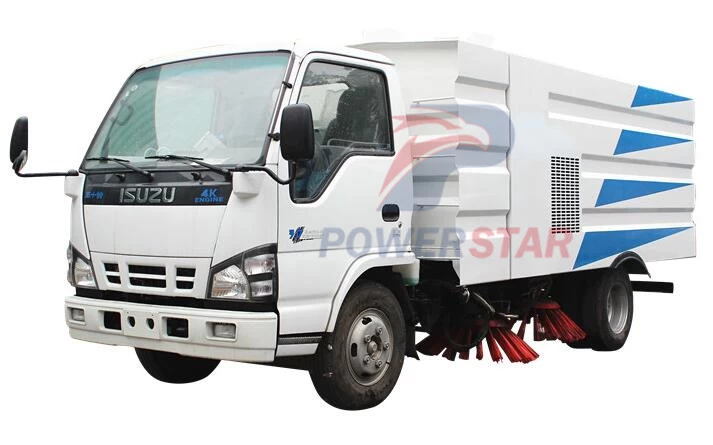

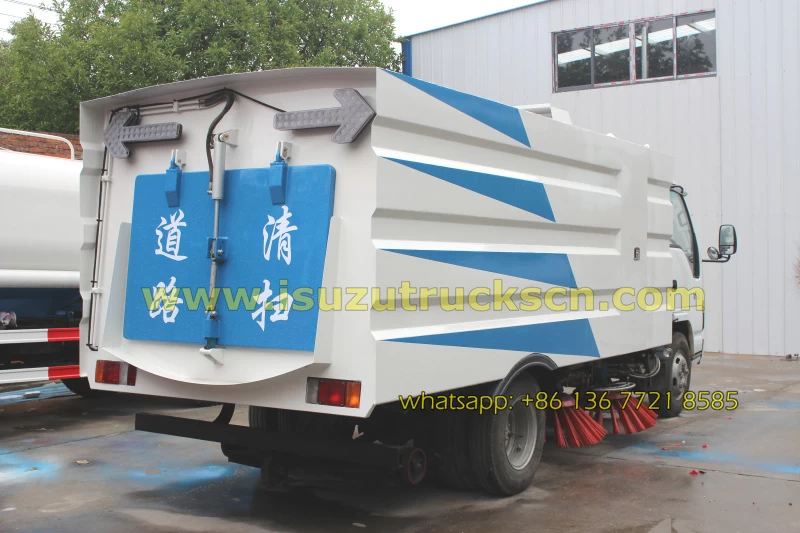

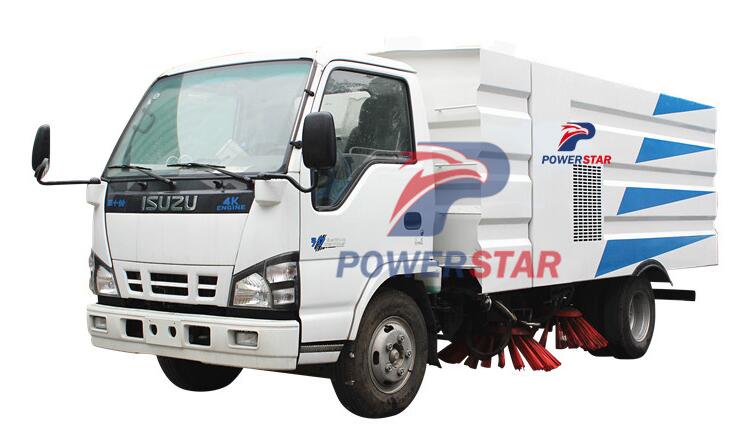

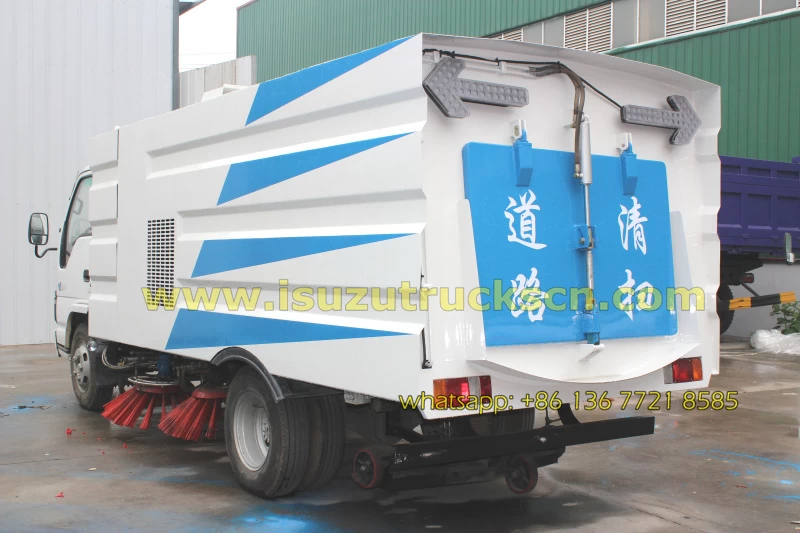

Recently Built 5tons Isuzu Road Sweeper truck:
Philippines street sweeper truck for sale

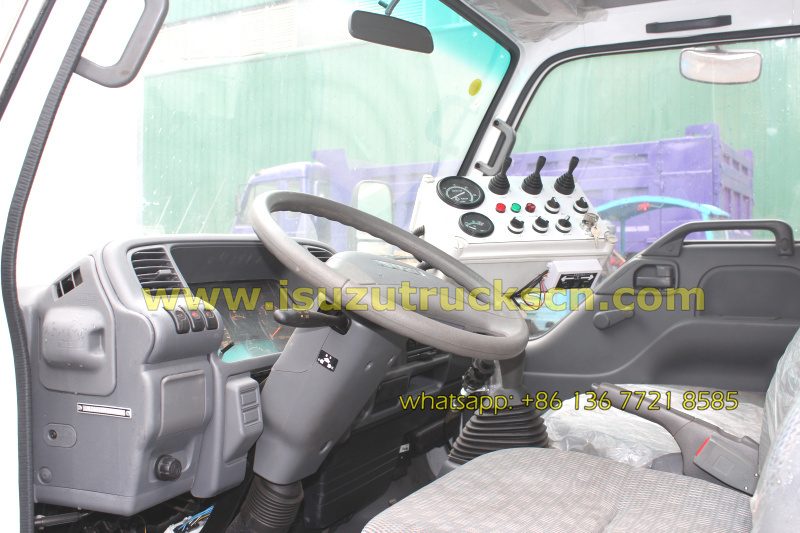

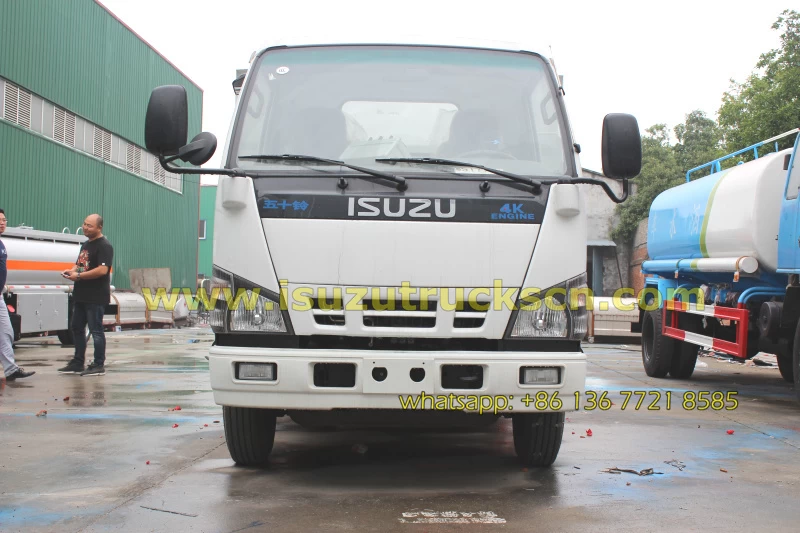

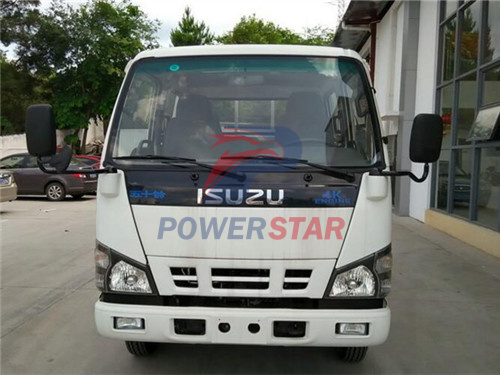

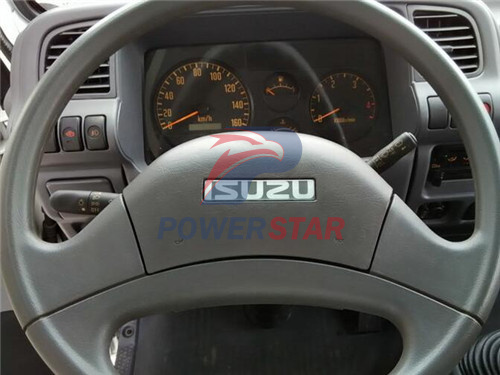

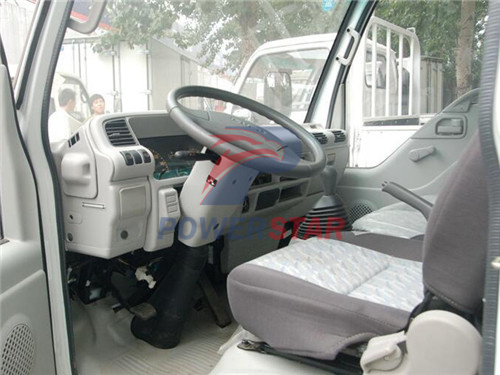

Isuzu 3D tech cabin, Equipped with heating/cooling air conditioning system

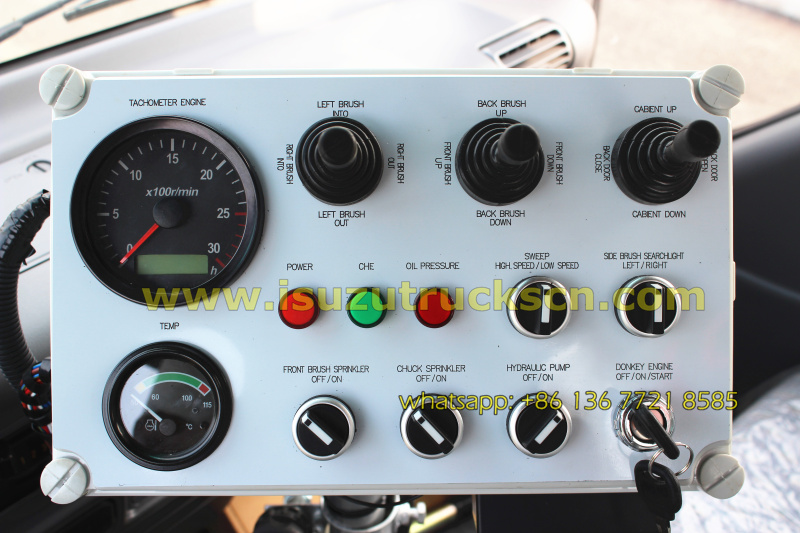

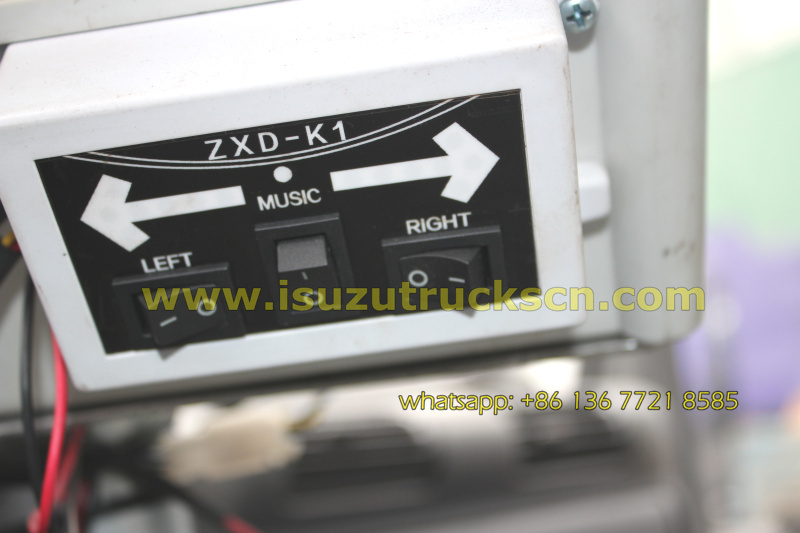

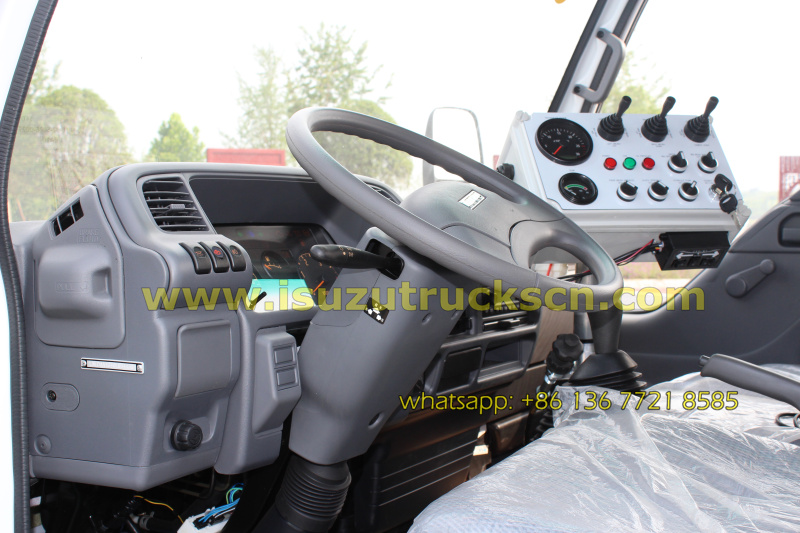

Intellectualized operation (English or appointed language)

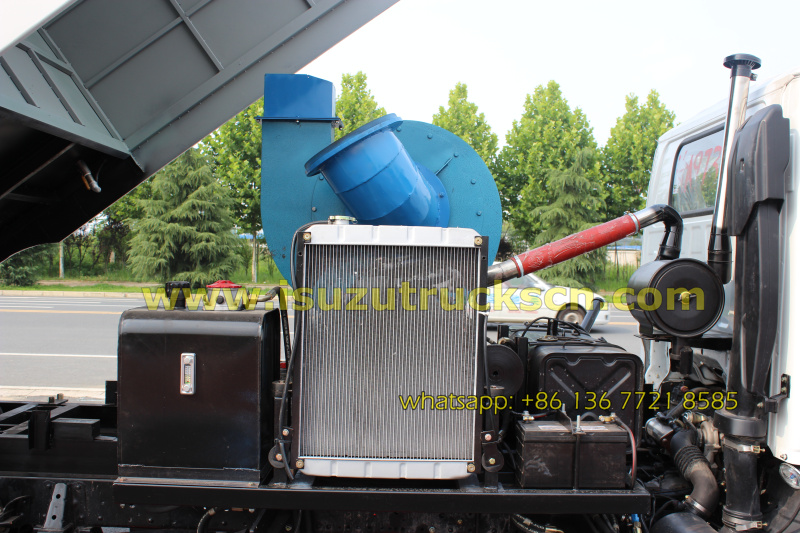

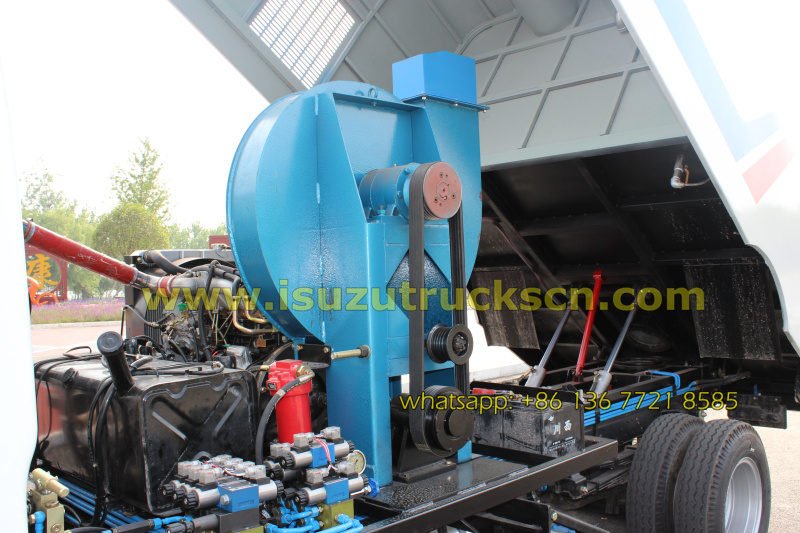

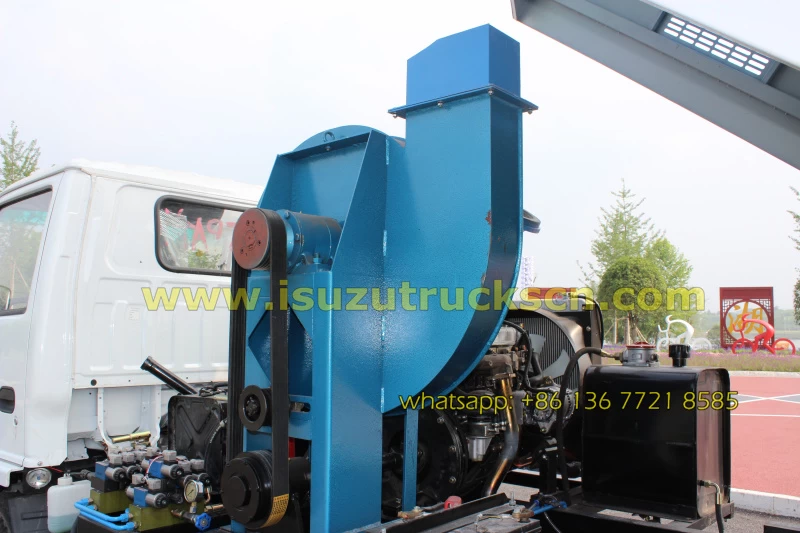

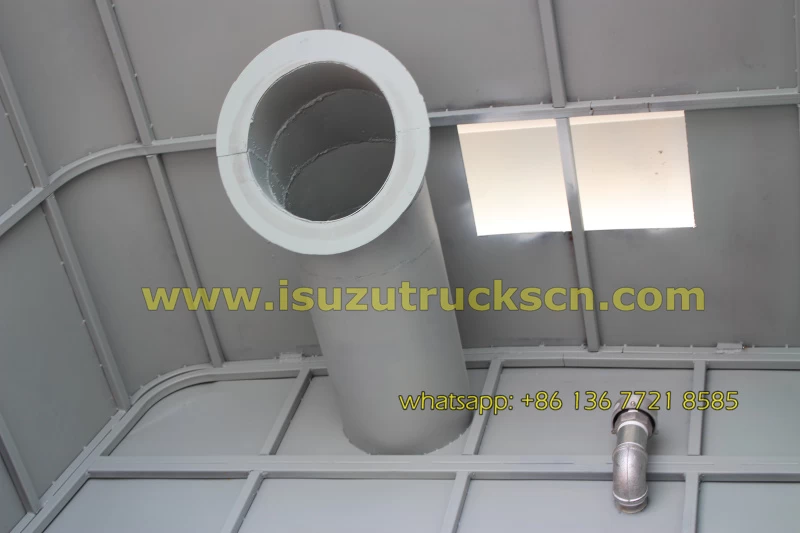

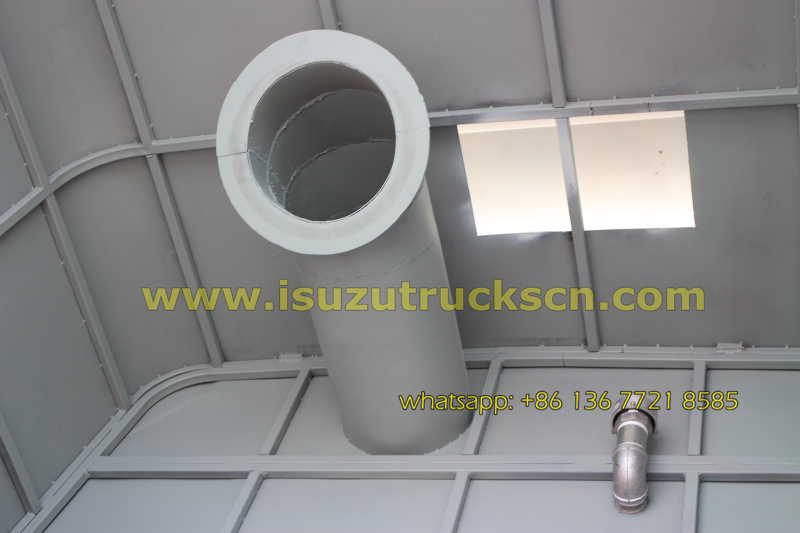

High performance Suction blower

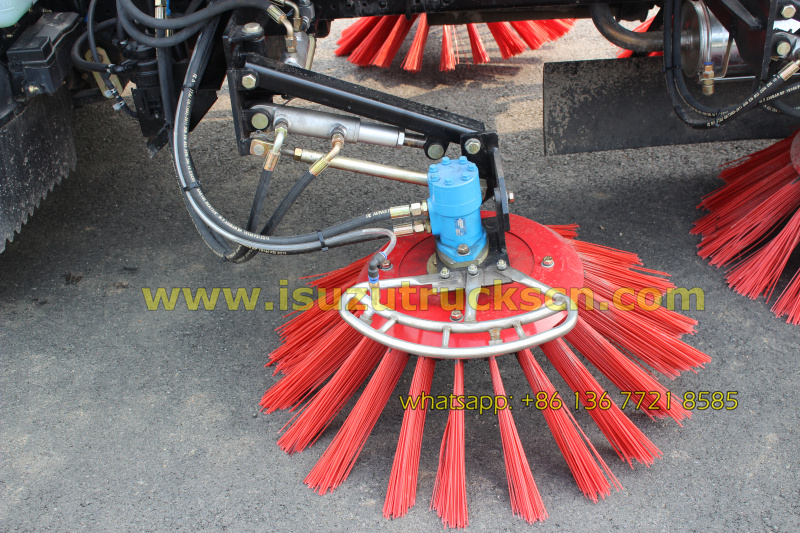

Brush with Protection function and Automatic reset function
1
