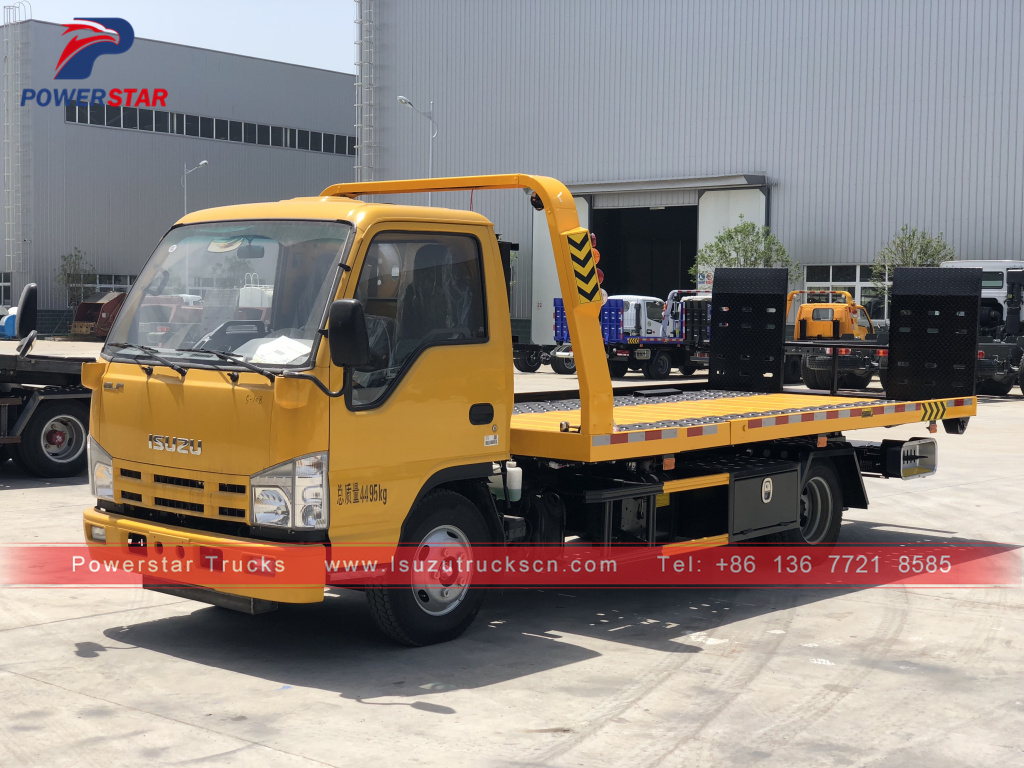

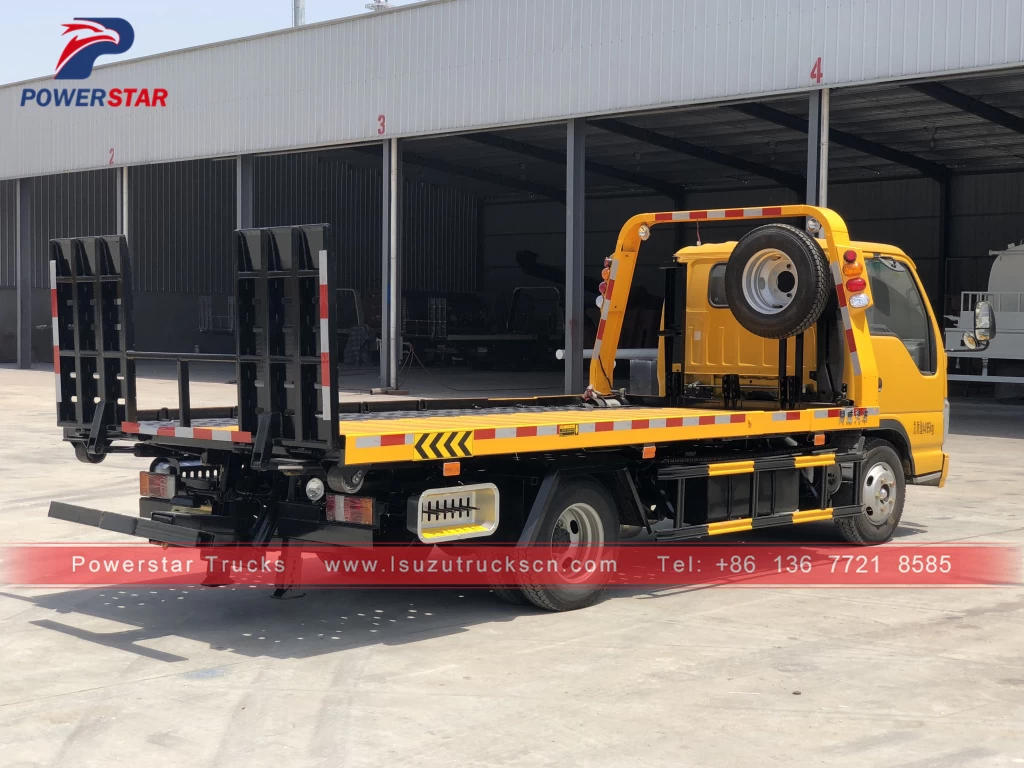

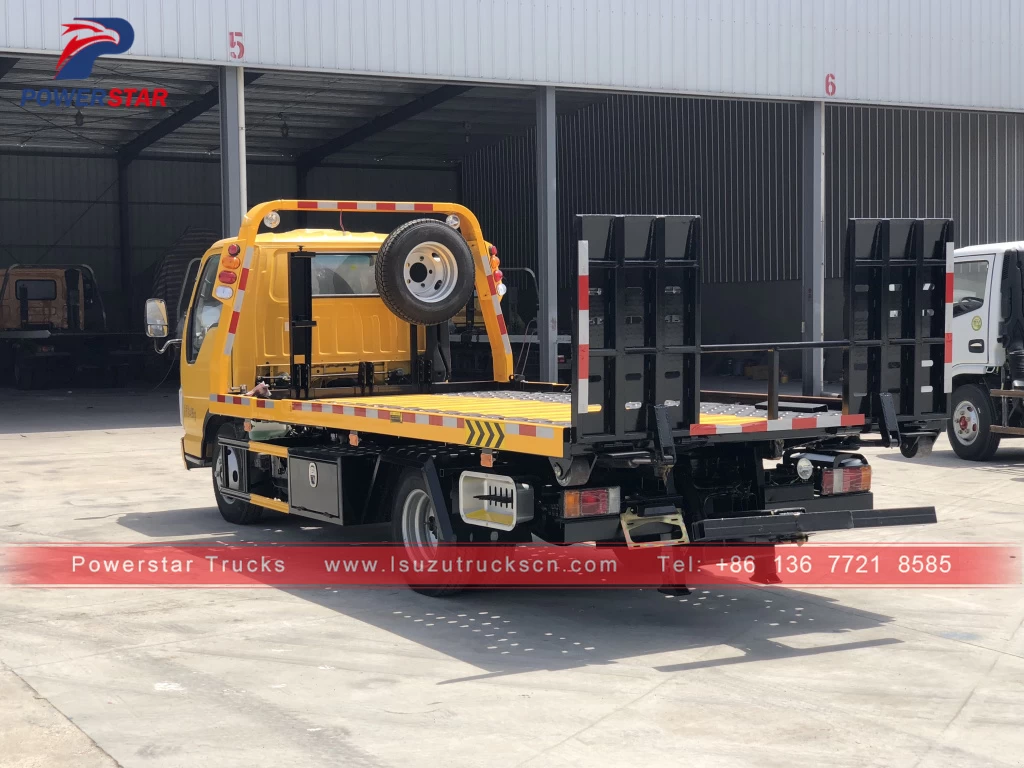

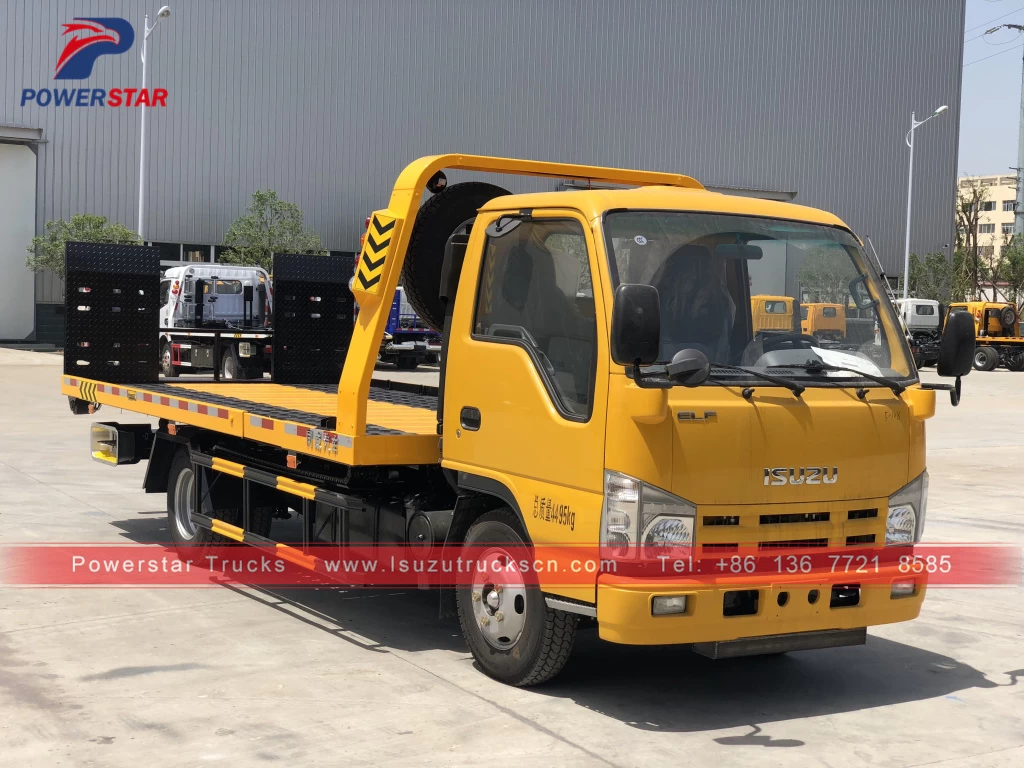

ISUZU Breakdown Recovery Truck for sale
Function:
Flatebed Wrecker truck ISUZU (also called Towing wrecker Isuzu, Rotator recovery truck, Towing vehicle, rescue carrier, tow truck with crane, one tow two wrecker, road resuce truck, tilt tray wrecker truck etc.) is ideal choice for road management department,traffice police,air port and automobile repair plant to proceeed to the road repair and resuce.
POWERSTAR Trucks supply recovery truck towing capacity from 2 tons to 80 tons.
Flatbed wrecker truck including car carrier, 0 degree carrier, Platform Tow Truck with crane.
Integrate recovery truck including light duty wrecker, middle duty and heavy duty wrecker truck.
360 degree rotator heavy duty wrecker truck.
Features:

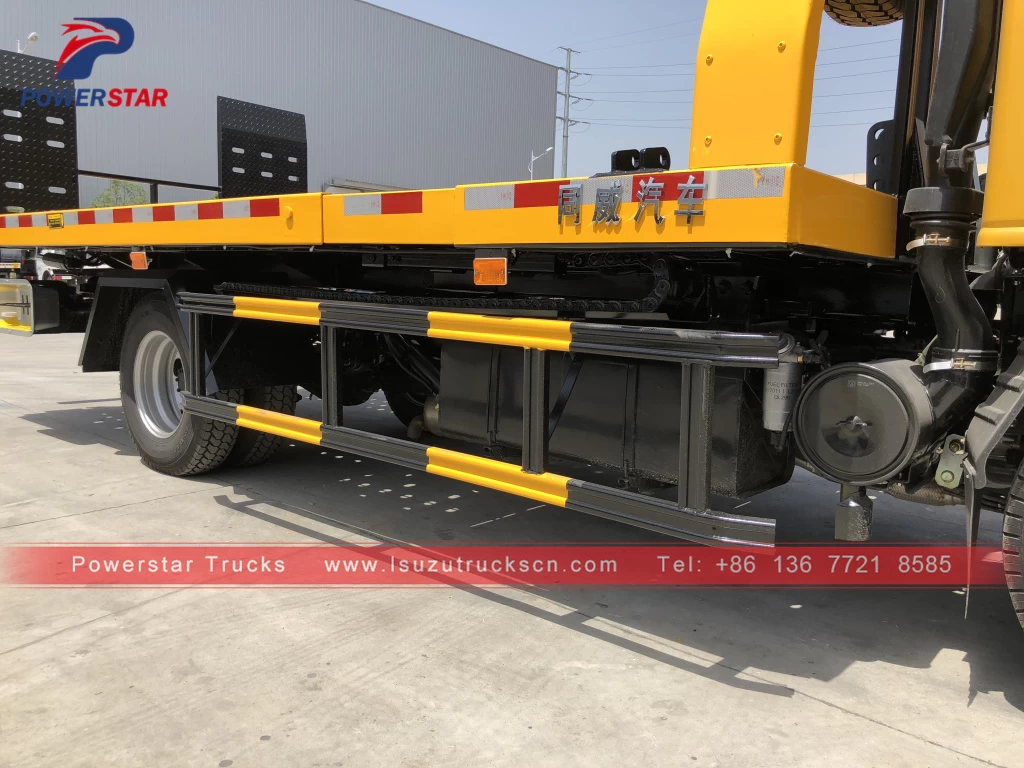

---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Hand control panel on both side, easy to operation.
---- Huge auxiliary equipment can be optional;

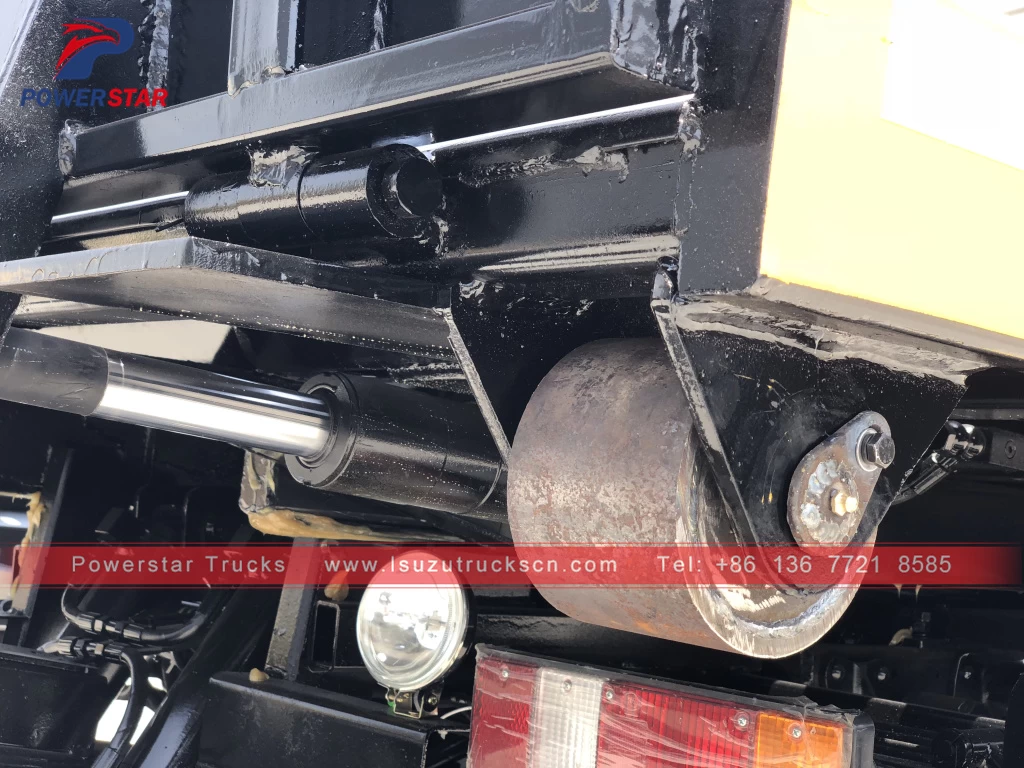

---- High-performance hydraulic multi-valve and cylinder employeed;
Specification:
Main
specifications:
|
Model
|
PT5070TQZ
|
|
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
|
Wheelbase
|
3815 mm
|
|
|
Cab
|
Forward control over engine,
all-steel-welded construction
|
|
|

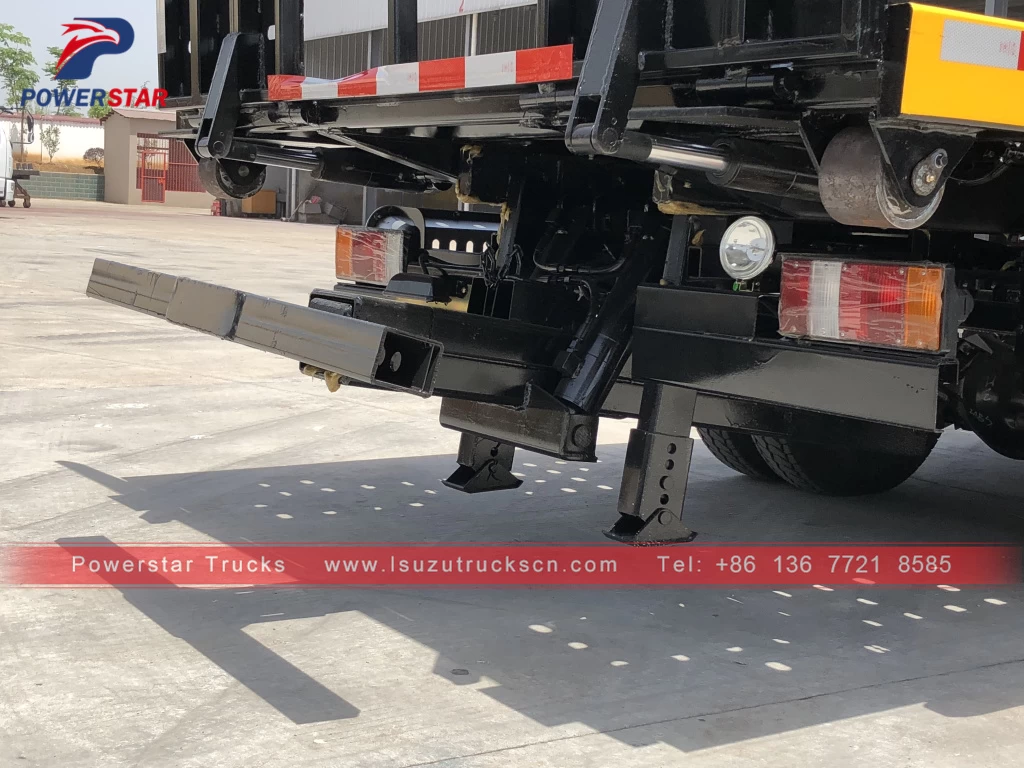

Boom
Structure
|
Rated towing
weight
|
7300kg
|
|
|
Max. Lifting
weight
|
1500kg
|
|
|
Max. Lifting weight
of full extending boom
|
800kg
|
|
|
Effective length
of boom
|
1600mm
|
|
|
Extension
traveling of boom
|
1200mm
|
|
|
Elevation of
boom (upper/ lower)
|
9~-10°
|
|
|

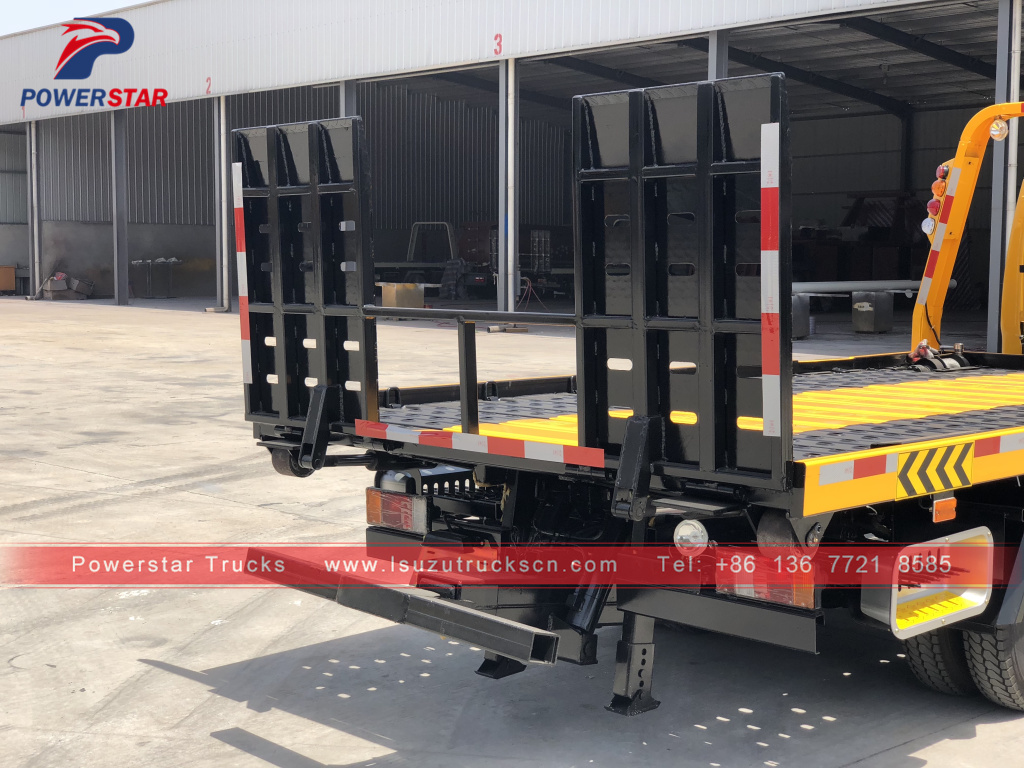

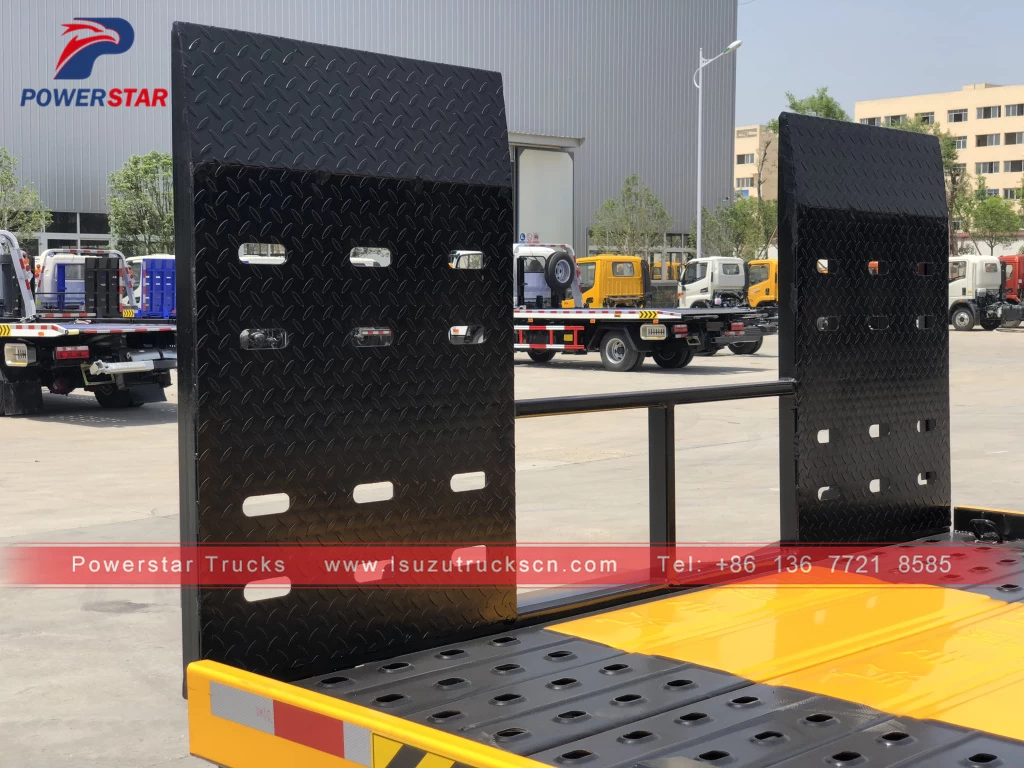

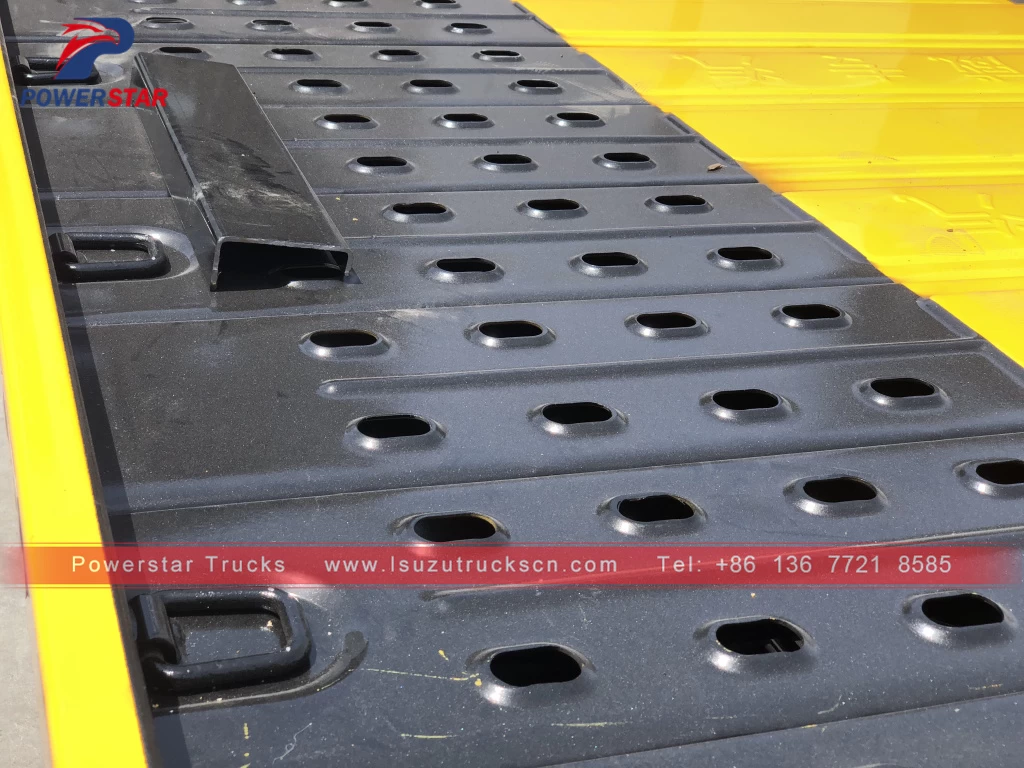

Platform
Structure
|
Min. Elevation
of full extending platform
|
8°
|
|
Max. Loading of
platform
|
3000kg
|
|
External
dimension of platform (L×W×H)
|
5400×2140×57mm
|
|
Ground clearance
of cage floor
|
1014mm
|
|
Max. Pulling
power of winch
|
4000kg
|
|
Dia. Of steel
cable
|
10mm
|
|
Length of steel
cable
|
25m
|
|
Min. Speed of
steel cable
|
4.5m/min
|
|
Engine
|
Model
|
4JB1CN
|
|
Type
|
Diesel, turbo
charged inter-cooled, 4 cylinder
|
|
Max. Power
|
72 KW (98 HP)
|
|
Gearbox
|
MSB 5-shift,
mechanical type, 5 forward and 1 reverse with
|
|
|
Tire
|
7.00-15
|
|
|
Color
|
Yellow (Any color & logos up to wish)
|
|
|
Max
Speed
|
100 km/h
|
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
