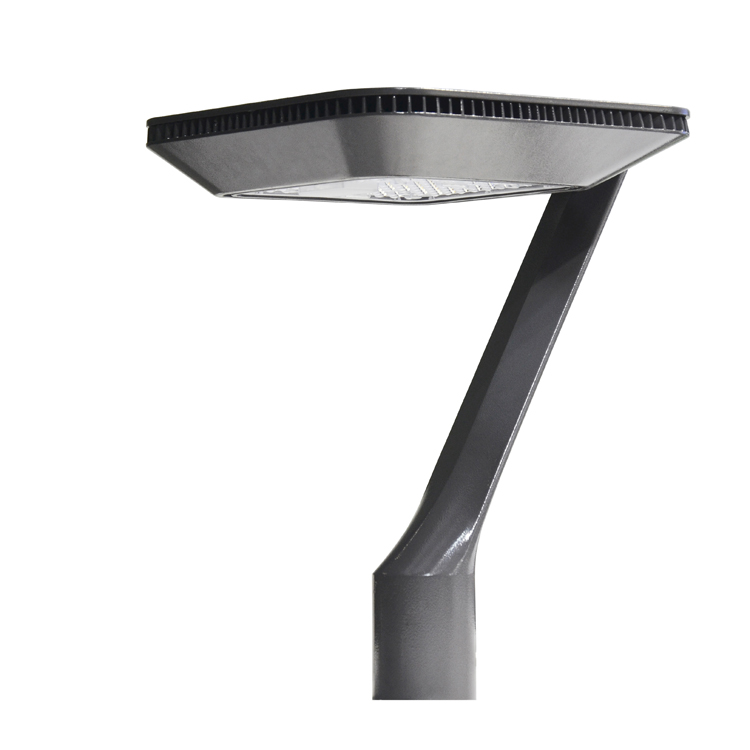

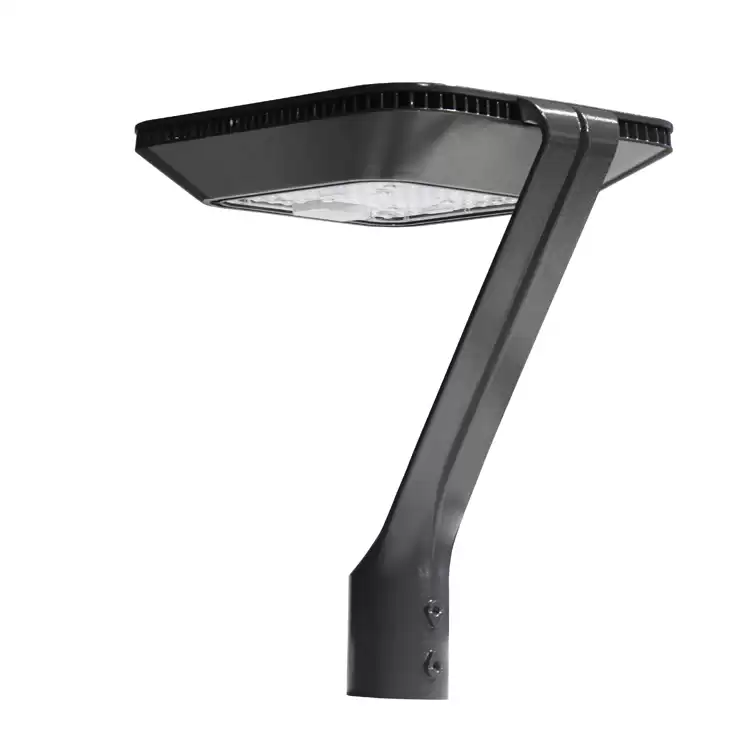

Outdoor Dimmable Philips Lumileds LED Post Top Light
The 400A series modern Post Light fixture is a Dark Skies Compliant replacement of traditional metal halide, high-pressure sodium, CFL post lighting fixtures. Its electronic LED Driver features a high >0.98 power factor for cool, efficient, flicker-free operation. Common applications include auto dealership parking lots, Parks, Walk Ways, outlets, plazas, city halls, and historic areas.
FEATURES:
• Using non-flicker Sosen(Meanwell Optional) LED driver and Philips Lumileds to ensure long-term stable operation of the fixture.
• LED SMD3030 for 130lm/w & TypeII,TypeIII,TypeIV and TypeV.
• Dimmable: 1-10VDC/PWM/Resistor (3 IN 1).
• All around design double heat dissipation. becutiful, upscale heat dissipation effect fast.
• Multi-Brackets for installing to achieve different applications.
• 50,000 hrs lifespan, less lumen decay.
• Simple and convenient installation with only two hex bolts to minimize labor costs.
|
SPECIFICATION
|
EAL401A-50W
|
EAL402A-80W
|
EAL403A-100W
|
|
Power Consumption
|
50W
|
80W
|
100W
|
|
Equivalent Wattage
|
175W HID
|
250W HID
|
400W HID
|
|
Lumens Delivered
|
4,750 lm
|
8,000 lm
|
10,000 lm
|
|
Efficacy
|
120-130 lm/W
|
|
CRI
|
>75
|
|
Color Temperature
|
3000K /4000K /5000K
/5700K
|
|
Input Voltage
|
100-277V, 305-480V
|
CONSTRUCTION:
• Sleak and gooseneck modern design.
• Stylish low profile body that minimizes wind load and retains aesthetic pleasing appearance.

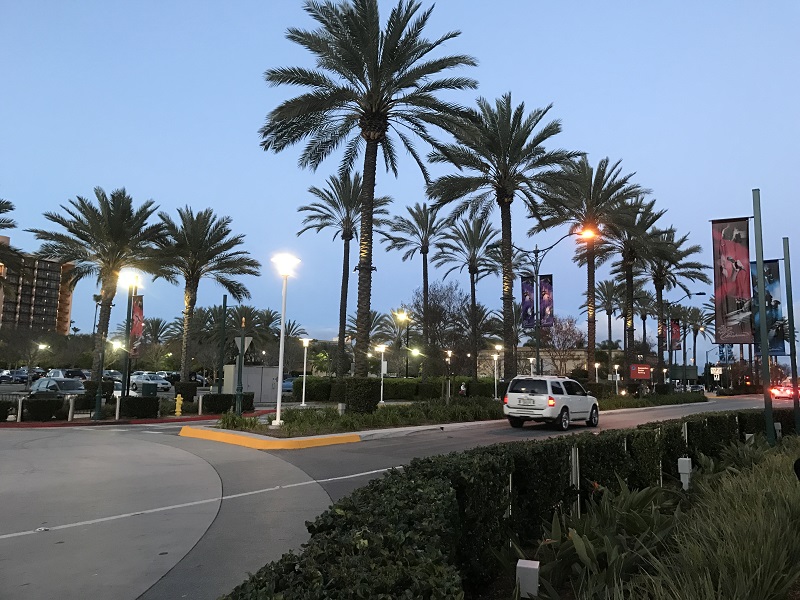

RECOMMENDED USE:
• Garden, Park
• Sidewalk, Square
• Parking Lot, Factory and high end area lighting
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 122°F.
APPLICATION:
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting
distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
