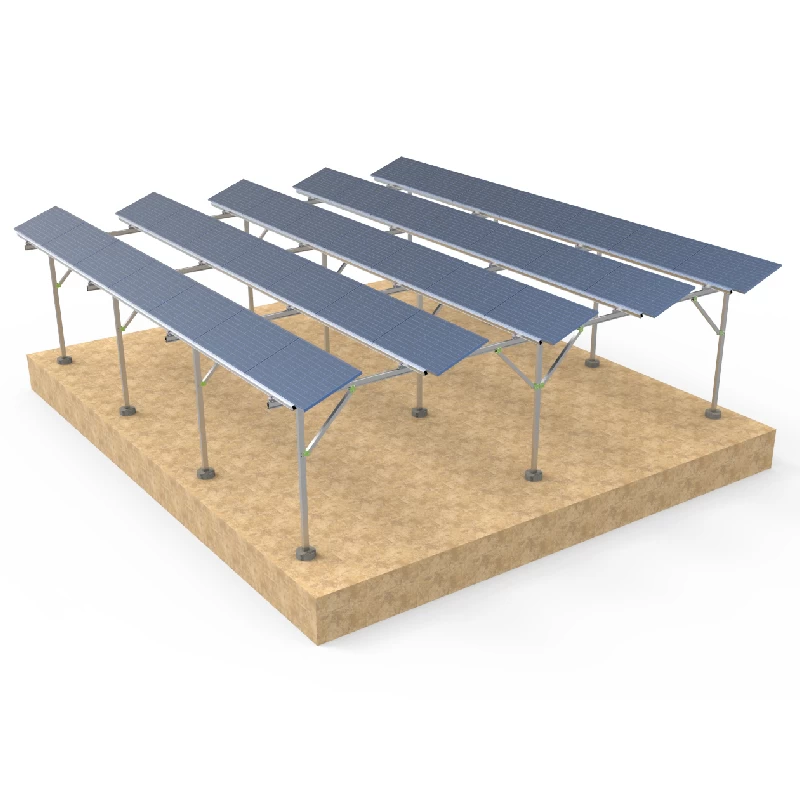

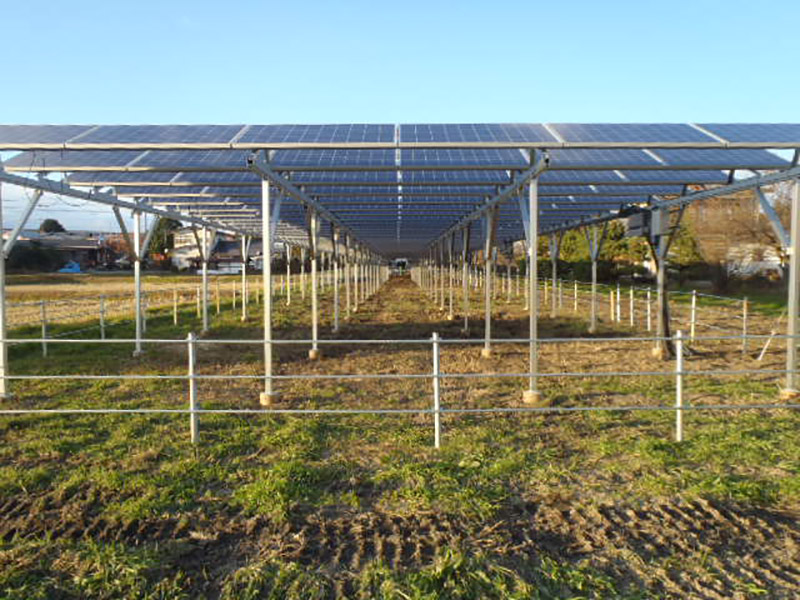

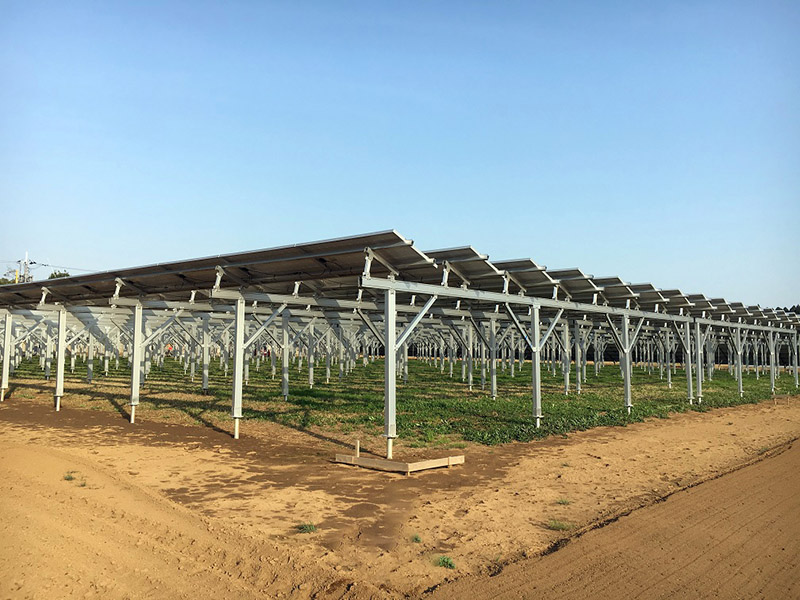

Photovoltaic farmland mounting bracket
|
Installation
side :
|
Open
field/Ground
|
|
Module
Angle:
|
0~60 degree
|
|
Max wind
speed:
|
Up to 80m/s
|
|
Snow load:
|
Up to
1.4KN/m2
|
|
Material :
|
AL6005-T5
&SUS304
|
|
Module
orientation:
|
Lanscape
,portrait
|
|
Foundation:
|
Concrete
base ,Grounds screw
|
|
Standard :
|
AS/NZS S1170 , JISC8955:2017
|

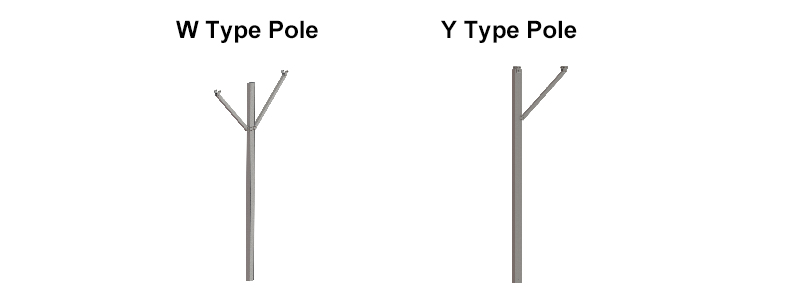

Mounting Structure Type
1.Multiple choice

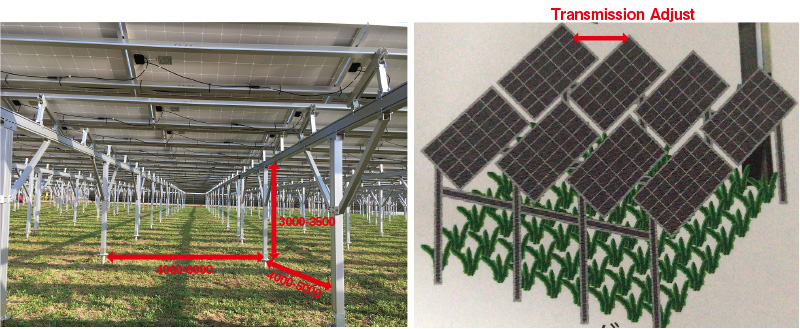

2. Max 6.5*5m length , Easy access for large machinery.
Suitable for crop Transmission adjustment design.
3. Sloping ground available
The solar farm structure can not only for flat ground, also for inclined mountain ground, which can make full utilization of ground.
