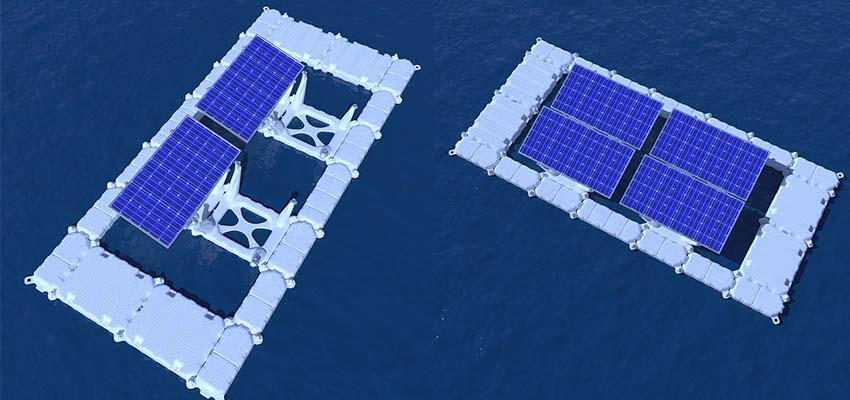

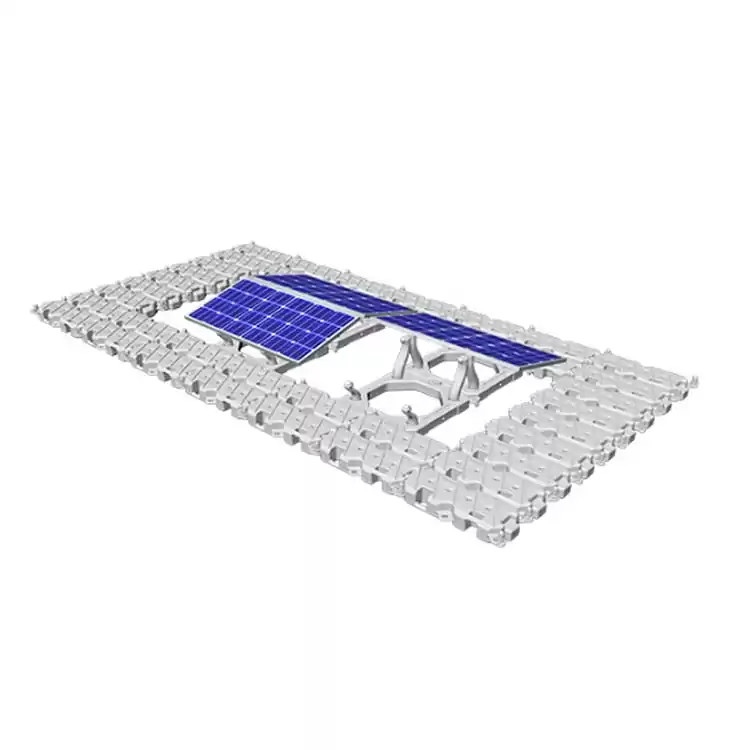

Photovoltaic Power Station Water Mounting Solar Panel Mounting Floating System
Adopting HDPE material,the solar panel mounting floating system can increase the volume of floater to add the buoyant force of floater.
Technical Information
|
Name
|
Solar Panel Mounting Floating System
|
|
Material:
|
HDPE,AL6005-T5,SUS304
|
|
Wind Speed
|
51m/s
|
|
Snow Load
|
1KN/m²
|
|
Tilt Angle
|
10° or 15°
|
|
Water Depth
|
330-350
|
|
Module Type
|
Frame or Double Glass
|
|
Panel Orientation
|
Landscape,Double Row in the same/symmetrical Facing
|
|
Color:
|
Grey or Blue or Customized
|
|
Bearing Weight
|
Main Floater 70KG/㎡
|
|
Installation Site
|
Lake,Reservoir
|
|
Duration
|
25years
|

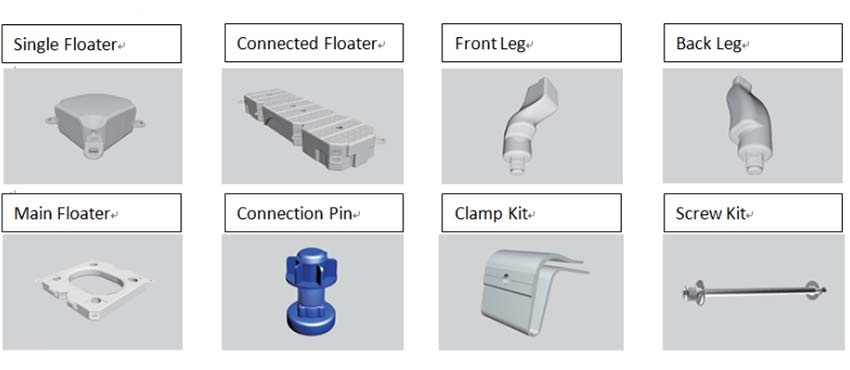

Components List

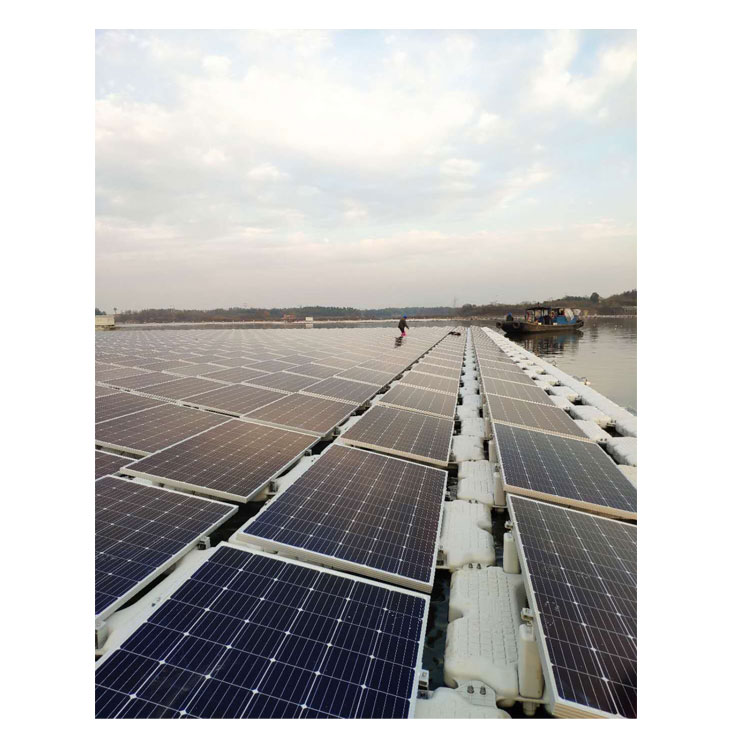

Project Case
We are one of the largest solar mounting installation manufacturers in China, specializing in the production of various solar mounting systems. We provide complete pv mounting system solutions, including flat roof, metal roof, ground, tracking support and solar panel mounting floating system on water.
