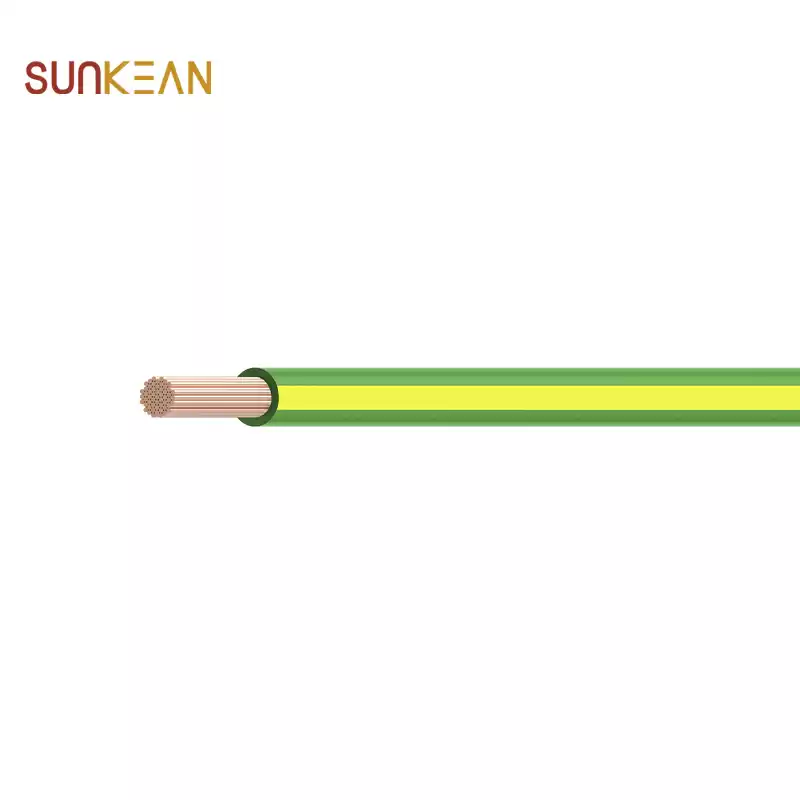

Photovoltaic single strand copper yellow/green ground electrical wires

Rated voltage for cable will be 450/750V,long term working temperature should be kept under 125℃.


  • Rated Voltage450/750V
  • StandardJB/T 10491.2

Photovoltaic single strand copper yellow/green ground electrical wires

Photovoltaic grounding cable is as single-core flexible cable specially designed for grounding of solar photovoltaic system.


Product Information:

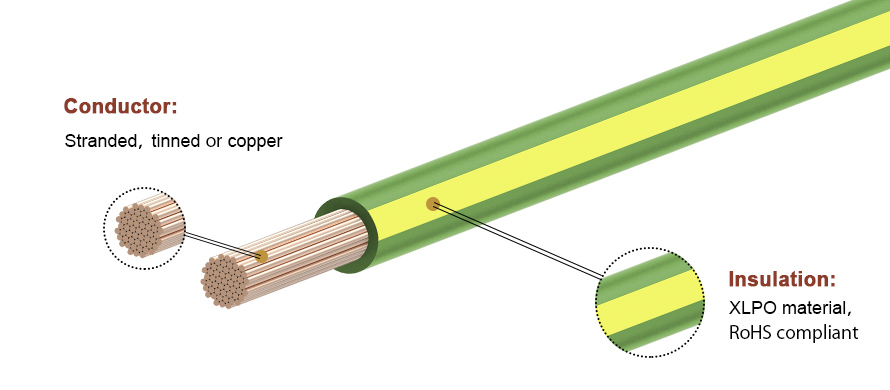

Conductor
Stranded tinned or bare copper
Insulation
XLPO,RoHS compliant
Rated voltage
450/750V
Rated temperature
105°C
Reference Standard
JB/T 10491.2


High concentricity grounding wire

Cable Name

Cross Section

(mm²)

Construction

(No./mm)

Conductor O.D.

(mm)

Insulation O.D.

(mm)

Conductor Resistance Max

(Ώ/km)

Dielectric Strength

(VAC,5min)

WDZ-RYJ-105 1.5 30/0.25 1.58 3.10 13.7 2500
2.5 49/0.25 2.02 3.75 8.21
4 56/0.30 2.60 4.30 5.09
6 84/0.30 3.42 5.20 3.39
10 84/0.40 4.56 6.70 1.95
16 126/0.40 5.60 7.80 1.24
25 196/0.40 6.95 9.60 0.795
35 276/0.40 8.74 11.30 0.565
50 396/0.40 10.46 13.60 0.393
70 360/0.50 12.50 15.60 0.277
95 475/0.50 13.73 17.30 0.210
120 608/0.50 15.50 19.10 0.164
