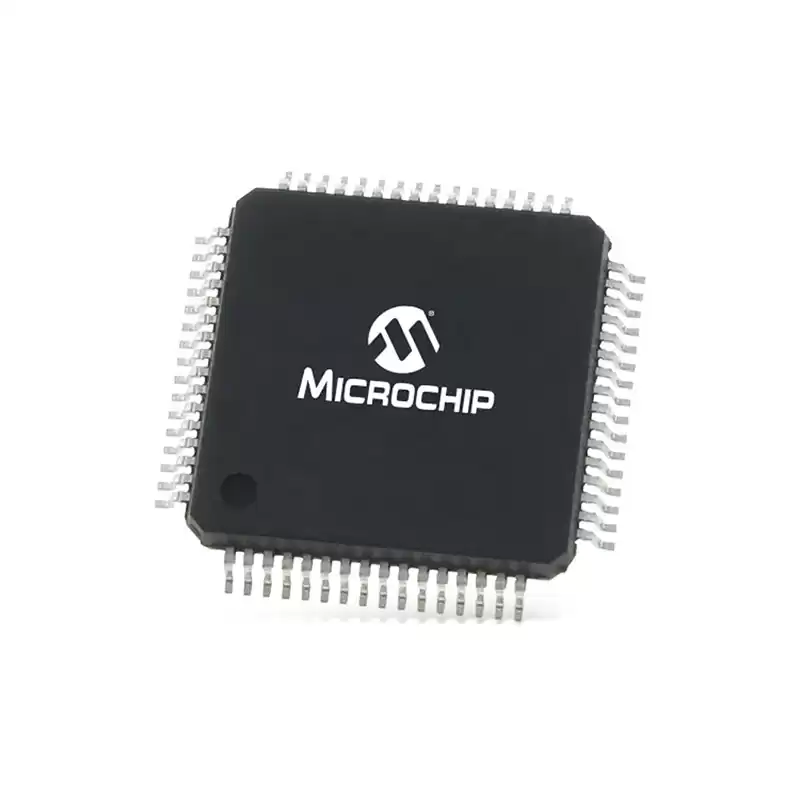

PIC32CM5164LS00100-I/PF Microchip Microcontrollers
Parameter
|
Manufacturer
|
microchip |
| Product Category |
ARM Microcontrollers - MCU |
| Mounting Style |
SMD/SMT |
| Package / Case |
Tray |
Core
|
ARM Cortex M23
|
Supply Voltage - Min
|
1.62 V
|
Supply Voltage - Max
|
3.63 V
|
Minimum Operating Temperature
|
- 40 C
|
Maximum Operating Temperature
|
+ 85 C
|
Factory Pack Quantity
|
90 |
Introduction
PIC32CM5164LS00100-I/PF is a microcontroller unit (MCU) from the PIC32CM series, which is manufactured by Microchip Technology.
This MCU is based on the MIPS M5150 processor core and has a clock speed of up to 120 MHz. It has 1 MB of flash memory for storing program code and 256 KB of SRAM for data storage. It also has a wide range of peripherals, including USB, Ethernet, CAN, SPI, I2C, ADC, and DAC interfaces, as well as timers, interrupts, and GPIOs.
The "I" in the part number indicates that the device is in a DIP package, while the "PF" indicates that it has 100 pins. The "LS" indicates that it operates over a temperature range of -40°C to +85°C. The "00100" at the end of the part number indicates the device's memory size and pin count.
Overall, the PIC32CM5164LS00100-I/PF is a powerful and versatile MCU that can be used in a wide range of applications, including industrial automation, consumer electronics, and automotive systems.
Application
PIC32CM5164LS00100-I/PF is a versatile microcontroller that can be used in various industry applications. Here are some common use cases:
1.Industrial Automation: can be used to control robots, PLCs, industrial controllers, factory automation and process control systems.
2.Consumer Electronics: can be used to control smart home devices, smartphones, tablets, gaming consoles, audio/video equipment, TV set-top boxes, digital cameras, etc.
3.Automotive Electronics: can be used in automotive electronic control units (ECUs), in-vehicle entertainment systems, body control systems, in-vehicle navigation systems, in-vehicle communication systems, etc.
4.Medical Devices: can be used in medical devices such as electrocardiographs, glucose meters, medical image processing, control and monitoring, etc.
5.Security Systems: can be used in security systems such as access control, surveillance cameras, security alarm systems, etc.
6.Energy Management: can be used in energy management systems such as smart meters, solar controllers, wind controllers, etc.
7.Other Fields: can also be usedin other fields, such as aerospace, military, IoT, intelligent transportation, etc.
Overall, PIC32CM5164LS00100-I/PF is a highly versatile microcontroller suitable for a wide range of industry applications. Its high processing power and extensive peripheral set make it suitable for demanding applications that require high performance and connectivity.
Packaging
All integrated circuits are in original factory packaging.
