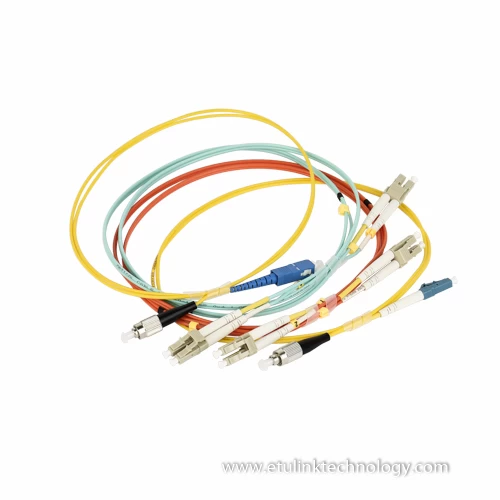

Pigtail

The pigtails including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.



Features:
Insert Loss ≤ 0.2dB
Return Loss: PC/UPC > 35dB    APC > 60dB
Temperature Range:-40~+55°C
0.9mm2.0mm3.0mm

Application:
FTTX, LAN, PON
Optical CATV
Local ring net
Optical fiber communication system
Optical fiber test equipment
Optical fiber sensor

Pigtail Order Information:

Pigtail Order Information

Connector-1

Polishing

Cable Type

Length

Cable Diameter

Fiber Count

Remark

SC

APC

OS2

0.5M

0.9MM

Simplex

LSZH

FC,SC

PC,UPC

OM1 62.5/125

0.5M

0.9MM

Simplex

Colors

LC,ST

APC

OM2 50/125

1M,2M

1.8MM

4,6,8 counts

Armored

MU,MTRJ

OM3 10G

3M...

2.0MM

12counts...

Waterproof

E2000,MPO

OS1

3.0MM

48Counts...

LSZH

SMA,DIN

OS2 9/125

Others

PVC

G657A/B/D

OFNR

G655

OFNP
