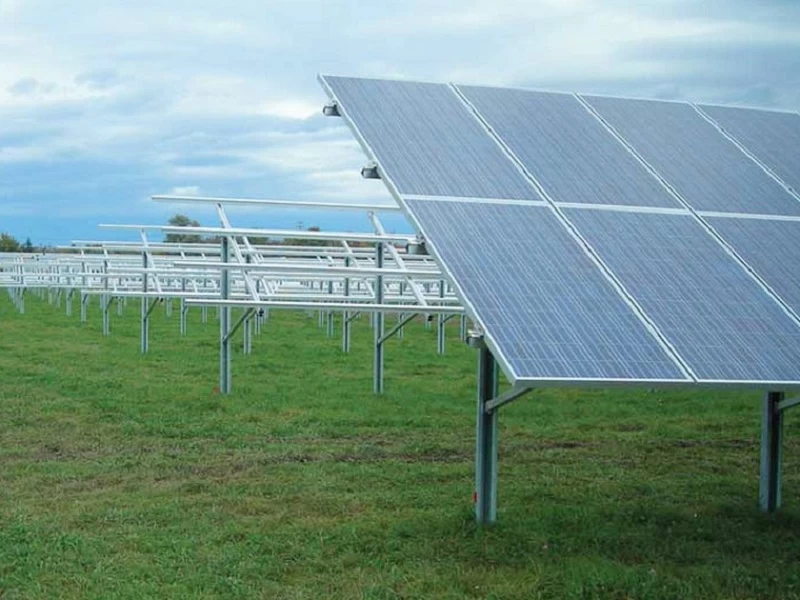

Pile Ground Mounting System
Pile Ground Mounting System is one kind of driven-pile system, servicing for large-scale MW solar farms.
Material
|
AL 6005-T5/SUS304/Q235B
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 12μm Average
Hot-galvanized Coating Thickness≥ 65μm
|
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
1.4KN/m2
|
Panel Orientation
|
Landscape/Portrait
|
Tilt Angle
|
0°~60°
|
Seismic Load
|
Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
AS/NZS 1170
DIN1055
ASCE/SEI 7-05
International Building Code: IBC 2009
|
Warranty
|
15years quality warranty, 25years life span warranty
|
System Overview
Highly pre-assembled before shipment, save your onsite labor cost
Check and test Structure strictly for the use in extreme weather and geographical conditions.
Well install solar system on mountainous/slope without extensive land leveling, saving installers more cost.
15 years' warranty, 25 years' life span
