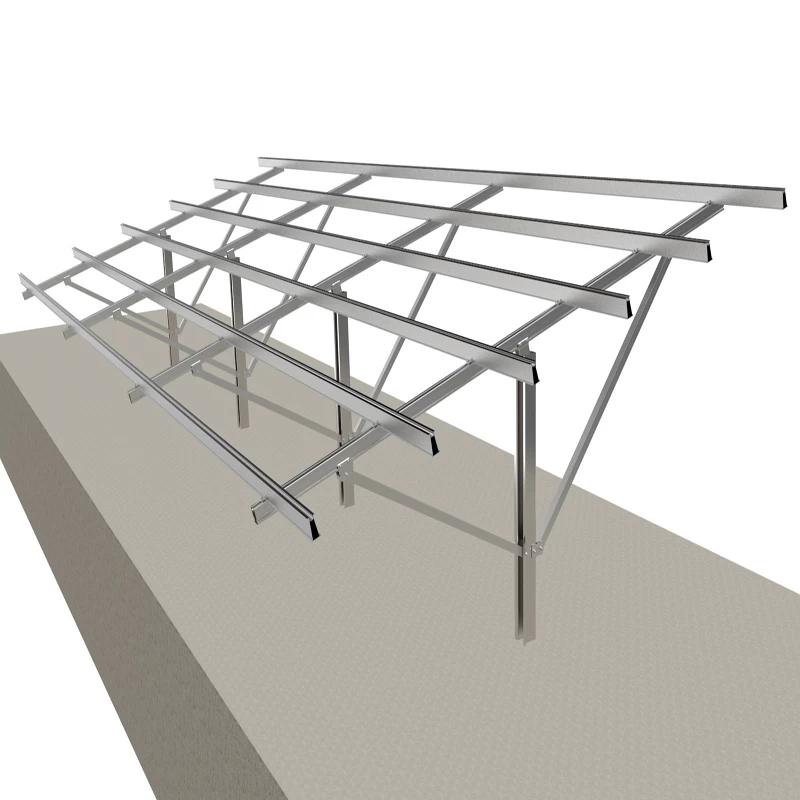

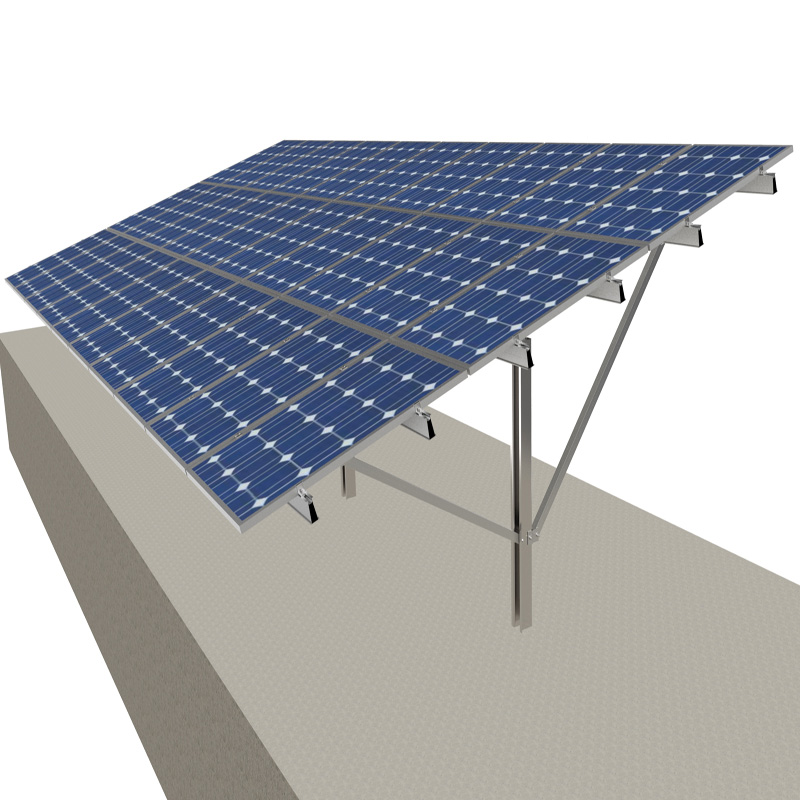

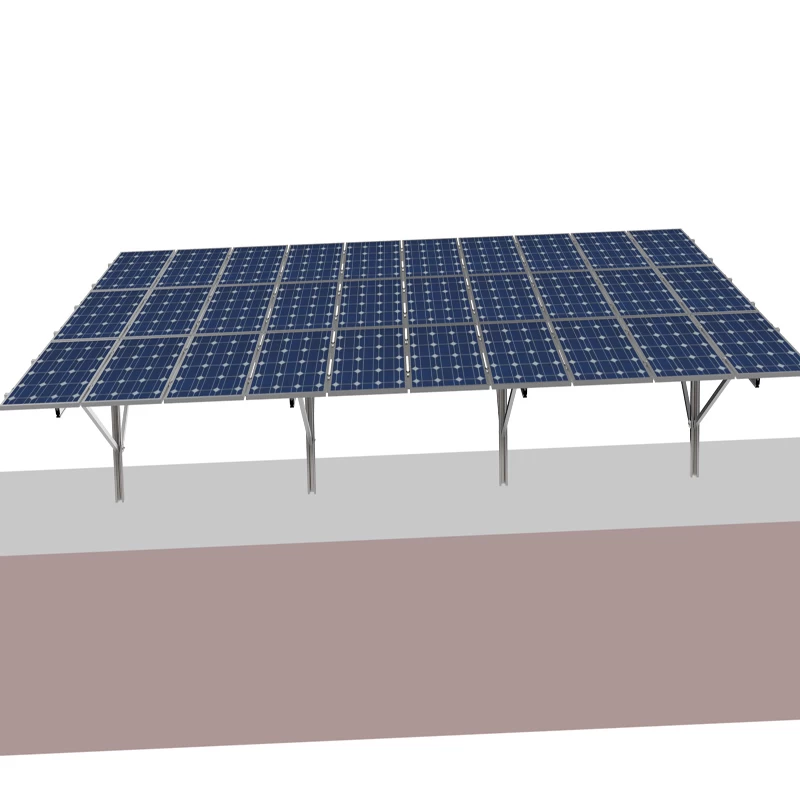

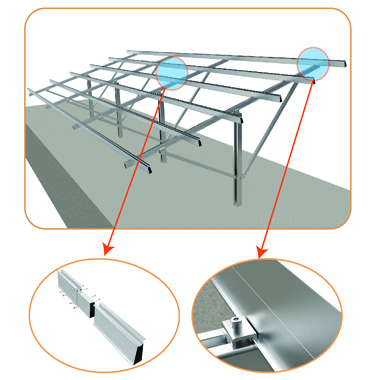

Pile Ground Mounting System

Pile ground mounting system is the perfect choice for a location with an uneven surface. It scores particularly in its flexibility and its time-saving on-site assembly.


  • Warranty12 years

Pile ground mounting system not only could save installation time,but also is strong enough to suffer the

strong wind. And our engineer could review your soil report before designing ground racking system. So the safety could be guaranteed.



Technical Parameters

 Installation Angle

 5-60°

 Wind Load

 60m/s

 Snow Load

 1.6KN/m2

 PV Modules

 Framed, unframed

 Module Orientation

 Landscape

 Standards

 AS/NZS 1170



 DIN 1055



 JIS C 89552017



 International Building Code IBC 2009



 California Building Code CBC 2010

 Material

 Al6005-T5,Galvanized steel

 Color

 Silvery or according to customer requirements

 Warranty

 12 years



Pile ground mounting system

Feature:

1. Single U-shaped galvanized steel is used as the column,

the column is less comparing with the aluminum ground mount;

2. Suitable for uneven ground.




Advantage:

1.Easy installation;

2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);

3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);

4.Max wind speed: up to 60m/s;

5.Anti-corrosive: anodized;

6.Duration: 25 years.

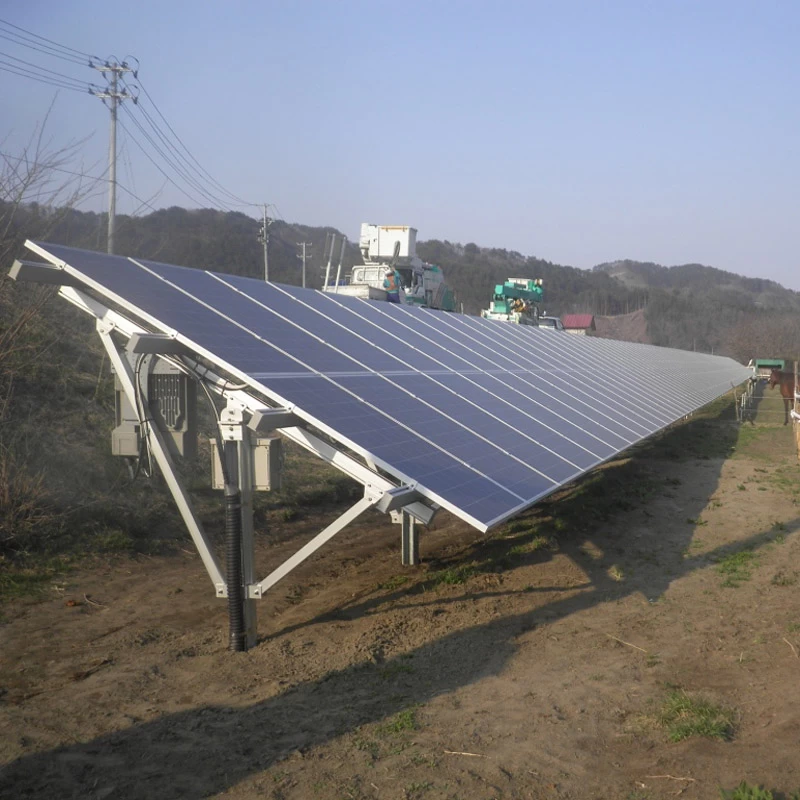

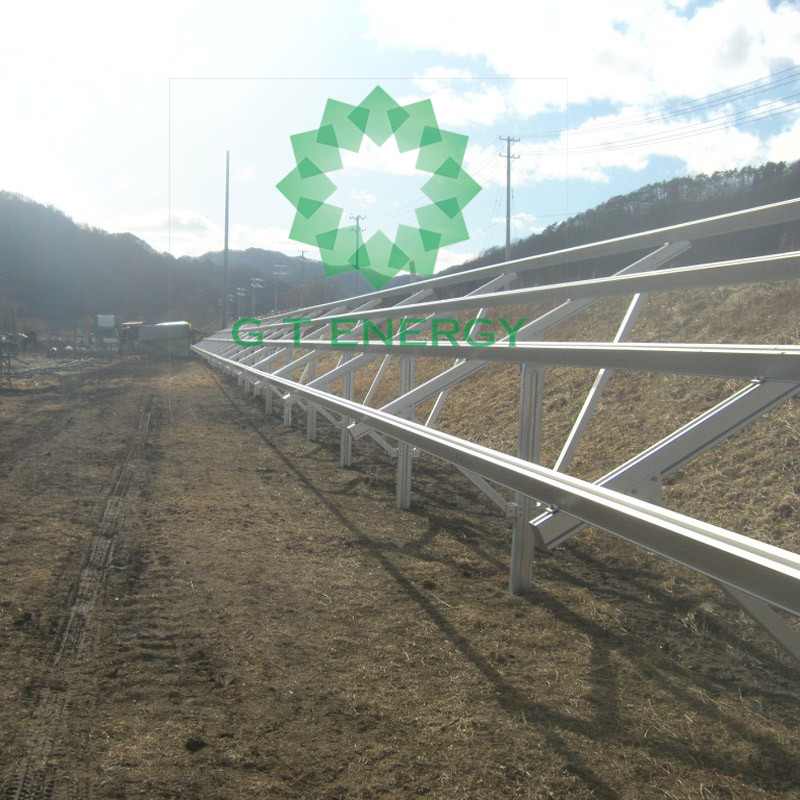

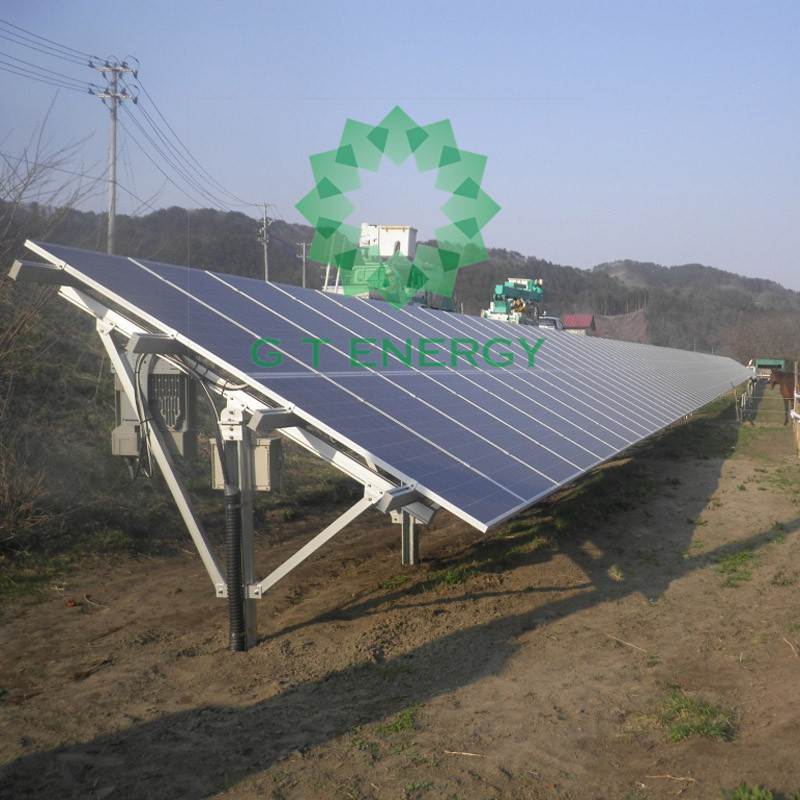

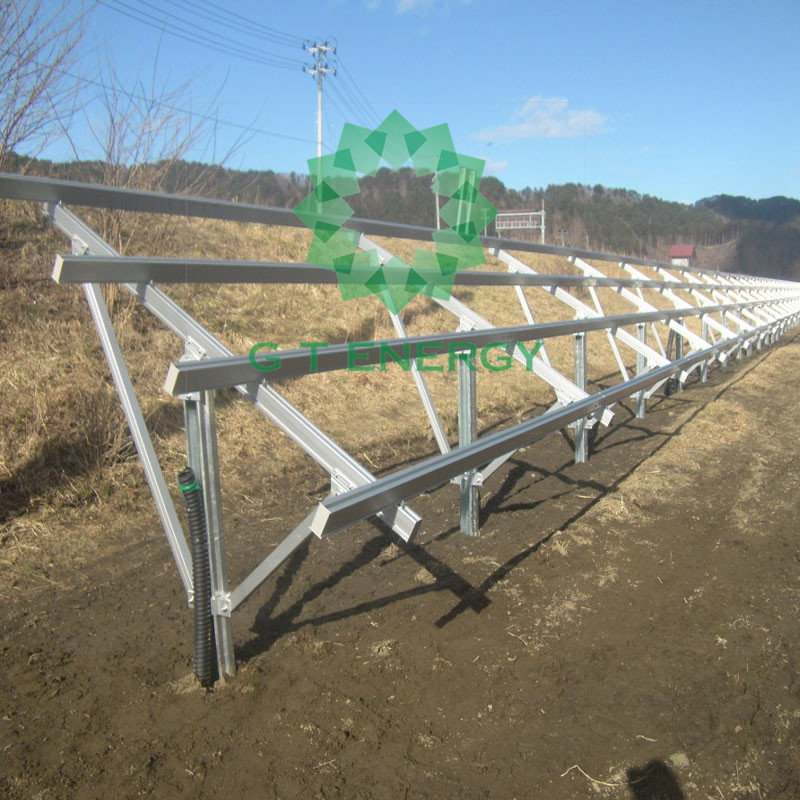

Installation photos of  pile ground mounting system

ground mounting system


 Solar inter clamp Solar support beam Solar connecter 90Solar flat rail

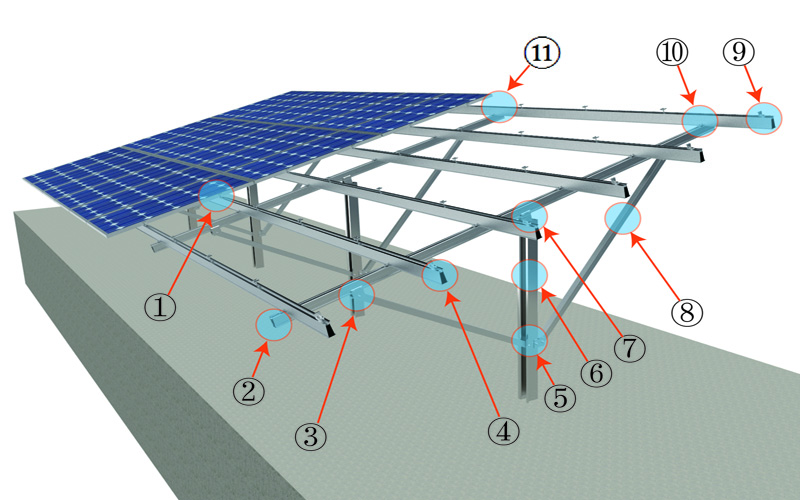

    1.  Solar inter clamp          2.  Solar support beam        3Solar connecter 90              4.  Solar flat rail


 Solar pile connecter Solar U-shape pile solar mounting solutionsSolar Aluminum alloy square tube

5 Solar pile connecter     6.  Solar U-shape pile      7.   Solar revolve connecter        8. Solar Aluminum alloy

                                                                                                                                                            square tube



 Solar end clamp Solar rail clamp Solar flat rail splice

     9. Solar end clamp              10. Solar rail clamp            11. Solar flat rail splice



Component photos of pile ground mounting system

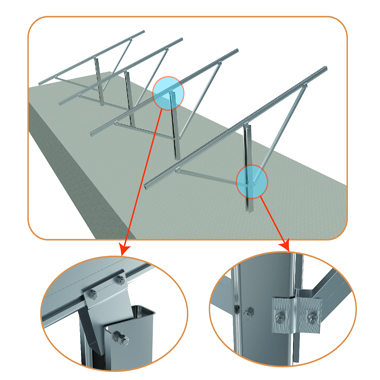

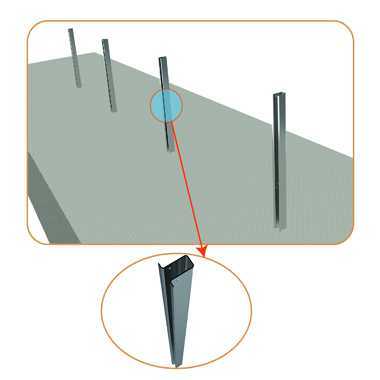

Step1:Install pile by pile machine according to             Step2: Install the pre-assembled support
               distance marked in drawing                                                  beam in the U-shape pile



    solar panel mounting rack       solar rack mounting system

                         Install the U-shape pile                                                Revolve connecter               Pile connecter

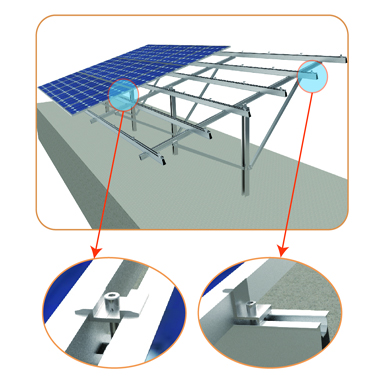

 Step3:Install rails and rail splices                                         Step4: Fasten panel by inter clamp

                                                                                                                            and end clamp



       solar mounting kits from china         solar ground screw suppliers

                        Rail splice                  Rail clamp                                         Inter clamp                  End clamp
