Pillow Block Bearing Units UCPE2


UCPE Standard duty,Wider inner ring bearing, Solid base housing,Setscrew locking,Cast gray iron housing .

Cast ductile iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

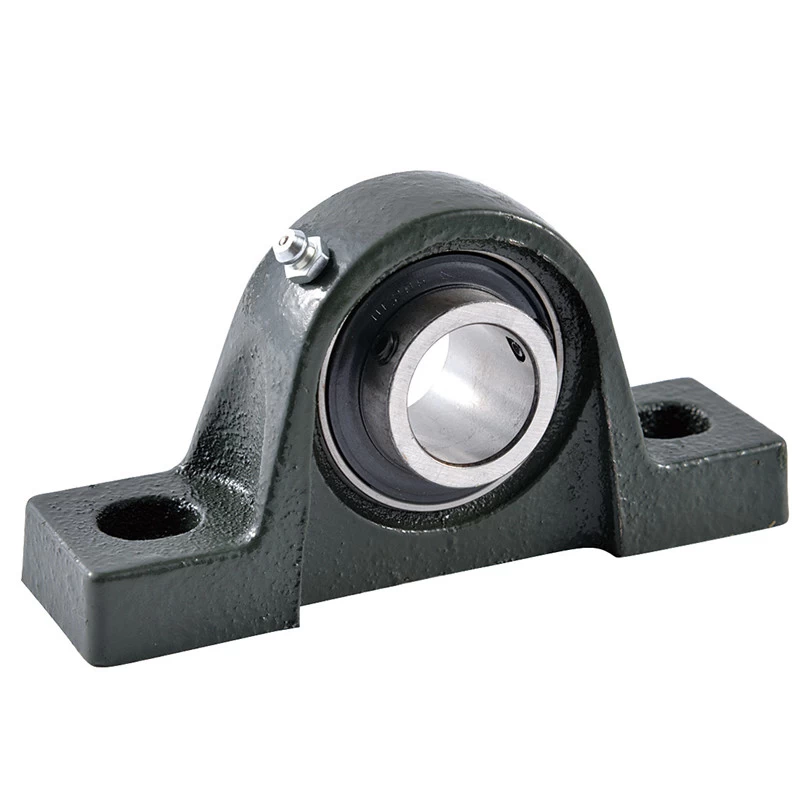

Bearing Pillow Block UCPE208

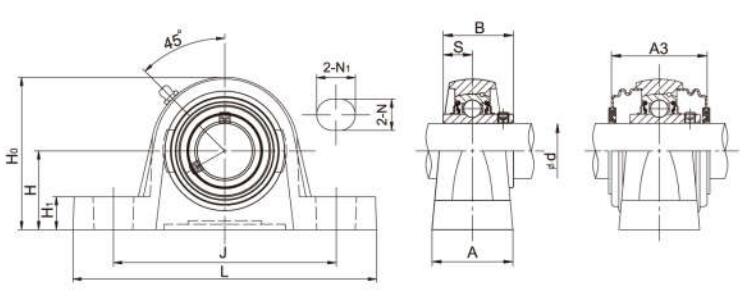

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight (kg)
d H L J A N N1 H1 Ho B s A3 (mm) (in)
(in) (mm)
UCPE201    12 30.2 124 95 31 11 15 14 57.1 26 10   M8 5/16 0.57
UCPE201-8  1/2   30.2 124 95 31 11 15 14 57.1 26 10   M8 5/16 0.57
UCPE202   15 30.2 124 95 31 11 15 14 57.1 26 10   M8 5/16 0.57
UCPE202-9  9/16    30.2 124 95 31 11 15 14 57.1 26 10   M8 5/16 0.57
UCPE203-10  5/8    30.2 124 95 31 11 15 14 57.1 26 10   M8 5/16 0.57
UCPE203   17 30.2 124 95 31 11 15 14 57.1 26 10   M8 5/16 0.57
UCPE203-11 11/16   30.2 124 95 31 11 15 14 57.1 26 10   M8 5/16 0.57
UCPE204  20 33.3 127 95 38 13 16 15 65 31 12.7 46.4 M10 3/8 0.82
UCPE204-12 3/4   33.3 127 95 38 13 16 15 65 31 12.7 46.4 M10 3/8 0.82
UCPE205    25 36.5 140 105 38 13 16 16 70 34.1 14.3 48 M10 3/8 0.94
UCPE205-14  7/8    36.5 140 105 38 13 16 16 70 34.1 14.3 48 M10 3/8 0.94
UCPE205-15  15/16    36.5 140 105 38 13 16 16 70 34.1 14.3 48 M10 3/8 0.94
UCPE205-16 1   36.5 140 105 38 13 16 16 70 34.1 14.3 48 M10 3/8 0.94
UCPE206  30 42.9 160 121 48 17 21 18 83 38.1 15.9 52 M14 1/2 1.46
UCPE206-17  1-1/16    42.9 160 121 48 17 21 18 83 38.1 15.9 52 M14 1/2 1.46
UCPE206-18  1-1/8    42.9 160 121 48 17 21 18 83 38.1 15.9 52 M14 1/2 1.46
UCPE206-19  1-3/16    42.9 160 121 48 17 21 18 83 38.1 15.9 52 M14 1/2 1.46
UCPE206-20 1-1/4   42.9 160 121 48 17 21 18 83 38.1 15.9 52 M14 1/2 1.46
UCPE207  35 47.6 167 127 48 17 21 19 94 42.9 17.5 59 M14 1/2 1.76
UCPE207-20  1-1/4    47.6 167 127 48 17 21 19 94 42.9 17.5 59 M14 1/2 1.76
UCPE207-21  1-5/6    47.6 167 127 48 17 21 19 94 42.9 17.5 59 M14 1/2 1.76
UCPE207-22  1-3/8    47.6 167 127 48 17 21 19 94 42.9 17.5 59 M14 1/2 1.76
UCPE207-23 1-7/16   47.6 167 127 48 17 21 19 94 42.9 17.5 59 M14 1/2 1.76
UCPE208  40 49.2 184 137 54 17 25 19 100 49.2 19.0 68.2 M14 1/2 2.13
UCPE208-24  1-1/2    49.2 184 137 54 17 25 19 100 49.2 19.0 68.2 M14 1/2 2.13
UCPE208-25 1-9/16   49.2 184 137 54 17 25 19 100 49.2 19.0 68.2 M14 1/2 2.13
UCPE209  45 54 190 146 54 17 25 20 108 49.2 19.0 70 M14 1/2 2.43
UCPE209-26  1-5/8    54 190 146 54 17 25 20 108 49.2 19.0 70 M14 1/2 2.43
UCPE209-27  1-11/16    54 190 146 54 17 25 20 108 49.2 19.0 70 M14 1/2 2.43
UCPE209-28 1-3/4   54 190 146 54 17 25 20 108 49.2 19.0 70 M14 1/2 2.43
UCPE210  50 57.2 206 159 60 20 25 22 114 51.6 19.0 76 M16 5/8 3.13
UCPE210-30  1-7/8    57.2 206 159 60 20 25 22 114 51.6 19.0 76 M16 5/8 3.13
UCPE210-31  1-15/16   57.2 206 159 60 20 25 22 114 51.6 19.0 76 M16 5/8 3.13
UCPE210-32 2   57.2 206 159 60 20 25 22 114 51.6 19.0 76 M16 5/8 3.13
UCPE211  55 63.5 219 171 60 20 25 22 126 55.6 22.2 76 M16 5/8 3.87
UCPE211-32  2   63.5 219 171 60 20 25 22 126 55.6 22.2 76 M16 5/8 3.87
UCPE211-34  2-1/8    63.5 219 171 60 20 25 22 126 55.6 22.2 76 M16 5/8 3.87
UCPE211-35 2-3/16   63.5 219 171 60 20 25 22 126 55.6 22.2 76 M16 5/8 3.87
UCPE212  60 69.9 241 184 70 20 25 25 138 65.1 25.4 89 M16 5/8 5.51
UCPE212-36  2-1/4    69.9 241 184 70 20 25 25 138 65.1 25.4 89 M16 5/8 5.51
UCPE212-38  2-3/8   69.9 241 184 70 20 25 25 138 65.1 25.4 89 M16 5/8 5.51
UCPE212-39  2-7/16   69.9 241 184 70 20 25 25 138 65.1 25.4 89 M16 5/8 5.51
UCPE213  65 76.2 265 203 70 25 29 27 150 65.1 25.4 89 M20 3/4 6.63
UCPE213-40 2-1/2   76.2 265 203 70 25 29 27 150 65.1 25.4 89 M20 3/4 6.63
UCPE214  70 79.4 266 210 72 25 31 27 156 74.6 30.2 98 M20 3/4 7.46
UCPE214-44 2-3/4   79.4 266 210 72 25 31 27 156 74.6 30.2 98 M20 3/4 7.46
UCPE215  75 82.6 275 217 74 25 31 28 163 77.8 33.3 97 M20 3/4 8.21
UCPE215-47  2-15/16    82.6 275 217 74 25 31 28 163 77.8 33.3 97 M20 3/4 8.21
UCPE215-48 3   82.6 275 217 74 25 31 28 163 77.8 33.3 97 M20 3/4 8.21

Notes:1.Upon request,pressed steel covers available at both ends.S=Open cap,SM=Close cap. Ordering example:UCPE205+SM.
