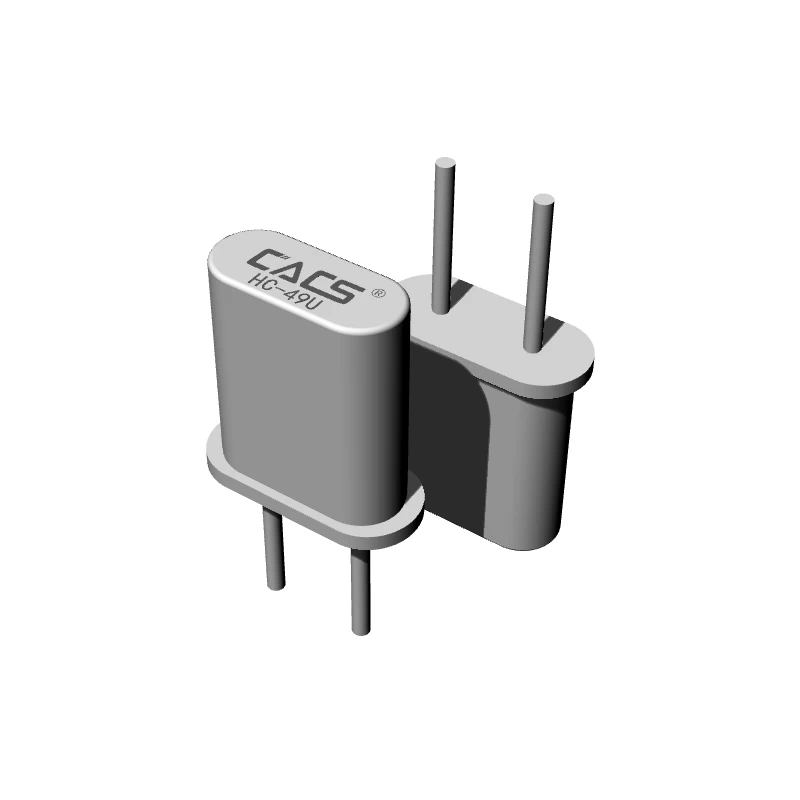

Pin Through Quartz Crystal HC-49U

Features

High precision availability

Resistance welded

Ideal for large pullability

Wide frequency range


Applications

CPU, Memory CPU

Computer, Printer

Data communication (1MHz)

Data input-output machine (1MHz)

Facebook Twitter Pinterest LinkedIn 分享

Typical 11.05×4.65×13.46mm metal can SMD crystal

1. RoHS compliant Lead free soldering
2. FUNDAMENTAL 3RD / 5TH OVERTONE
3. Frequency tolerances (@+25°C) in the range from ±10 to ±50ppm
Frequency stabilities over temperature range in the range from ±10 to ±100ppm.
Operating temperature ranges (typically used): –10 ~ +60°C / –20 ~ +70°C / –40 ~ +85°C

Electrical Parameters

Item Electrical Specification
Min. Type Max. Units
Nominal Frequency 2.097152 MHz
Mode of Vibration Fundamental
Frequency Tolerance  -30 - 30 ppm
Operating Temperature Range -20 - 70 ℃
Frequency Stability  -50 - 50 ppm
Storage Temperature -40 - 85 ℃
Load capacitance - 20 - pF
Equivalent Series Resistance - - 60 Ω
Drive Level - - 100 μW
Insulation Resistance 500 - - MΩ
Shunt Capacitance - - 5 pF
Aging Per Year - - 5 ppm
Package type HC-49U

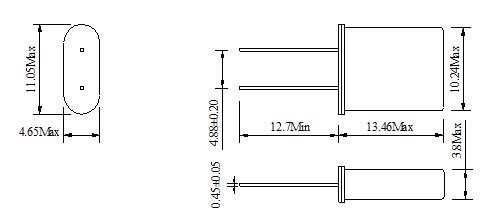

Dimensions

Pin through quartz crystal MHz
