Pins Negative Transmissive HTN Blue Segment LCD Display
It is a HTN segment LCD display product. For a LCD display, its color could either decide by color film or the backlight. Normally the backlight uses LED backlight with variety colors such as white, yellow, blue, etc.
There is also a treatment called silk print to make the LCD be able to display colorful content. But once the silk print is added to the LCD display, it could not be moved even if it's not working.
Segment LCD Display Module
Product Parameters
| LCD Type |
HTN |
| Display Type |
Transmissive |
| Display Mode |
Negative |
| View Angle |
12 o'clock |
| AA |
45x26 mm |
| Driving Condition |
VOP 5V |
| Duty 1/4 |
| Bias 1/3 |
| Connetor |
Pin |
| Display Technology |
COB |
| Control IC |
None |
| Interface |
None |
| Operating Temperature |
0-50°C, custom |
| Requirements On Environmental Protection |
ROHS HSF |

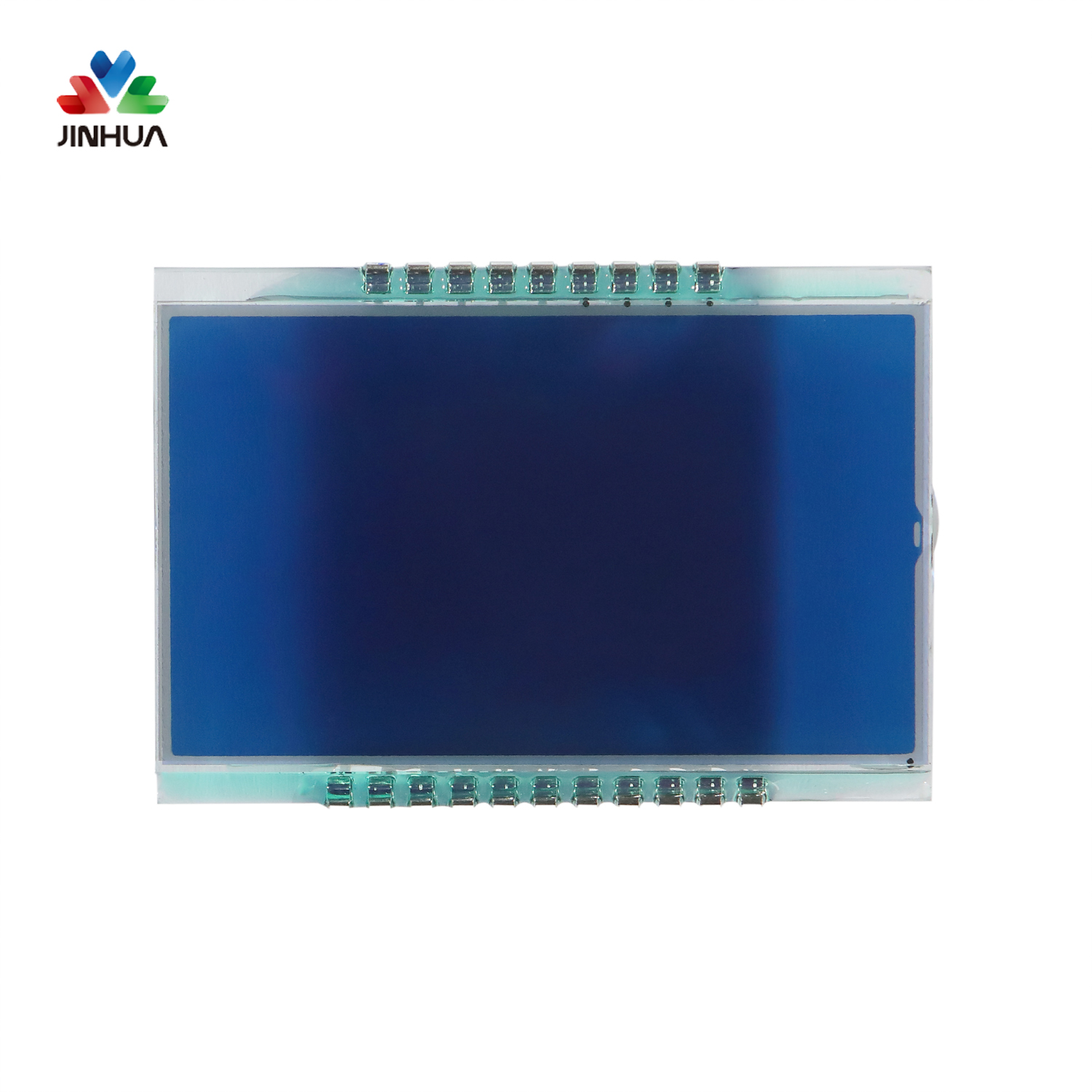

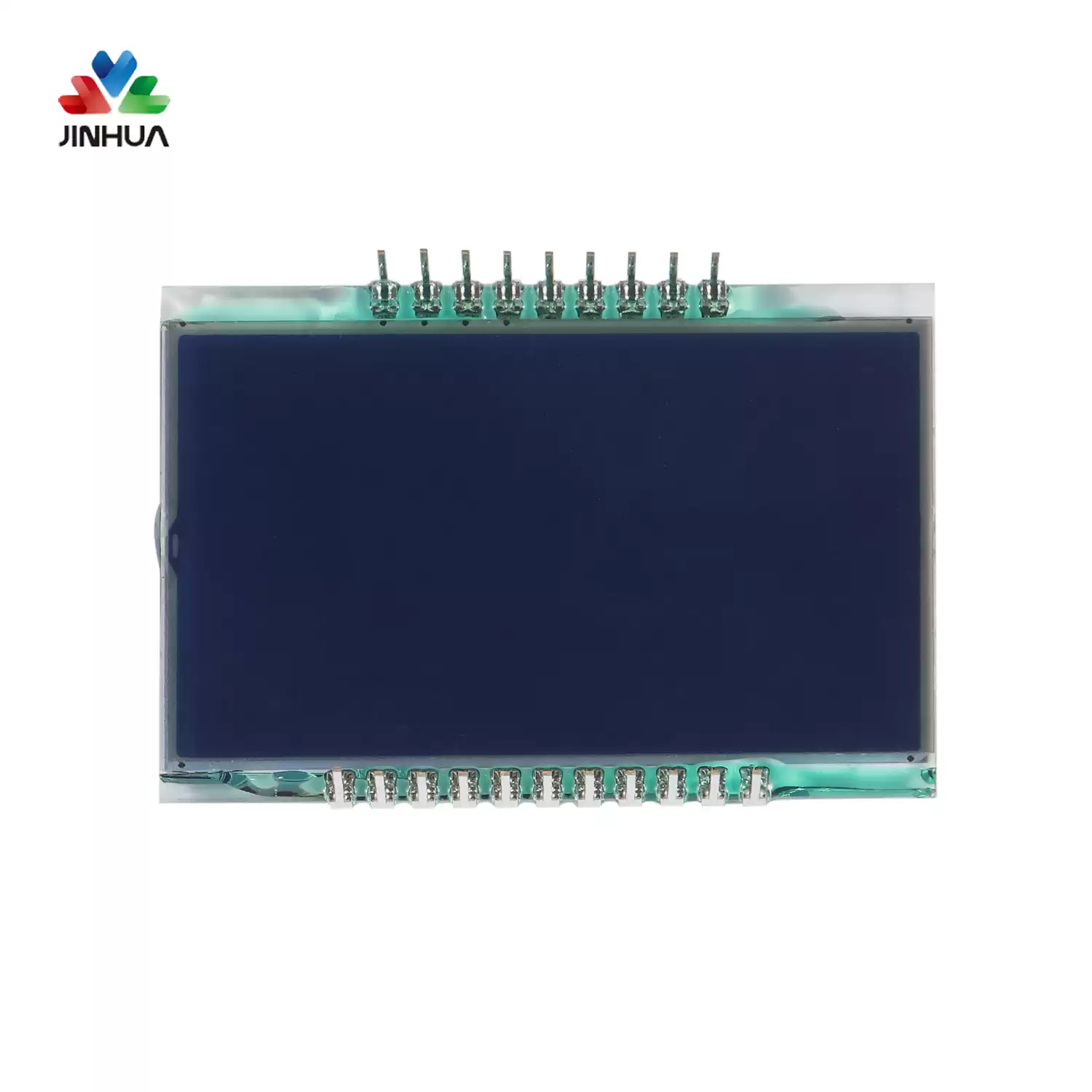

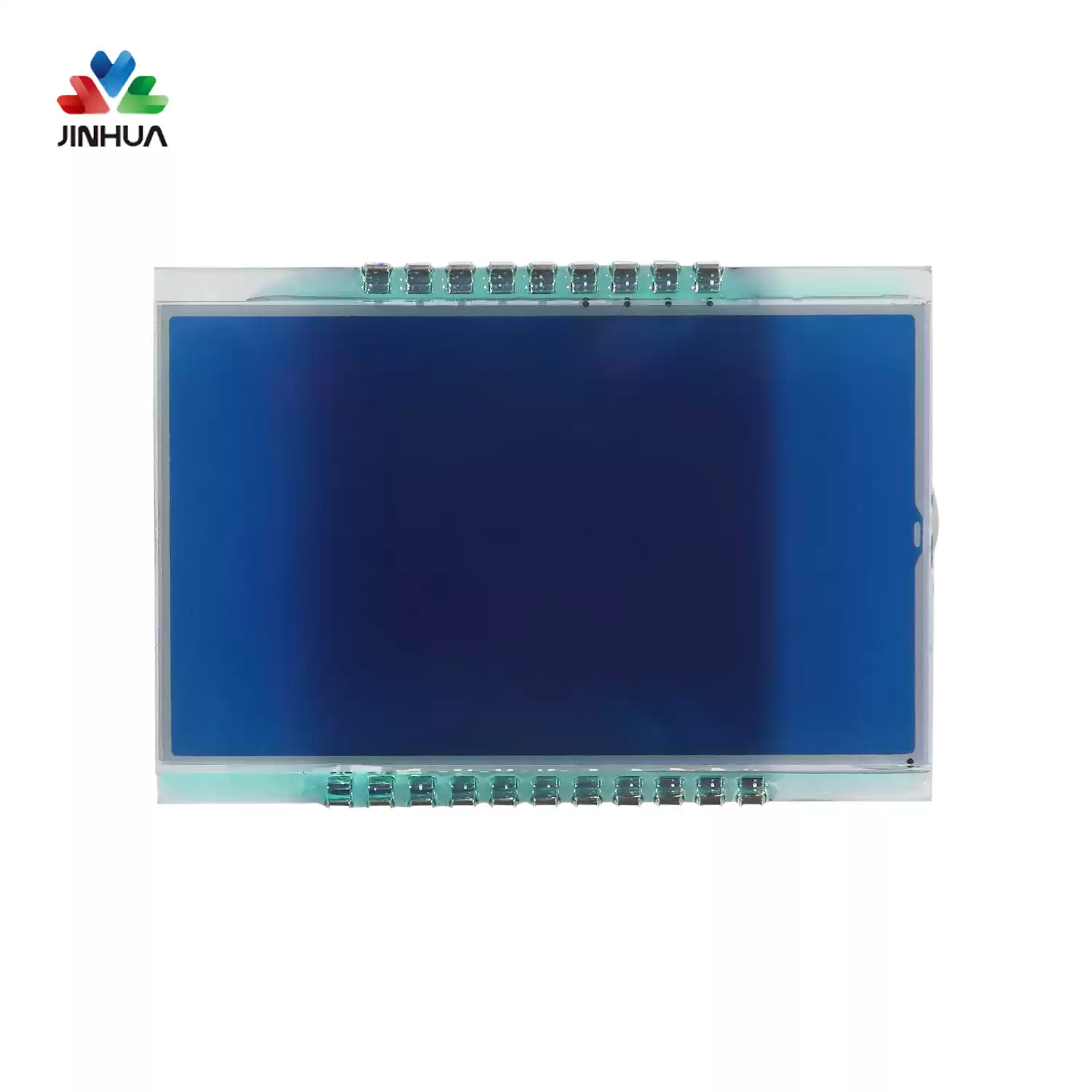

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
HTN Segment LCD Display is able to be applied to all kinds of application, such as electronic calculator, medical equipment, instrument products, fiscal products, automotive products, etc.
