Pins Negative Transmissive VA Segment LCD Display for Digit Display
A segment LCD display, also named as glass-only displays or static displays, are bulit of double pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. For static display there is one pin for very single segment within the segment LCD display.
16x2 LCD, LCD 16X4, Character LCD, custom segment LCD displays are commonly used in products that monitors used to measure specific gases in a mine measure the PH level of swimming pools, or in thermometers used to see if a child is running a fever.
Segment LCD Display Module
Product Parameters
| LCD Type |
VA |
| Display Type |
Transmissive |
| Display Mode |
Negative |
| View Angle |
12 o'clock |
| AA |
35x140 mm |
| Driving Condition |
VDD 5V |
| Duty 1/4 |
| Bias 1/3 |
| Connetor |
Pin |
| Display Technology |
COB |
| Control IC |
None |
| Interface |
None |
| Operating Temperature |
-20-70°C, custom |
| Requirements On Environmental Protection |
ROHS HSF |

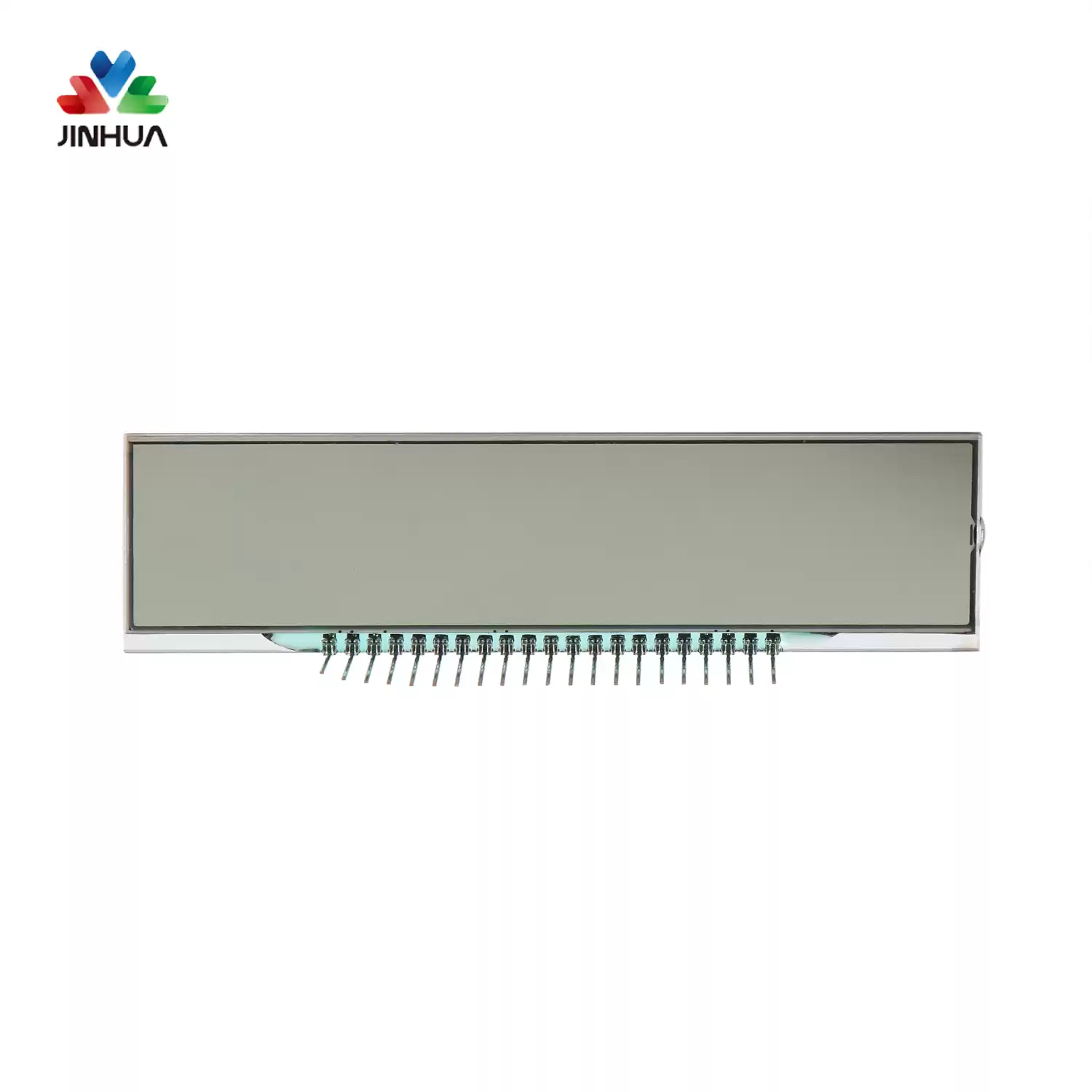

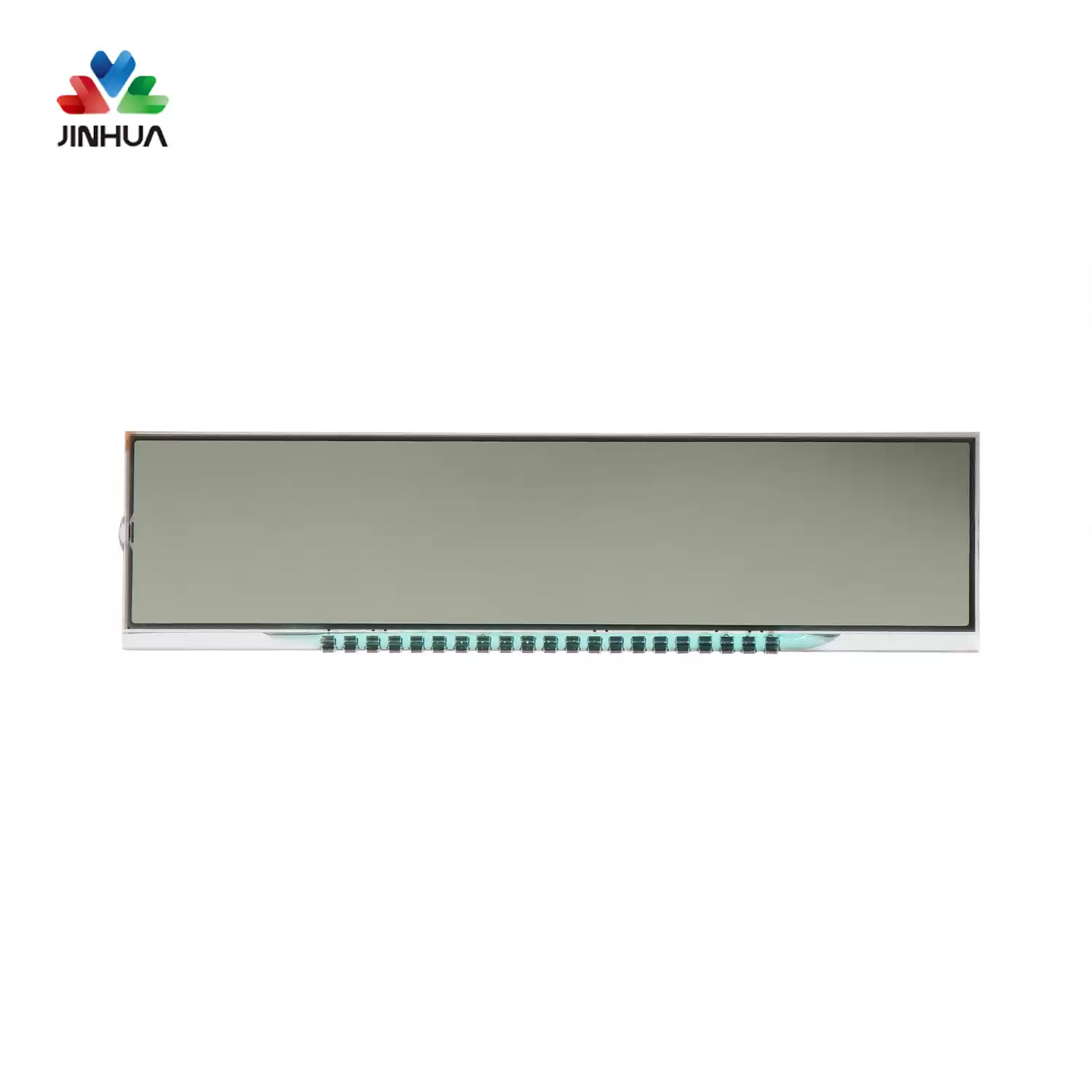

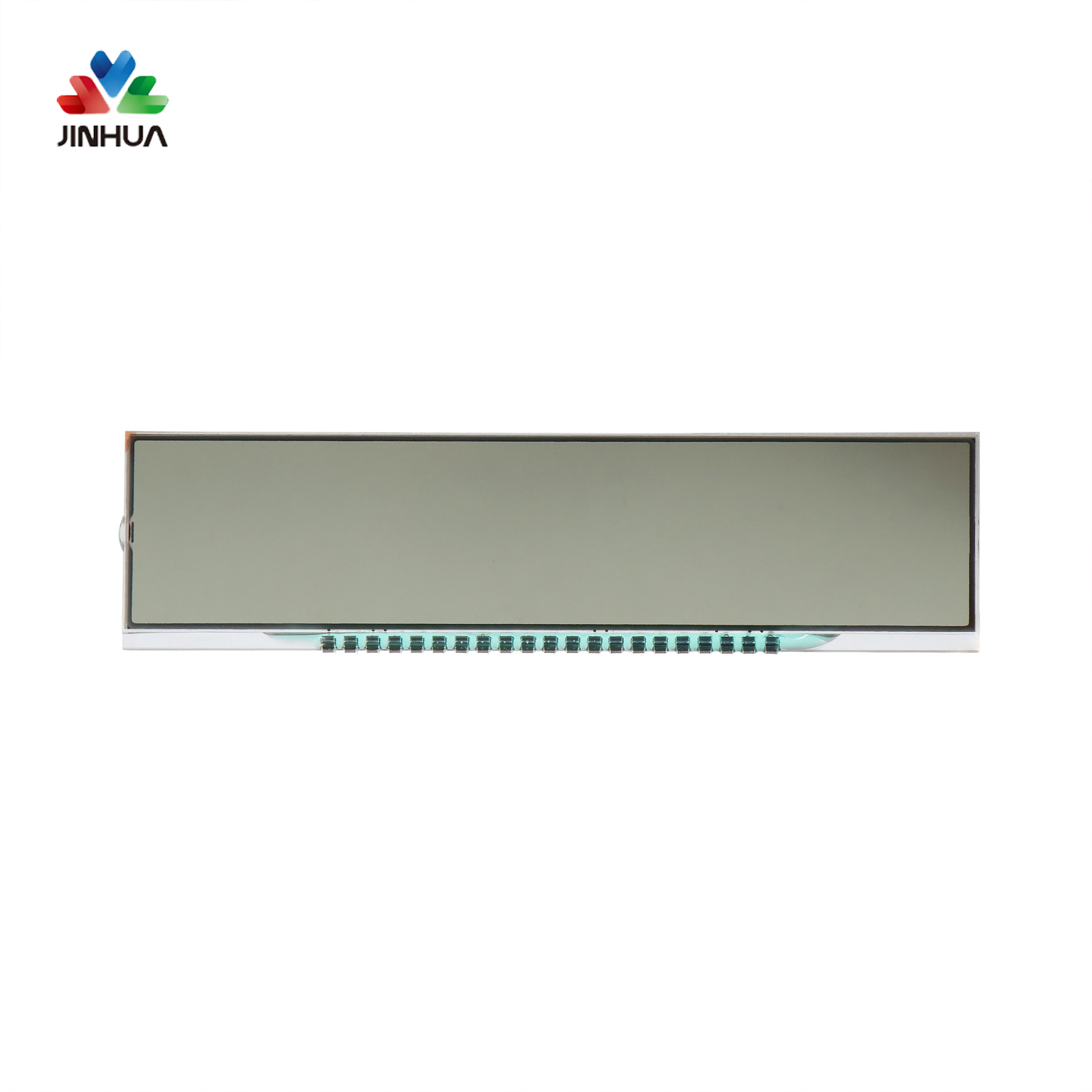

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Segment LCD display module is extensively used in indoors appliaction such as refregerator, laundry machine, oximeter, thermometer, kitchen equipment, etc. It is also applied to outdoors ocassion for example hay mower, scooter, E-vehicle, industrial instrument, GPS, etc.

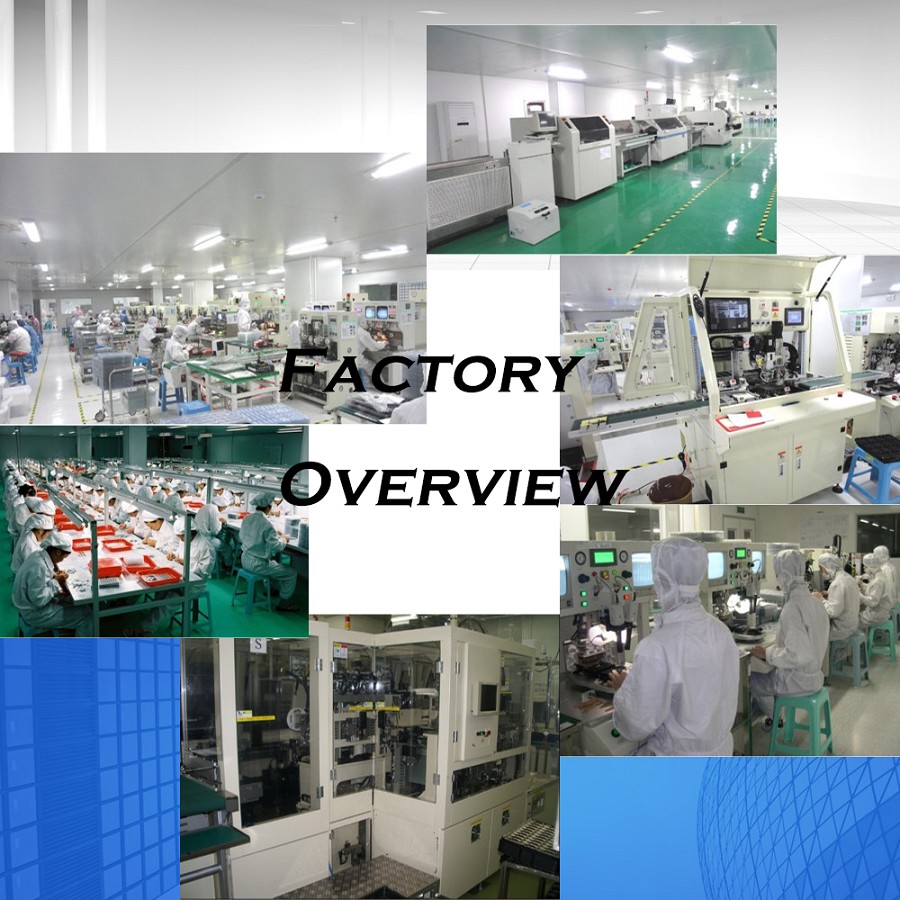

Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
