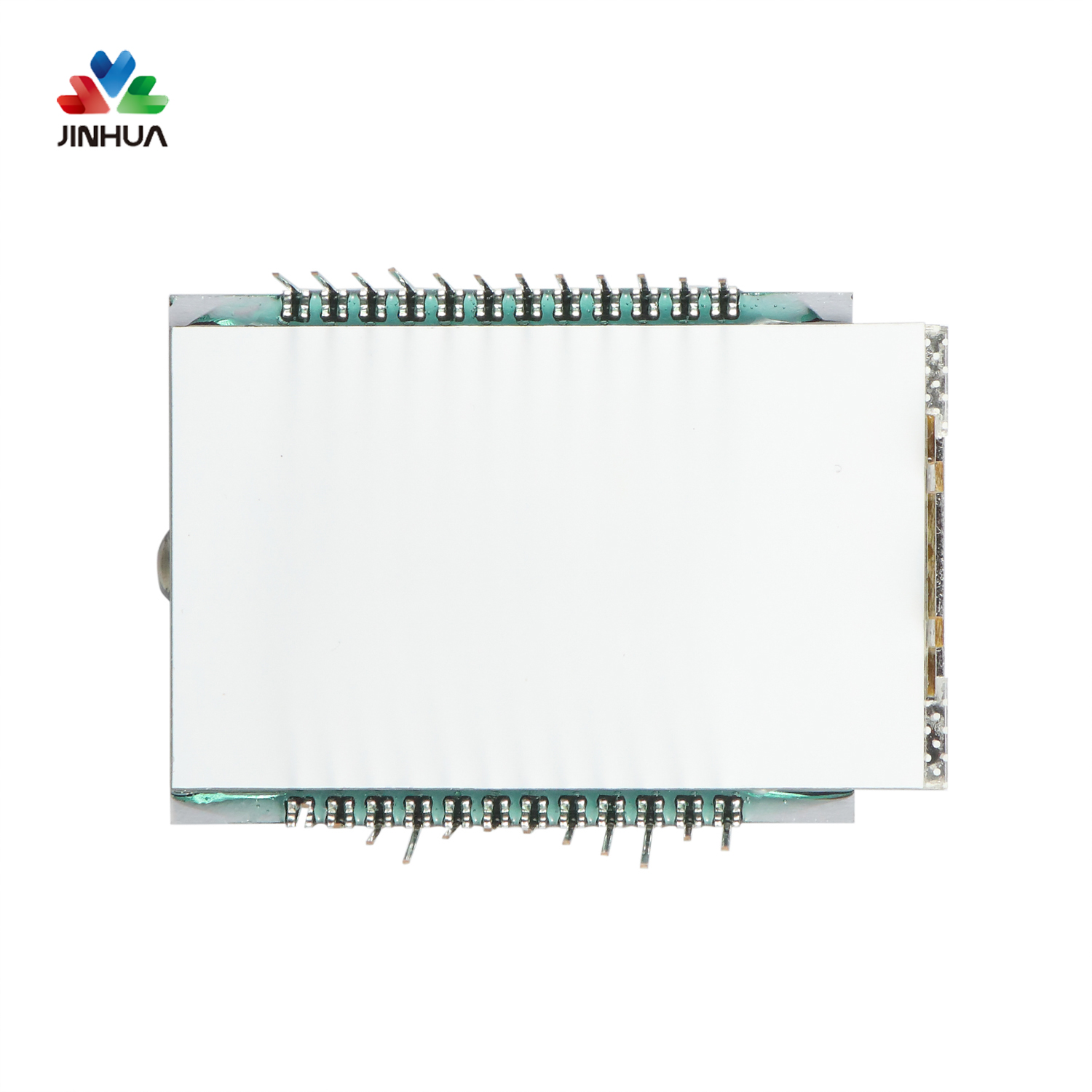

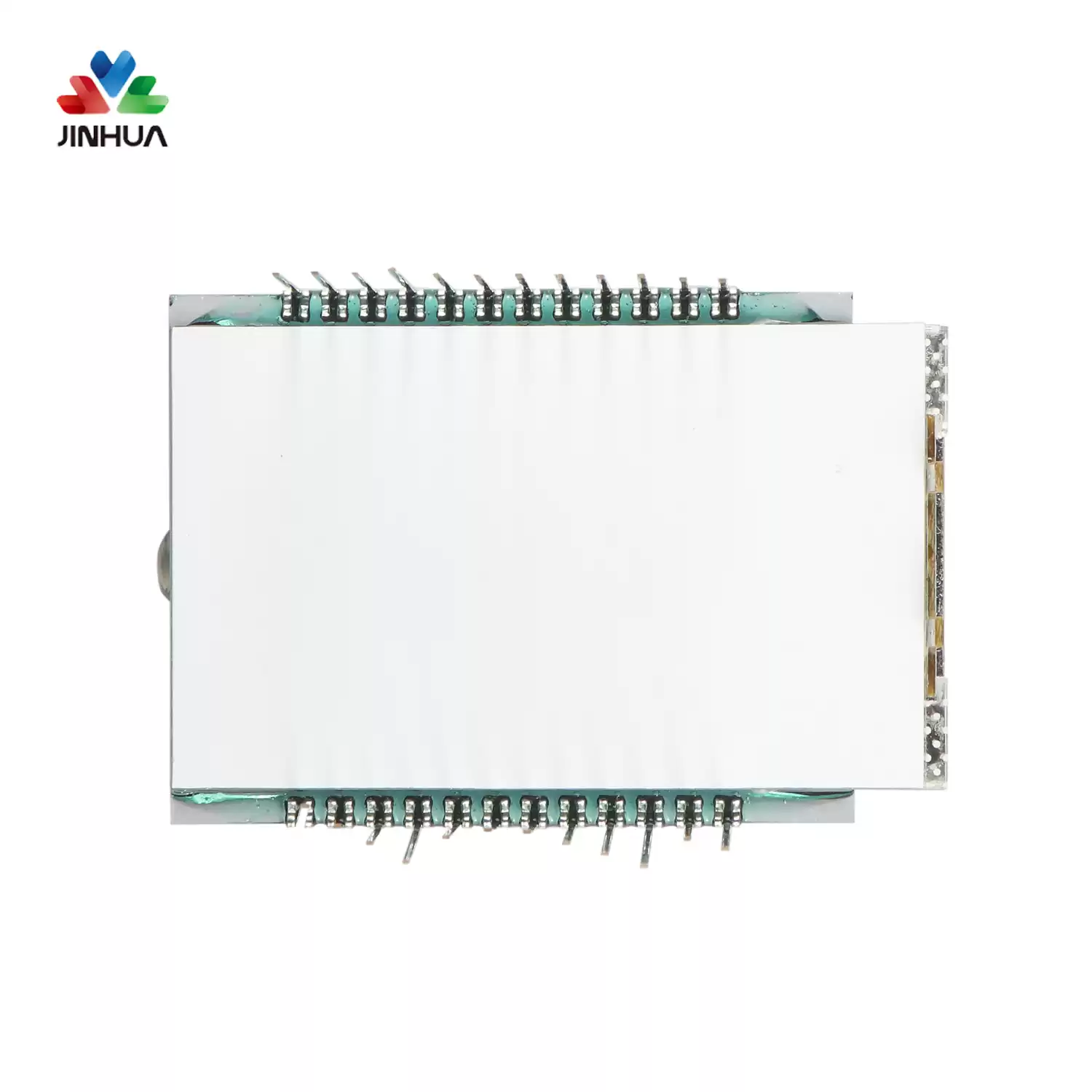

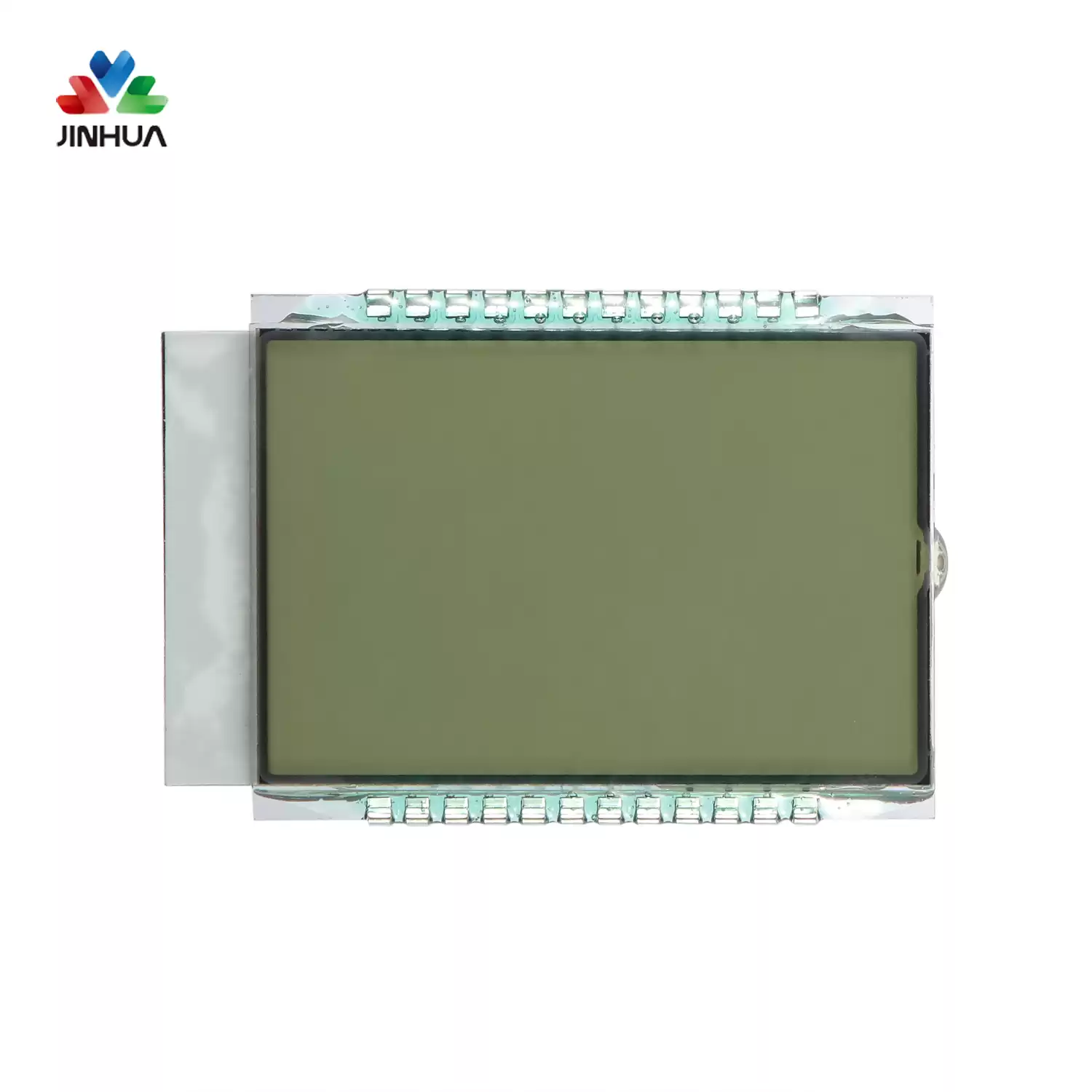

Pins Positive Transmissive HTN Segment LCD Display with Backlight
It is a HTN segment LCD display product with backlight bonded on it. Normally, the brightness is decided the number of LED chip within the LED backlight. The more number the LED chip it has, the brighter the LCD could be.
Jinhua Electronics company is able to provide the HTN segment LCD display products or LCD module products long with backlight with low tooling fee.
Segment LCD Display Module
Product Parameters
| LCD Type |
HTN |
| Display Type |
Transmissive |
| Display Mode |
Positive |
| View Angle |
6 o'clock |
| VA |
42x28mm |
| Driving Condition |
VDD 5V |
| Duty 1/4 |
| Bias 1/3 |
| Connetor |
Pin |
| Display Technology |
COB |
| Control IC |
None |
| Interface |
None |
| Operating Temperature |
-30-80°C, custom |
| Requirements On Environmental Protection |
ROHS HSF |

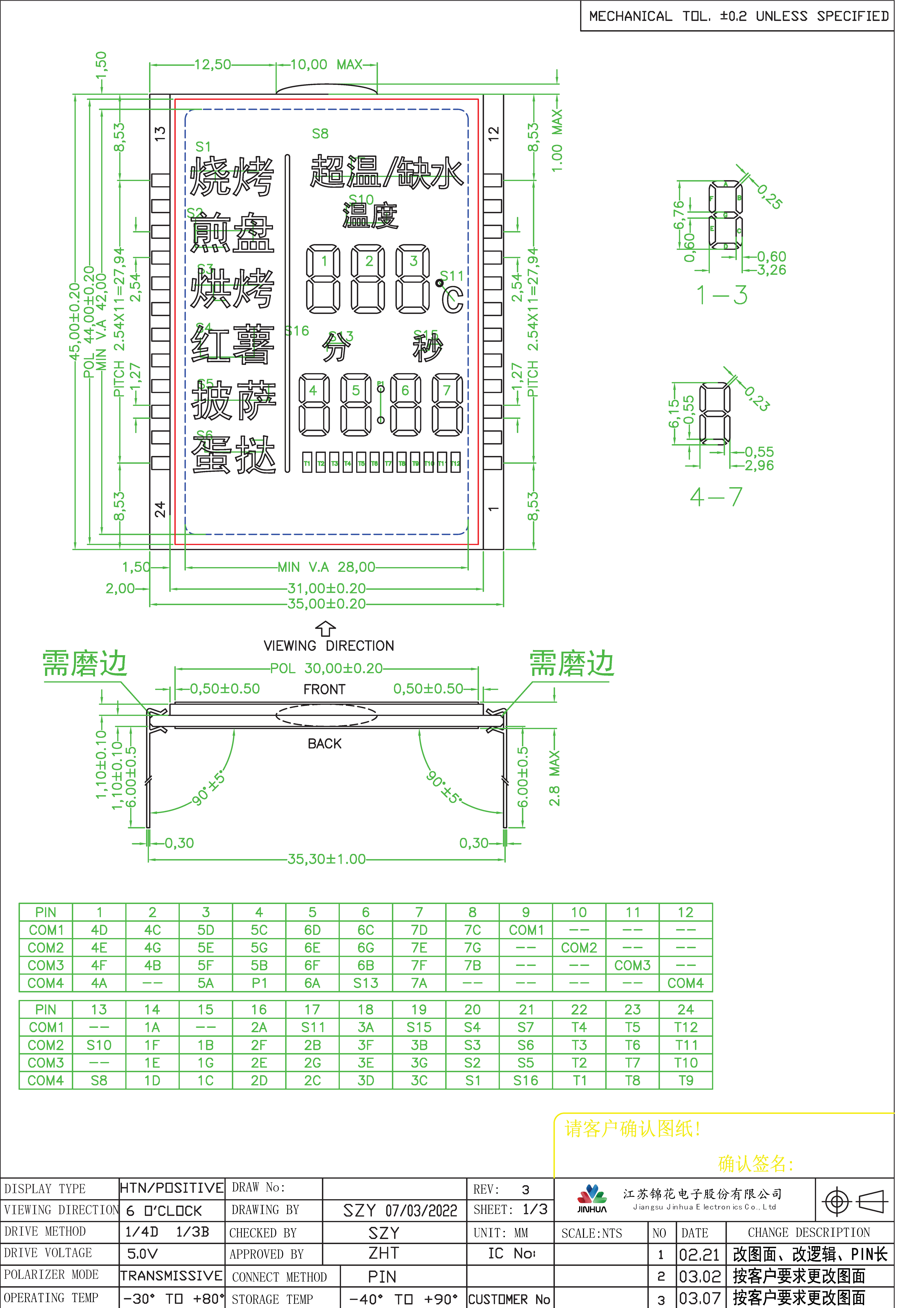

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Segment LCD Display is able of customing here at Jinhua Electronics company, which means once the clients have put their requirement of LCD such as size, display type, display mode, view angle, content, we could make the sample within two weeks. For over 20 years, Jinhua Electronics company has accumulated many clients from all kinds of industries like home appliance, industry control, automotive, EMS, medical ,consumer electronics, etc.
Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
