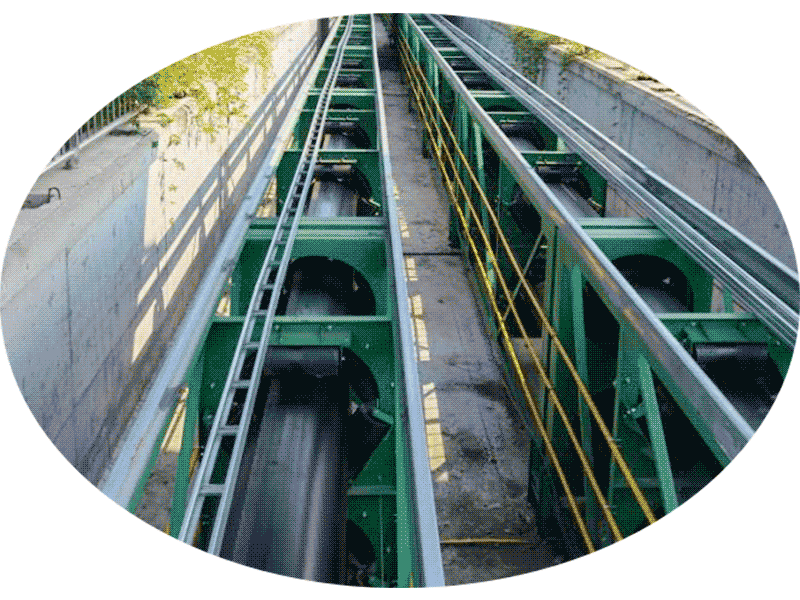

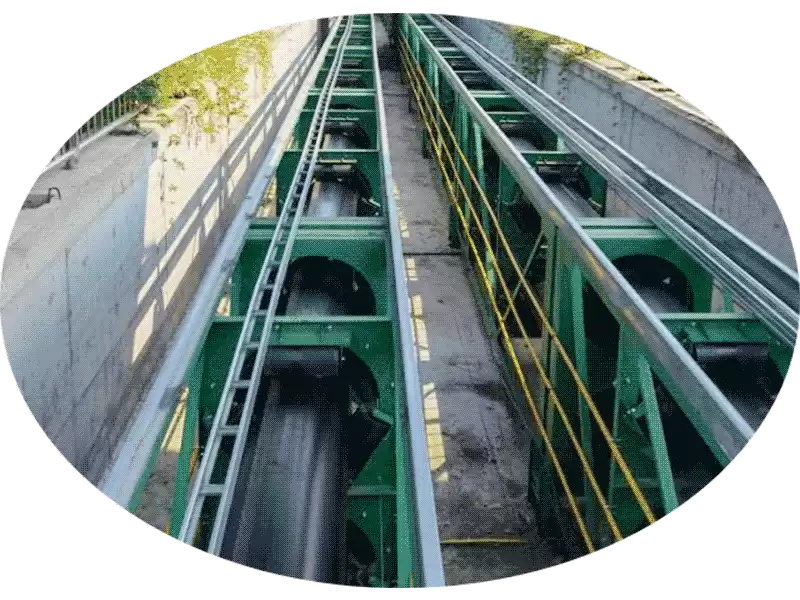

The pipe belt conveyor system is a type of environmentally friendly material conveying equipment that features a distinctive closed pipe structure. The conveyor belt is shaped into a pipe to encase the material being conveyed, offering a number of benefits over traditional conveyor systems.
Key Features and Benefits
1. Enhanced Environmental Protection
• The closed tubular structure effectively prevents the emission of dust and the leakage of materials, thus ensuring the prevention of spillage. This not only mitigates environmental contamination but also guarantees a hygienic and secure working environment. Such a system is particularly advantageous for industries that handle fine powders, granules, and other materials that are prone to dust generation.
• Furthermore, the system is safeguarded from external factors such as wind, precipitation, and dust, rendering it suitable for deployment in challenging climatic conditions and complex topographies.
2. High Efficiency and Capacity
• The pipe belt conveyor system is capable of handling large volumes of materials with ease due to its wide range of bandwidths and adjustable belt speeds. The conveyor's design allows for high material filling rates, thereby maximizing the efficiency of the transportation process.
3. Versatile Application
• The pipe belt conveyor system is adaptable to a multitude of materials, including wood chip fuel for power plants, coal, ores, grains, chemicals, and more. It is capable of accommodating diverse material sizes, densities, and flow characteristics, rendering it a versatile solution for a range of industrial sectors.

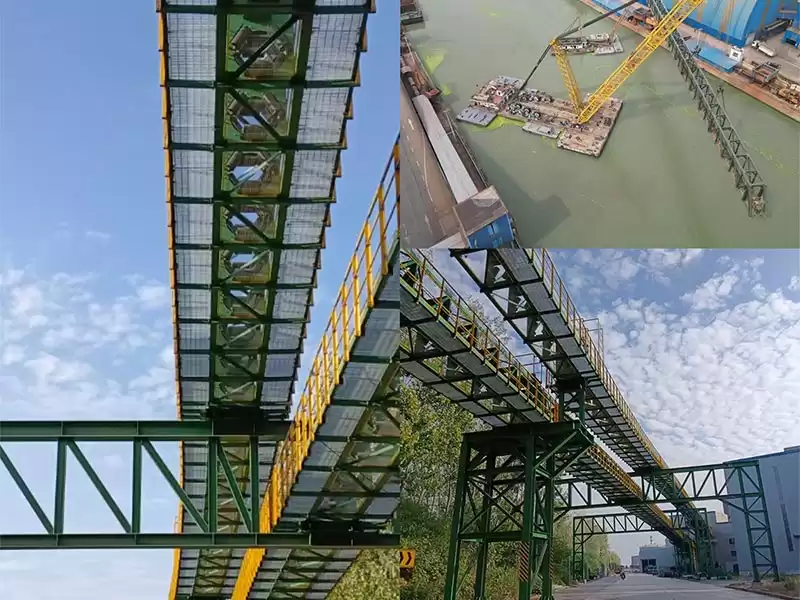

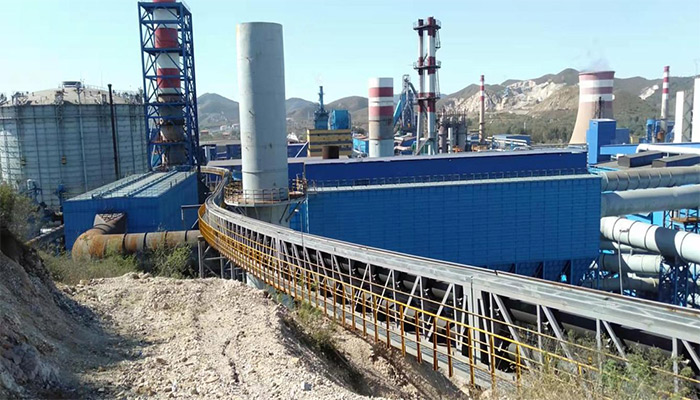

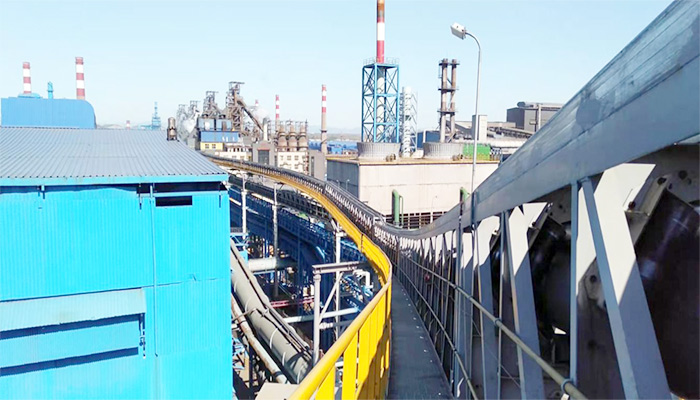

• The system can be configured for various layouts and terrains, including horizontal, inclined, and curved sections. This adaptability permits seamless integration into existing production processes and complex site environments.
4. Reliable and Low Maintenance
• The conveyor system is designed to be reliable and low-maintenance. It is constructed with high-quality materials and advanced engineering, thereby ensuring durability. The robust design ensures reliable operation even when subjected to heavy loads and harsh conditions.
• The pipe conveyor system has a reduced number of moving parts and a more straightforward structure than traditional conveyors, which results in a lower maintenance requirement and a reduction in both downtime and operating costs.
Technical Parameters
Our pipe conveyor system is available in a range of models with varying technical specifications, designed to meet your specific requirements. Key technical parameters include:
1. Conveyor Capacity
• The rated capacity of the conveyor system ranges from 17m³/h to 7200m³/h, depending on the specific model and the intended application.
2. Geometry of Pipe Conveyor belt
• Belt width options span a range of 430mm to 3100mm.
• Pipe diameter (100mm-850mm) is selected based on the material characteristics and transportation requirements.
• Conveyor length can be customized according to the site layout and distance between processing points.
3. Operating Speed
• The adjustable belt speed (0.8-5.0m/s) allows for the optimization of material transportation and energy consumption, with the speed able to be adjusted to match the production process and material flow rate.
4. Power Requirements

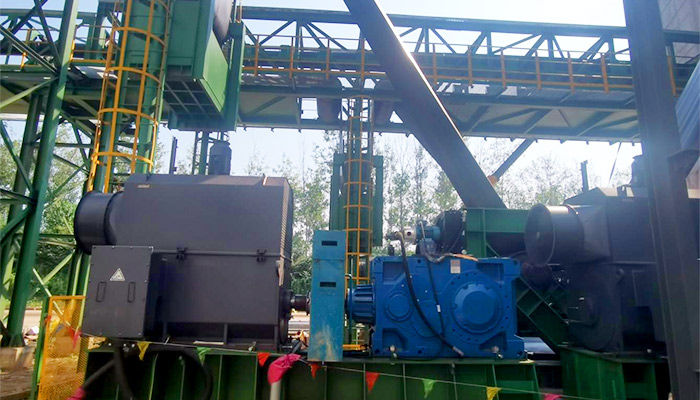

• The conveyor is powered by variable frequency motors with different power ratings, depending on the conveyor size and load.
• The drive system can be customized for specific applications and power supply conditions.
How to Choose the Right Model?
When selecting a pipe belt conveyor system, it is essential to consider a number of factors to ensure the optimal fit for your specific application. These include:
1. Material Characteristics
• It is important to analyze the type, size, density, and flowability of the material to be transported in order to determine the appropriate conveyor model, belt width, and pipe diameter.
2. Conveyor Capacity Requirements
• Determine the required hourly material throughput based on your production needs. It is important to select a conveyor model with a sufficient rated capacity to meet your demand.
• It is important to consider both peak loads and future expansion plans when making your calculations.
3. Layout and Terrain
• It is important to consider the site layout, including horizontal and vertical distances, curves, and inclines. It is essential to select a conveyor system that can meet the specific terrain and layout requirements.
• It is essential to guarantee that the conveyor system can be installed and operated safely within the specified environment.
4. Cost and Maintenance
• It is important to evaluate the initial investment cost and long-term operating costs, including energy consumption and maintenance requirements.
• Select a dependable and low-maintenance conveyor system that offers a favorable return on investment.
Why Choose Our Company?
As a leading exporter of pipe belt conveyor systems, we offer a number of competitive advantages that set us apart from our competitors.
1. Quality and Reliability
• Our conveyor systems are manufactured to the highest quality standards, using premium materials and advanced manufacturing processes, ensuring optimal performance and reliability.
• Our rigorous quality control measures guarantee that each unit is reliable, durable, and performs to the highest standards.
2. Customization
Our company recognizes that each client's needs are distinct. We provide customized solutions to meet your specific requirements. Our engineering team is equipped to design and fabricate conveyor systems that are tailored to your exact specifications.
3. Technical Support
• Our team of experienced engineers and technicians is available to provide comprehensive technical support at every stage of the project life cycle.
• From the initial consultation to the installation, commissioning, and after-sales service, we are dedicated to ensuring your satisfaction.
4. Global Presence
• Our pipe conveyor system exported to a multitude of countries worldwide. Our products are trusted by customers in a variety of industries and regions, which is testament to our commitment to quality and customer service.
Our pipe belt conveyor system is a cutting-edge material handling solution that offers enhanced environmental protection, high efficiency, versatility, and reliability. With our dedication to quality, customization, and technical support, we are confident that our conveyor systems will meet your material transportation needs and help you achieve your business goals. Contact us today to learn more about our products and how we can help you optimize your material handling processes.
