Pipe Storage Cantilever Rack

Item

Pipe storage cantilever rack

Brand

heda shelf

Material

Q235B Cold-roll Steel

Basic Components

Upright,Base,Arm

Loading Capacity

500-4000kg/level

Upright Section(mm)

C200*80/C250*80/C300*90;

Arm Section(mm)

100*70/120*70/140*90/160*90;

Thickness

1.5,1.8,2.0,2.5,3.0mm;

Surface Treatment

Electrostatic Spray Surface;

Feature

Anti-rust,Corrosion protection;

Warranty

5 years

Certification

SGS/ISO/CE

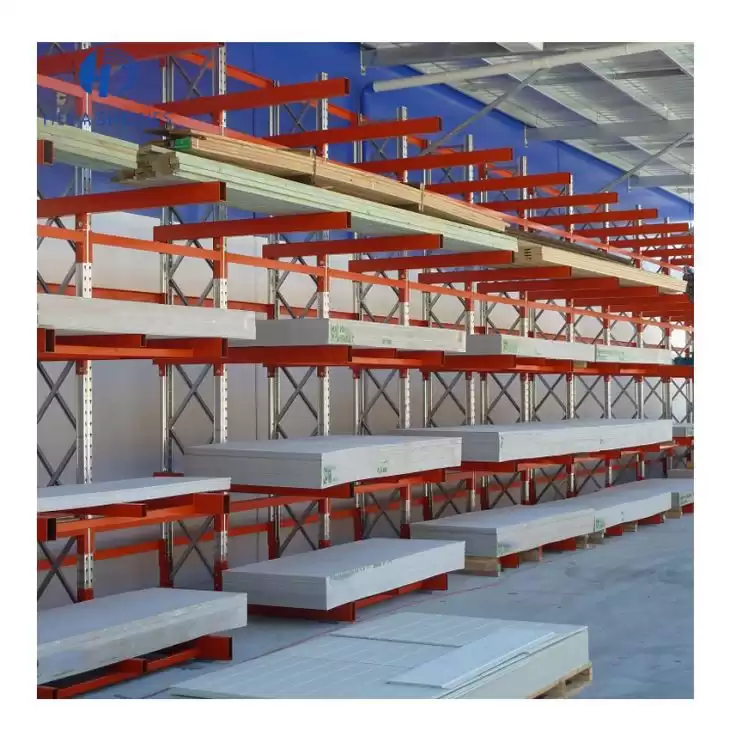

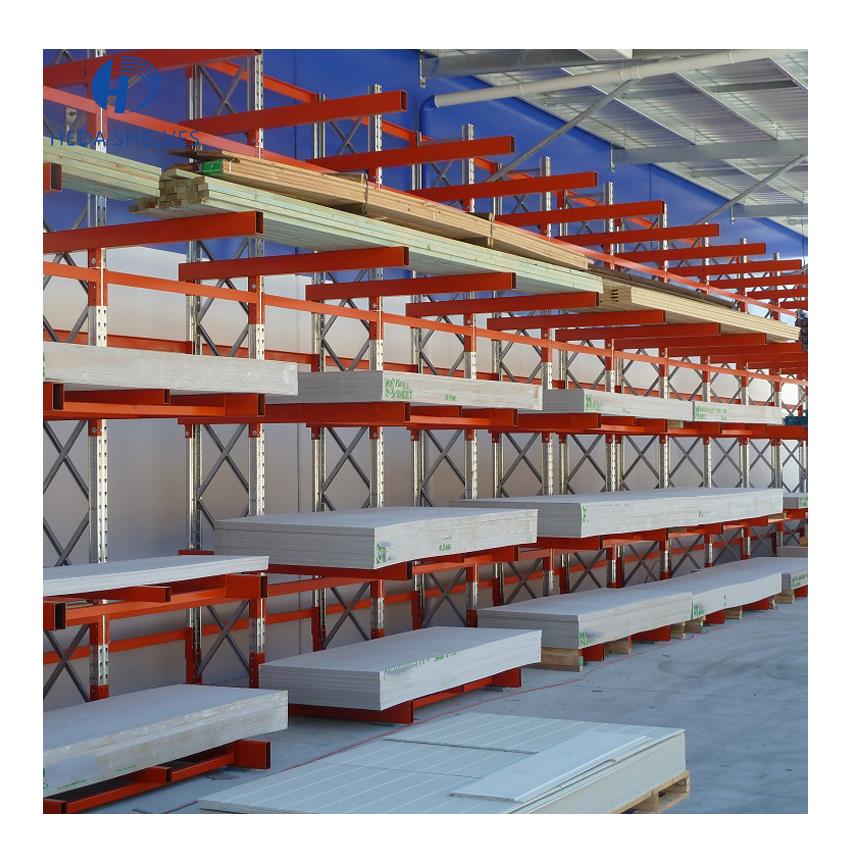

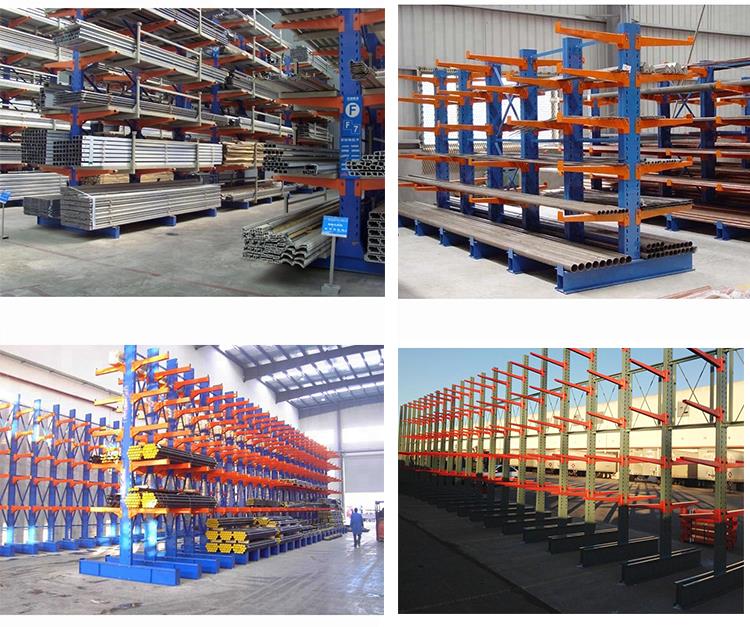

Pipe storage cantilever rack introduction:

Pipe storage cantilever rack is mainly used for storing irregular and long shape material, such as tube, rolled section steel and so on. It could be divided into single side and double side cantilever racking. According to different need, light,medium and heavy load capacities of Cantilever Racking is available.
