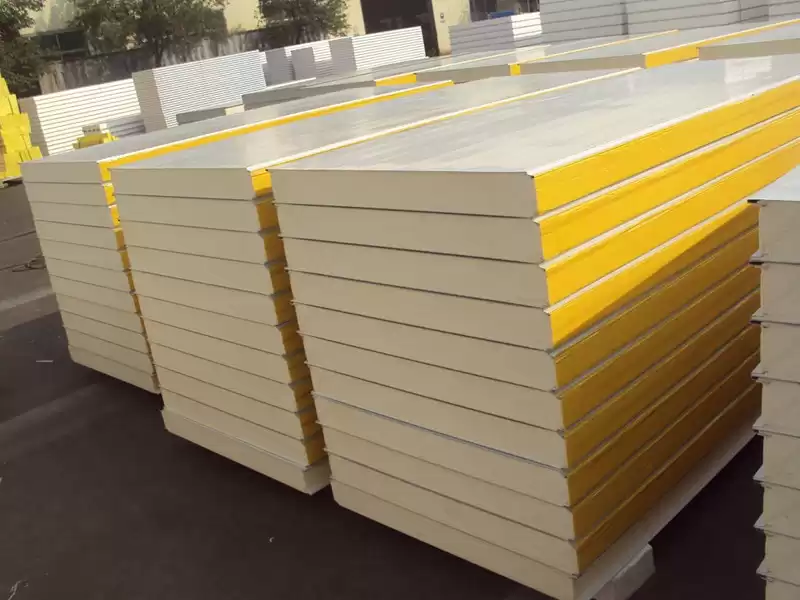

PIR Sandwich Panel for Cold Room System

Wiskind PIR Sandwich Panel for Walk-in Cold Room or Freezer, which has B1 fireproof and excellent waterproof effect. High percentage of close area ≥90% and low moisture absorption ≤3%.

Low thermal conductivity≤0.020. It has a high-efficient thermal insulation effect. The best choice for insulation solutions for your cold storage cladding systems.



PIR Sandwich Panel for Cold Storage System


Product Description:

Product Name PIR Sandwich Panel for Cold Storage System

Brand of steel plates

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates

0.4mm-0.6mm.

Thickness ofcore

30-300mm.

Density of core

40-50kg/m³

Effective width

930/1000mm

Panel Length

According to customers’ request




Product Advantages:

1.The dimensional stability is good ≤2mm.

2.The PIR sandwich panel is even and stable.

3.Fast and quick installation on the site.

4.It is a green and environmental-friendly product, loved deeply by our clients.

5.Easy and convenient construction. This method reduces the limit time and acquires good economical benefit and social benefit.

6.Wiskind & BASF have strategic cooperation and the quality of PIR sandwich panel can be controlled.

PIR Sandwich Panel
