Pitch 8mm SMD 3in1 outdoor Led Screens


P8 LED Die-casting Cabinet.High quality driving IC,combined with the controL.  system which has more than 14bit processing,  effecting a higher refresh rate.



Facebook Twitter Pinterest LinkedIn 分享

Parameter

P8 Outdoor LED Die-casting Cabinet

Module

Pixel Configuration

1R1G1B SMD3535

Pixel Pitch

8mm

Module Resolution(W×H)

32X16

Module Size(mm)

256X128

Weight Per Module

2kg

Max Power Consumption

85W

Cabinet(Panel)

Modue Qty Per Cabinet(W×H)

3X6

Cabinet Resolution(W×H)

96X96

Area per Cabinet(㎡)

0.4096

Weight of One Cabinet(Kg)

13.5kgs

Pixel Density(pixel/㎡)

15625

Cabinet Flatness(mm)

≤0.2

Cabinet Material

Die-casting Cabinet

Optical Parameters

Brightness Calibration by Per Dot

Yes

White Balance Brightness(nits)

≥6500

Color Temperature

3200--9300 deg. K (adjustable)

View Angle

Horizontal 110°；Vertical 110°

Brightness Uniformity

≥97%

Max.Contrast

4000:1

Electrical Parameters


Max Power Consumption(㎡)

400W/㎡

Average Power Consumption(㎡)

200W/㎡

Input Voltage(VAC)

110 ± 20% or to 240 ± 20%

Processing Performance

Driving Mode

1/4 scan

Frame Rate(Hz)

50 to 60

Refresh Frequency(Hz)

≥1200

Using Parameters

Best Viewing Distance(m)

8-120m

Lifetime(Hours)

≥100,000

Working Temperature(℃)

-20 ~ + 45

Stored Temperature(℃)

-30 ~ + 60

Working Humidity(RH)

10 — 90%(no dew formation)

Stored Humidity(RH)

10 — 95%(no dew formation)

Waterproof

65

SIZE

768X768

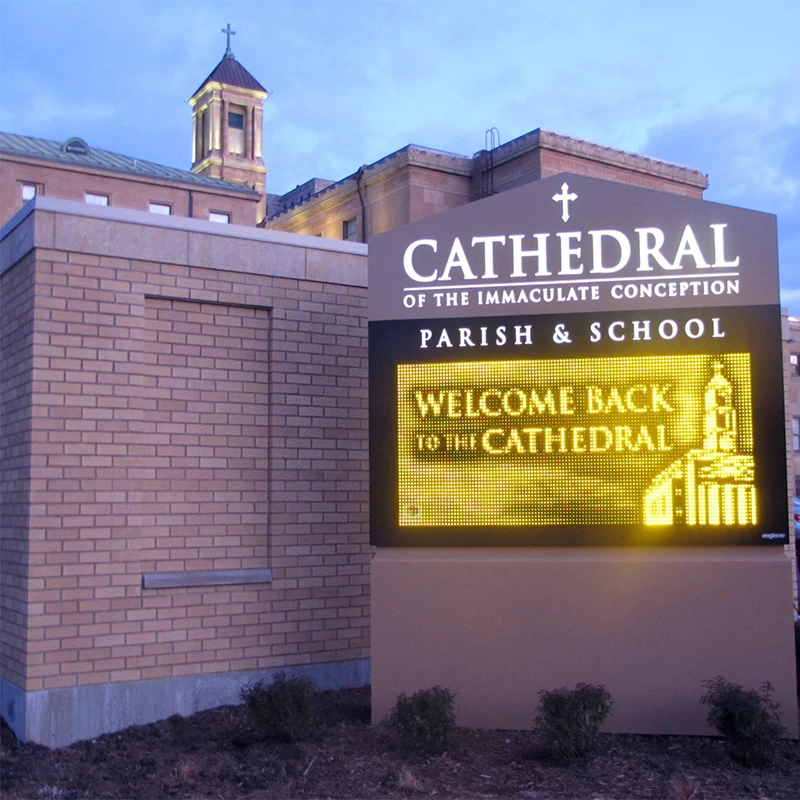

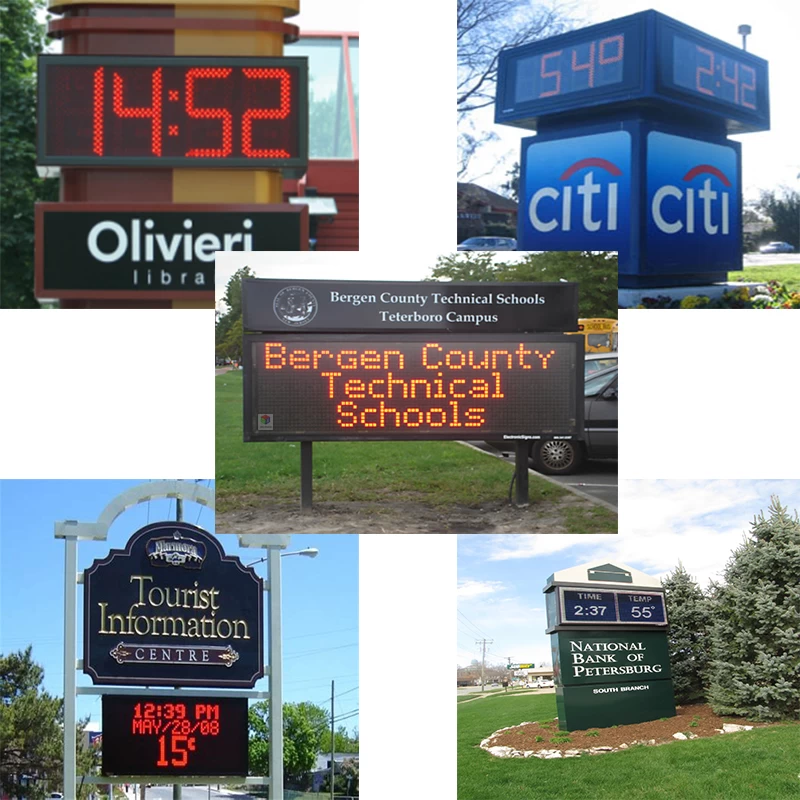

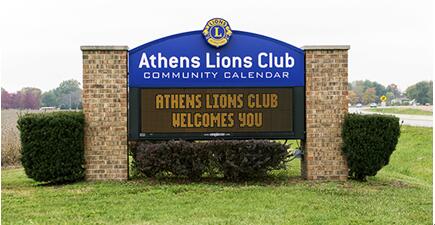

led outdoor advertising



P8 Outdoor LED Die-casting Cabinet

    Gray level:65536 level,

    refresh rate≥800Hz,

    delicate and clear pictures.

    Red, green and blue LED chips incorporated

    encapsulation,better perspective.

   Strong adaption to environment..

    Higher cost performance;

    lower maintenance cost.

    The small chip body combined with

   black mask,generating a higher contrast ratio.

    Strictly screening LED wavelength,

    brightness and voltage,etc to ensure the

    consistency of the whole screen.

    High quality driving IC,combined with the control

    system which has more than 14bit processing,

    effecting a higher refresh rate.

    High quality driving IC,combined with the

   control system which has more than 14bit

   processing,effecting a higher gray level.

   More faster to assemble or

  disassemble it without any tool.
