As solar mounting manufacture,our products are highly pre-assembled,it save your install time and money. Greatest energy hold the excellent engineer team and quality management system.It is suitable for installing framed and frameless modules.The solar roof mounting structure of rail and module make the installation more easily and quickly.
Technical Parameters
|
Installation Angle
|
5-30°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

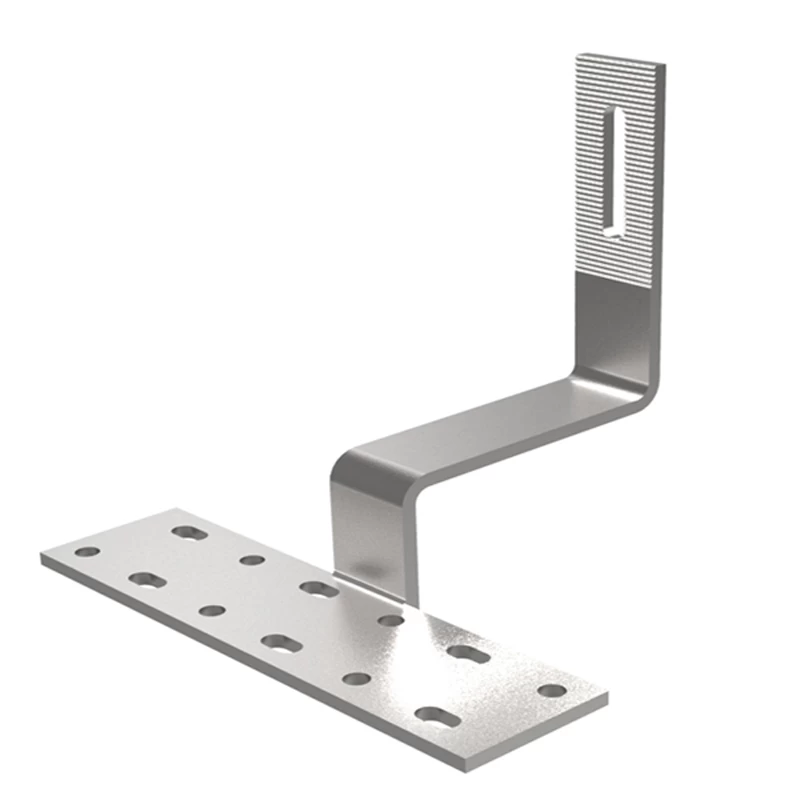

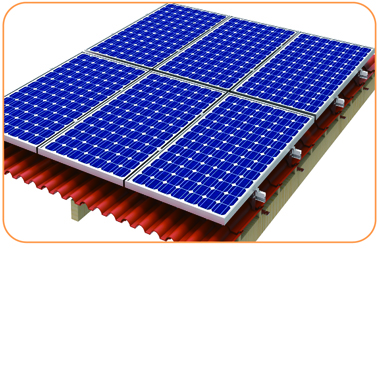

Tainless steel hooks-suitable for tile roof
Feature:
1. Z-shaped stainless steel hooks are
suitable for tile roofs;
2. The bottom of the Z-shaped stainless
steel hook is installed on the wooden beam under the tile,
and protrudes to the glazed tile through the gap between the
tile and the tile, so the original glazed tile is not damaged.
3. Stainless steel material, no rusty
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.
Component photos of stainless steel hooks-suitable for tile roof

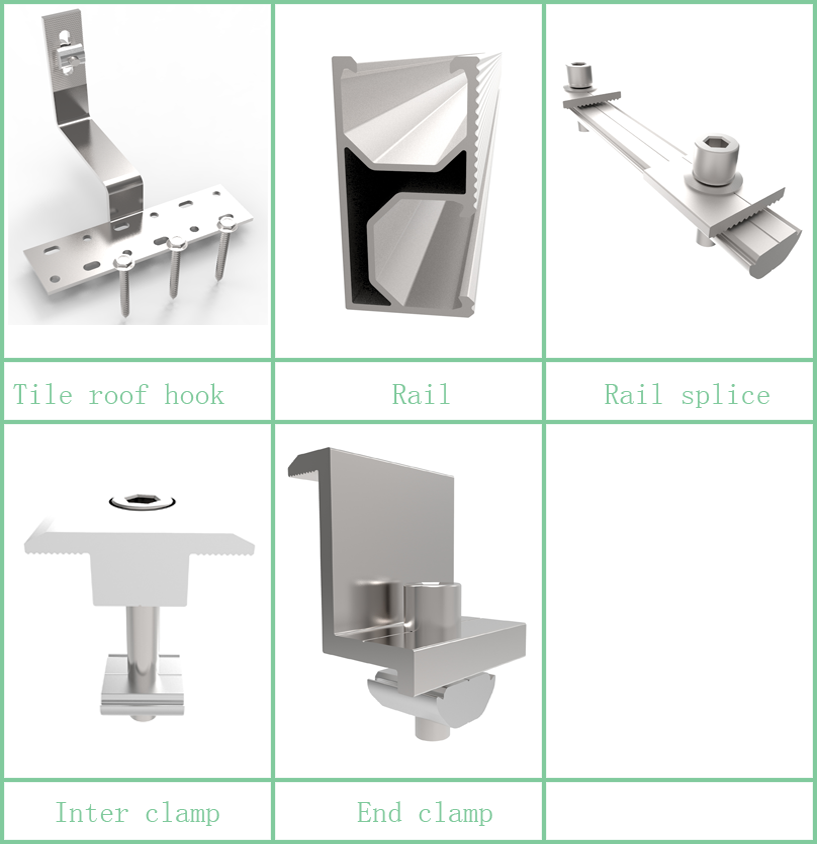

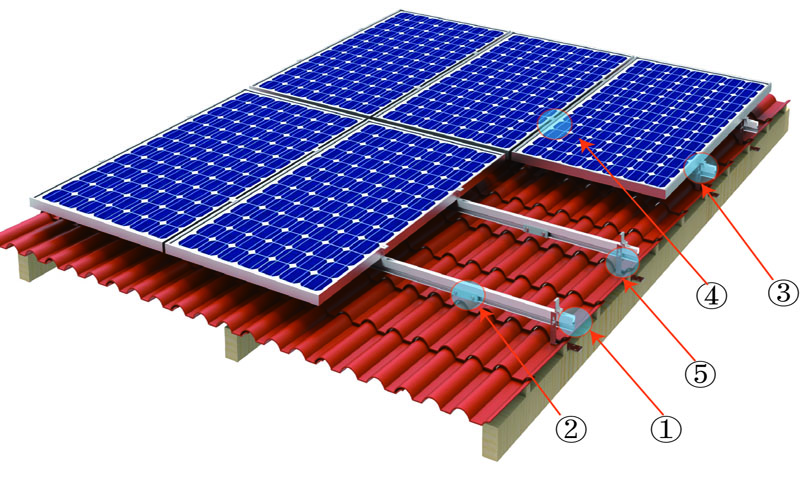

1. Solar roof rail 2. Solar rail splice 3. Solar end clamp 4. Solar inter clamp

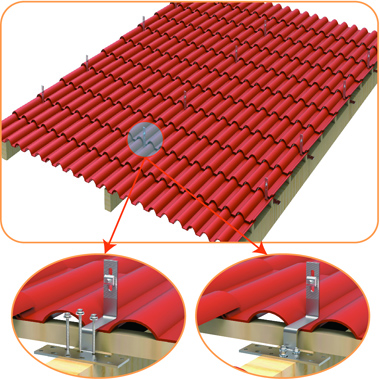

5. Tile roof hook

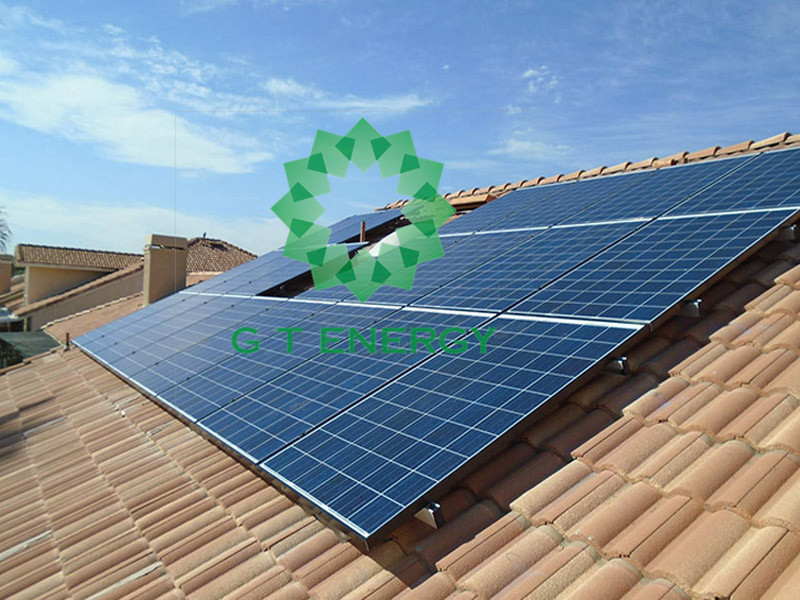

Installation photos of stainless steel hooks-suitable for tile roof

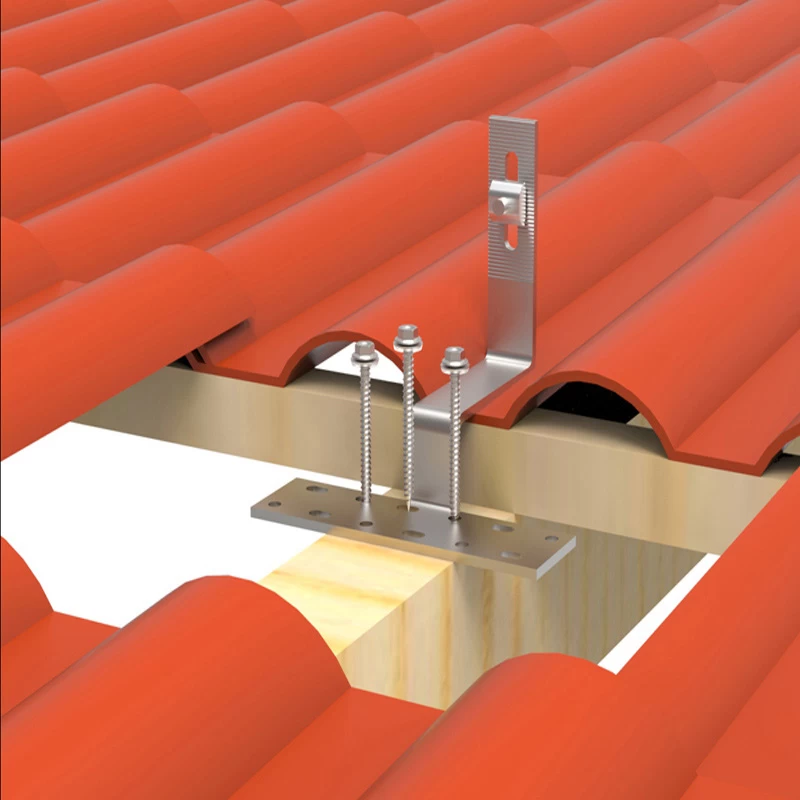

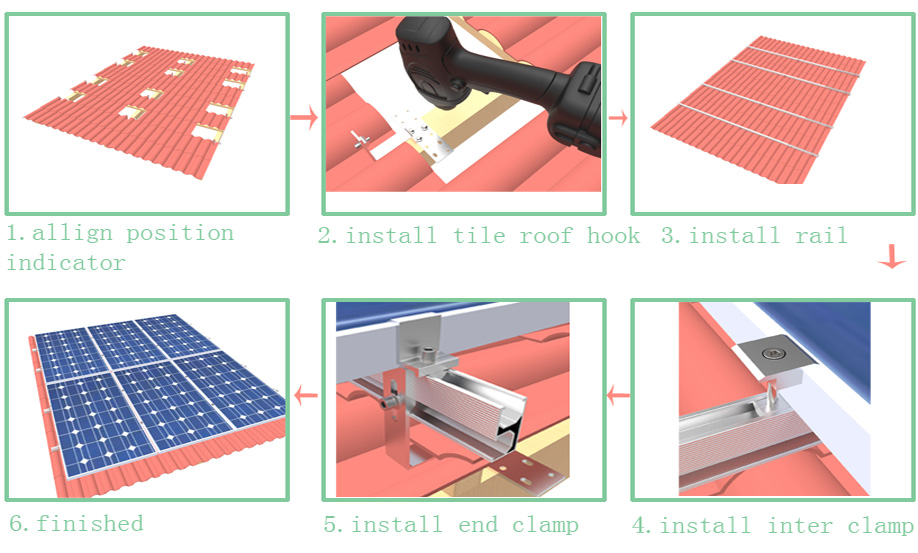

Step1：Install tile roof hooks according to the drawing Step2：Install rails and rail splices

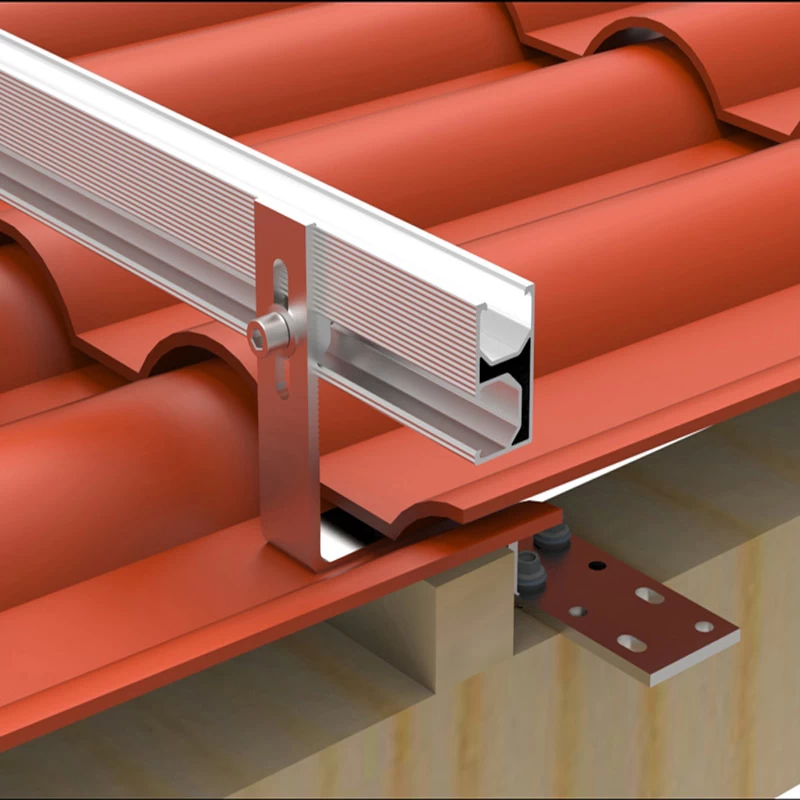

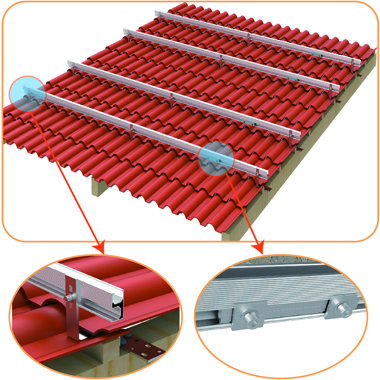

Install tile roof hook Install tile roof hook Tile roof hook+rail Rail splice

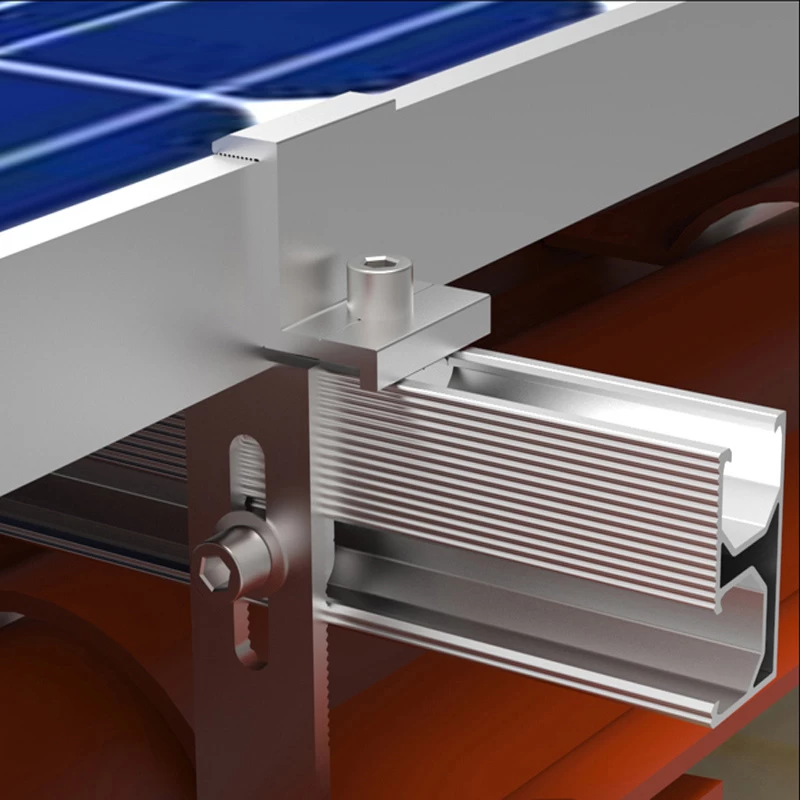

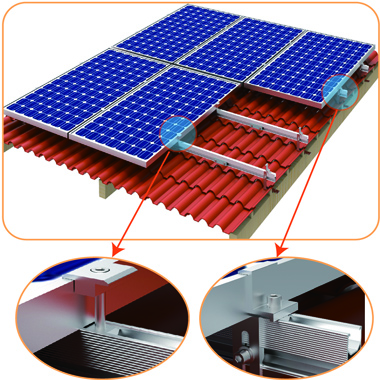

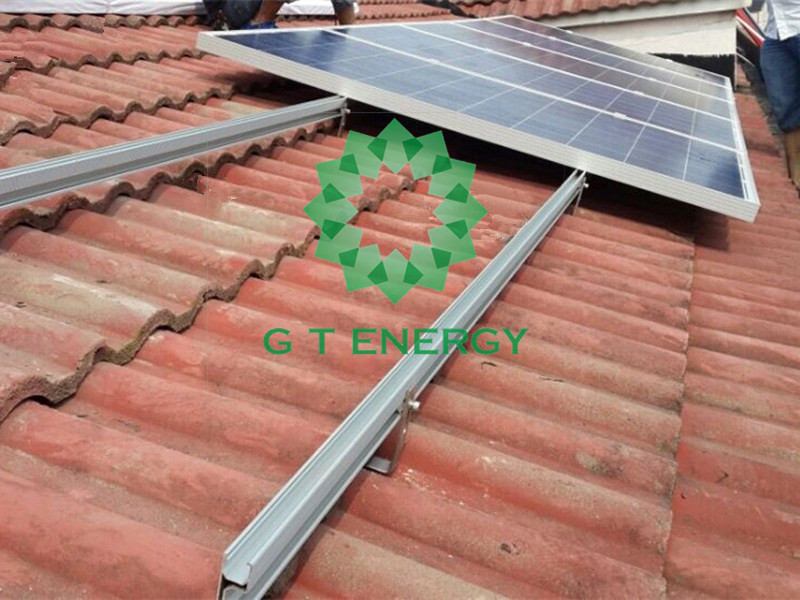

Step3：Fasten panel by inter clamps and end clamps Step4：Installation completion diagram
Inter clamp End clamp
