Pitched Tile Roof Mounting System

Pitched Tile Roof Mounting System

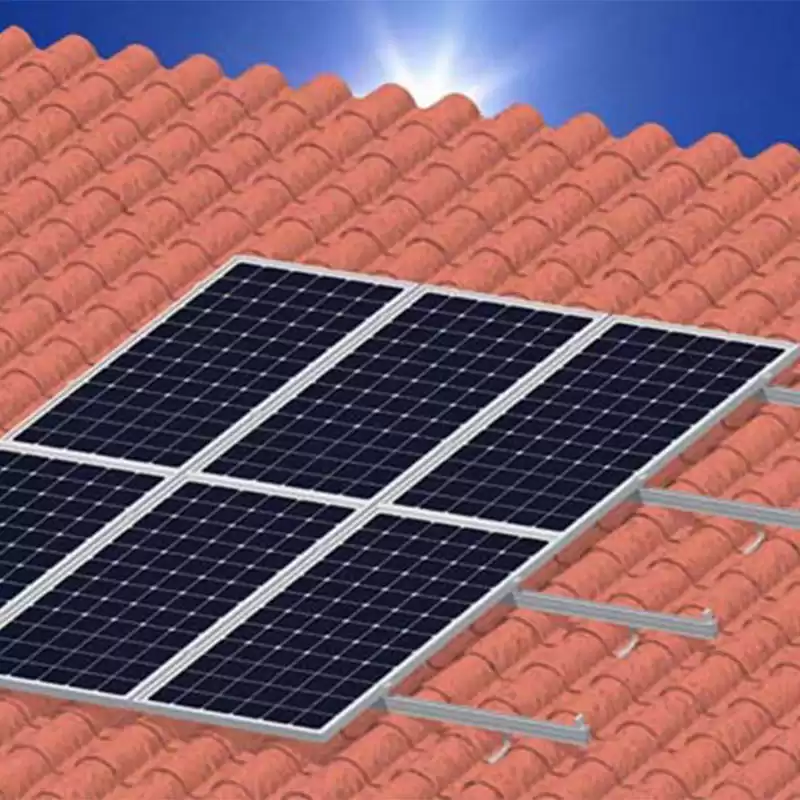

Pitched Roof Tile Mounting System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. It is applicable to install the usual framed module, The special extruded aluminum rail, special D nut module, clamp kit and the various roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Technical Parameters :

Installation Site:                     Pitched Roof

Installation Angle:                  Parallel the roof

Building Height:                     Upto 20m

Wind Load:                             Upto 60m/s

Snow Load:                            Upto 1.5KN/m²

Applicable Module:               Framed or Frameless

Module Orientation:              Landscape and Portrait

Module Dimension:              Applicable to any dimension

Standard Compliance:         AS/NZS1170.2 ; SGS and other international standards

Material:                                Aluminum Alloy 6005-T5, Stainless Steel 304

Color:                                     Natural or customized.

Warranty:                              12 years of quality warranty and 20 years service life

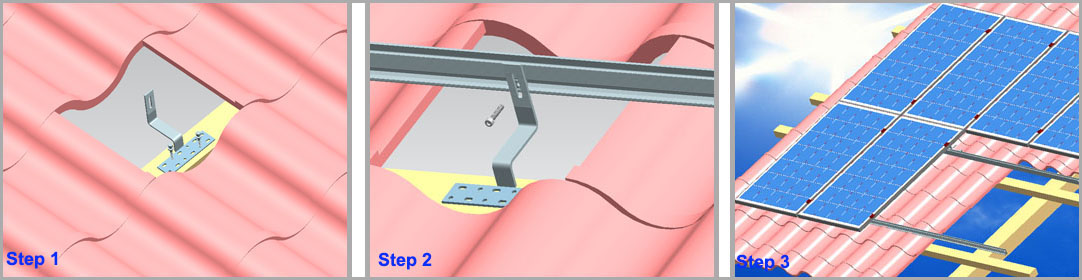

Installation Guide :

Step 1:  Arrange the roof hook position as previously designed layout, take away top roof tiles and install the roof hooks into the roof wooden beam with M6.3x80mm wood screws.

Step 2:  Fix the roof rail on the roof hook with LARGE D module nut and M8x25mm screws.

Step 3:  Put the solar panels on the roof rails ,and fix the panel with Mid clamps,End clamps and D module nut.

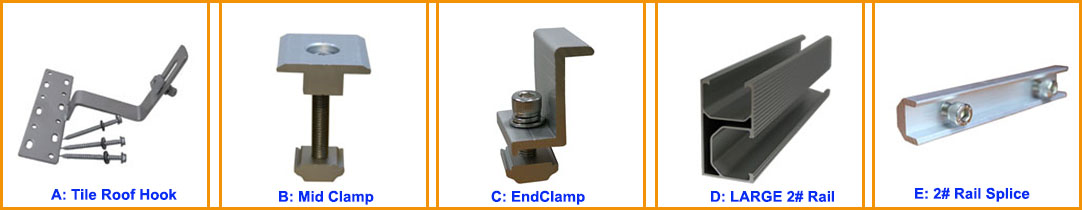

Components List :
