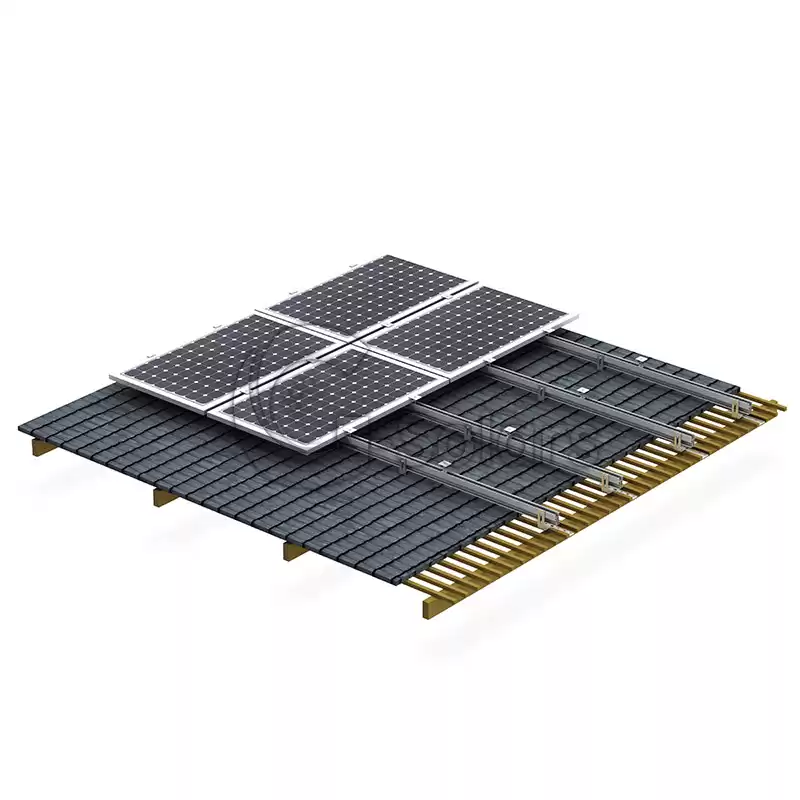

solar panel Tile roof hook mounting system

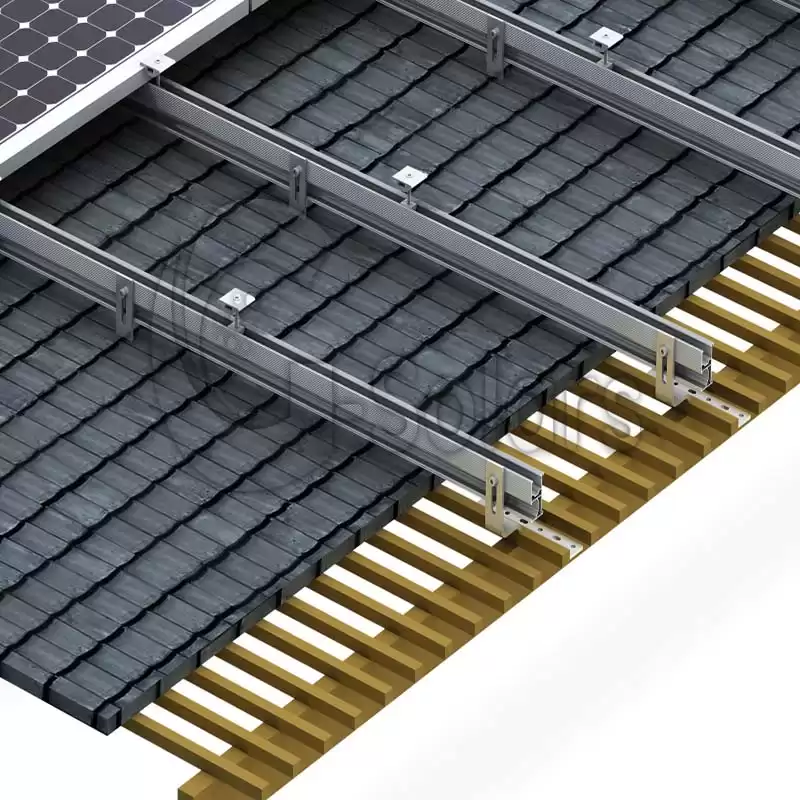

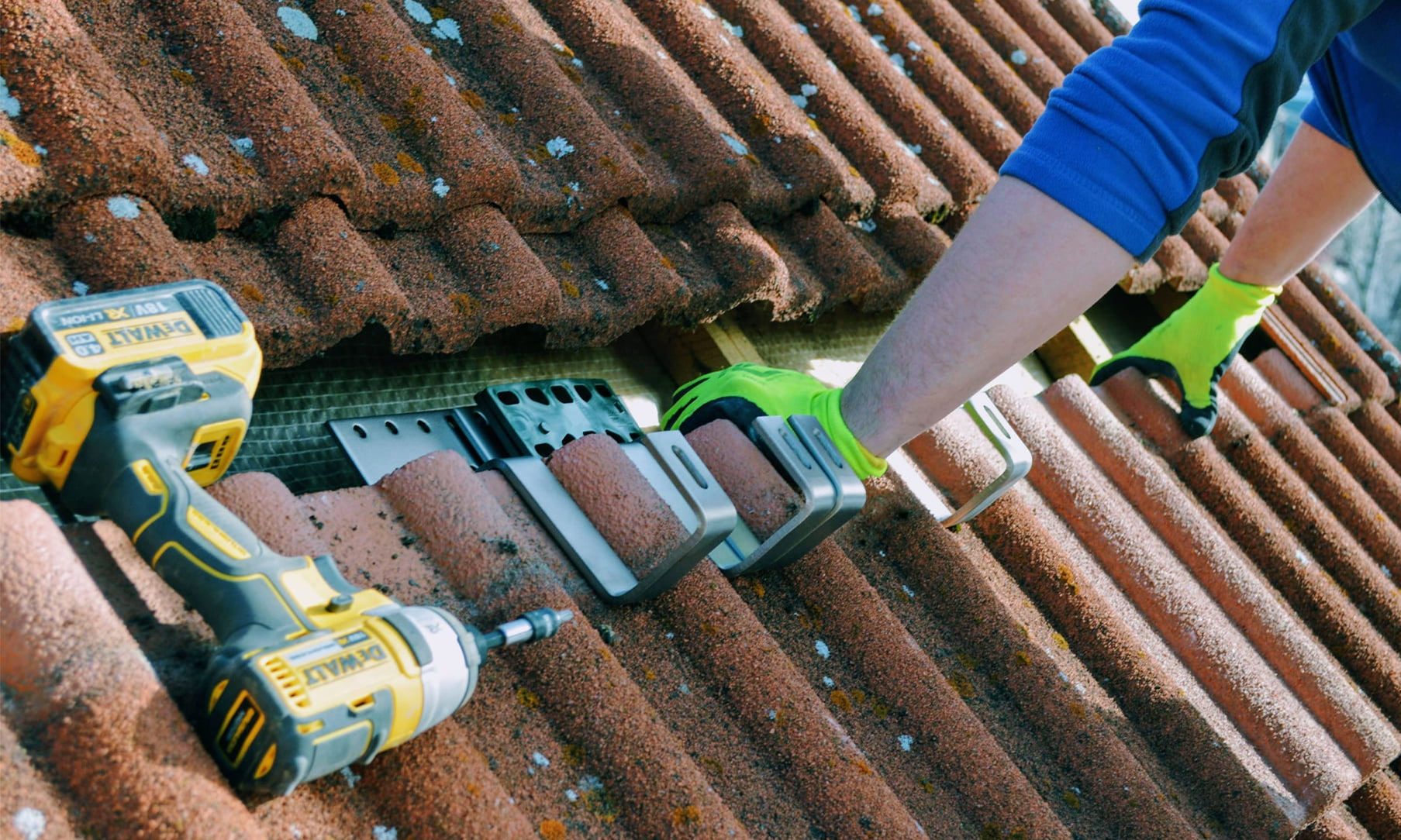

Spanish tile roof solar panel hook bracket is installed on pitched tile roof solar mounting system by roof hooks, it is an effective solution for both home and commercial projects.
G-Solars tile hook solar mounting systems are designed to be versatile and compatible with various types of roof tiles such as flat tiles, slate shingles, asphalt shingles. They provide a reliable and efficient method for installing solar panels on tile roofs while ensuring the roof remains structurally sound and resistant to weather, snow pressure, and wind pressure.
Technical Data
| Product Name |
solar panel Tile roof hook mounting system
|
| Material |
Aluminum & Stainless Steel |
| Standard |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Wind Load |
60 m/s |
| Snow Load |
1.4 Kn/m2 |
| Applicable Module |
Framed or Frameless |
| Module Orientation |
Portrait or Landscape |
| Surface Treatment |
Anodized |
| Application |
Flat Tles, Slate Shingles, Asphalt Shingles. |
| Dimensions |
Customized |
| Color |
Natural or Black Anodizing |
Details

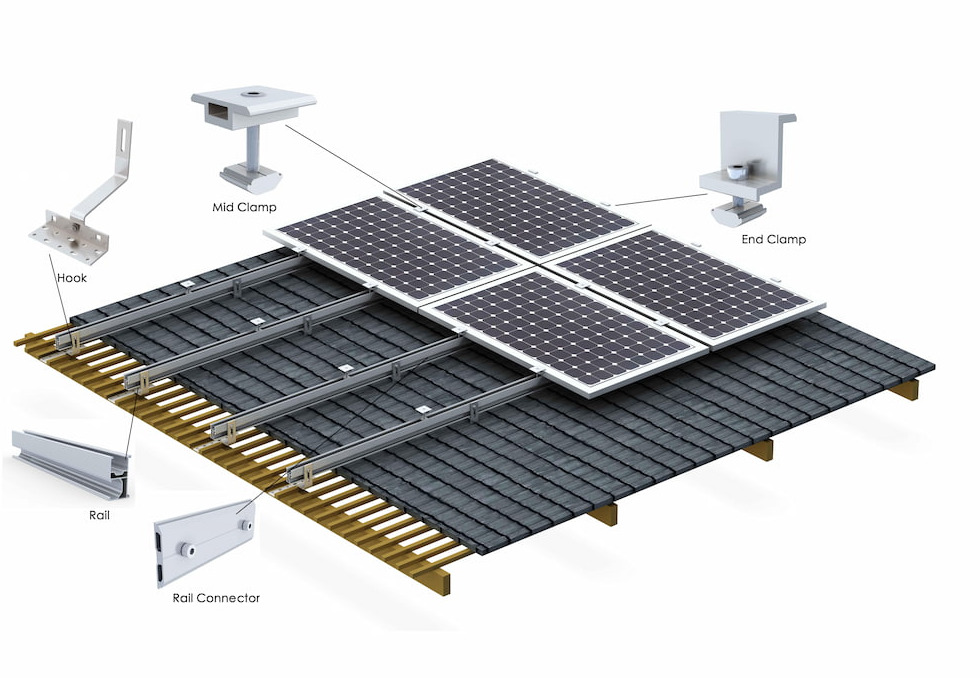

Components

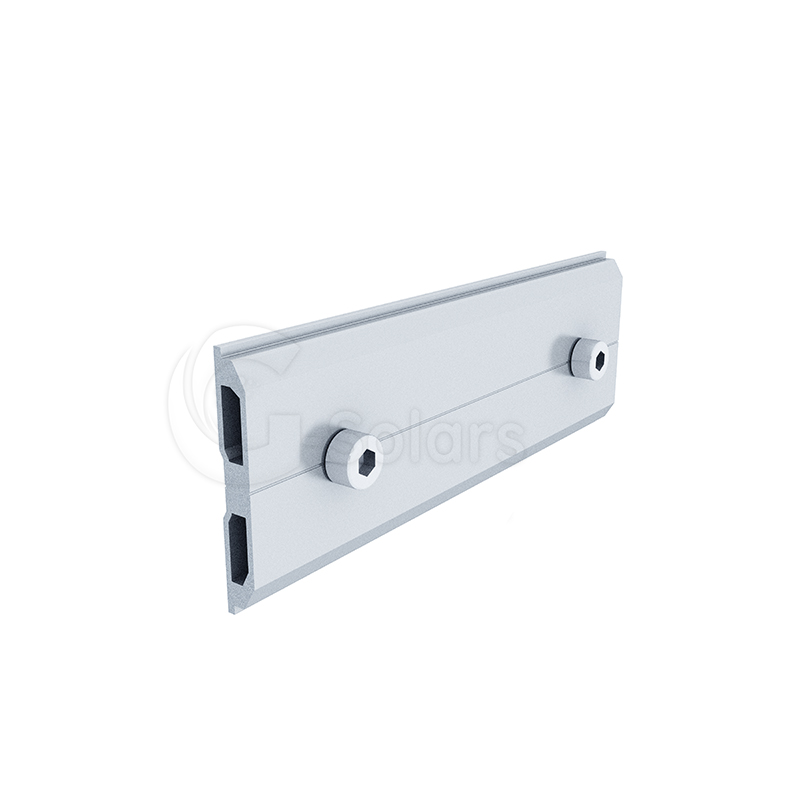

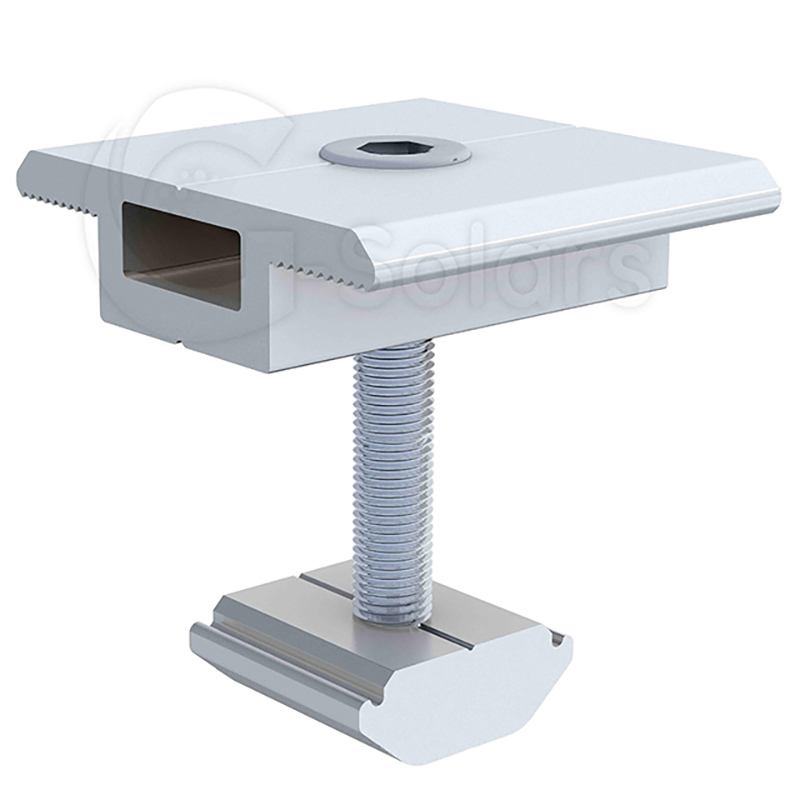

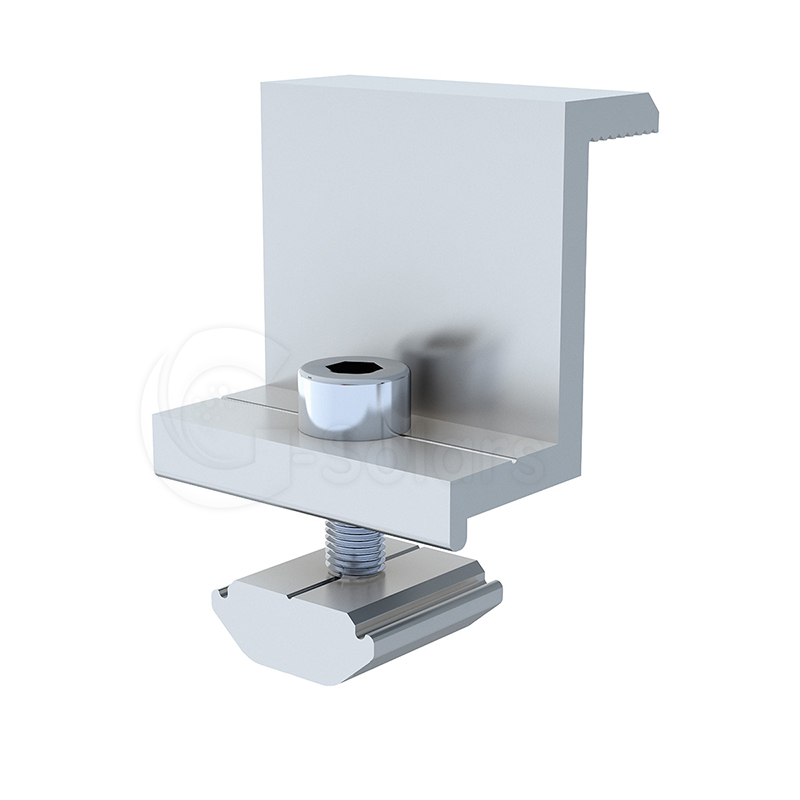

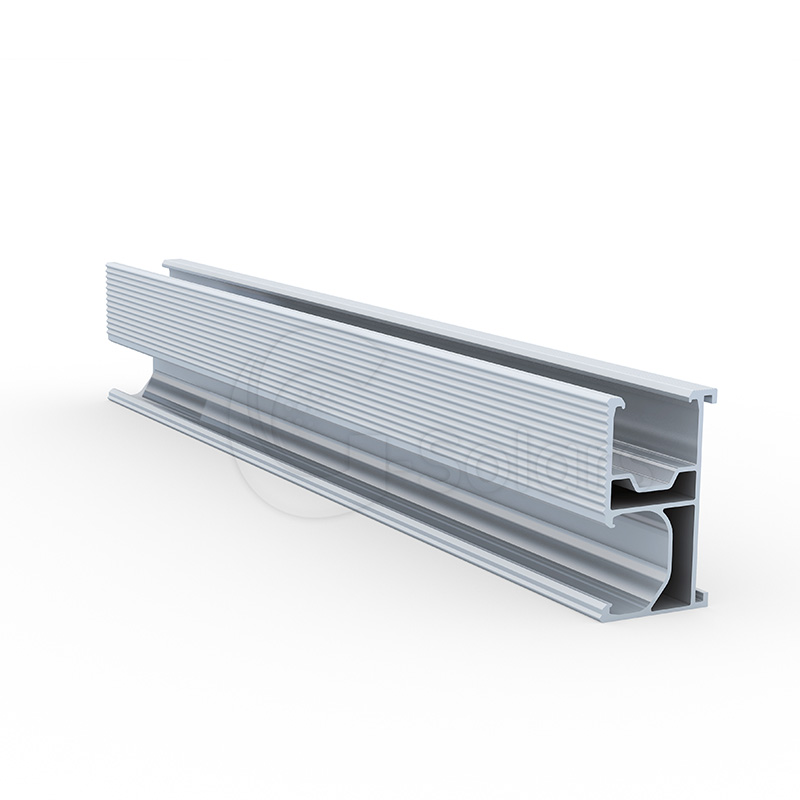

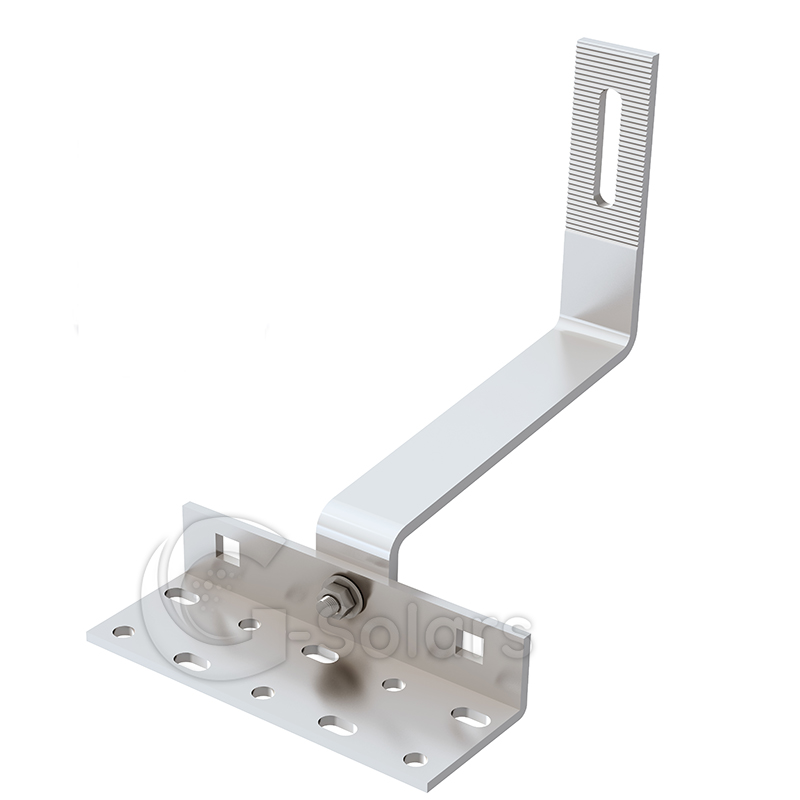

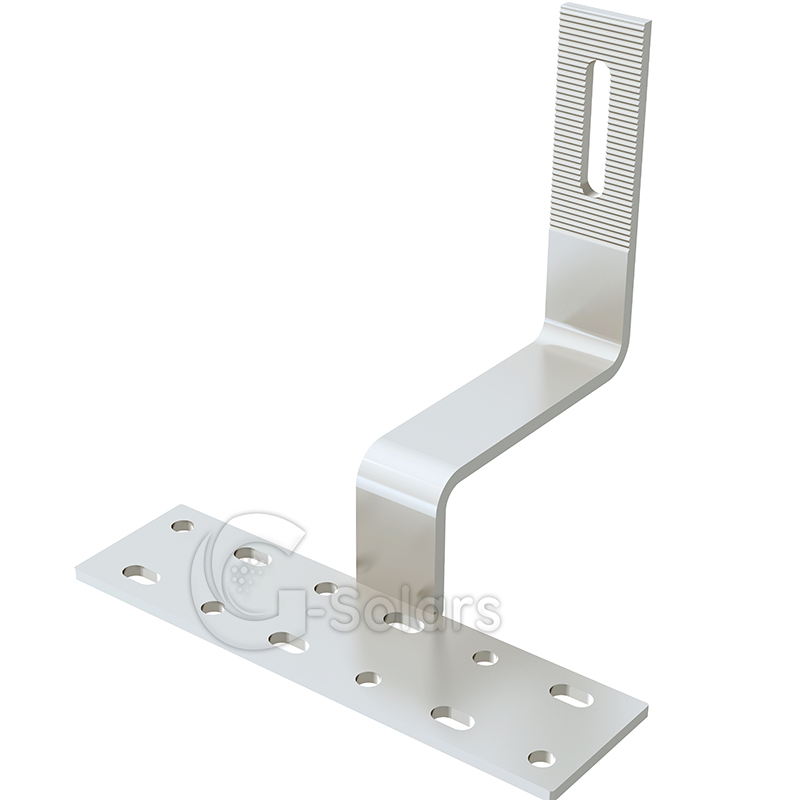

Rail GS-Rail-01 Mid Clamp GS-MC-01 End Clamp GS-EC-01 Rail Connector GS-RC-01 Hook GS-TH-01

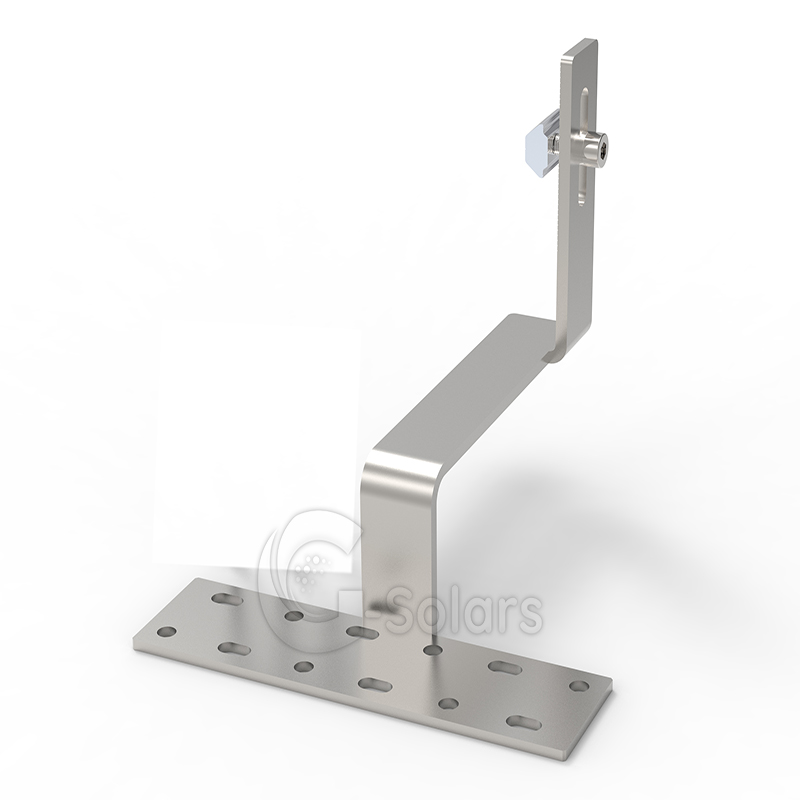

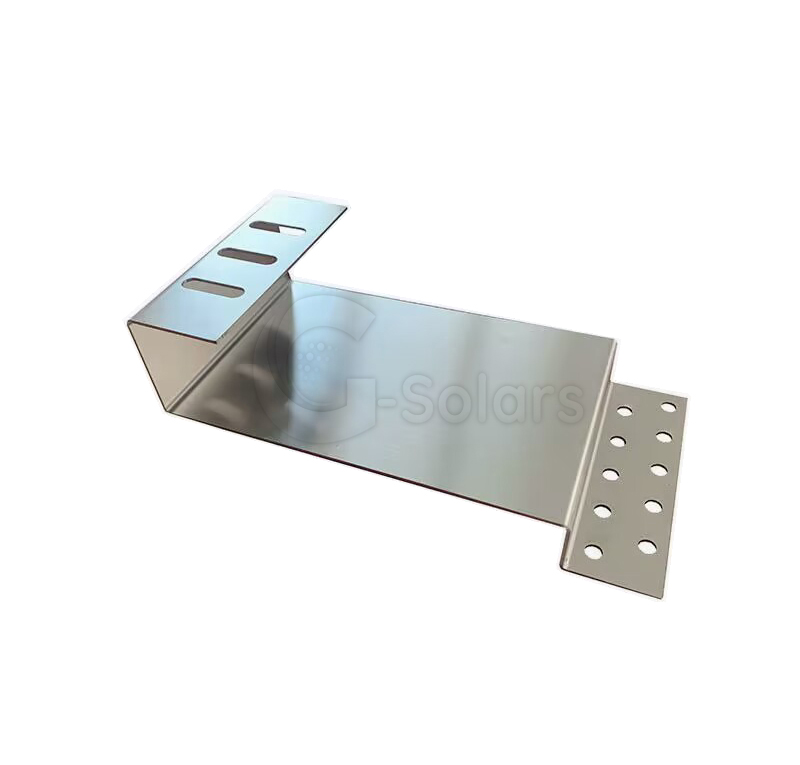

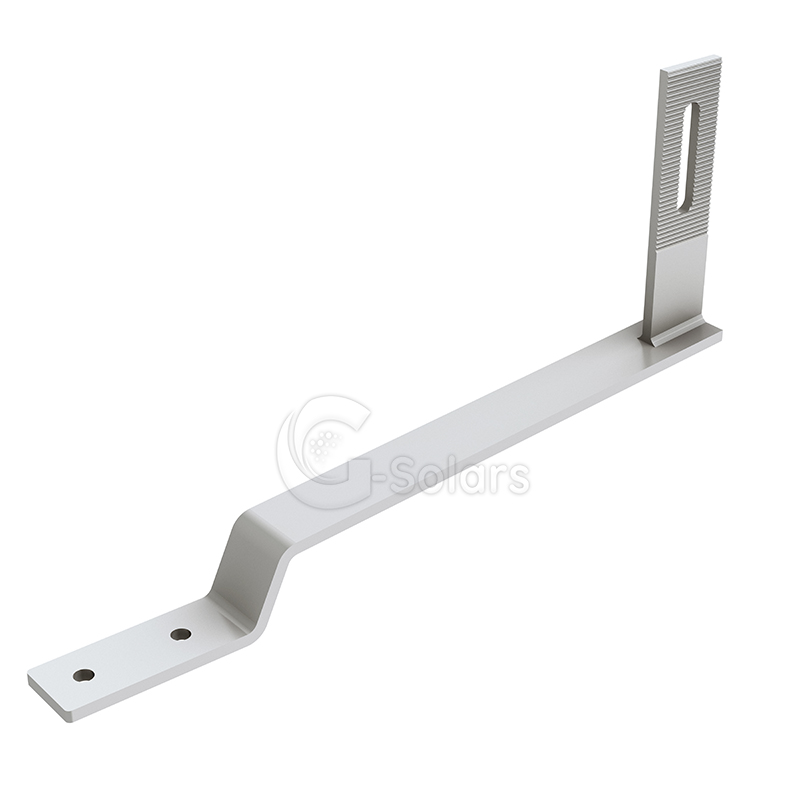

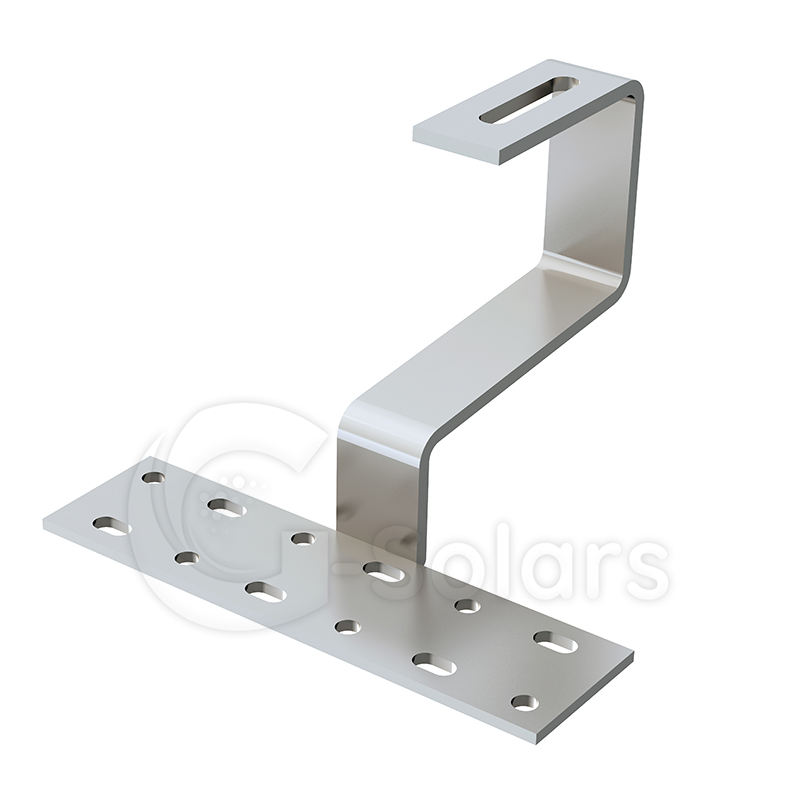

Hook GS-TH-02 Hook GS-TH-03 Hook GS-TH-04 Hook GS-TH-05 Hook GS-TH-06

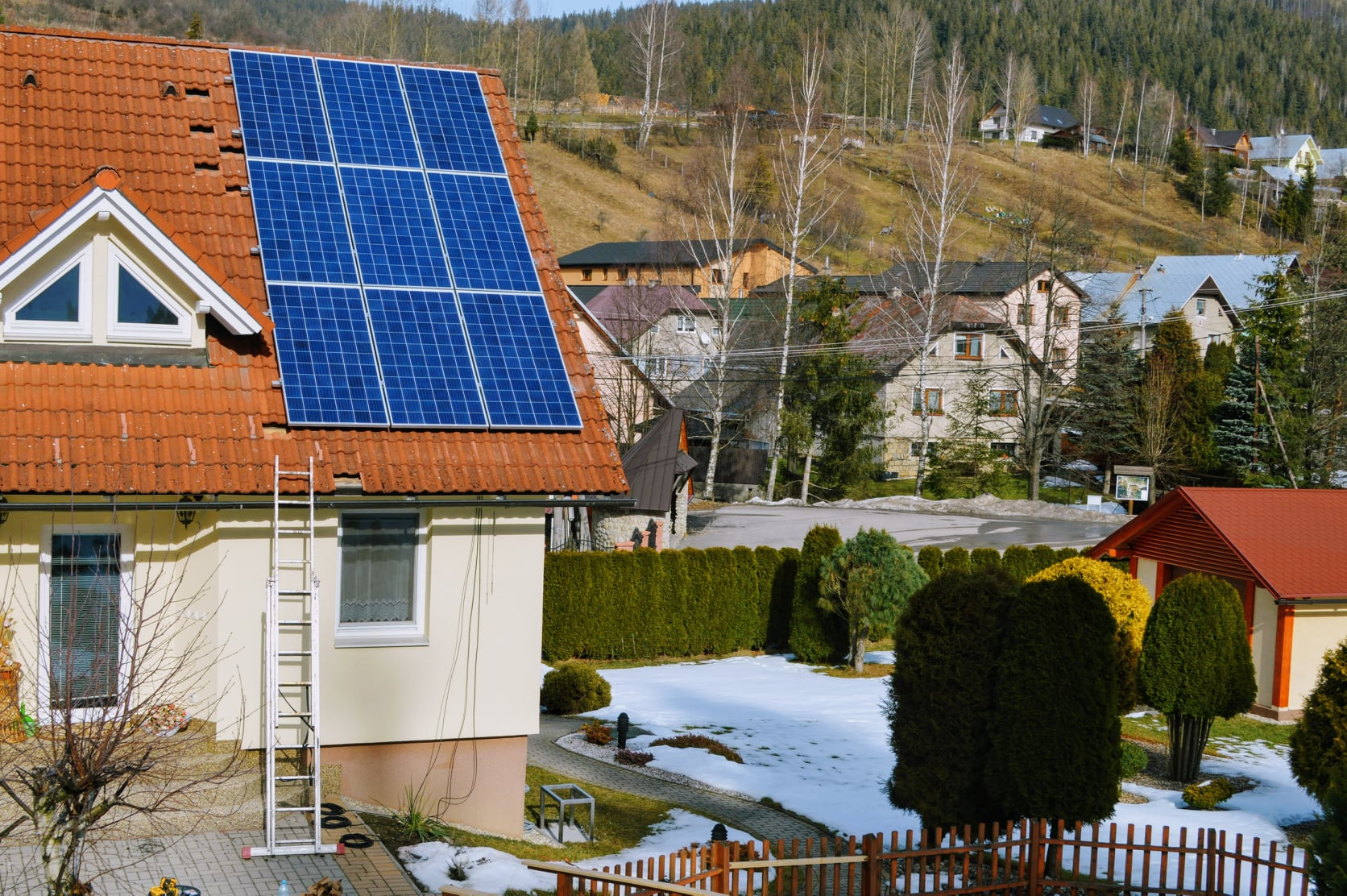

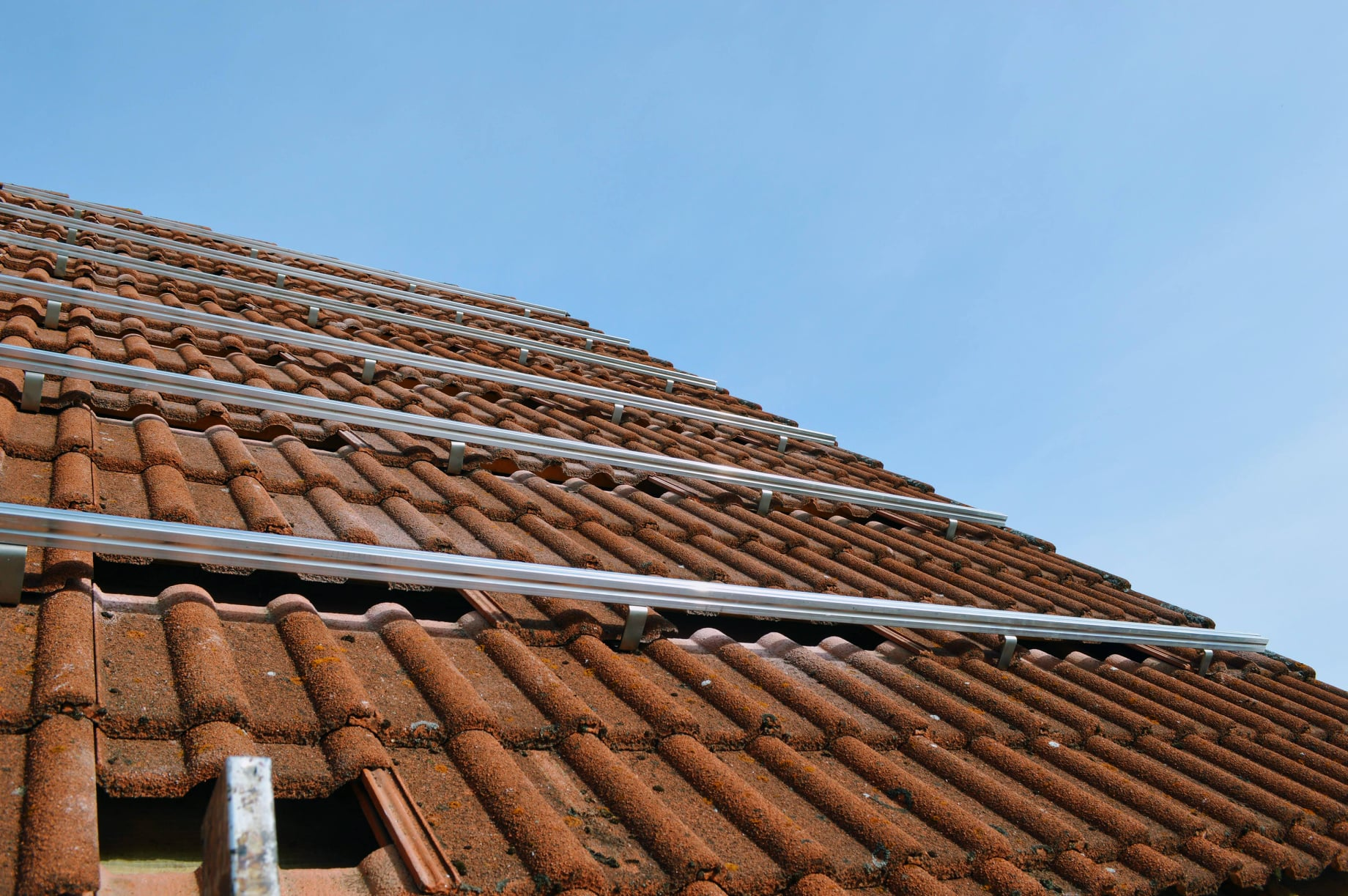

Project Cases

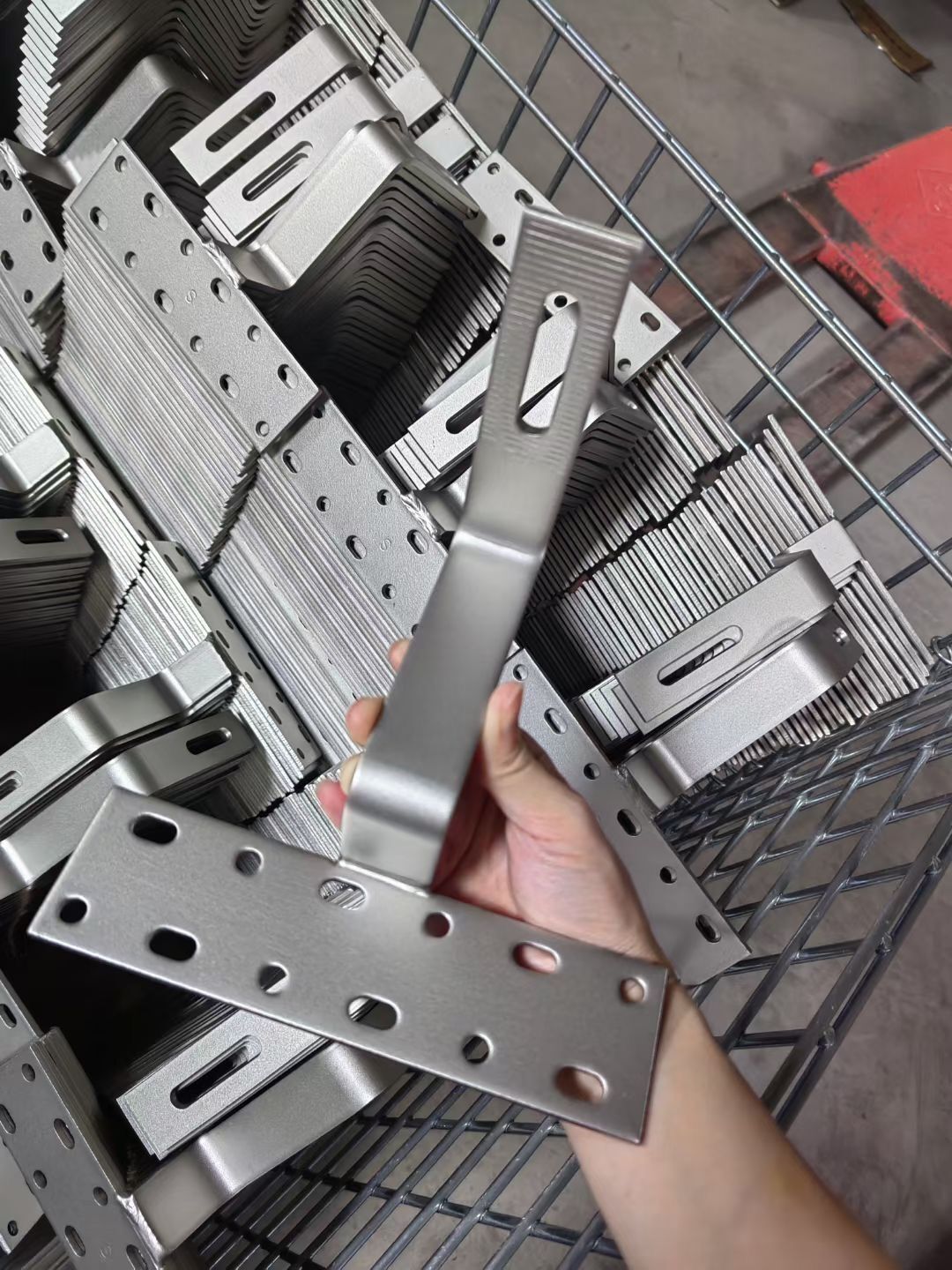

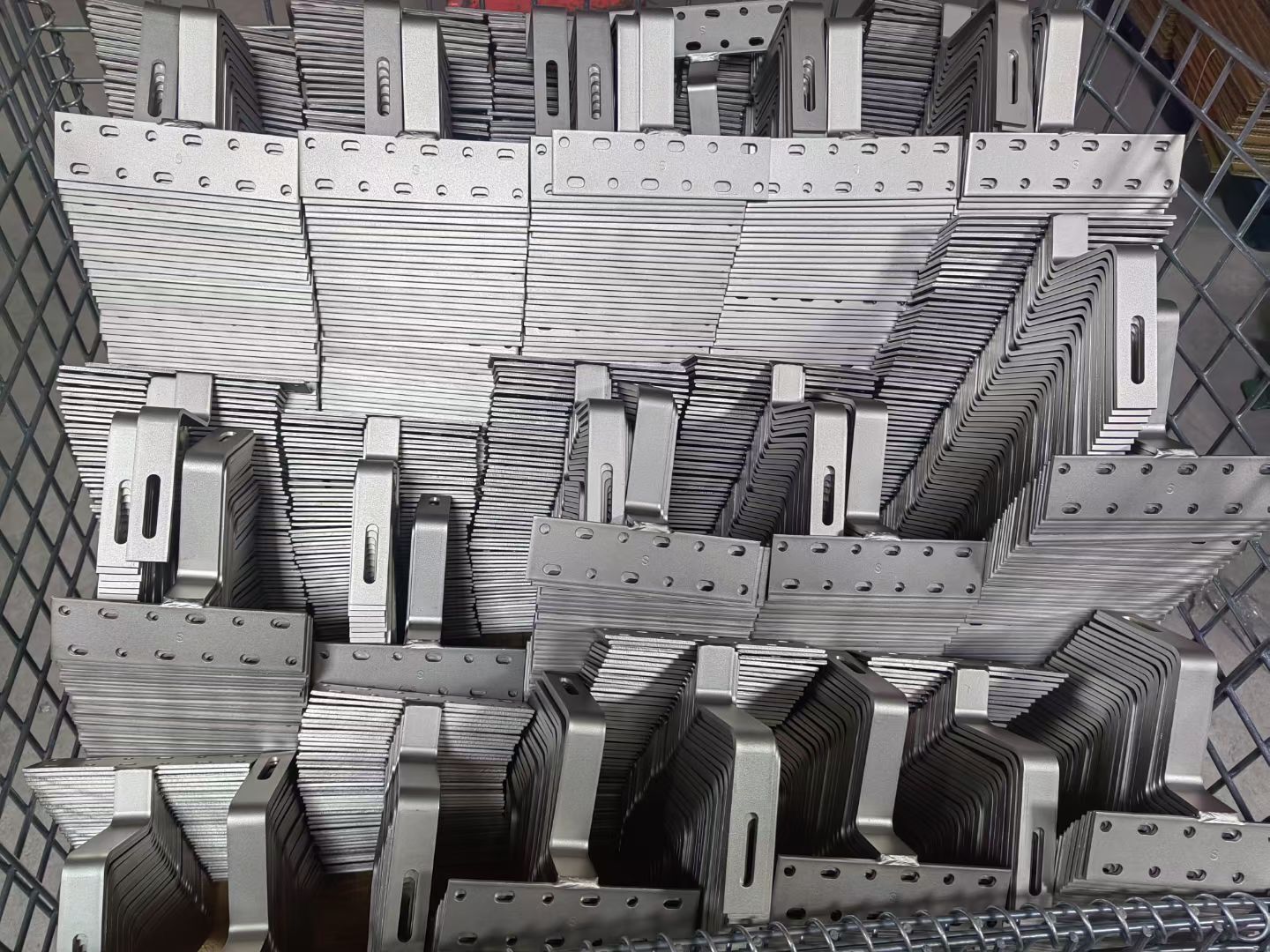

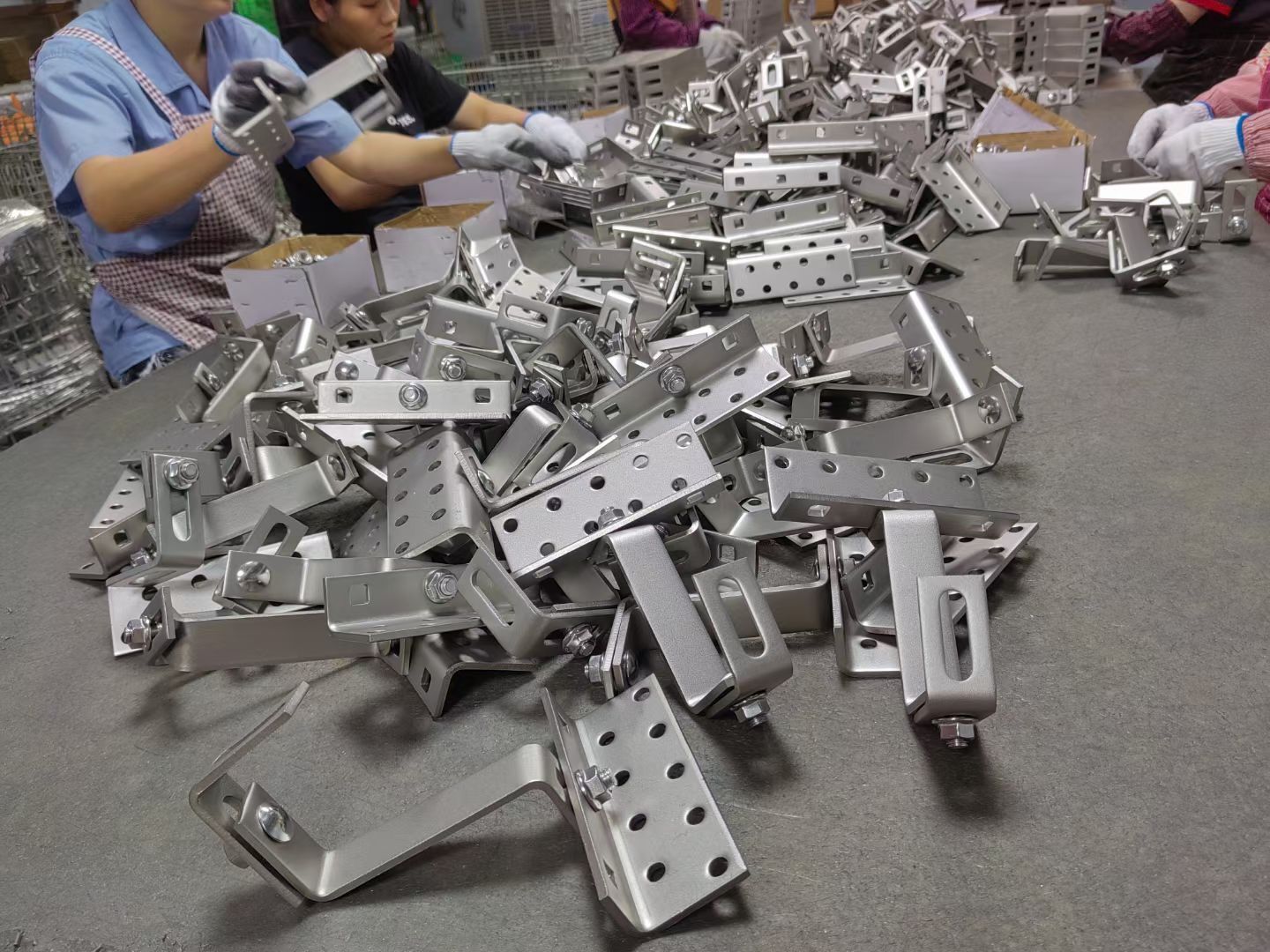

Production Process
Reasons to choose G-Solars?
1. We can support OEM and distribute our products at preferential prices. We are one of the top 5 integrated manufacturers of aluminum solar brackets in China.
2. All parts are anodized – Comes with a 10-year warranty and 25-year service life.
3. We have more than 10 years of experience in the field of solar brackets and will continue to innovate and design better products.
4. We also have a manufacturing factory in Malaysia, which brings more convenience to customers in anti-dumping countries.
