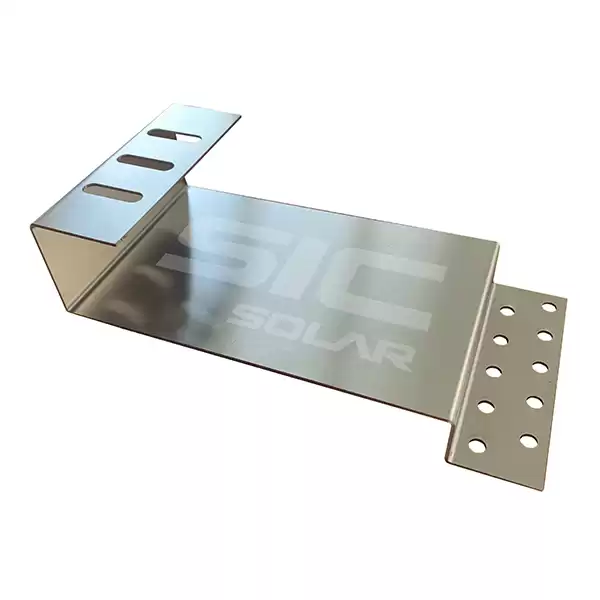

Flat tile roof hooks for solar panel

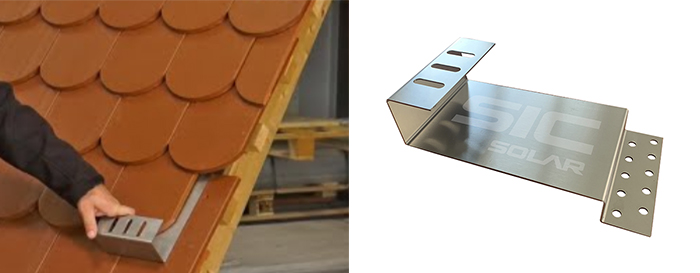

Stainless steel roof fastener is specially developed for plain tile roofing and double roofing. The rail could be fixed to the hook through the elongated hole by T-bolt M10.
Category:Solar components
|
Name
|
Solar tile hook for double roofing
|
|
Installation Site
|
Flat Tile roof
|
|
Hook Thickness
|
2mm
|
|
Hook Width
|
150mm
|
|
Hook Height
|
103mm
|
|
Height under bracket
|
33mm
|
|
Material
|
Stainless Steel A2 (1.4301)
|
|
Application
|
For 24mm + 30 mm timber batten
|

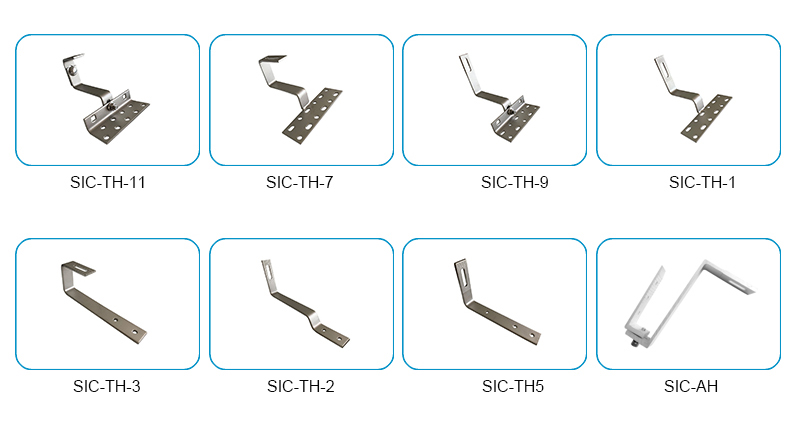

Check more solar tile roof hooks as follow.
Advantages as follow:
☆ Strong strength - 150mm width enhance the hook intensity.
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ Easy installation - Rails could be fixed to the hook by T-bolt M10 directly.
Related Certificate
Our CE Certificate for solar tile hook roof mount system
Our SGS Certificate for hook material -- SUS304
Our SGS Certificate for screw material-- SUS304
Our standard package is cartons with plywood pallet as below. Wooden case could be offered if needed.
