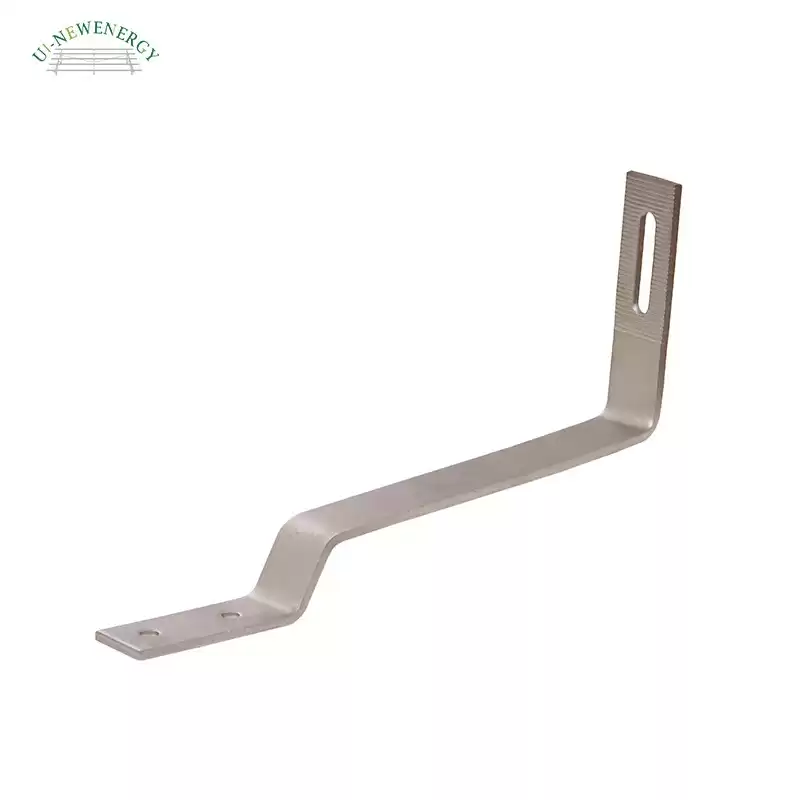

Plain Tile Roof Hook

Plain Tile Roof Hook are used to support the rail on the solar system.


  • Height167mm
  • Width30mm
  • Length286mm
  • SurfaceClean
  • MaterialStainless Steel

Solar Tile Hook UN-IK-02

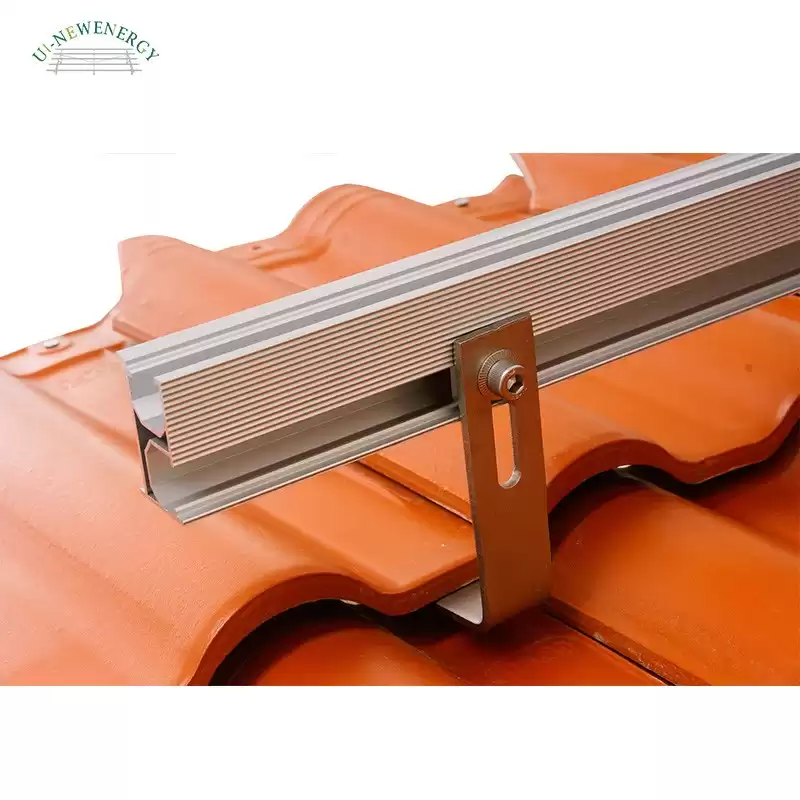

UN-IK-02 Plain Tile Roof Hook is for plain tile roof. They have adjustable and fixed type for your choices. Varied roof hooks or brackets with tilt-in modules ensure easy and quick installation.


Tile Roof Hook Features:

1. Tile Hook: several types according to your tile direction.

2. Simple Components: Only 3 components !

3. Most Parts are preassembled: save 50% labor cost

4. Lower and Competitive price.

5. Rust-resistance.

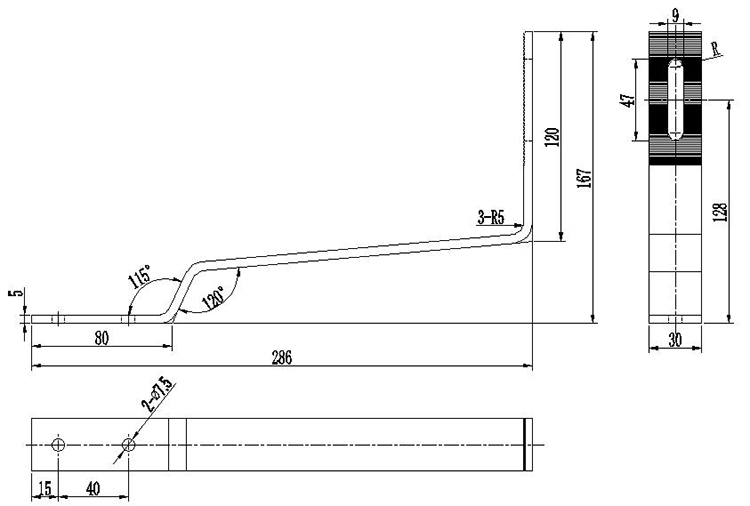

   UN-IK-02 Drawing

UN-IK-02 Plain Tile Roof Hook

Product Parameter
Product Name Solar Tile Hook
Installation Site Tile Roof Solar System
Material Stainless Steel
Surface Clean
Color Silver/ Customized
Height 167mm
Plate size 30x80mm



  F A Q


Q1:Are you a factory or trading company?

A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.

Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.


Q2: Where is your factory located? How can I visit there?

A2: Our factory is located in Xiamen city, Fujian province,China.

You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.


Q3: How does you factory do regarding quality control?

A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.


Q4: How can I get some samples?

A4:We are honored to offer samples according to your inquiry.
