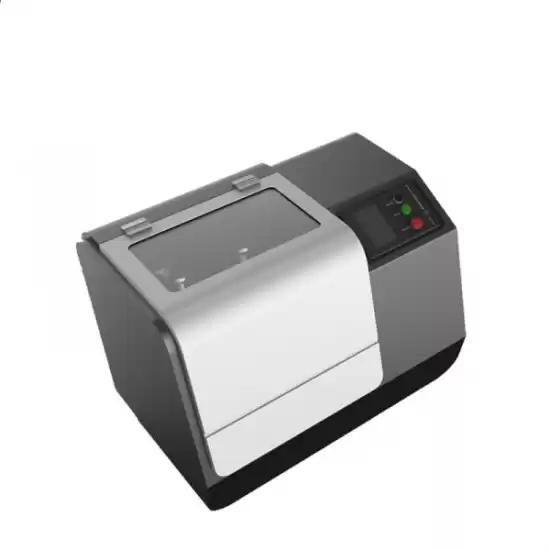

Planetary Ball Mill Machine Material Grinder With Automatic LED Lighting
SPECIFICATIONS
|
Max. feed size (depends on material):
|
10mm
|
|
Final fineness (depends on material):
|
<100nm
|
|
Min. sample quantity:
|
10ml
|
|
Max. sample quantity:
|
900ml
|
|
Rotational speed (disk):
|
50-400r/min
|
|
Rotational speed (jars):
|
100-800r/min
|
|
Transmission ratio (disk / jars):
|
1:-2
|
|
Transmission standard:
|
CE
|
|
Grinding modes:
|
16 modes programmable
|
|
Grinding tools:
|
grinding jars and grinding balls
|
|
Bi-direction grinding:
|
yes
|
|
Continuously grinding
|
00:01:00 - 99:59:59
|
|
Paused interval:
|
00:01:00 - 99:59:59
|
|
Emergency stop:
|
yes
|
|
Power off memory:
|
yes
|
|
Overload protection
|
Yes
|
|
Milling chamber lighting:
|
automatic LED lighting, 220V, 18W
|
|
Number of milling samples:
|
4 simultaneously
|
|
Materials of the grinding jars:
|
SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC
|
|
Number of working stations:
|
4
|
|
Ball mill type:
|
vertical
|
|
Compatible grinding jars:
|
100ml / 250ml / 1500ml
|
|
Materials of milling balls:
|
SS, agate, zirconia, alumina, nylon, PTFE
|
|
Grinding ball diameter:
|
3/5/10/15/20mm
|
|
Compatibal ball weight
|
200-1000g
|
|
Grinding process:
|
dry /wet grinding
|
|
Vacuum grinding:
|
yes
|
|
Low temperature grinding:
|
yes
|
|
Grinding in inert gas:
|
yes
|
|
Temperature detection:
|
yes ( special accessories)
|
|
Pressure detection:
|
yes ( special accessories)
|
|
Electrical details:
|
100-120V/200-240V AC ,50-60Hz, 750W
|
|
Plug types:
|
GB/EU/US/UK standard
|
|
Net weight:
|
92kg
|
|
Dimensions (W x D x H):
|
720*480*500mm
|
|
Noise level:
|
50dB
|
|
IP rank:
|
IP60
|
|
Product standard:
|
CE
|
|
Patent:
|
design patent/ noise improve patent
|
|
Accessories:
|
user manual, warranty card
|
Material Data for Grinding Jars/Balls
|
Material
|
Main component
|
Density (g/cm3)
|
Abrasion resistance
|
Use for material to be ground
|
|
Agate
|
SiO2
|
2.65
|
Good
|
Soft to medium-hard samples
|
|
Sintered corundum
|
Al2O3
|
3.8
|
Fairly good
|
Medium-hard, fibrous samples
|
|
Silicon nitride
|
Si3N4
|
3.25
|
Excellent
|
Abrasive samples, iron-free milling
|
|
Zirconium oxide
|
ZrO2
|
5.7
|
Very good
|
Fibrous, abrasive samples
|
|
Stainless steel
|
Fe –Cr –Ni
|
7.8
|
Fairly good
|
Medium-hard, brittle samples
|
|
Tempered steel
|
Fe –Cr
|
7.65
|
Good
|
Hard, brittle samples
|
|
Tungsten carbide
|
WC
|
14.95
|
Very good
|
Hard, abrasive samples
|
|
Polypropylene disposable jar
|
MC/PA/PTFE/PU/HDPE/PP
|
**
|
Good
|
For homogenisation
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
