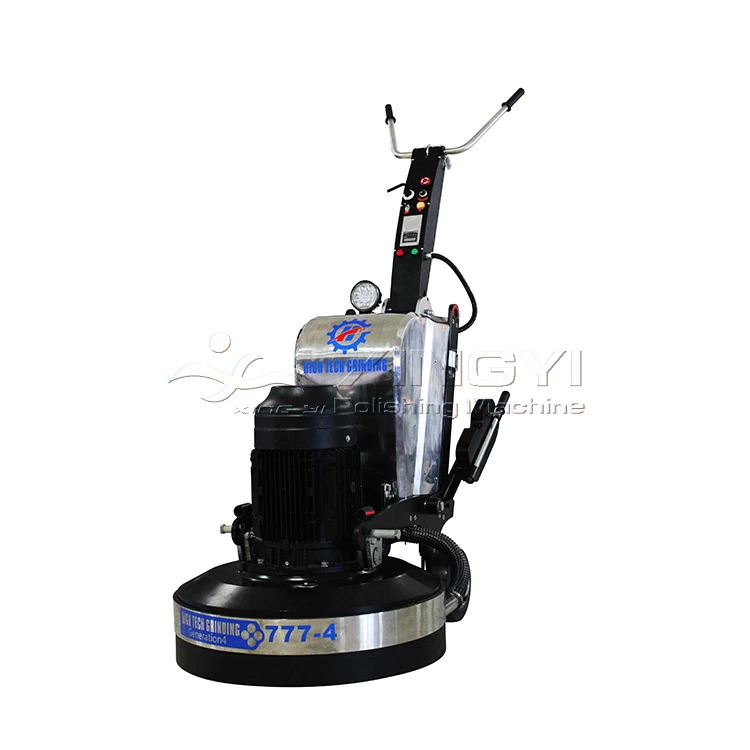

planetary concrete floor grinding machine

planetary concrete floor grinding machine



1.Concrete floor grinding machine--Humanized adjustable handle height.
2.Planetary concrete grinder--The operator can adjust the direction of handle bar quickly according to people working habits.
3.Terrazzo grinding machine equips with forward and reverse switch, grinding speed is adjustable
4.Ergonomic operation lever design, easy to achieve pads change, working, transportation,storage
5.Multifuntional 20kg*2 addition weight design,can easy achieve add weight ,lay up, foot treadle to change pads design.
6.Hidden telescopic carrying stick design,used for manual carrying machine or adjust the using way, can be easy achieve by only a control buttom.
7.Floating dust cover design can automatic adjust according to different floor conditions that can colleact dust well.
8.50 mm dust connect hole work with Xingyi 7.5KW industrial vacuum cleaner IVC-380 can efficiently solve the problem of fugitive dust

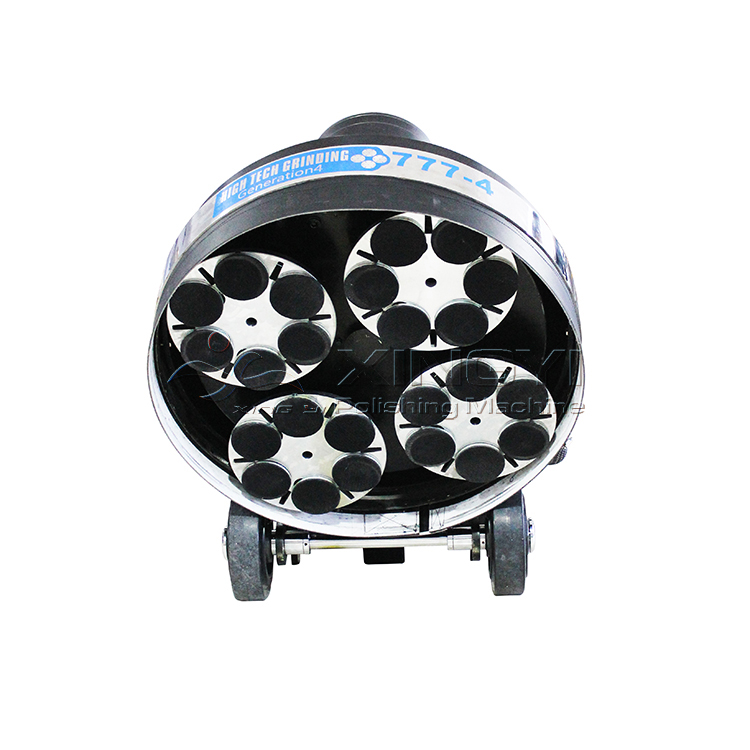

9.Four heads planetary running direction design can provide greater grinding force, can fast achieve flatness and brightness when grinding and polishing
10.Patented shock mitigation system,can automatically adjust according to differents floor conditions when grinding, to achieve super flat surface.
11.Rubber wheel design, prevent to be impaled

12. Wheel clutch can be manual operated.

 Voltage  380-440V three phase
 Working width  800mm
 Grinding disc  4*310mm
 Motor rotating speed  450-1500rpm
 Grinding plate speed  180-600rpm
 Motor power  15HP
 Inverter  20HP
 Configuration  IE 2 Wonder motor+Delta inverter
 Weight  500kg
 Additional weight  40kg
 Water tank  40L
