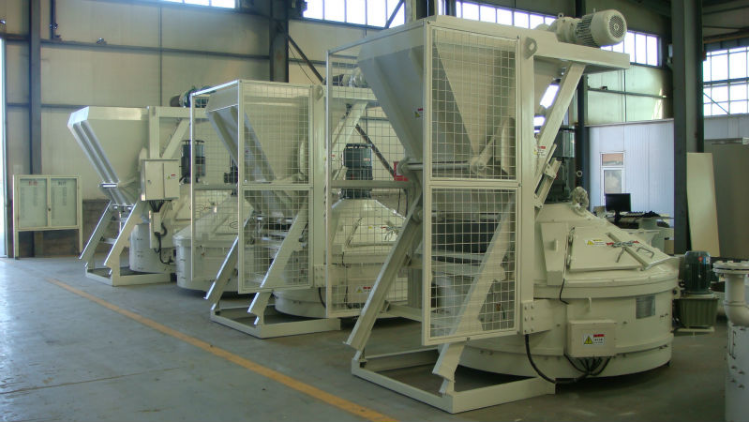

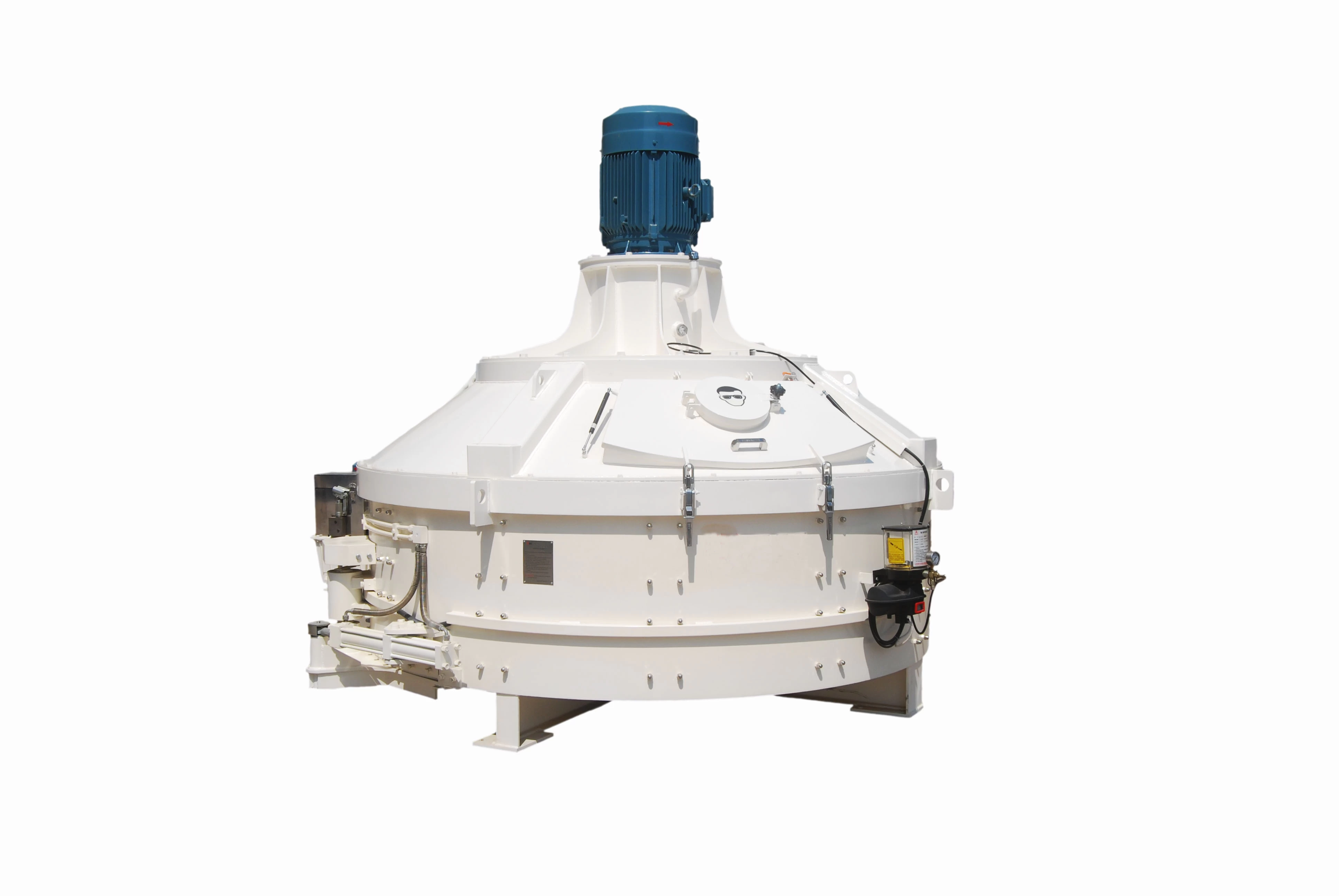

Features of Planetary Concrete Mixer
1. The reduction unit (patent technology), ensures a high efficiency and low-noise rotation. Compared the traditional gearbox, this unit takes less space, and the maintenance space of the mixer can enlarge 30%.
2. Special designed mixing facility makes the mixing faster and more homogenous, no material heaped.
3.According to different materials, the liner and tiles can be cast-iron, HARDOX steel plate (Sweden original) or hard facing materials.
4. Ni-hard cast iron blades are more wearable.
5. Large access facility is for easy maintenance and cleaning.
6. The key-operated safety switch and limit switch guarantee safety
7. Hydraulic system equipped with manual pump allows the door be opened in case of electric failure.
8. Maximum three discharging doors are available.
Options
1. Hydraulic coupling
2. Moisture Probe
3. High Pressure Washout System
Specifications of Planetary Concrete Mixer
|
Item
|
MPC
|
50
|
100
|
150
|
250
|
330
|
500
|
750
|
1000
|
1500
|
2000
|
2500
|
3000
|
|
Filling Volume
|
L
|
75
|
150
|
225
|
375
|
500
|
750
|
1125
|
1500
|
2250
|
3000
|
3750
|
4500
|
|
Feeding Capacity
|
Kg
|
120
|
240
|
360
|
600
|
790
|
1200
|
1800
|
2400
|
3600
|
4800
|
6000
|
7200
|
|
Compacted Concrete
|
L
|
50
|
100
|
150
|
250
|
330
|
500
|
750
|
1000
|
1500
|
2000
|
2500
|
3000
|
|
Mixing Power
|
Kw
|
4
|
5.5
|
7.5
|
11
|
15
|
18.5
|
30
|
37/45
|
55/75
|
75/90
|
90/110
|
110/132
|
|
Mixing Star*Mixing Blade
|
Qty
|
1*2
|
1*2
|
1*2
|
1*2
|
1*3
|
1*3
|
1*3
|
2*3
|
2*3
|
3*3
|
3*3
|
3*3
|
|
Side Scraper/Discharge Scraper
|
Qty
|
1/-
|
1/-
|
1/1
|
1/1
|
1/1
|
1/1
|
1/1
|
1/1
|
1/1
|
1/2
|
1/2
|
1/2
|
|
Discharging Power
|
Kw
|
Pneumatic Discharging
|
2.2
|
2.2
|
2.2
|
3
|
3
|
4
|
4
|
4
|
|
Weight
|
Kg
|
500
|
850
|
1300
|
1500
|
2200
|
2500
|
3500
|
5500
|
6500
|
8500
|
10500
|
11000
|
