Planetary Disperser Mixer with Vacuum function for Industrial Battery Mixing Machine
Product Specification
The mixture of powders and liquids of all kinds of common batteries is dispersed, and finally a uniform battery size is obtained. It is very suitable for high viscosity process.
|
modle
|
LIO-XFZH300
|
|
Lower barrel parts
|
|
Design total volume
|
395L
|
|
Effective volume
|
130-300L
|
|
Container inner diameter
|
836mm
|
|
Container inside depth
|
720mm
|
|
Container material
|
304ss
|
|
Design environment temperature
|
-10~+120°C
|
|
Mixing Parts
|
|
Working frequency
|
1. 5-50hz
|
|
Mixing power
|
22kw
|
|
Mixing rotate speed
|
3-38pm
|
|
Planetary box speed
|
2.6-26rpm
|
|
Mixing blade diameter
|
478mm
|
|
Mixing line speed
|
0.1-1.0m/s
|
|
Number of impellers
|
2
|
|
Distance between paddle and paddle
|
7±2.5mm
|
|
Distance between paddle and bucket wall
|
4±1mm
|
|
Distance between paddle and bucket bottom
|
4±1.5mm
|
|
Dispersing Parts
|
|
Working frequency
|
5-50hz
|
|
Dispersing power
|
30kw
|
|
Dispersing rotate speed
|
180-2340rpm
|
|
Dispersing plate diameter
|
190mm
|
|
Dispersing model
|
Serrated
|
|
Dispersing line speed
|
1.68-23m/s
|
|
Dispersing number
|
4pcs
|
|
Dispersing shaft number
|
2pcs
|

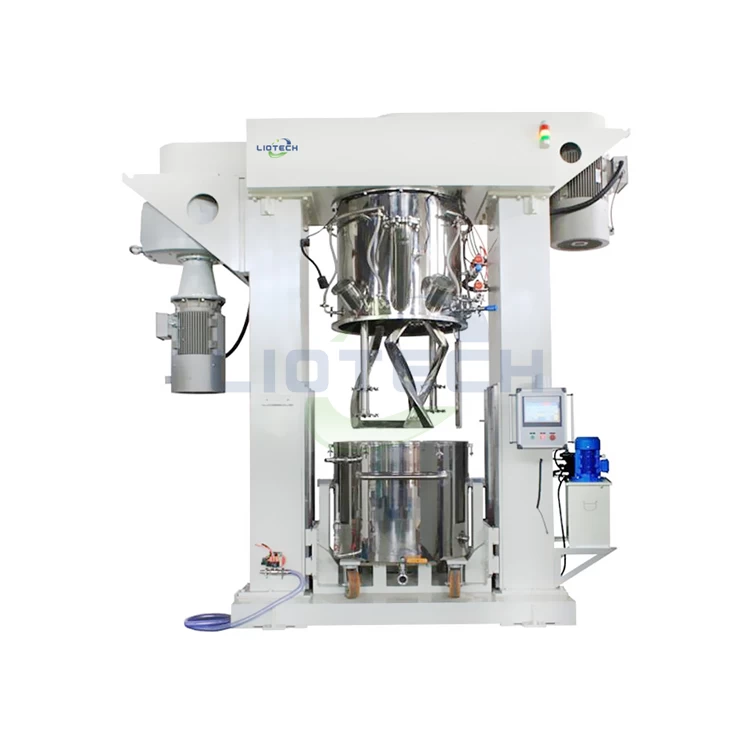

Product Image
Packing & Shipping
