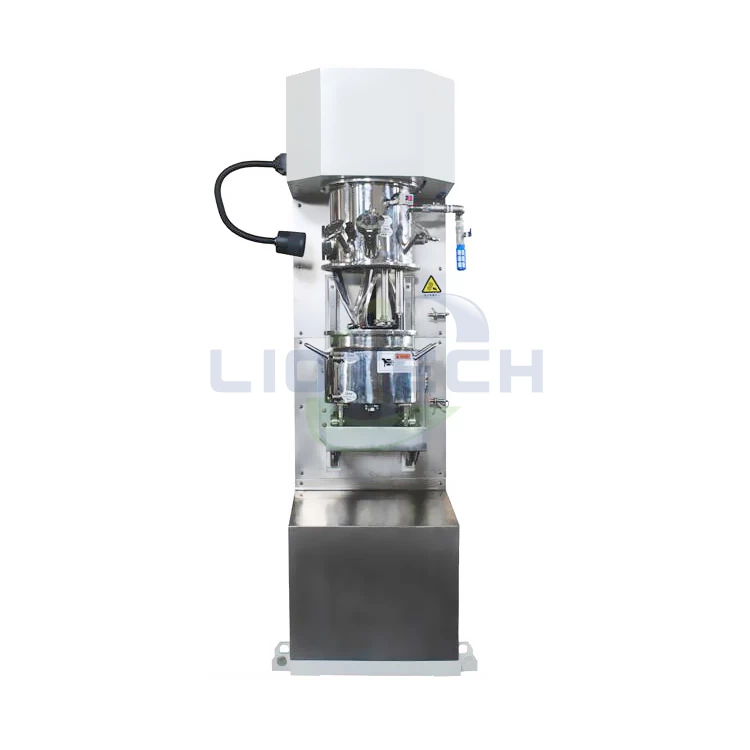

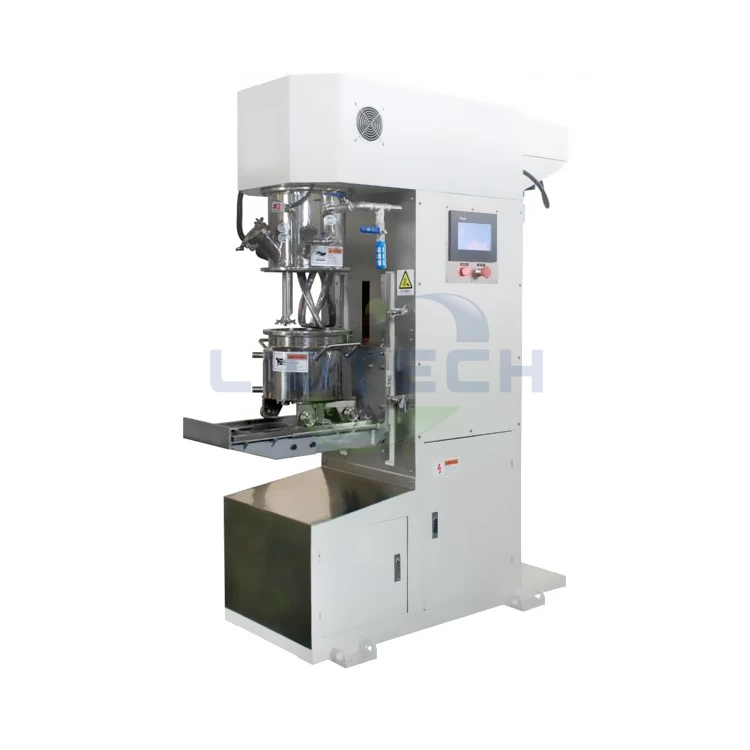

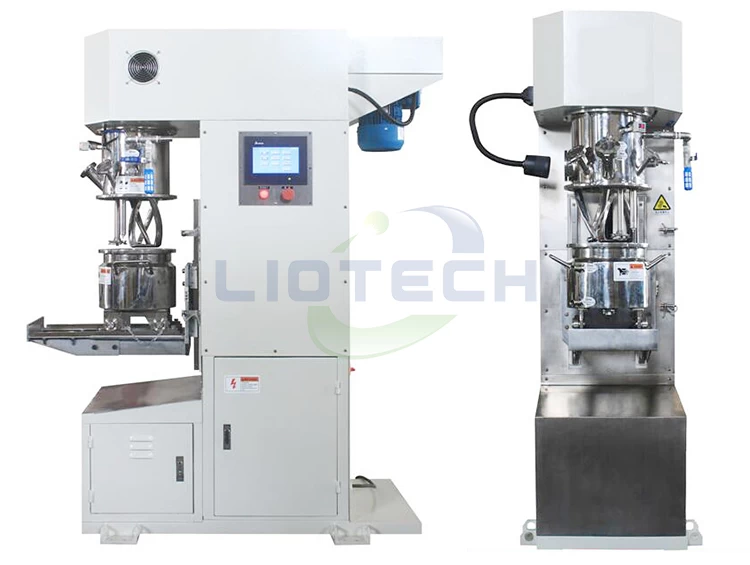

Model
|
LIO-XFZH05
|
|
Lower Barrel Parts
|
|
Design total volume
|
8L
|
|
Elective volume
|
2.7-5L
|
|
Container inner diameter
|
240mm
|
|
Container inside depth
|
180mm
|
|
Container material
|
The parts in connect with materials is 304 stainless steel
|
|
Tempering jacket form
|
The bottom and the barrel jacket can input water for cooling, heat preservation and heating
|
|
Tempering jacket port
|
G3/4",with quick opening movable joint,
jacket withstand pressure≤0.4MPa
|
|
Tempering jacket circulation system
|
prepared by customer,
jacket water inlet temperature≤8℃,
cooling water flow>3.5L/min
|
|
Discharge materials form
|
bottom of a G1-1/2" three-piece discharge ball valve, equipped with 2 "standard ISO quick connect clamp connector
|
|
Design environment temperature
|
-10~+120°C
|
|
Move mode
|
Casters move
|
|

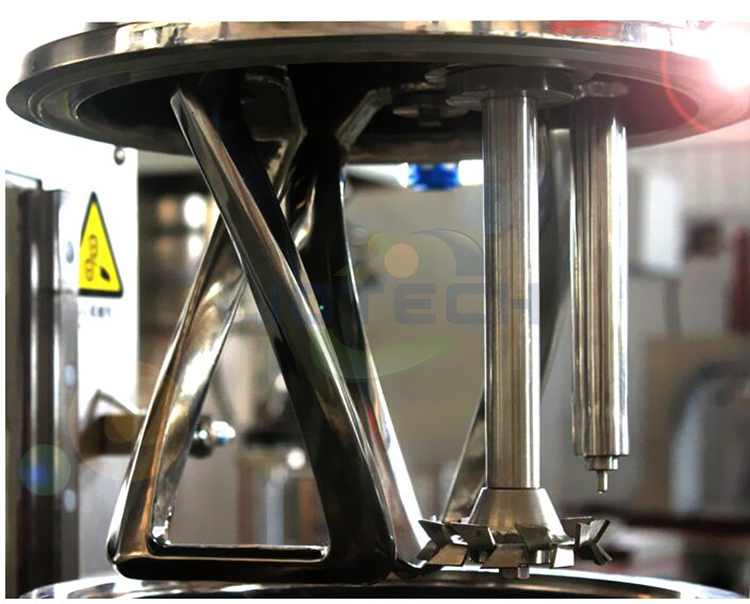

Mixing Parts
|
|
Working frequency
|
5-50hz
|
|
Mixing power
|
1.5kw
|
|
Mixing blade speed
|
10-98rpm
|
|
Planetary box rotate speed
|
5-50rpm
|
|
Mixing blade diameter
|
124mm
|
|
Mixing blade model
|
Variable cross-section spiral twist type, 90 ° helix
|
|
Mixing blade material
|
304 stainless steel
|
|
Mixing blade line speed
|
0.06-0.6m/s
|
|
Mixing blade number
|
2pcs
|
|
Dispersing Parts
|
|
Working frequency
|
5-50hz
|
|
Dispersing power
|
2.2kw
|
|
Dispersing rotate speed
|
610-6100rpm
|
|
Dispersing plate diameter
|
70mm
|
|
Dispersing model
|
Serrated
|
|
Dispersing plate material
|
304 stainless steel
|
|
Dispersing line speed
|
2.2-22m/s
|
|
Dispersing number
|
1pcs
|
|
Dispersing shaft number
|
1pcs
|
|
Scratch the Wall Parts
|
Scratch wall bracket material: 304 stainless steel
Scratch wall material: Teflon
Scratch wall rotate speed: Consistent with planetary box rotate speed
Removable or not: Removable design (Need to remove when scraping the wall on high viscosity process)
|
|
Base and Lifting Parts
|
Parts materials: High rigidity structural carbon steel
Lifting way: electric
Lifting guide: High-precision linear guide
Lifting itinerary: ≤290mm
|
|
Upper Barrel Parts
|
Upper barrel material: 304 stainless steel
Power feed port: quick opening interface DN40 1pcs
Liquid feed port: ISO standard 1/2" quick interface 1pcs
Mirror port: DN50 tempered glass sight glass 1pcs
Vacuumize port: G1/2 " 1pcs
Exhaust port: together with vacuumize port
Digital vacuum gauge port: M14×1.5 Internal thread metric tooth interface 1pcs
|
|
Control System
|
Electrical cabinet: Used to install low-voltage electrical components such as inverter
Manual operation panel: For placement buttons, knobs, gauges etc
Power supply: AC 3×380V±5%, 50Hz
Control mode: electronic control
Power control and speed adjustment mode: Inverter start and control
Cooling mode: Air-cooled (wind cooling)
Operation mode: Touch screen
Digital temperature display gauge: material temperature
Emergency stop button: 1pcs
Alarm system: Over-temperature alarm, over-temperature alarm shutdown, alarm shutdown
Speed display: Touch screen shows the speed
Power instructions: 1pcs
|
|
Safety Chain System
|
Emergency stop: press the emergency stop switch, the device immediately stop, and can not do anything
Start low-speed mixing: can lift the barrel and turning at the same time
High-speed dispersion: barrel up in place before turning
Safe lock in operation: When the machine is running, the mixing barrel can not be lowered, can not open the mixing barrel.
Prevent vacuum tube backflow: special vacuum buffer tank design, can effectively prevent the vacuum pump oil back to the mixing drum phenomenon
Stop running fault: Inverter comes with overload, overcurrent, overvoltage, leakage, lack of equal protection
Mixing barrel lift: stirring barrel in place to rise
Mixing barrel did not return to normal pressure can not be dropped.
After mixing barrel rises in place and high-speed dispersion, then can be started.
After mixing barrel rises in place, with locking protection system, to prevent while the mixing barrel rises to high place abnormal fall.
Dry mixing stage, while the barrel rising, the stirring paddle need to rotate at the same time.
|
|
Other description
|
Temperature probe: Pt100
Temperature measurement: Located of the barrel wall to detection of internal material temperature
Transmission parts bearings: High-speed components for imported bearings, low-speed components for domestic bearings
Oil seal:Domestic brands, O-ring for Static seal, dynamic seal using mechanical seals or skeleton oil seal
Grease: Domestic brands
Mechanical seal lubricants: Imported brand
Petrol cylinder: Domestic brands
Petrol station: Domestic brands
Valve: Domestic brands
Vacuum design quantity demand: vacuum system prepared by customer, own, air exhaust volume 2L/S(2X-2)
Vacuum hold: -0.098Mpa, holding pressure for 24 hours>-0.085Mpa, do not leak to the barrel
Total host power:>4kw
Total weight: about 700kg
Dimensions: L1463mm×W610mm×H1770mm
Appearance color: off-white
Ground bearing: 900kg/m2
|
