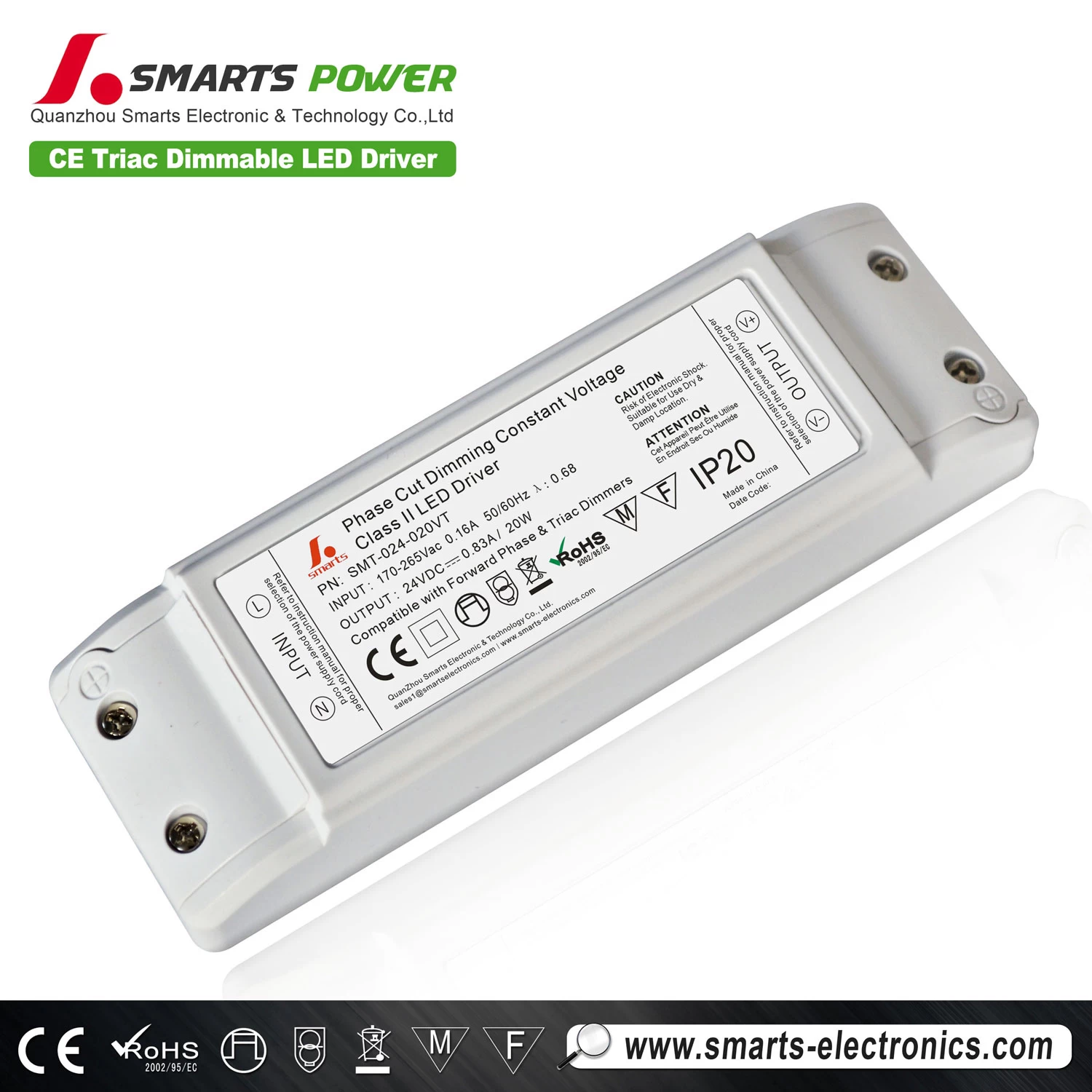

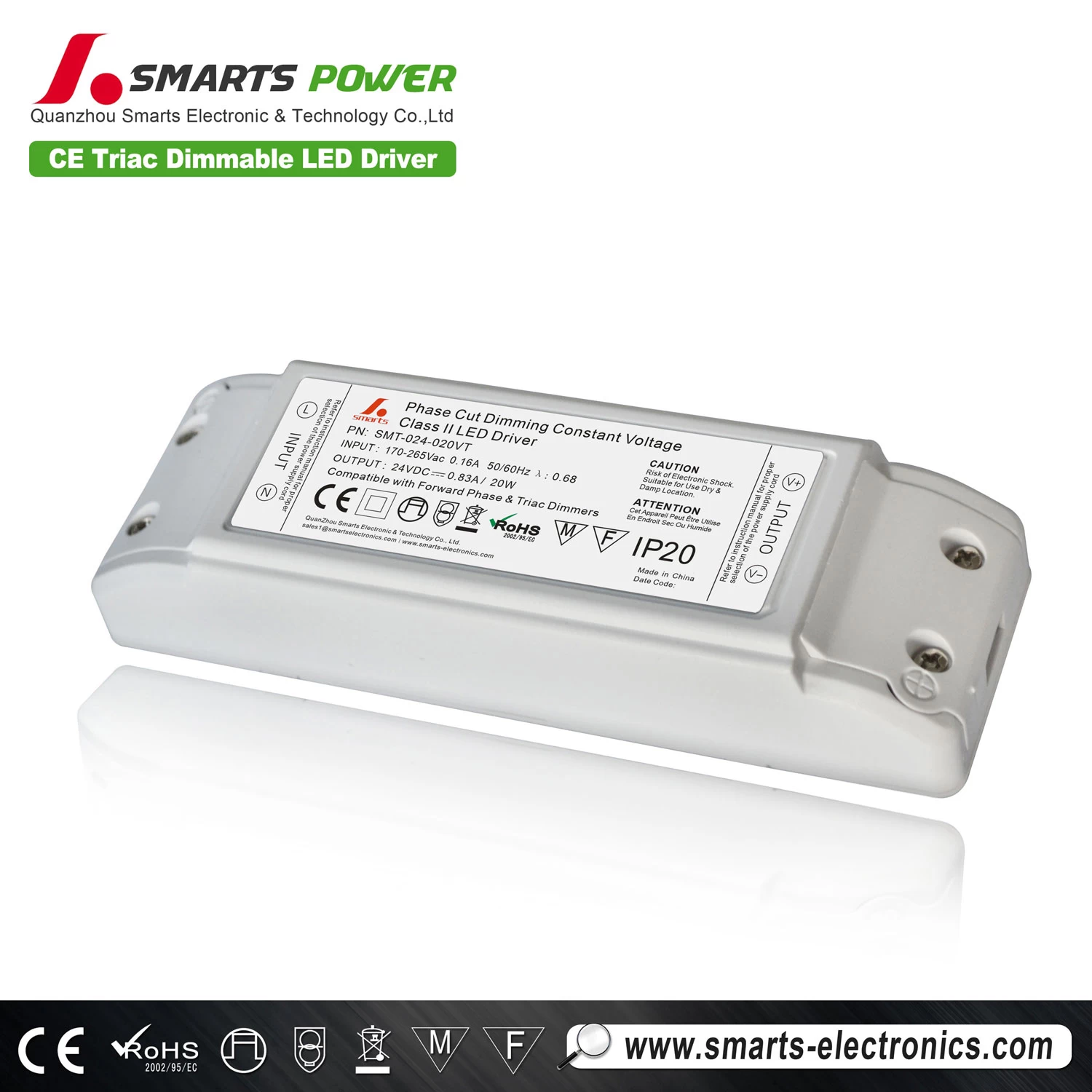

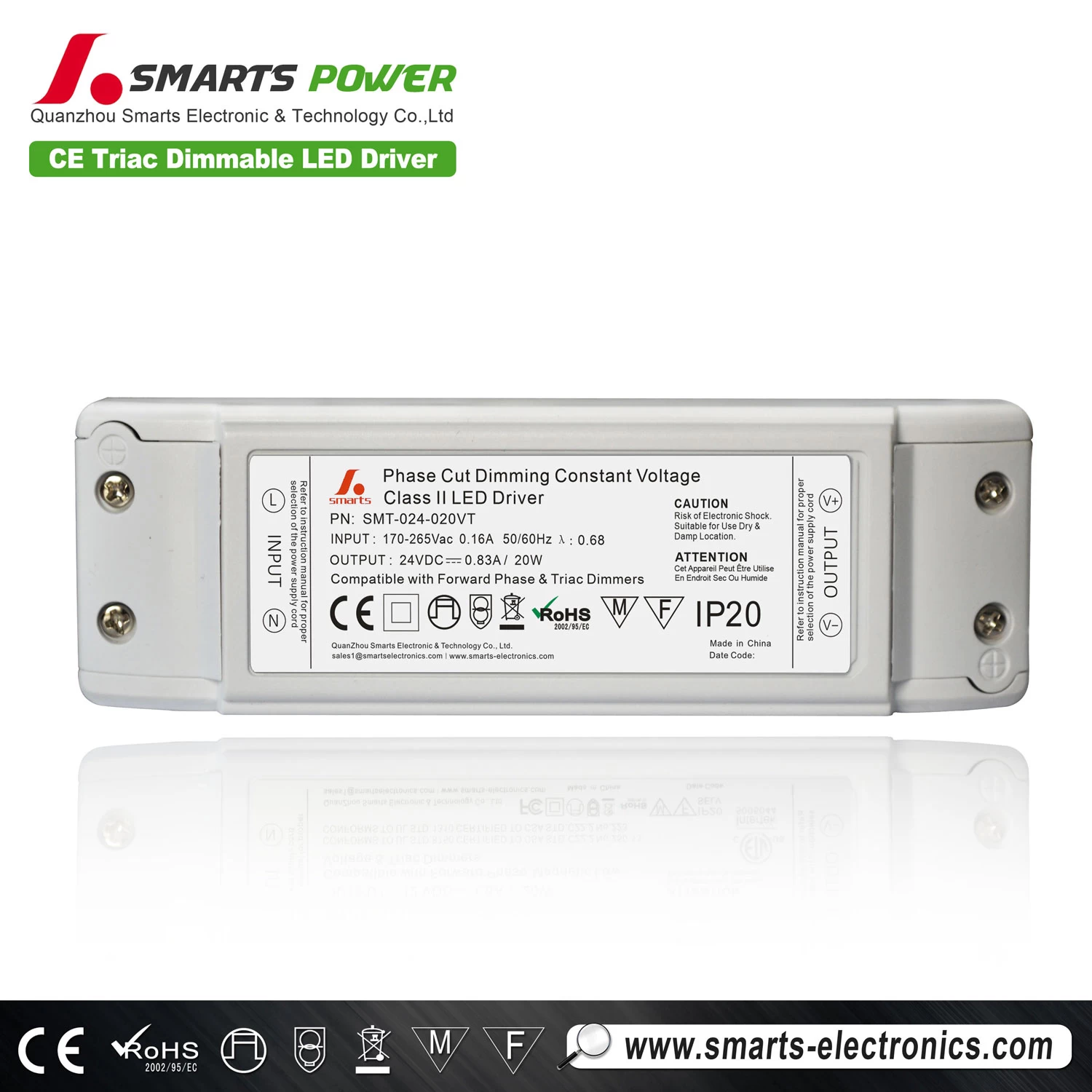

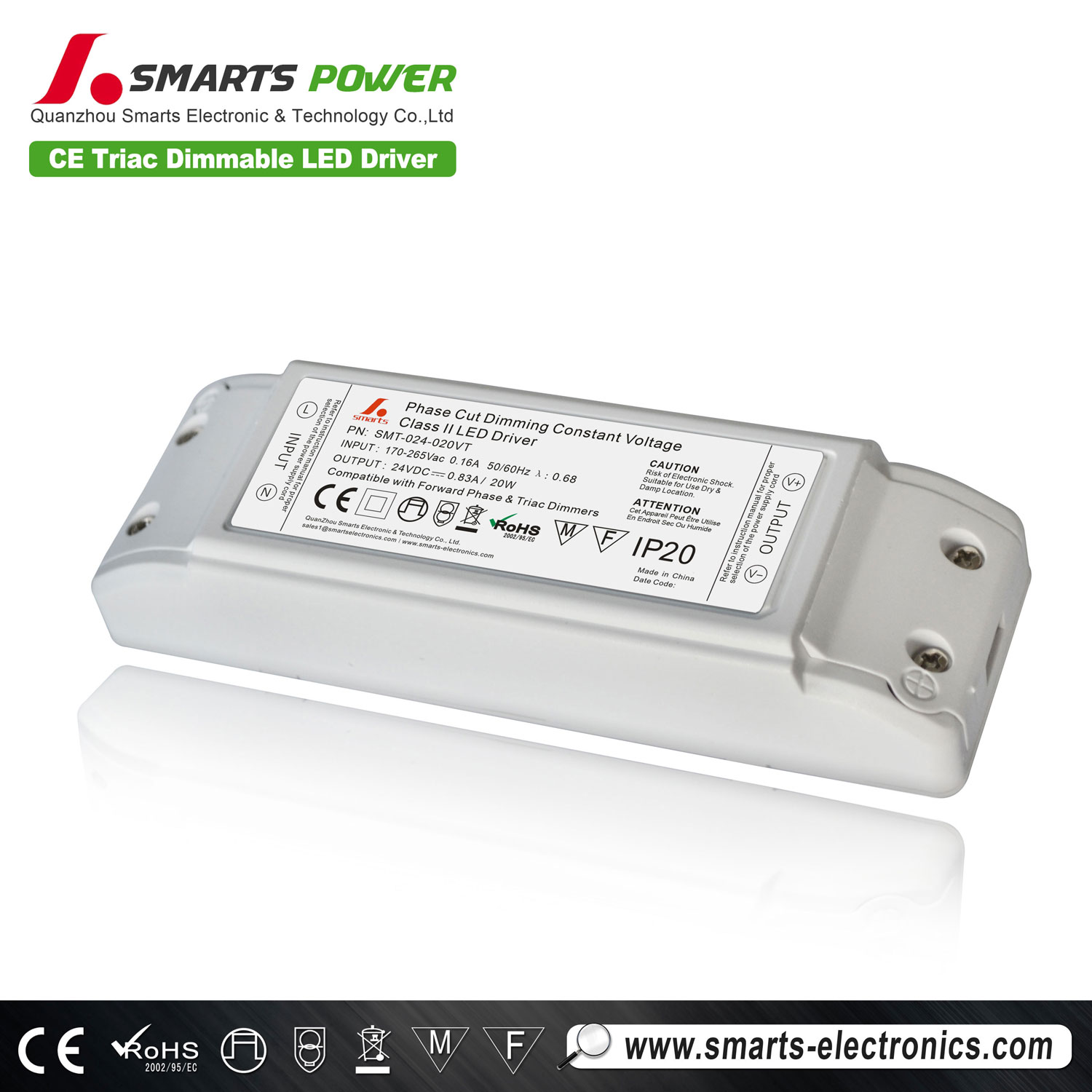

plastic cover 24v 20w triac dimmable led power supply

triac dimmable led power supply; triac dimmable constant voltage led driver; constant violtage led driver

Facebook Twitter Pinterest LinkedIn 分享

24vdc triac led strip dimmable driver



Product Description




input Channel leading edage and tailing eadge dimmers
  SMT-012-020VT SMT-024-020VT
Single Output features Constantvoltage 12vDC  24vDC
output current 1.67Amp 0.83Amp
output power 20watt 20watt
Ripple & Noise 250mV
Current Regulation ±3%
Starting time 1000mS/230Vac, 3000mS/110Vac
Input Voltage range 90Vac-135Vac, 170-265Vac
Frequency range 47Hz-63Hz
Power factor PF>0.90/220Vac,PF>0.91/110Vac
Efficiency 87%/110Vac , 88%/230Vac
Inrush Current 20A/110Vac, 40A/220Vac
Leakage Current <1mA/240Vac
Over temperature 105oC±5 oC ( Internal radiator's temperature)
Protection mode:Closed Output voltage,recovery after temperature automatic recovery
  • Protections:Short circuit/over Voltage
  • Fully isolated plastic case
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Environment:

  • Working Temperature : -40 ~ +60°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • ibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety:

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus, Telecommunications
  • Networks, Vehicle Lights, Controller Panels
