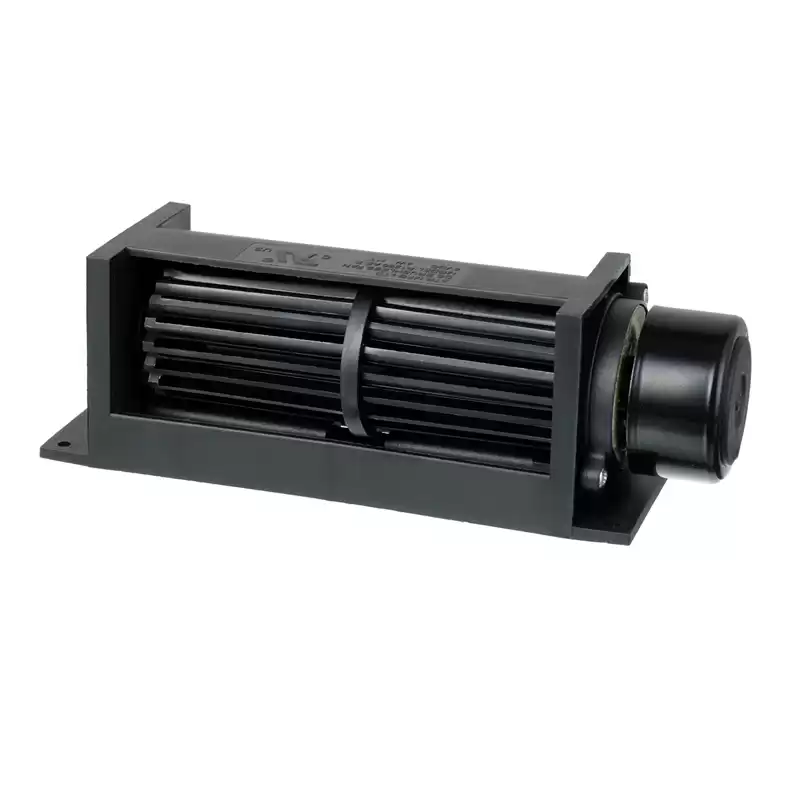

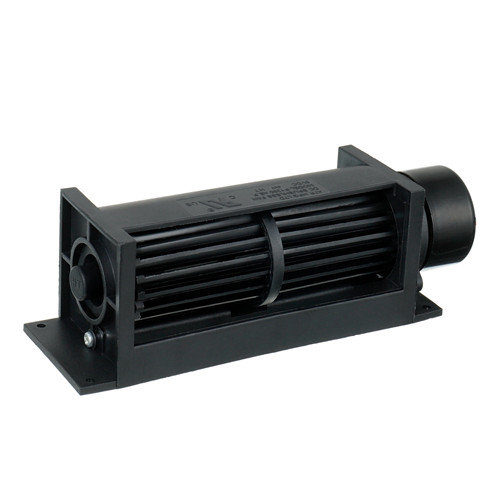

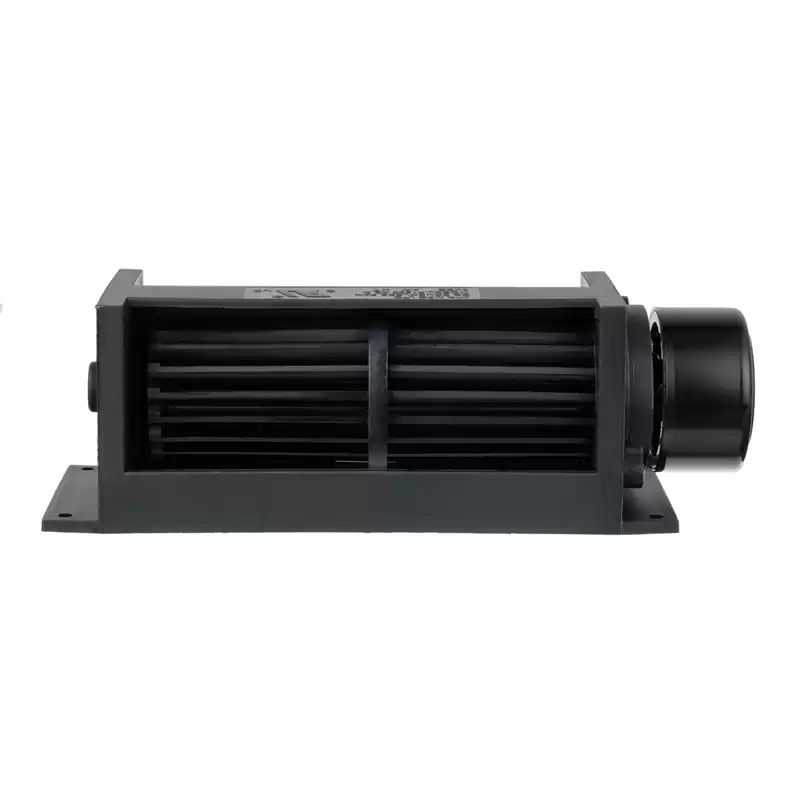

PBT Material Cooling Ventilation System Crossflow Exhaust Radiator Fan. The cross flow fans possess a space-saving long-narrow design and an even airflow pattern. These fans provide two-dimensional airflow across the length of the impeller and they produce less noise.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

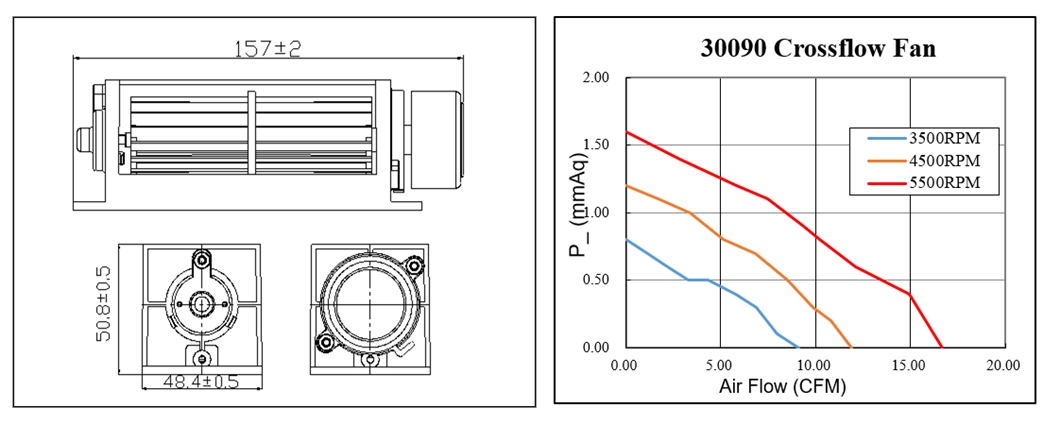

Dimension of impeller is 90mm(L)× 30mm(D) / The size of fan in inch is 3.54(L) in x 1.18(D) in; The outer frame size is 157.0 ± 2.0 mm / 6.18 in.
-

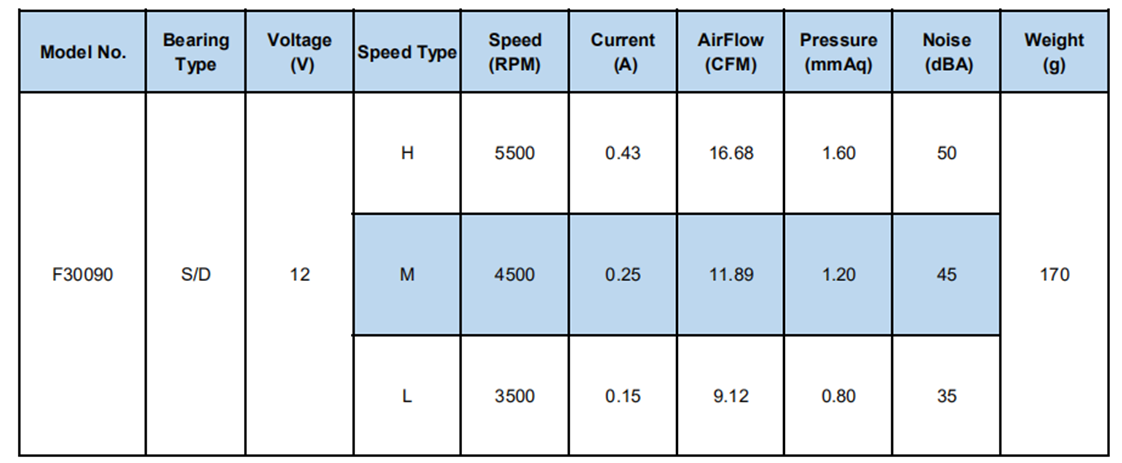

Operating Voltage Range: DC 12V | Current: 0.15 ~ 0.43 Amp | Speed: 3500 ~ 5500 RPM | Airflow: 9.12 ~ 16.68 CFM | Noise: 35 ~ 50 dBA | Pressure: 0.80 ~ 1.60 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
DC Cross Flow Fan 108x90x30mm
General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
Unique Fan blade or impeller design increase airflow;
-
Parameters can be set according to customer requirements;
-
Have low power consumption, and reduce heat generation;
-
Can work normally in the low temperature environment of -10℃ ~ +70℃;
-
The fan structure is stable, which improves the vibration performance of the fan and effectively improves the vibration noise of the fan.
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
Application
Because of its simple structure, small size and high dynamic pressure coefficient, it can reach a long distance and is widely used in cross flow fans, laser instruments, air conditioners, air curtain equipment, dryers, hair dryers, household appliances and grain combine harvesters.
-
Custom projects related to Air Conditioners, Refrigeration and display cabinets, Dehumidifiers, Sports equipments, and many other industrials.
-
Create a good cooling and ventilation systems to keep household appliances and other electronic equipments running at the ideal temperature and at the best speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
