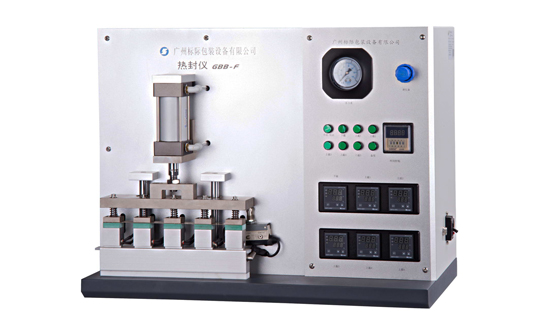

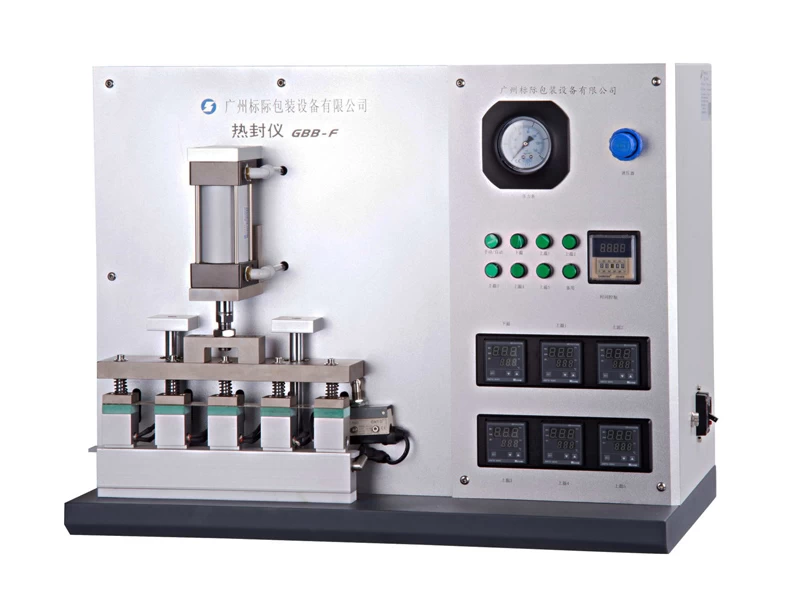

GBB-F Heat SealerTester Application
GBB-F Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials. It is apply to quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food companies, pharmaceutical enterprises, personal care industry and so on.
Standards
QB/T 2358-1998, ASTM F 2029, YBB00122003-2015
Features
1. Upper and lower heat seal bars have independent temperature control and setting.
2. Use compressed air, pneumatic drive.
3. Automatic and manual modes; use foot switch for manual mode.
4. Can customize size, shape and smoothness of heat seal bar.
5. Can upgrade heat seal bar with anti-sticking function.
6. Temperature calibration is simple.
Technical Parameters ofelectronic Heat Sealing Analyzer
|
Item
|
Technical
parameters
|
|
Temperature
range
|
Room temperature~300℃
|
|
Temperature
precision
|
±1℃
|
|
Seal time range
|
0.1s~999.9 S
|
|
Pressure range
|
0.05~0.8Mpa
|
|
Heat seal area
|
Upper bar:35×10mm × 5 sections,
lower bar has silicone pad as buffer;(Can customize
all kinds of specifications)
|
|
Heat seal method
|
two ways: automatic or manual,external air cylinder
|
|
Gas source
|
compressed air
|
|
Power
|
2000W
|
|
Power supply
|
AC220V 50Hz
|
|
Weight
|
55 kg
|
|
Instrument size
|
700mm × 400mm × 540mm
|
Configuration
|
A、Spare parts
|
|
NO.
|
Name
|
Remark
|
Quantity
|
|
1
|
Power
cable
|
3*0.75 10A 1.8 M
|
1 PC
|
|
|
Foot
switch
|
FS-1
|
1 PC
|
|
3
|
Allen
wrench
|
|
1 PC
|
|
4
|
Cross
screwdriver
|
6-10mm
|
1 PC
|
|
5
|
Wooden box
|
|
1 PC
|
|
6
|
Keys
|
|
1 PC
|
|
B、Optional parts
|
|
NO.
|
Name
|
Unit
|
Quantity
|
Remark
|
|
1
|
Metrology Certificate
|
|
|
Optional
|
|
2
|
Air compressor
|
|
|
Optional
|
|
C、User provide
|
|
1
|
Power supply 500w
220V 10A three holes socket ground wire
|
|
2
|
Air source（such
as air compressor）specification 2.5HP、8KG
pressure
|
|
3
|
High-pressure air pipe（Φ8mm
plastic pipe)
|
|
4
|
Air filter（filter
dust, filter oil,
filter water)
|
