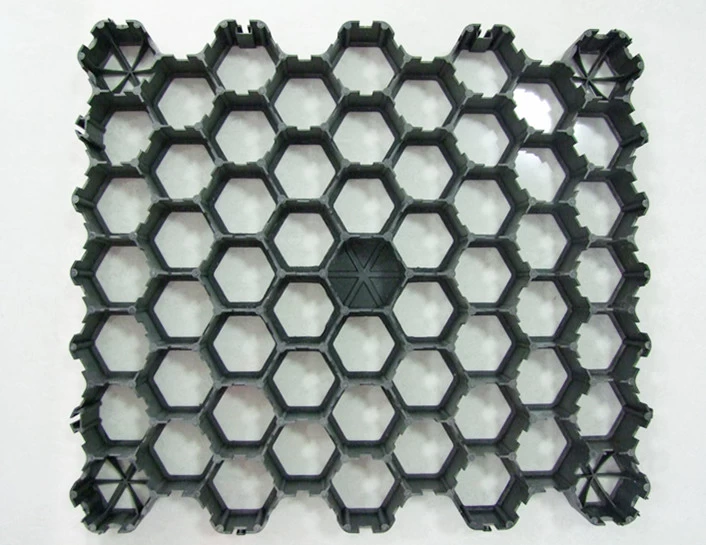

Plastic Grass Driveway Reinforcement Grids

Our Driveway Reinforcement Grids create a 2” deep porous mat that holds loose gravel together, distributing the weight of the load across the whole site.


  • Size465x535x50mm
  • Total Volume0.1CBM/bundle
  • ColorBlack
  • MaterialHDPE
  • Press Strength180tons/sqm

Plastic Grass Driveway Reinforcement Grids Specification:

 Item Code  MZ-450A4
 Material  HDPE
 Size(L x W x H)  465x535x50mm
 Color  Black
 Compressive Strength  180tons/m2
 Working Temperature  Dimensionally stable for -40℃ to 90
 Weight  4.6kg/sqm
 Afforests Rate  95%~100%
 Porosity  90%
 Moisture Absorption  0.1%
 Anti HCL  According to GB4218-1984, 30%x24h, no visible change
 Anti NaOH  According to GB4218-1984, 40%x24h, no visible change
 Thermal Aging  According to GB/T 7141-1999, 70ICx24h, no visible change
 Anti UV  According to GB/T18830, UPE>30 T(UVA)AV<5%, qualified
 Packing  Bundle or Carton (or at your request), 8pcs=2sqm=1bundle
 MOQ  100sqm
 Loading Capacity  1x40HC Container=1628sqm
 Shipping

 About 20 days after receipt the deposit.

 FOB Xiamen, appointed shipping-terms and port accept.



Plastic Grass Grid Application:

  • Grass driveways and grass shoulder

  • Temporary staging areas

  • Fire truck access paths/ fire lanes

  • Golf buggy/trolley paths

  • Emergency vehicle access roads through fields

  • Modern factory building

  • Noble living communities

  • Truck maintenance and equipment yards

  • Construction entrance soil stabilization

  • Emergency vehicle access roads;

  • Heavy equipment parking;

Feature and Benefits:

  • Manufactured from 100% recycled plastics, eco-friendly grass grids
  • Flag plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
  • Perfect greening, provides more than 95% grass area
  • High compressive strength and durable, the plastic grass grids is permanent and long lasting
  • Fast and easy to install, maintenance with low cost
  • Permeability drainage performance, high water culvert

  • Anti-UV, resistance to acid and alkaki corrosion, anti-wear and pressure
  • Grass grids has an open cell structure allowing unrestricted healthy grass root growth

  • Allows grass grid to grow with easy and binds firmly

Manufactured from 100% recycled HDPE material, Leiyuan plastic grass grids are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.


Plastic Driveway Reinforcement provides the pavement strength with the natural beauty of grass, at the same time, it eliminates soil compaction, reduces reflective heat and allowing for all weather accessibility at a very cost effective price.

Plastic Grass Grid Construction:



Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
