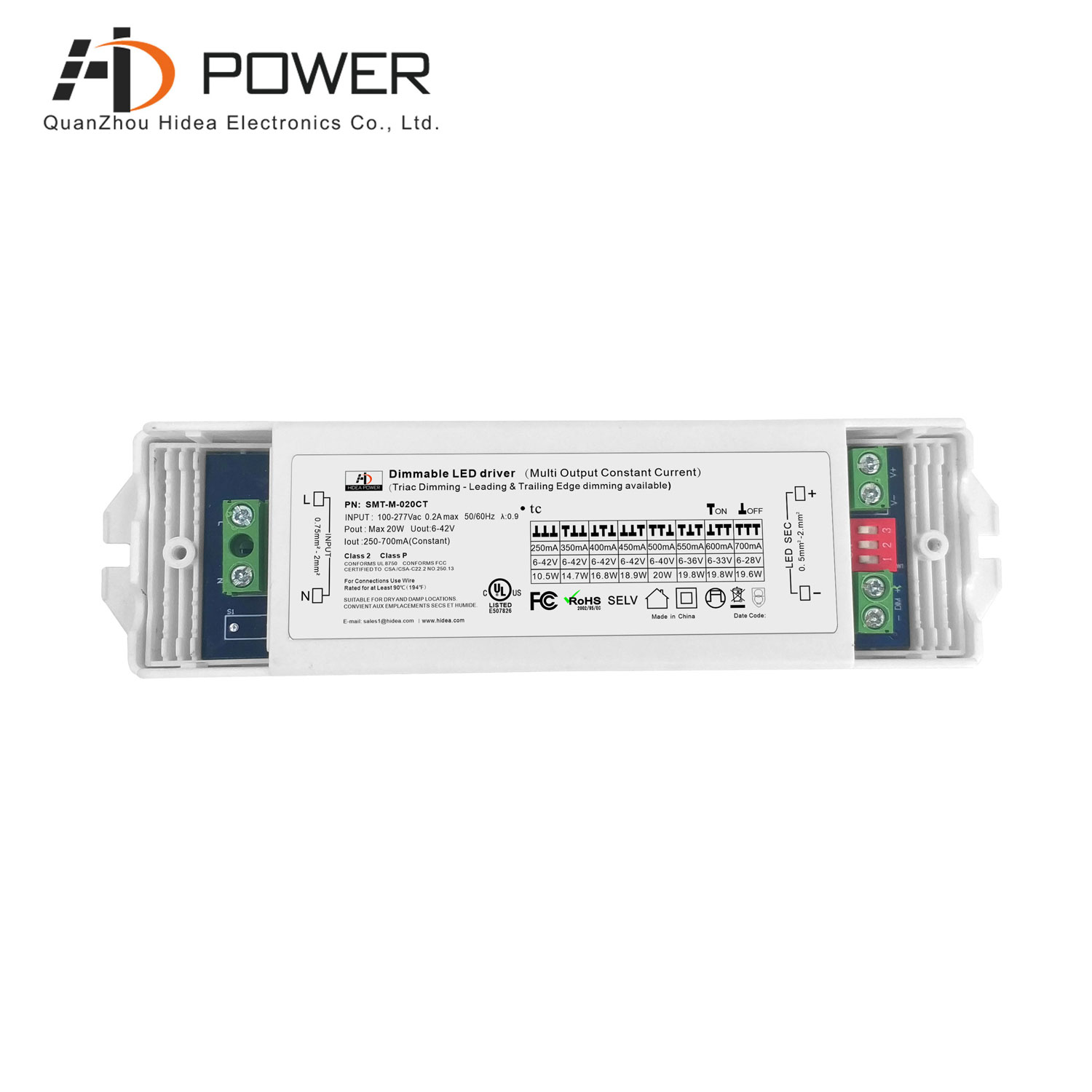

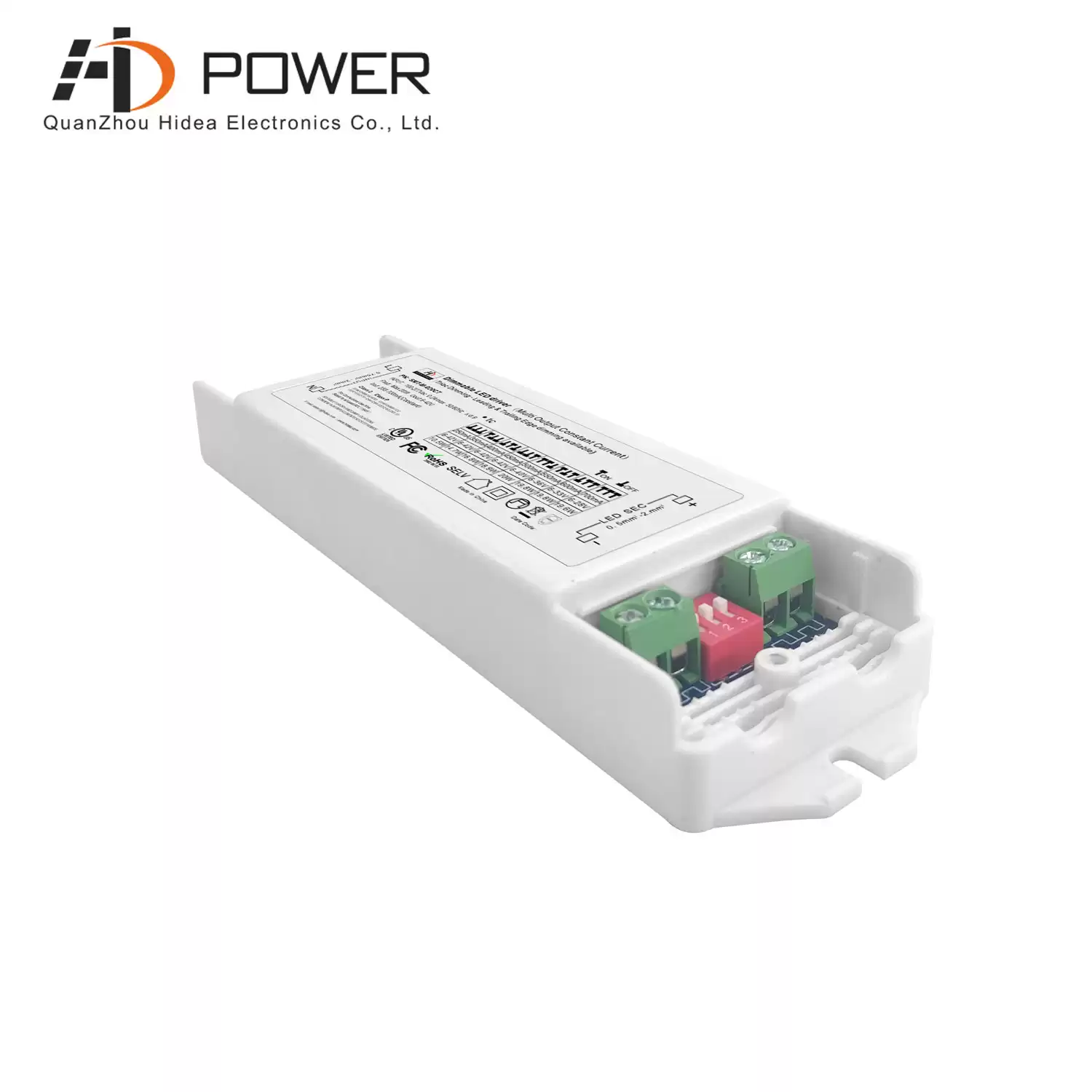

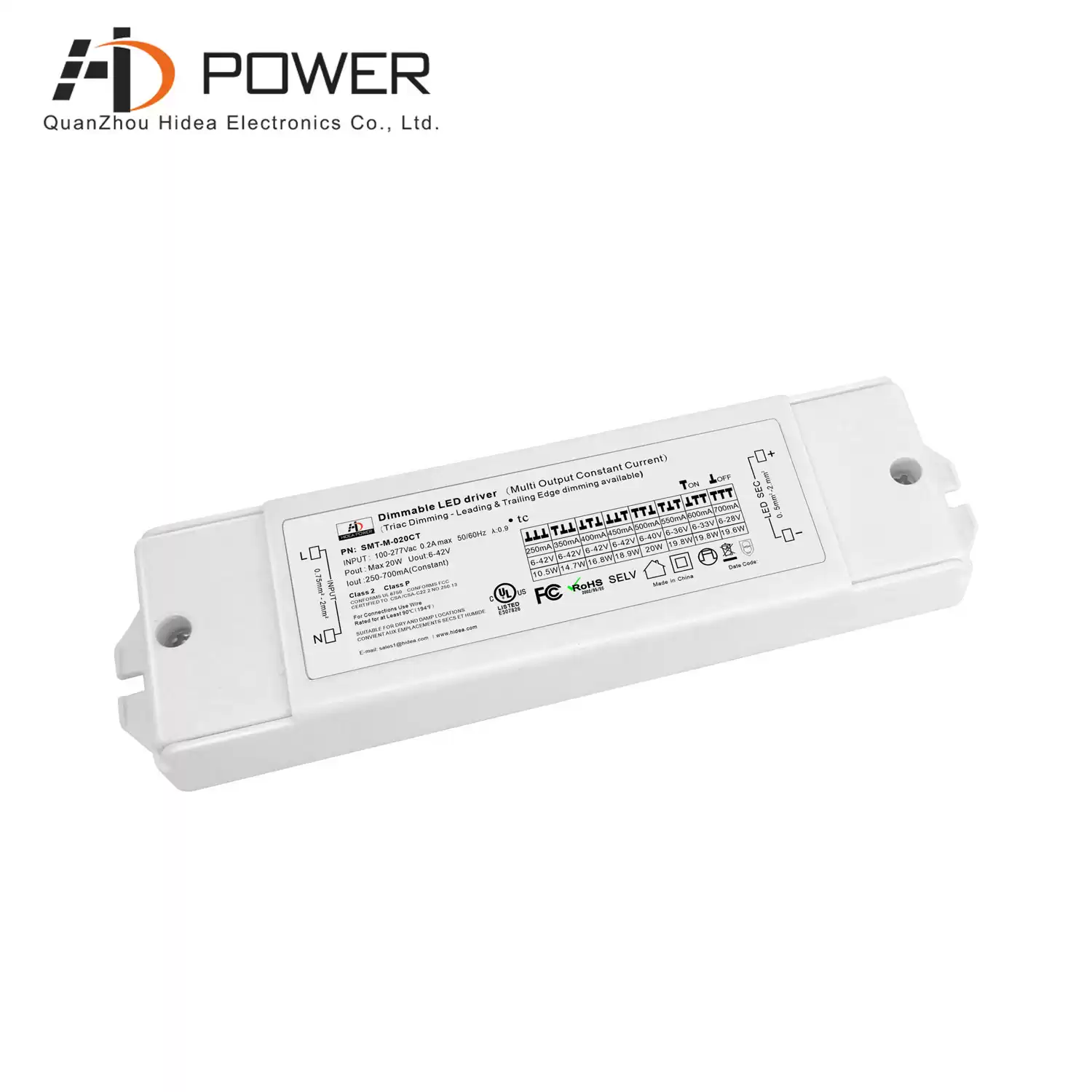

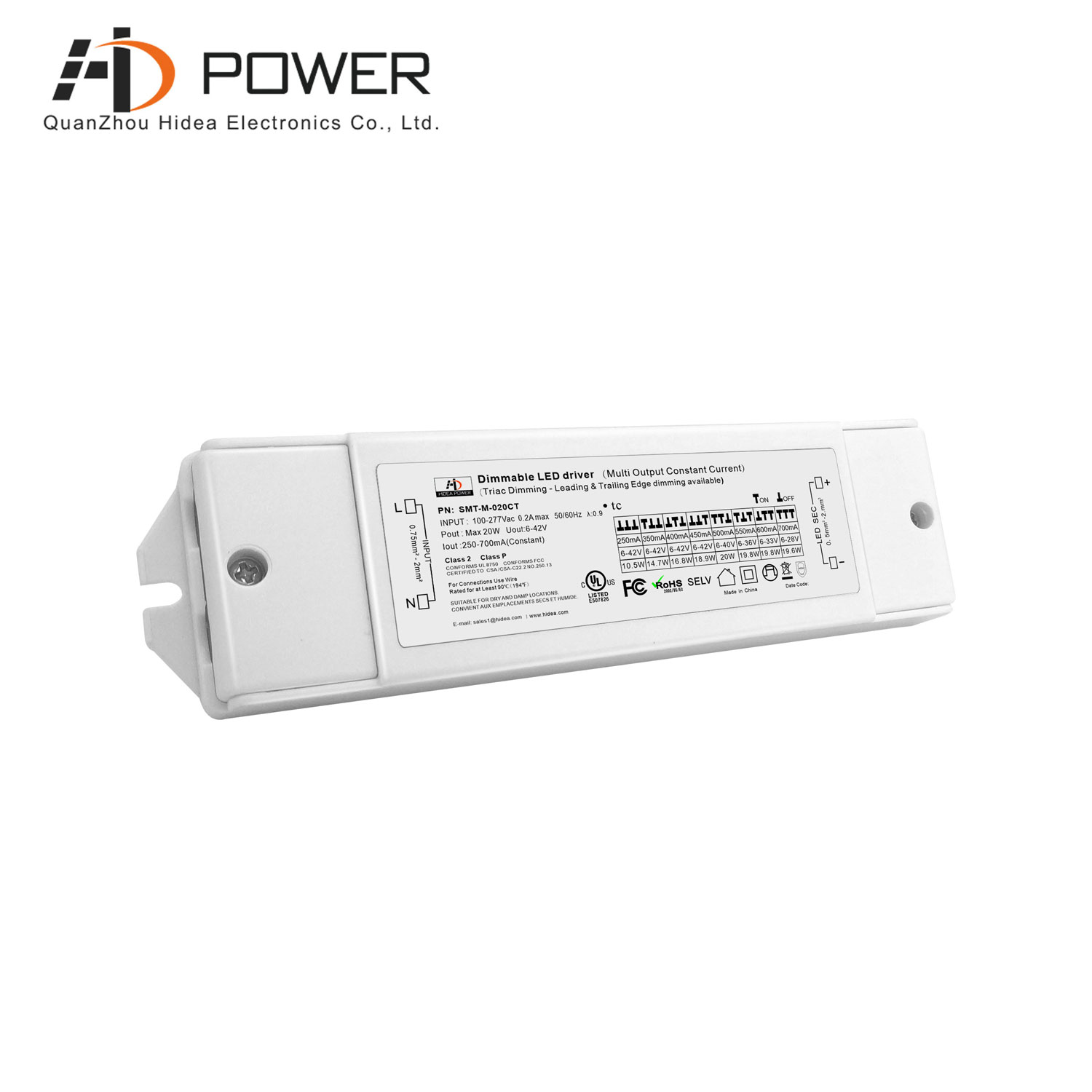

plastic housing 500ma 20w adjustable constant current led driver suppliers with triac dimming

500ma output current 20W Multi-current selectable led driver plastic body design, suitable for indoor lighting projects, the output current can be adjusted through the dial terminal. Built-in active PFC function. Can be used with most dimmers on the market, such as Lutron triac dimmer

Dimming ModeTriac Dimming
Working ModeMulti-Output Current Driver
Input Voltage100-277Vac
Output Power(Watt)20W
Output Voltage
Shape & SizeStandard Size
Output Current500mA
Size159.5*43*20mm
Weight150g
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

plastic housing 500ma 20w adjustable constant current led driver suppliers with triac dimming

UL certified input voltage 100-277vac Multi-output current led driver with short-circuit and overload protection design, strong compatibility, can realize smooth and flicker-free dimming, please try to use the small power dimmer, have access to a wider dimming range , high-power dimmer is difficult to achieve the output current to zero

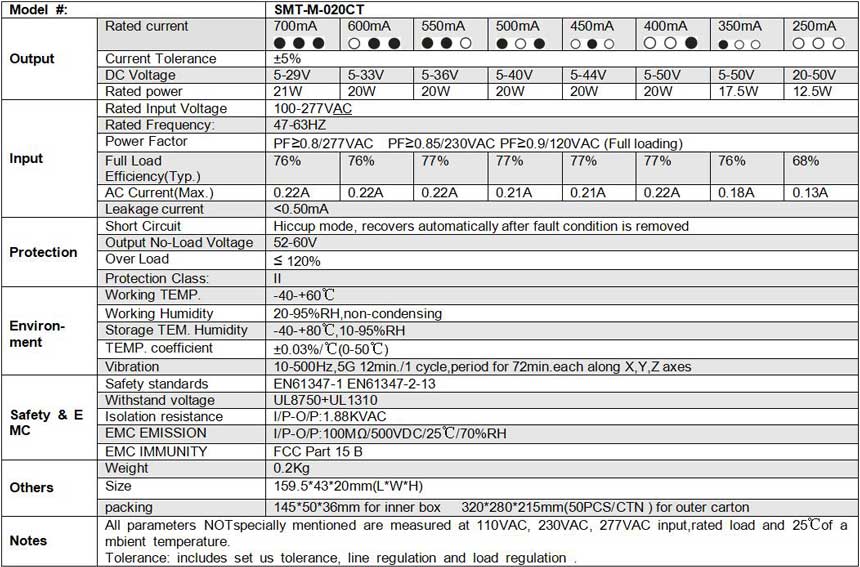

Specification

Related Products

multi-current with dip switch triac & 0-10v dimmable 20W led driver input voltage 100-277vac built-in active PFC function, output current is optional between 250ma-700ma

Mode：SMT-M-020CTD

Dimming Mode : triac &0-10v dimming

Output Power : 20W

intput voltage：100-277Vac

Size：159.5*43*20MM（L*W*H）
