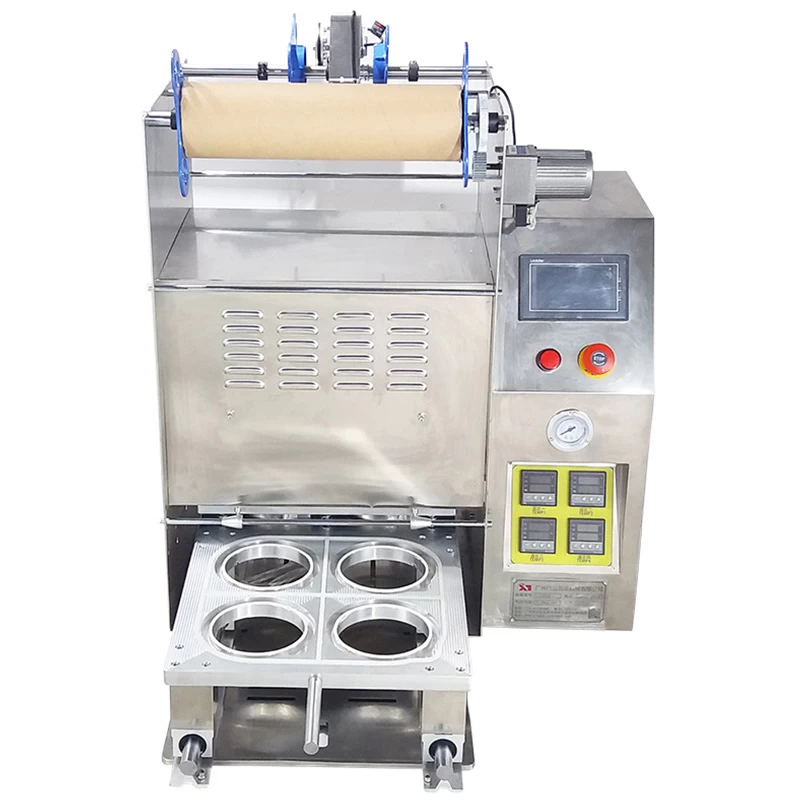

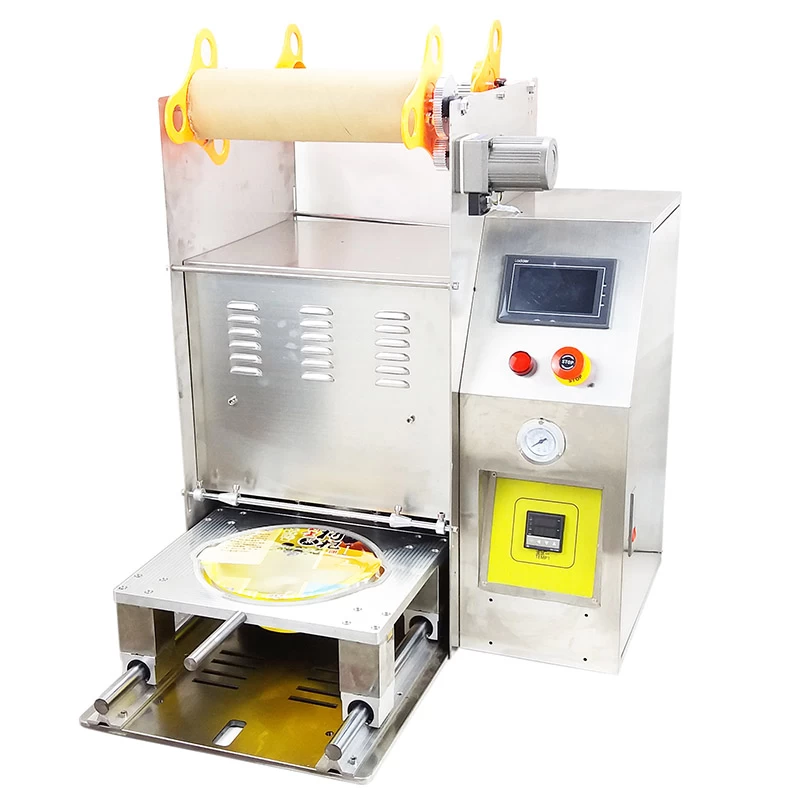

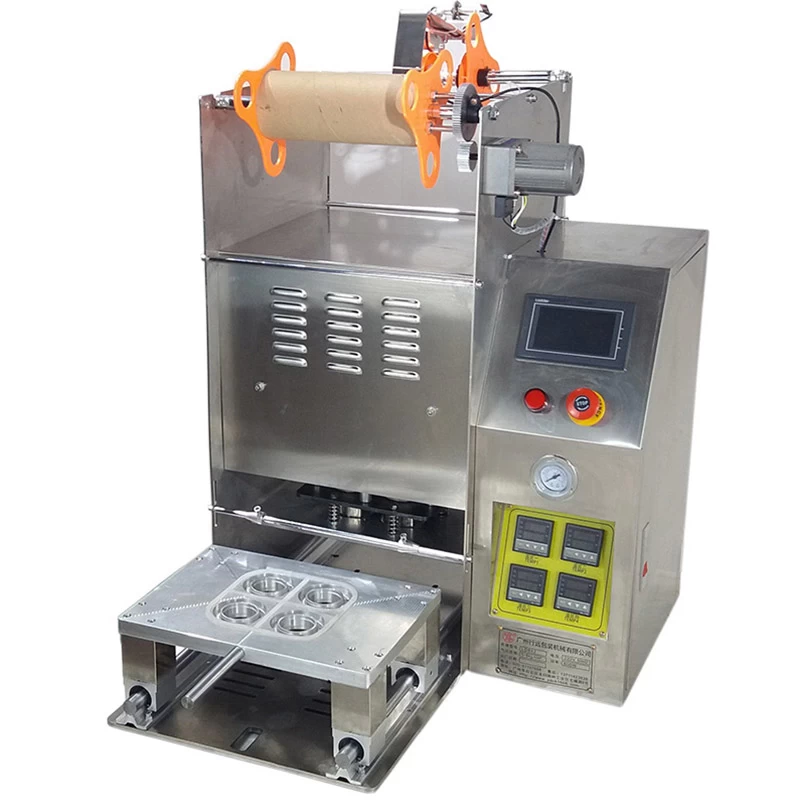

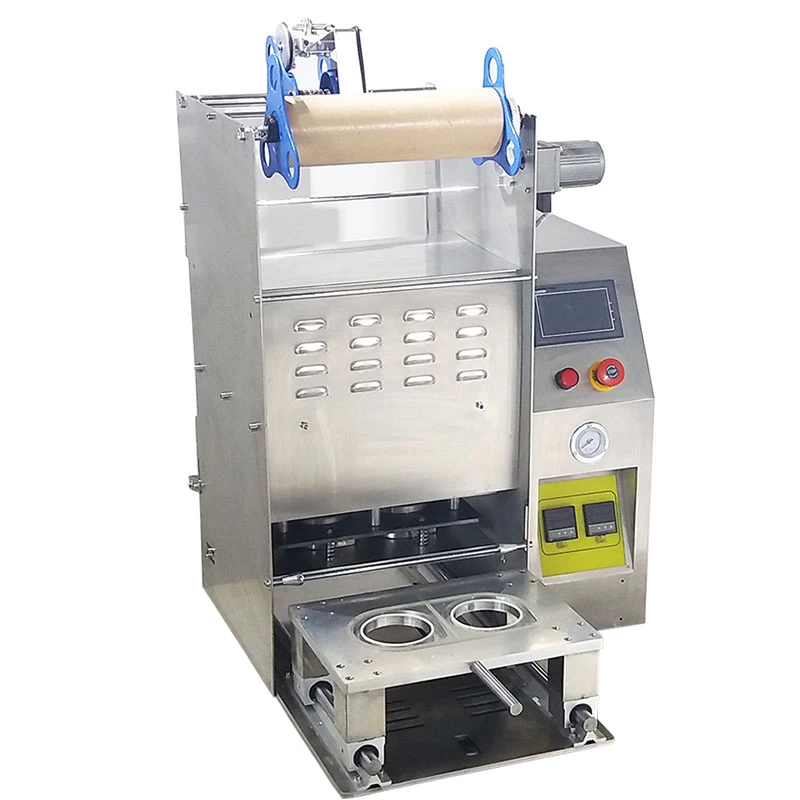

Plastic pp jelly cup top heat sealing machine 4 in 1

Plastic pp jelly cup top heat sealing machine 4 in 1 suitable for all kinds of heat sealing cups,plastic cup sealing,paper cup sealing or aluminium cup top sealing.



Product item:Plastic pp jelly cup top heat sealing machine 4 in 1

Details:

sauce cup sealing machinebottom mold plate



Description


Plastic pp jelly cup top heat sealing machine 4 in 1 belongs to semi automatic  sealing equipment, the whole machine is made of stainless steel . Simple and reasonable structure, sealing of high efficiency and easy operation; Suitable for various sizes of plastic cup,bowl and special-shaped plastic containers heat sealing, it widely used in pharmaceutical, cosmetic and food industries.



Technical parameters

Technical Specifications

Model

LD803A

Voltage(V)

AC110-220V/50-60Hz

Power(W)

500-1000W

Cup sealing sizw (mm)

50-250mm

Packing speed(cups/hour)

400-800

Sealing materials

PP,PE,PET,PS and etc.

Working temperture

0-300 ℃

Air pressure range

0.5-0.8Mpa

Net Weight(kg)

75kgs

Machine dimension(mm)

750*600*750mm



Application:

Desktop cup sealing machine is suitable for plastic/paper cup top heat sealing, it's widely use for beverage,health food,medical,foodstuff,toys and gifts packaging.


Advantage:
1, the whole machine adopts 201 stainless steel and aluminum alloy material, according to  requirements of the GMP for food;
2, adopts pure electric drive with air supply, suitable for small businesses, restaurant, hotel, shop supermarket and canteen management place;
3, LCD display control sealing time,temperature adjustable, photoelectric sensor film location tracking, after sealing design accuracy;;
4, automatic sealing process, saving manpower, improve the sealing quality.
5, different material, different thickness of a thermal sealing material all can use
6, can be used with a variety of equipment collocation, such as liquid filling machine, paste filling machine, filling packing line etc.;
7, the size of the special specifications can be customized.
