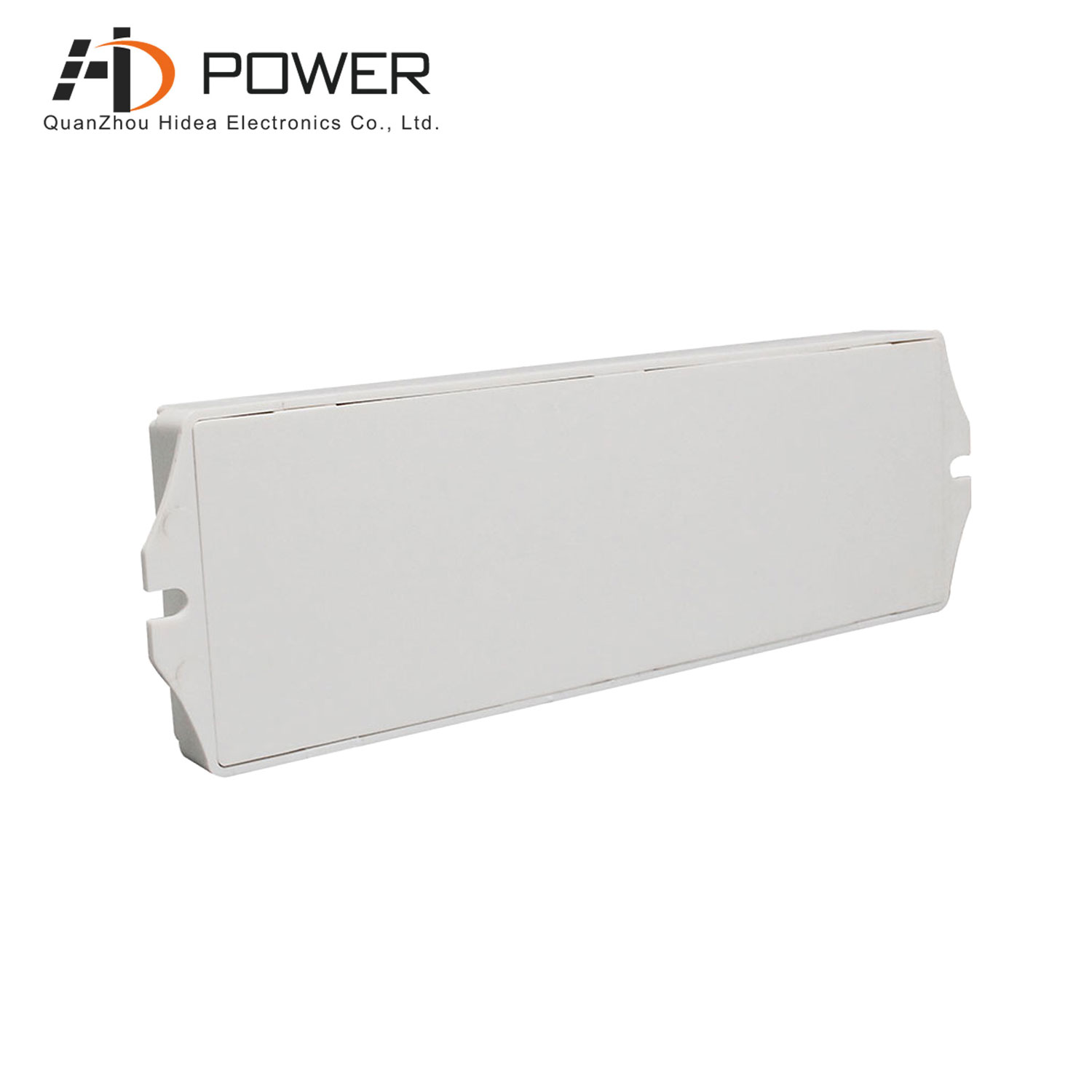

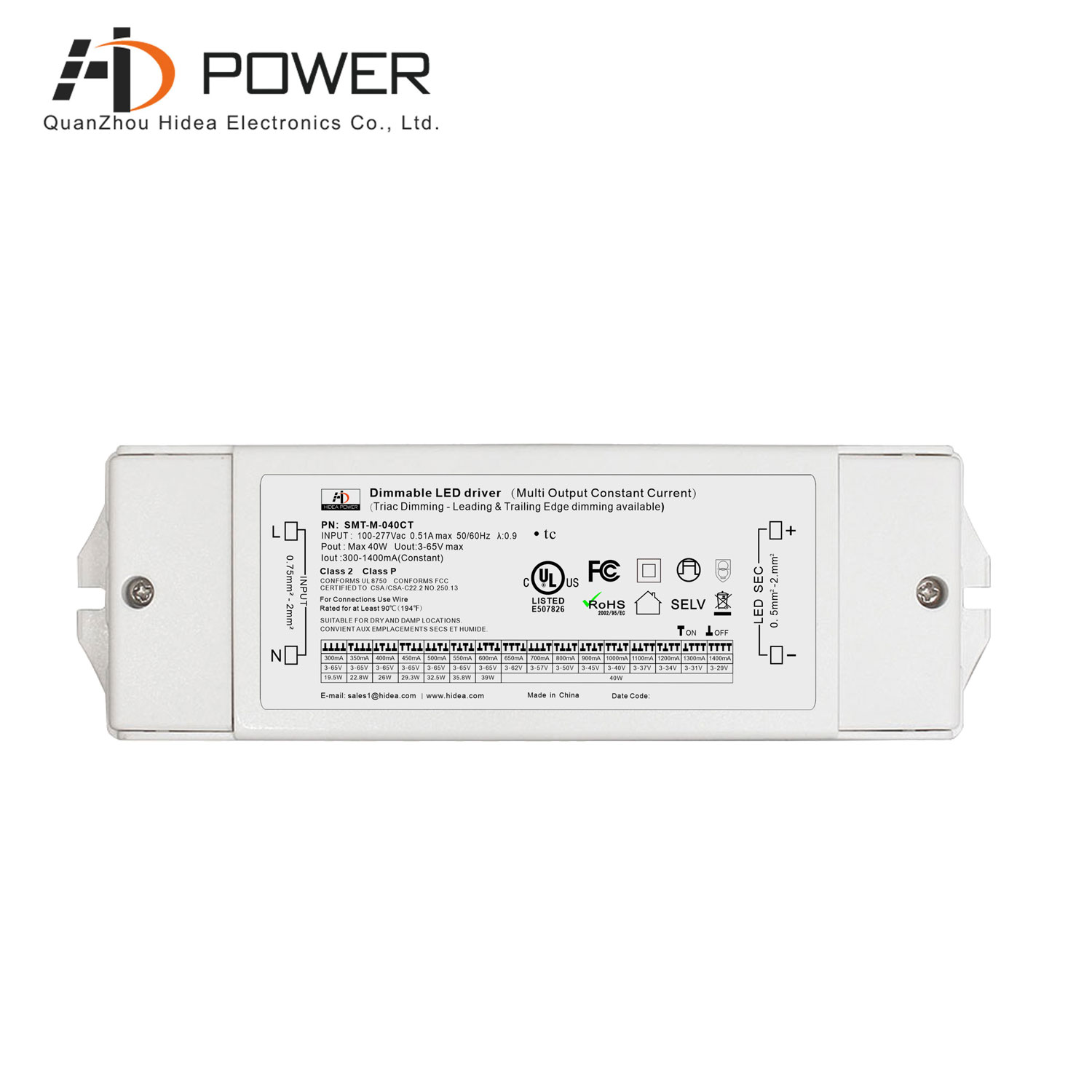

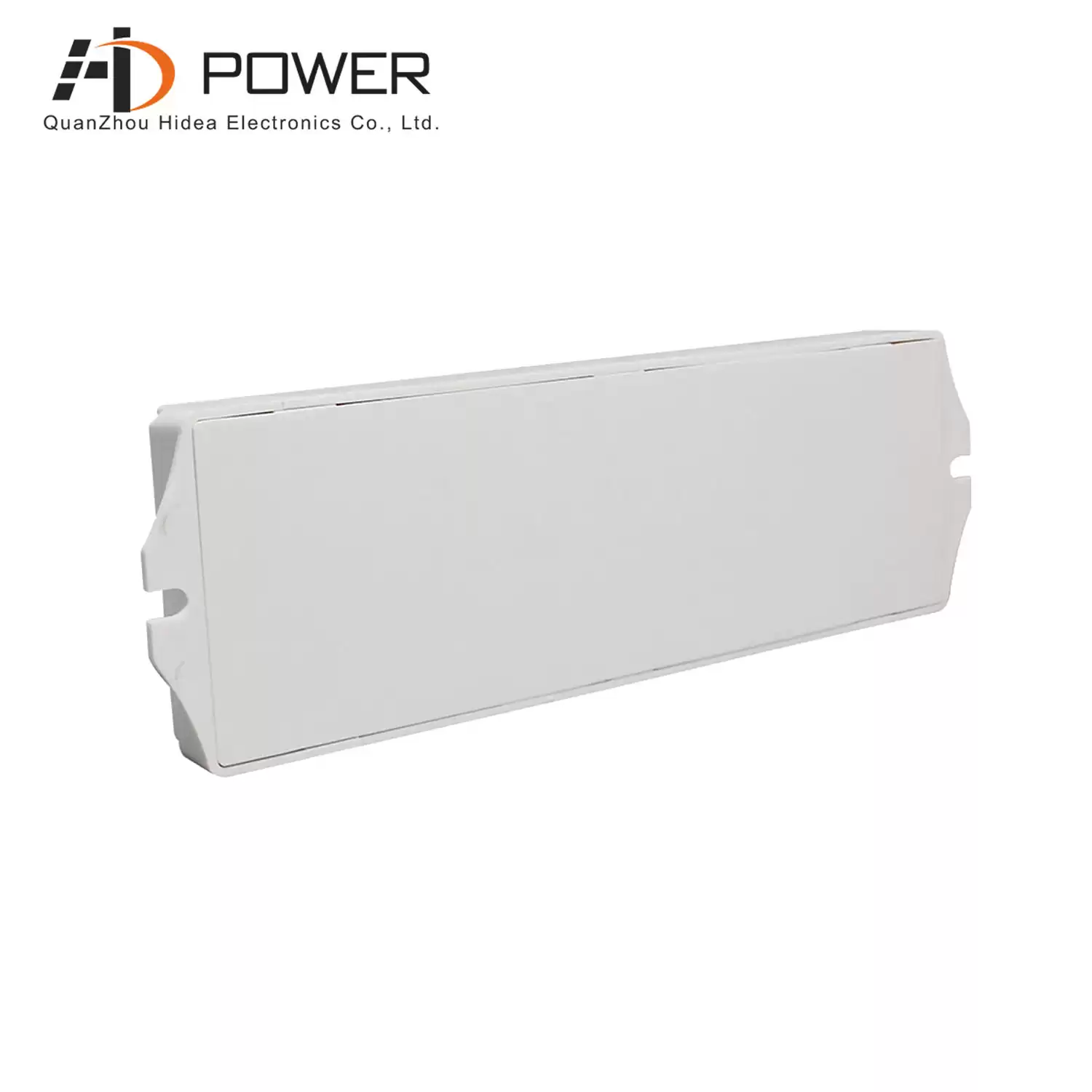

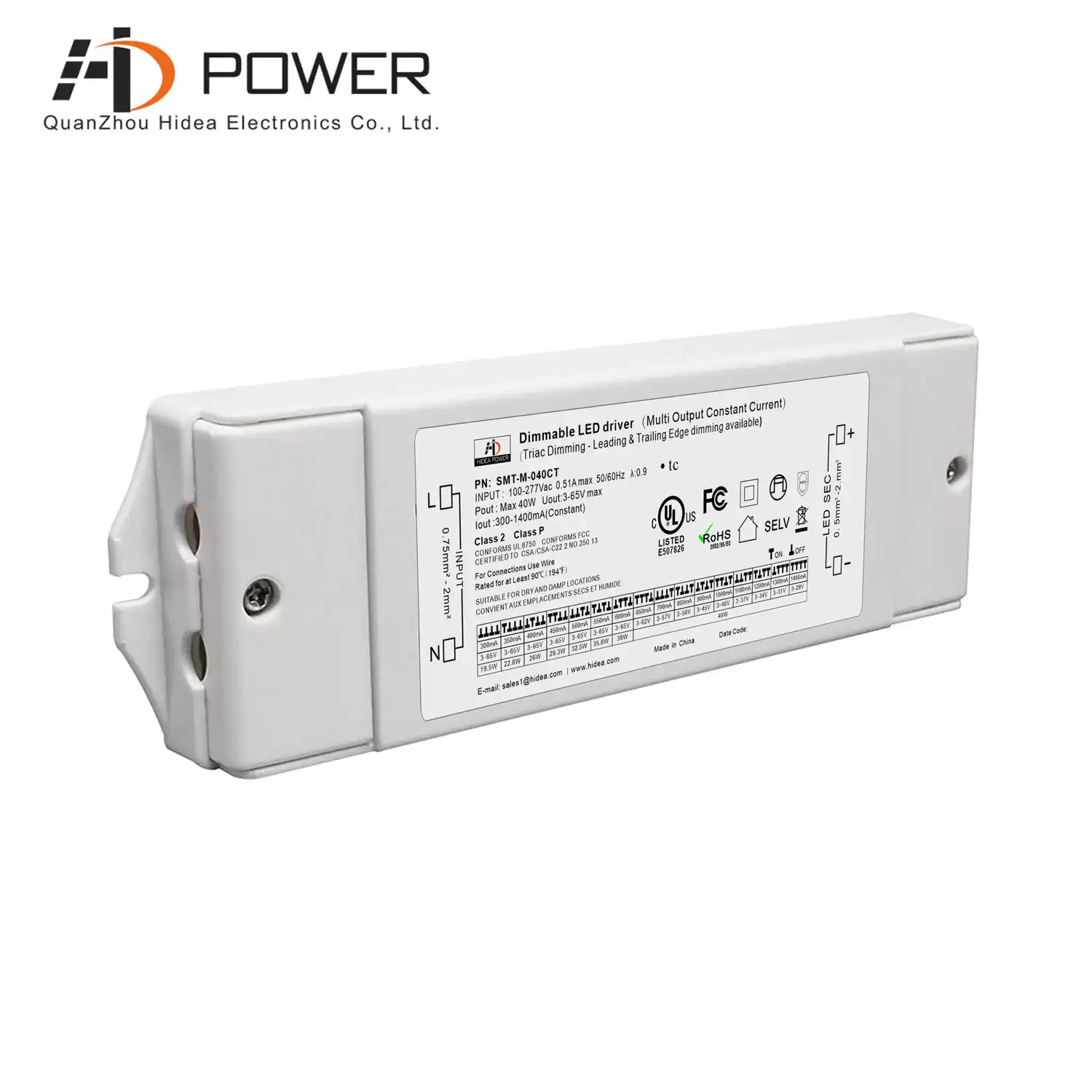

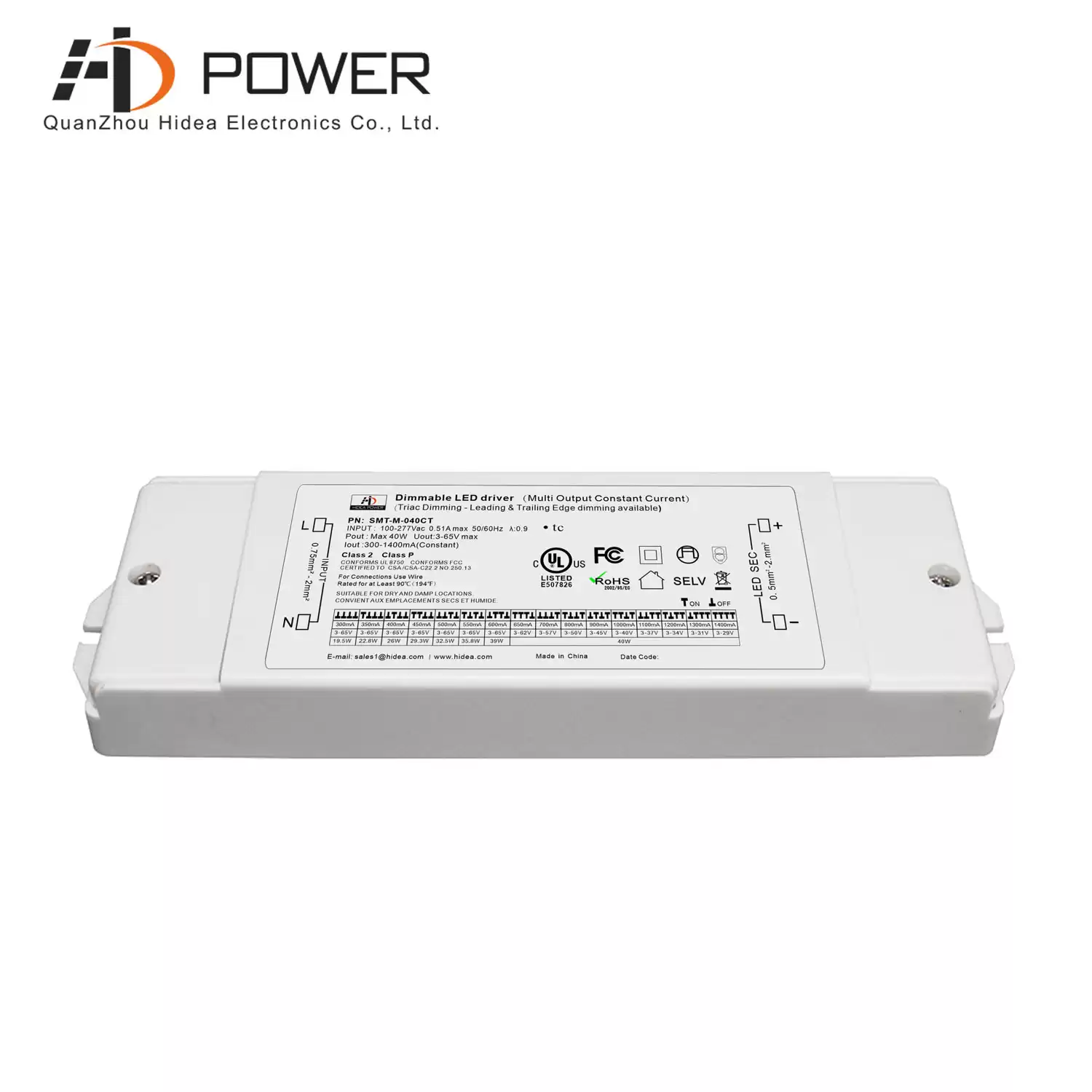

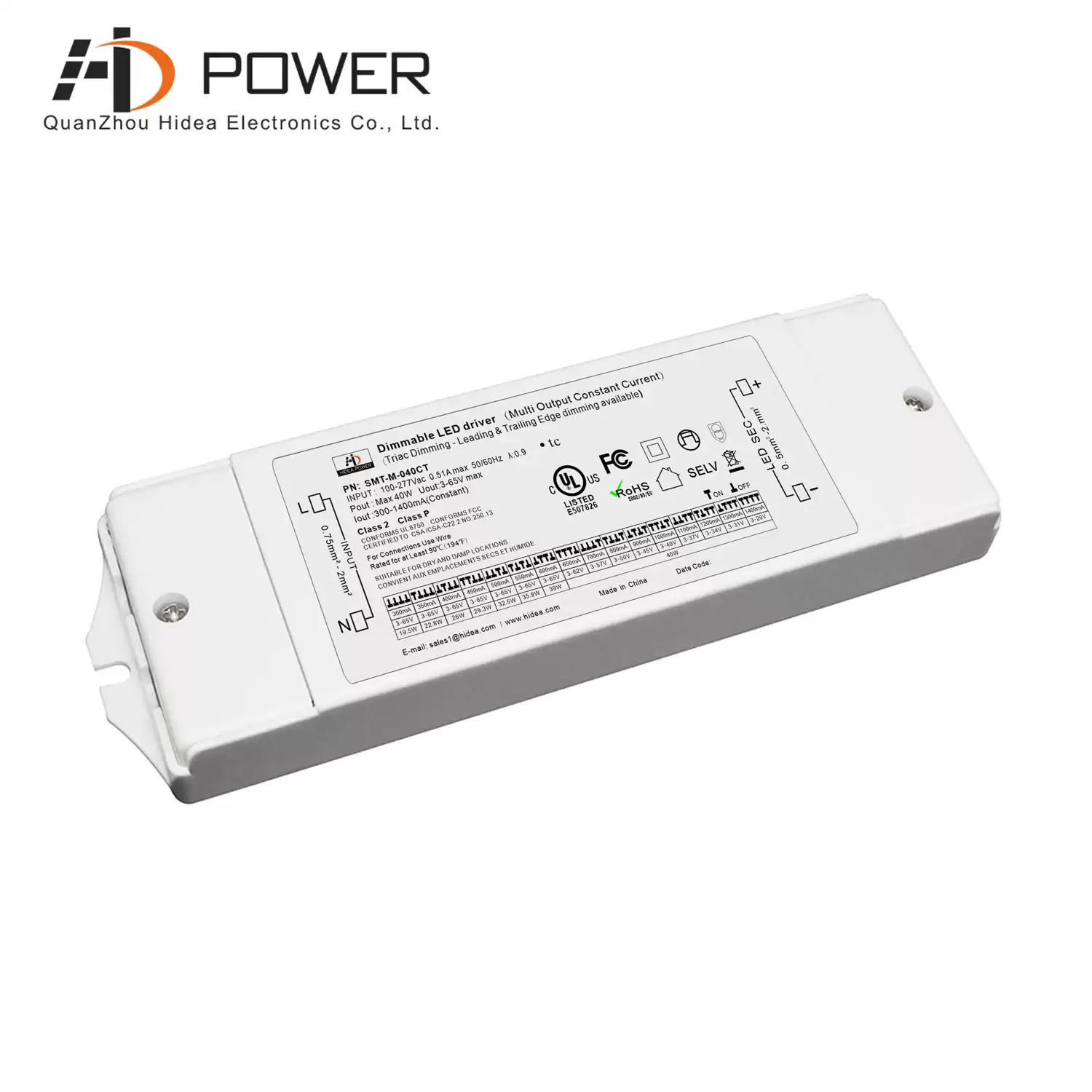

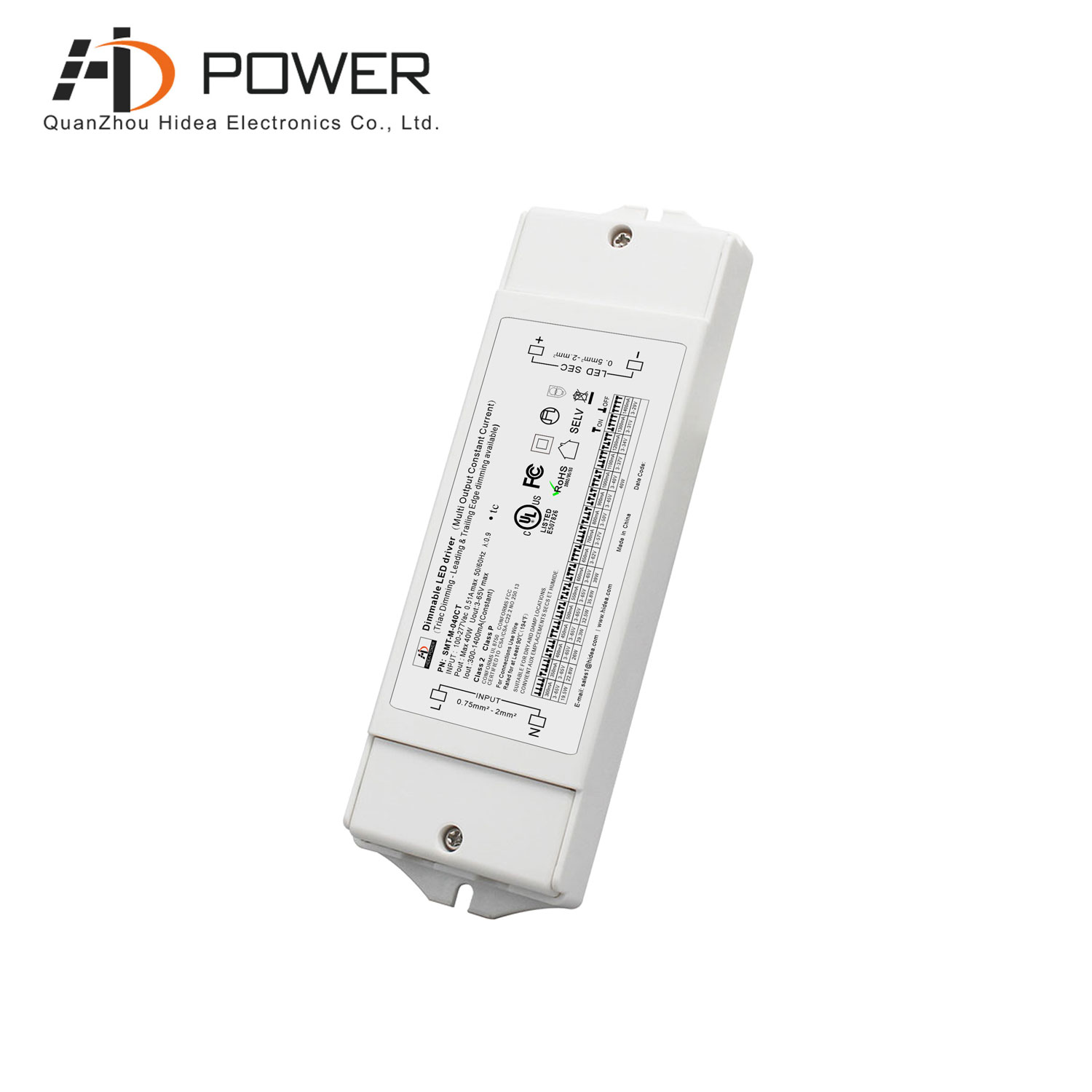

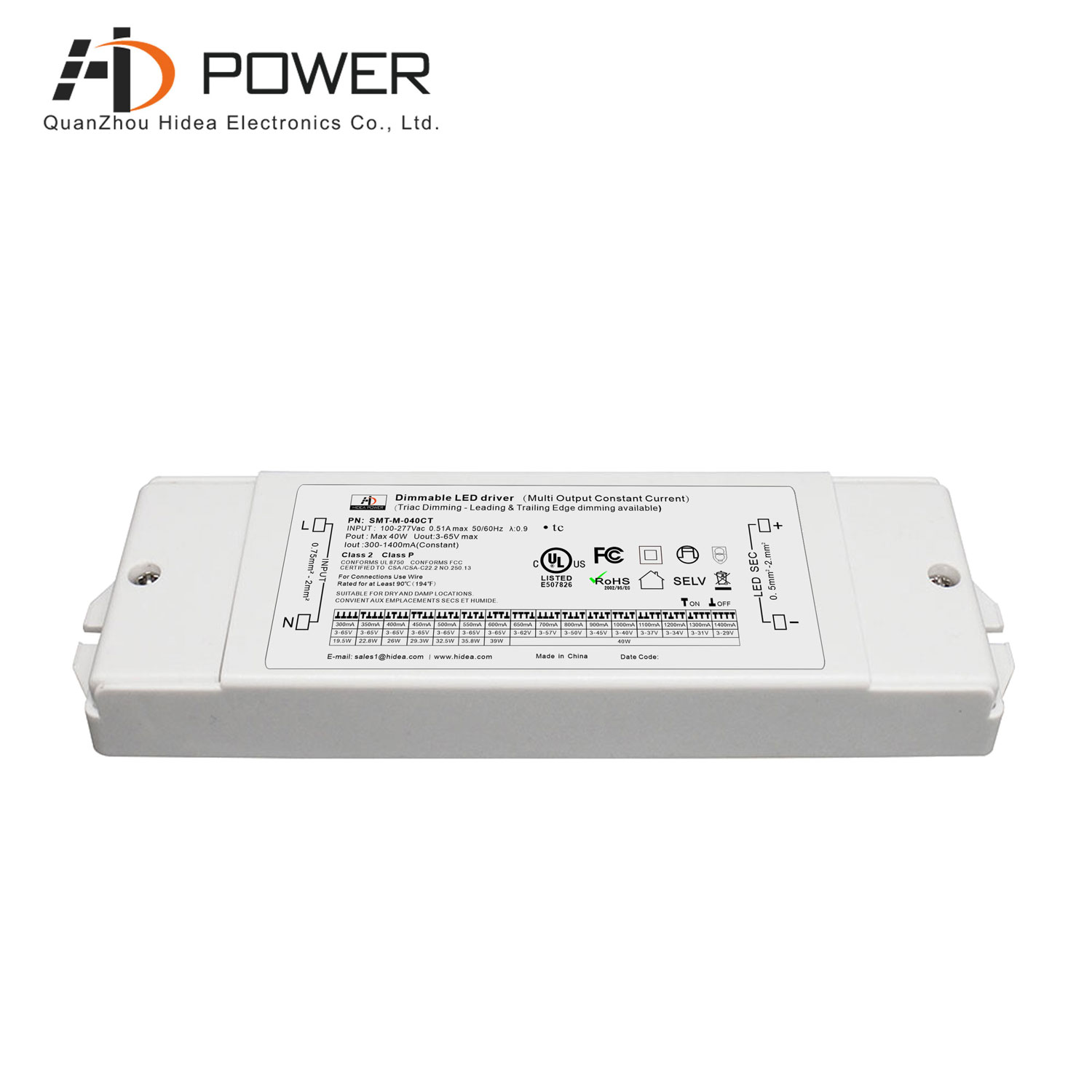

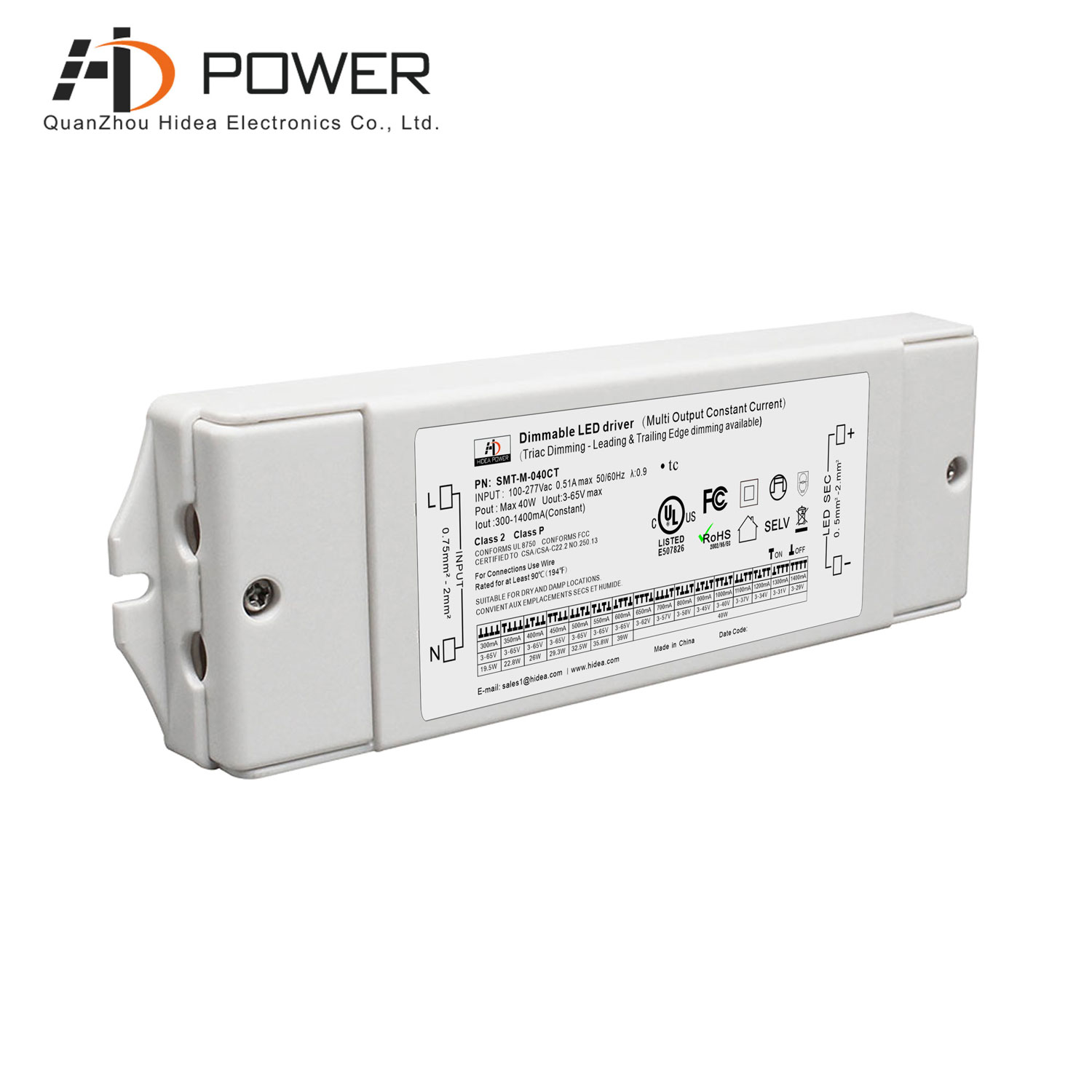

plastic shell 700ma 40W triac dimmable constant current led power supply

Constant current led power supply 40W 700ma plastic shell design, easy to install, ip20 waterproof rating, suitable for indoor lighting project installation in dry places, compatible with TORCHSTAR Basic 40W LED downlight

Dimming ModeTriac Dimming
Working ModeMulti-Output Current Driver
Input Voltage100-277Vac
Output Power(Watt)40W
Output Voltage
Shape & SizeStandard Size
Output Current700mA
Size172*54*20mm
Weight350g
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

plastic shell 700ma 40W triac dimmable constant current led power supply

This Multi-output current triac dimmable led driver 40W, built-in active PFC function, working efficiency up to 80%, UL certification, in line with global safety lighting regulations,

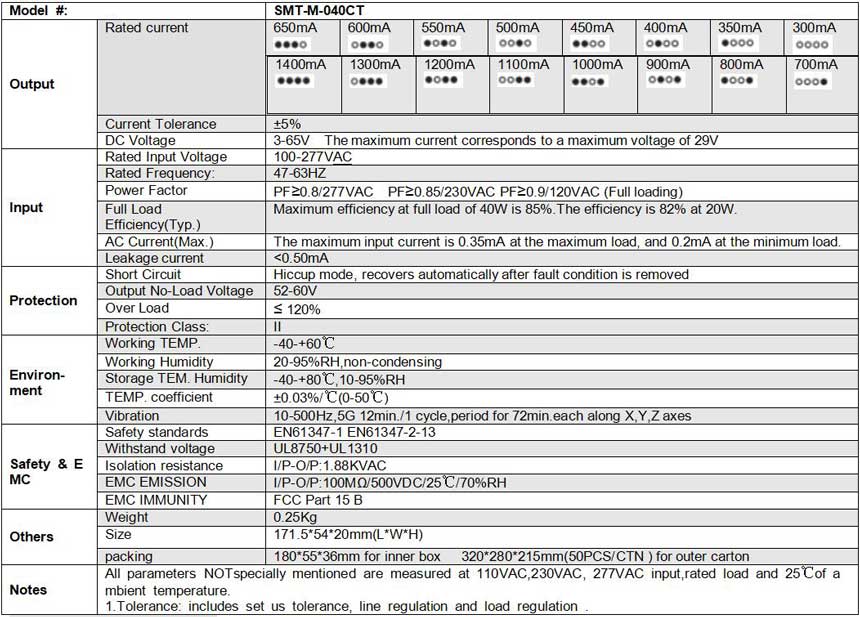

Specification

Related Products

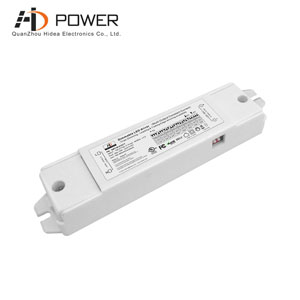

10W triac dimmable constant current led driver, the input range is 100-277vac, the body is compact and easy to install, the plastic shell ip20 design, suitable for indoor installation

Mode：SMT-M-010CT

Dimming Mode : triac dimming

Output Power : 10W

intput voltage：100-277Vac

Size：135*30*20mm（L*W*H）
