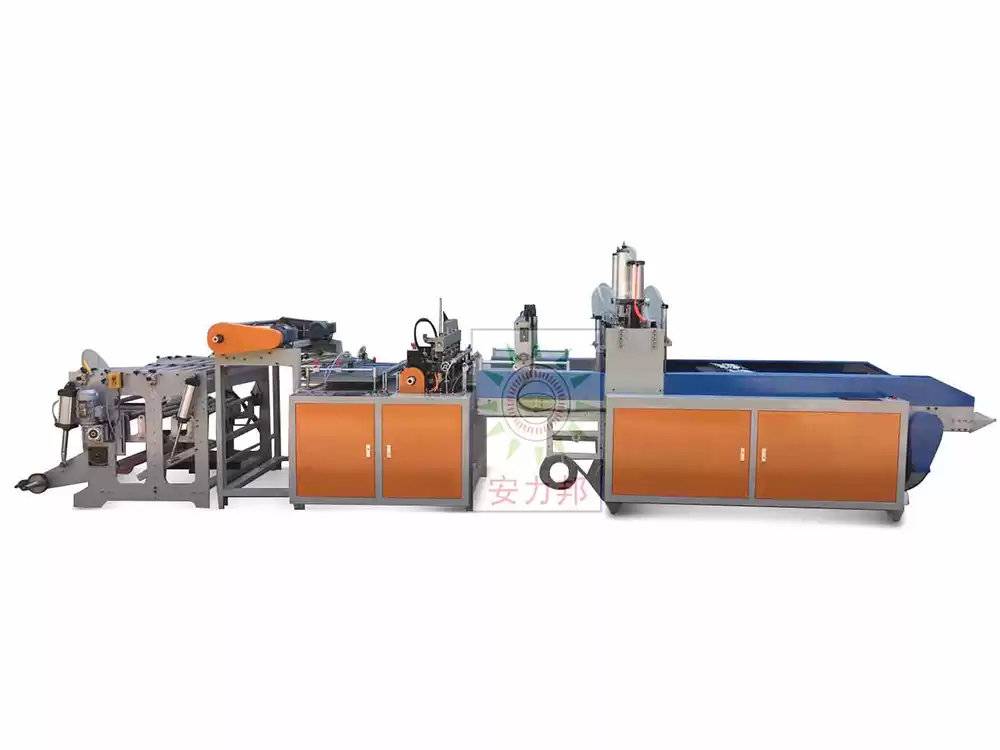

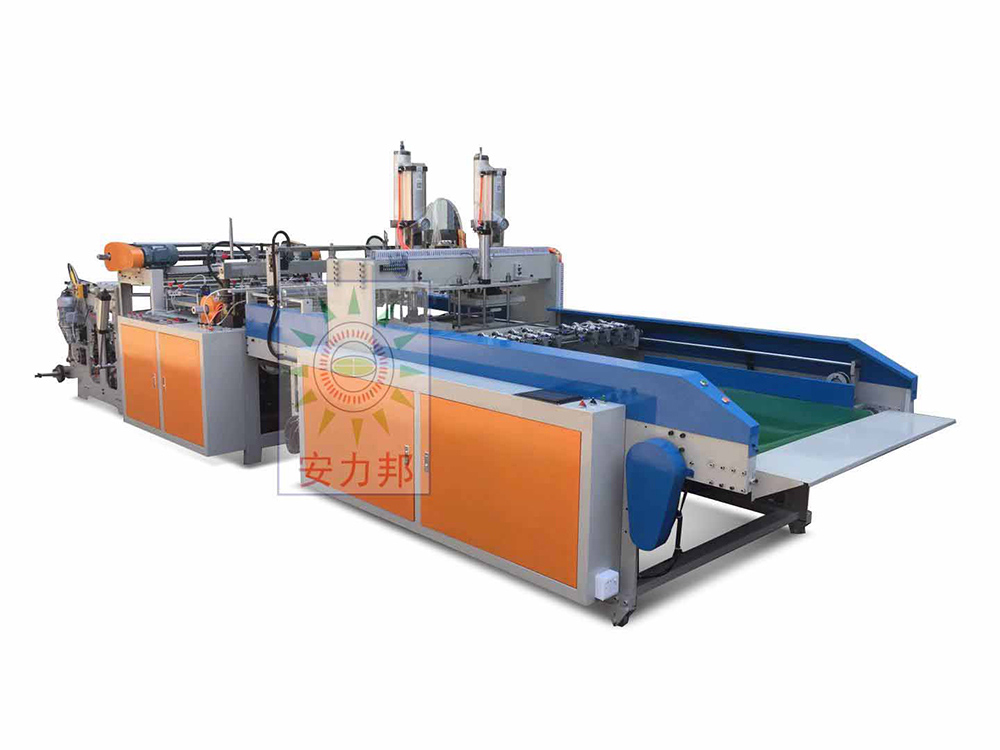

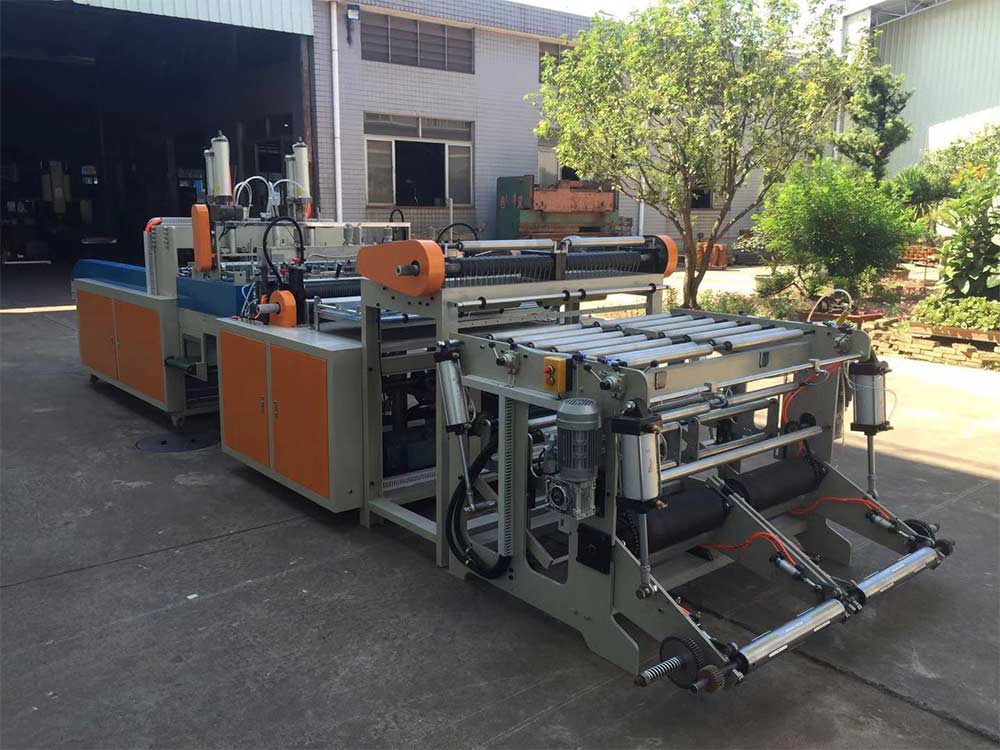

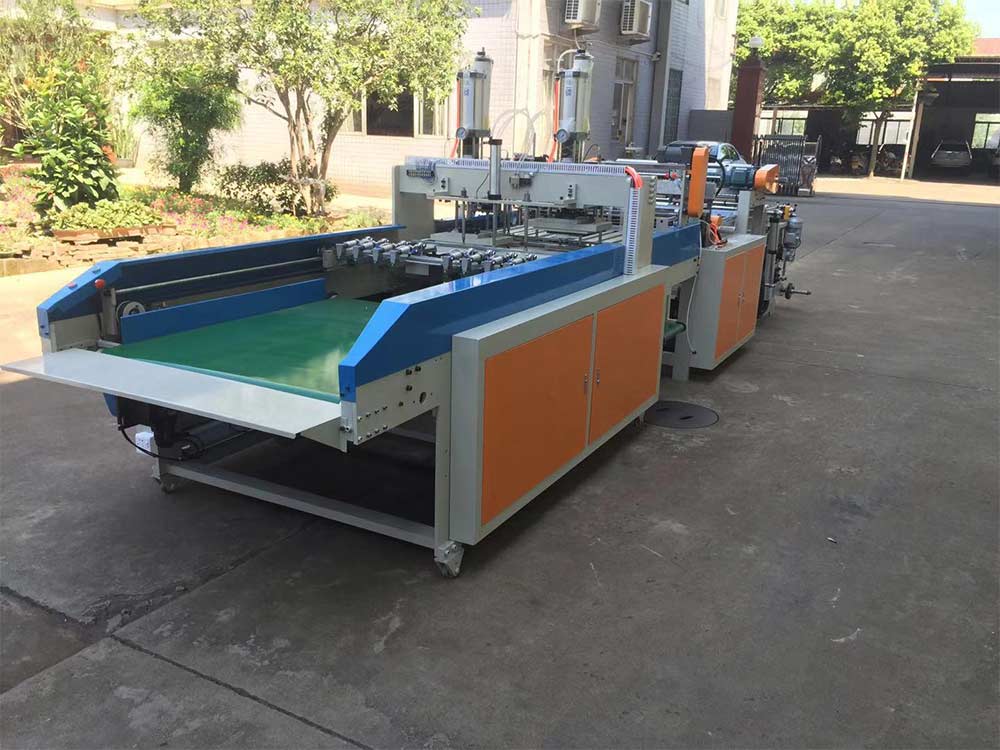

Plastic Vest Carrier Bag Making Machine

1. Easy clean turn knife system
2. 2lines EPC control system
3. Easy adjust gusset device
4. Automatic tension control unwind

Machine Characteristics

The machine adopts full touch screen computer control system. AC DELTA double servo motor as fixed - length control. Heat sealing/cutting into bags. Be Able to set different lengths at left and right side.
Arbitrary length. Double color is tracking magic eye, accurate, stable. It can automatically stop when losing mark.

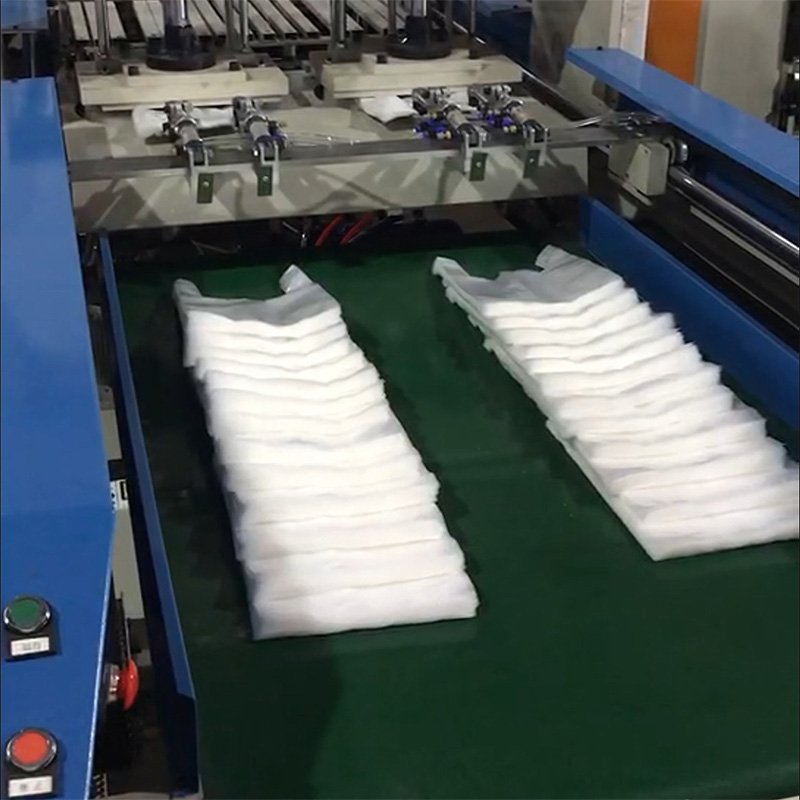

Arbitrarily set the number of bags. Automatic stop and punch, suitable for supermarket vest bag.
When machine operation, it can work without multiple people, long-term operation management.

Technical Parameters

Items	Unit	30 inch	32 inch	35 inch	40 inch
Max sealing & cutting width	MM	260*2	300*2	330*2	400*2
Max sealing & cutting thickness	MM	0.01-0.2	0.01-0.2	0.01-0.2	0.01-0.2
Length error	MM	0.3	0.3	0.3	0.3
Output	PCS/MIN	20-150	20-150	20-150	20-130
Start AC Motor	KW	1.5	1.5	1.5	2.2
DELTA servo motor ( Tw )	KW	1.0*2	1.0*2	1.5*2	1.5*2
Film feeding Frequency motor	W	500*2	500*2	500*2	500*2
Electric heat	KW	1.8	2.4	1.8	3
Machine standby power	KW	5.0	6.0	6.0	8.0
