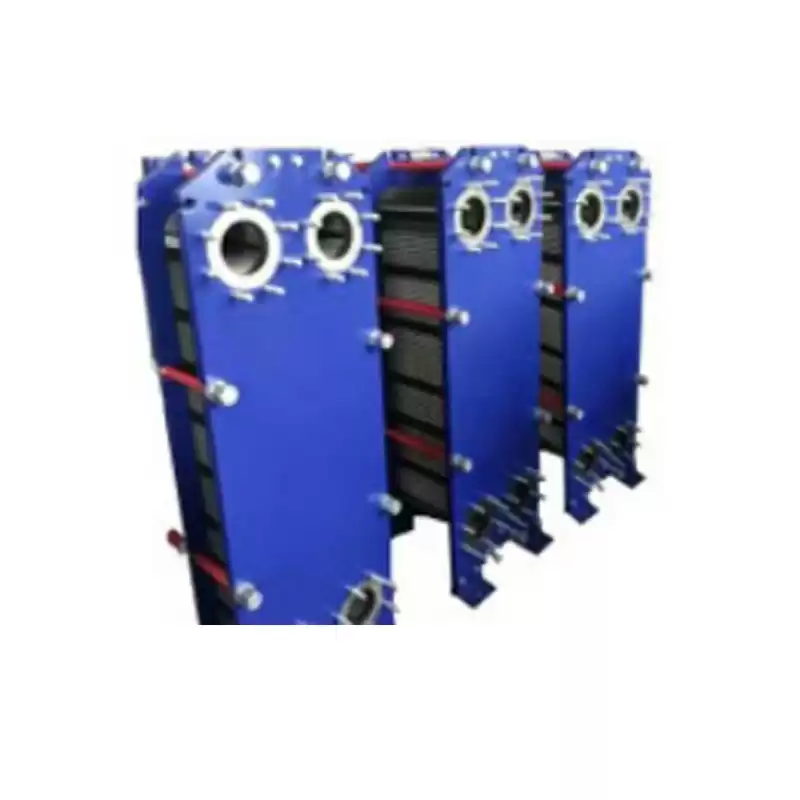

Plate Heat Exchanger

We can provide the best Heat Exchange Heating for you.


  • Response Time8-24h
  • Guarantee Period12 months

Plate Heat Exchanger:

Plate heat exchanger is a high-efficiency heat exchanger made up of a series of metal sheets with a certain corrugated shape. Thin rectangular channels are formed between various plates, and heat exchange is carried out through the plates. Plate heat exchangers are ideal equipment for liquid-liquid and liquid-vapor heat exchange. It has the characteristics of high heat exchange efficiency, low heat loss, compact and lightweight structure, small footprint, wide application, long service life and so on. Under the same pressure loss, the heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger, the floor space is one-third of the tube heat exchanger, and the heat recovery rate can be as high as 90%.


Features:

1.High heat exchange efficiency

2.small size,

3.light weight and strong applicability



Technical Parameters:

NO. PROUCT NAME PRODUCT NUMBER PRODUCT TYPE Interface caliber Flow rate UNIT OTHERS
7 Plate heat exchanger ES06020050001 Energy saving DN32~DN300 15m³/h~1300m³/h  Set

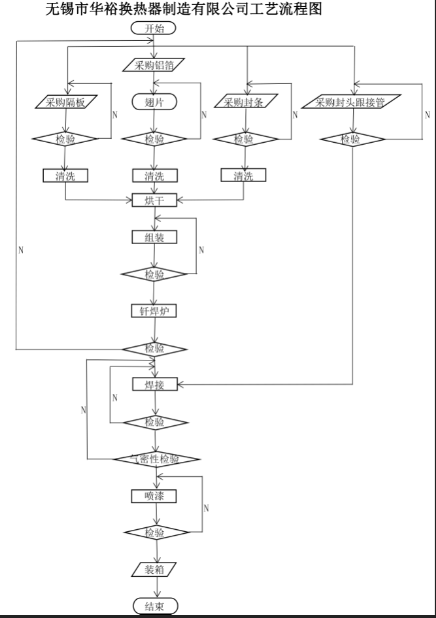

Process flow:






Applications:

Plate heat exchangers have been widely used in metallurgy, mining, petroleum, chemical, electric power, medicine, food, chemical fiber, papermaking, textile, shipping, heating and other sectors. They can be used for heating, cooling, evaporation, condensation, sterilization, and waste heat. Various situations such as recycling.
