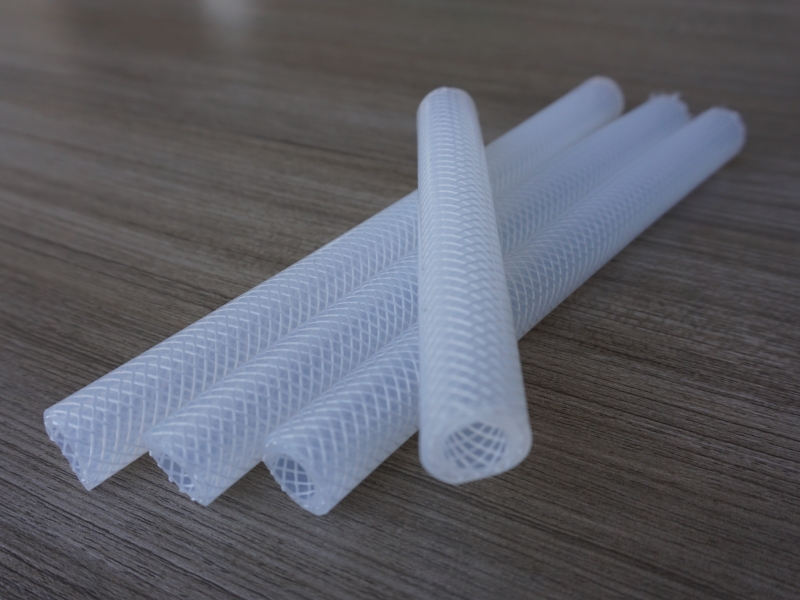

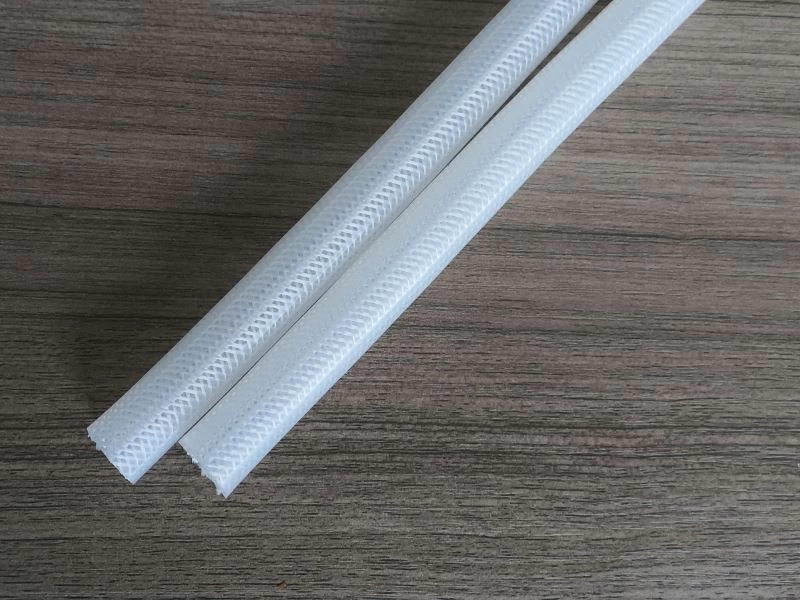

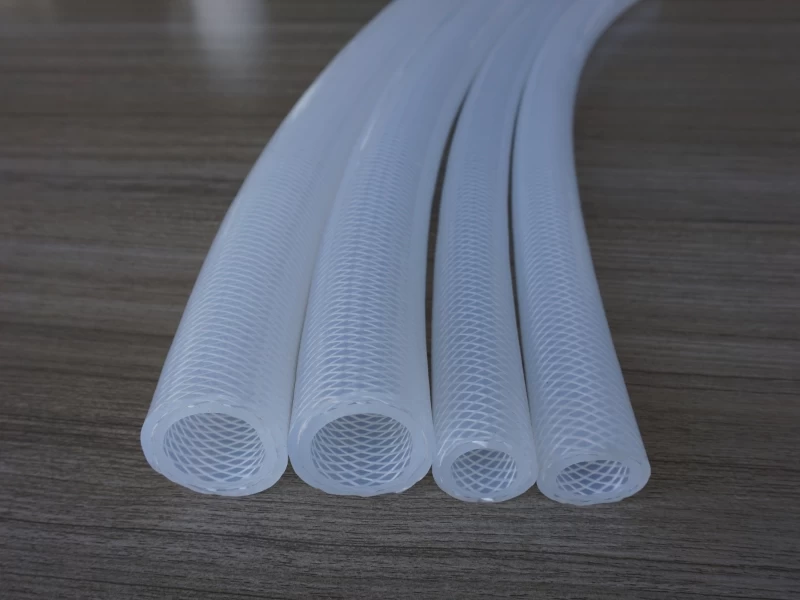

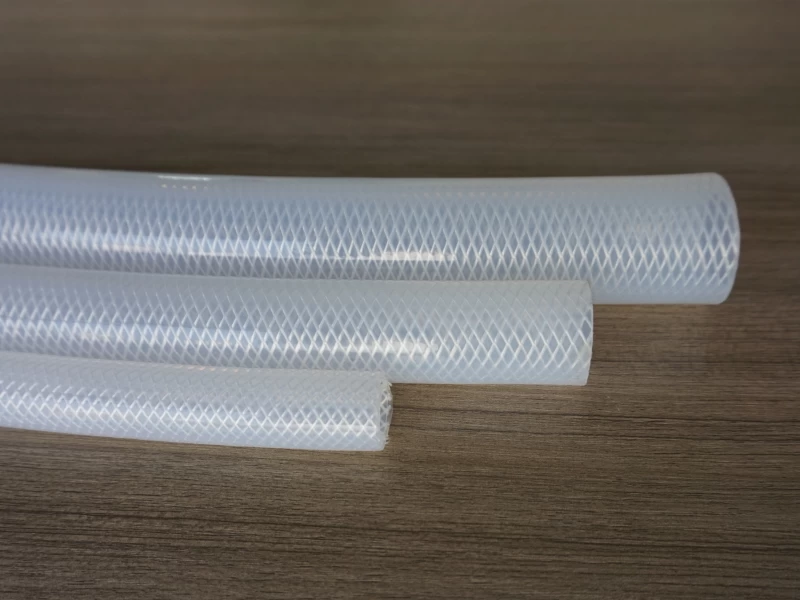

Platinum Cured Reinforced Silicone Hose Braided Tubing

The platinum cured silicone braided hose meets requirements of Food Contact Materials - Regulation (EC) 1935/2004. It is food grade quality level for FDA general purpose.The braid silicone hoses are BPA free definitely and safe to contact food material. BPA (bisphenol-A) is a chemical that is added to many commercial products but in recent years has started to be removed due to potential health issues.

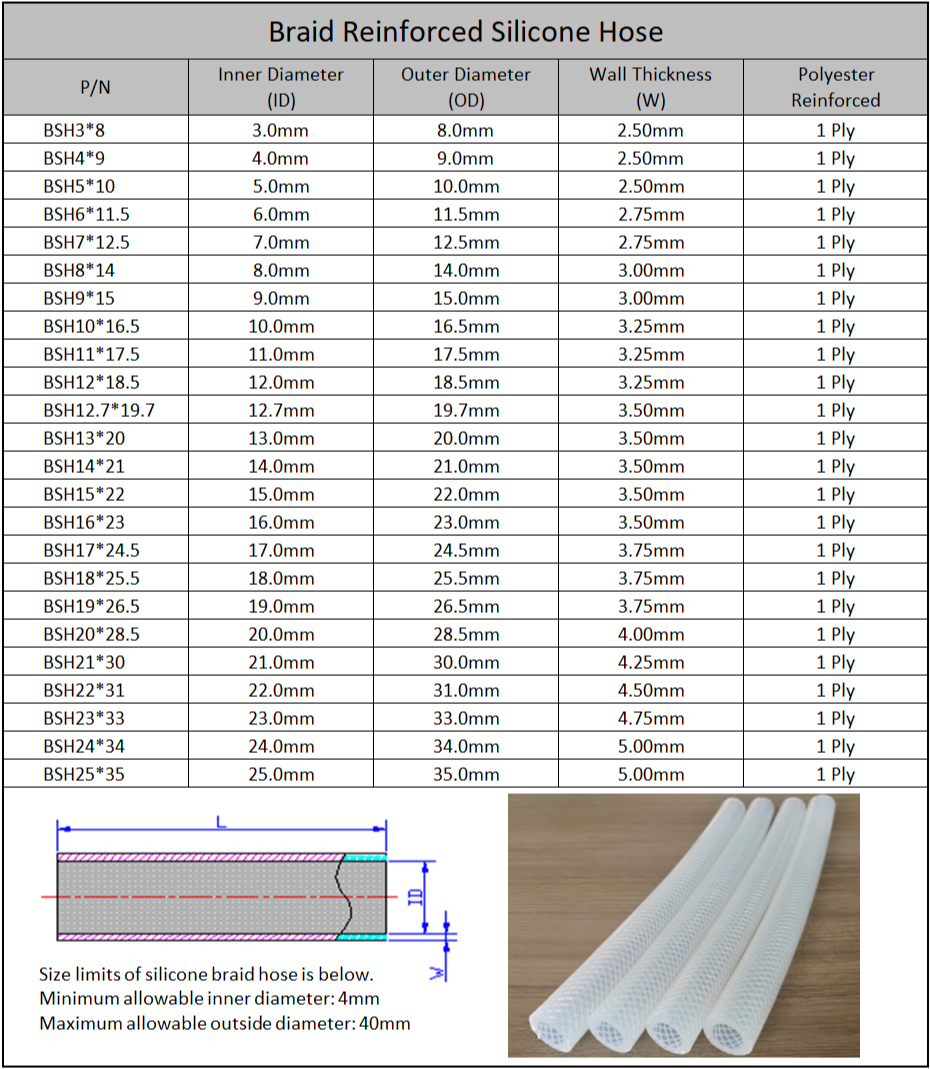

Above tables show some popular size of platinum cured reinforced silicone tubing. Please let us know if the size you need isn't listed on above catalogues. SUNRISE can produce platinum cured silicone hose with inner diameter no less than 4mm and outer diamter no bigger than 40mm. Please note that any bespoke length, quantities can be made.

The braided platinum cured silicone tubing is manufactured from gengeral silicone and a polyester braid. Polyester yarn braiding inside the wall enhances the pressure capabilities. It enables silicone tubing to handle increased pressure applications and offers exceptional resistance to temperature extremes. It also allow permits installation in restricted spaces with impeding flow. The platinum cured reinforced silicone tubing does not crack or become porous, it maintains a very long and useful life.
--- Is resistant to ultraviolet rays and ozone
--- Has a high tear strength and is much stronger than plastic or ordinary rubber hose
--- Can last up to 5 times longer than other materials
--- The clear hose allows you to see your product moves through the hose
--- Temperature range from -55 degree C to +250 degree C
--- Remains flexible to -55 degree C
---Heavy wall design gives it the ability to handle extreme pressure

The braid reinforced silicone hoses meet and exceed SAEJ20 industry standards, suitable for heavy duty pressure connections and provides excellent resistance for high temperature applications. The reinforced silicone hose is designed and engineerd to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, DIY intake or radiator cooling system, custom turbo or intercooler piping fabrication.For critical pharmaceutical, biomedical, cosmetic and food applications. Polyester yarn braiding inside the wall enhances the pressure capabilities. Extremly flexible. Not intended for use for continuous steam applications.
