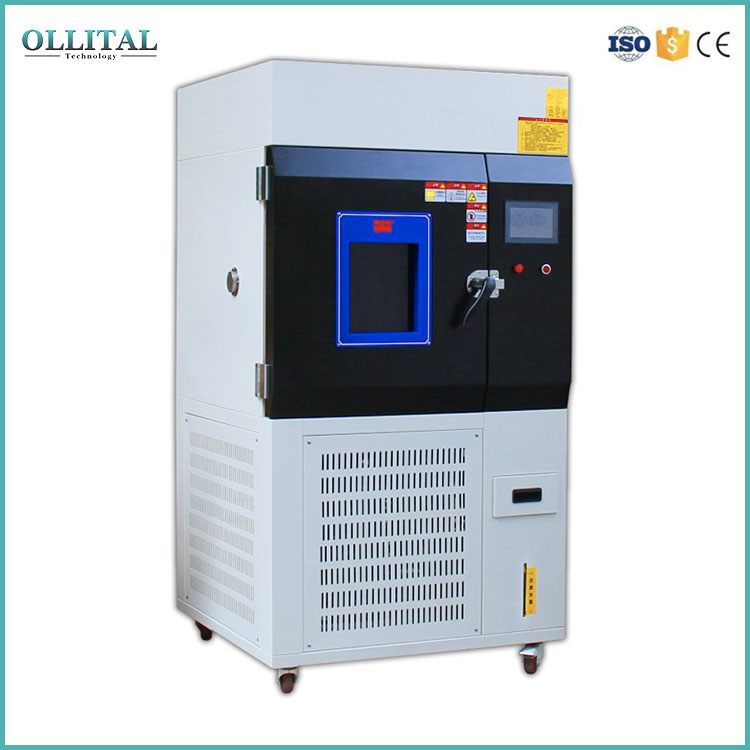

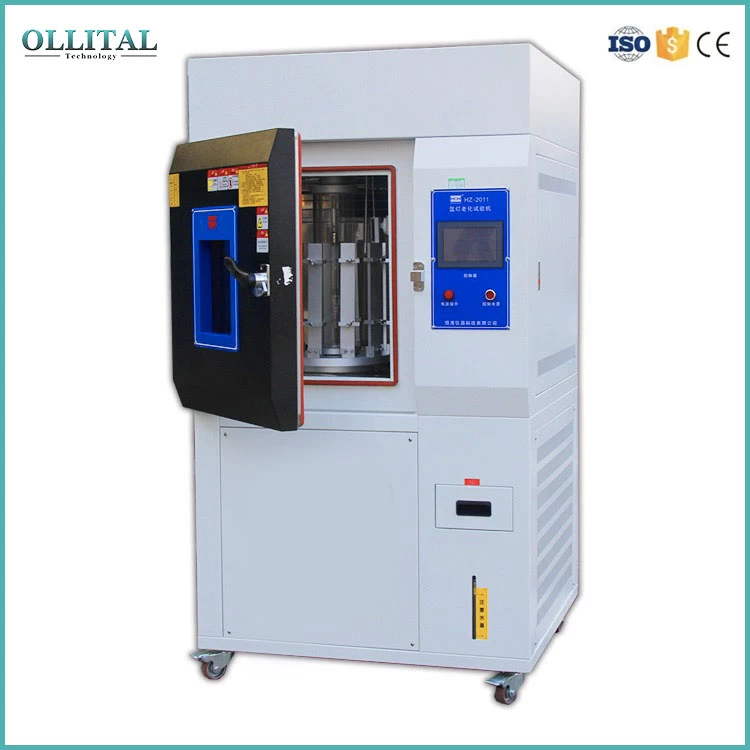

Xenon lamp aging testing chamber is a comprehensive climate testing machine, in addition to climatic aging test, the lightfastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates thelight, temperature, rainfall, condensing, humidity to test the materials;it can beused for choosing new materials,improving existing materials, or assessment of change in material composition.
|
Model
|
OLT-TS-20
|
|
Testing room D×W×H
|
500*600*500mm
|
|
Index
|
Temperature range
|
RT+10°C~80°C
|
|
Humidity range
|
65~98%R·H
|
|
Spray time
|
1~9999min, adjustable
|
|
Spray cycle
|
1-240min, interval adjustable
|
|
spectral wavelength
|
290nm~800nm (60w/m2)
|
|
light source
|
xenon lamp (air-cooled)
|
|
Xenon lamp power
|
1kw, 6kw (longevity: 1600H)
|
|
Temperature
and humidity
control
|
Time controller
|
Import controller from Moeller
|
|
Accurate range
|
Temperature: ±0.1°C / humidity: ±0.1°CR·H
|
|
Sensor
|
Platinum resistance Pt100Ω/mv
|
|
Heating system
|
Independent system, nickel chromium alloy electric heating type heater
|
|
Humidity system
|
stainless steel, external Isolated humidifier
|
|
Blackboard temperature
|
Bimetal thermometer blackboard 55°C~75°C
|
|
Water supply
|
Humidification water supply with automatic control,
xenon lamp cooled by water recycling
|
|
Temperature controller
|
Import controller
|
|
humidity
|
Irradiation: 30%~65%RH darkly: up to 90%RH
|
|
Cycle system
|
low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel
|
|
Material
|
Outside material
|
Advanced spray color plate /SUS304 stainless steel
|
|
Inside material
|
SUS304 stainless steel
|
|
Sample holder material
|
SUS304 stainless steel
|
|
insulation
|
High and low temperature aging of silicone rubber
|
|
Standard
|

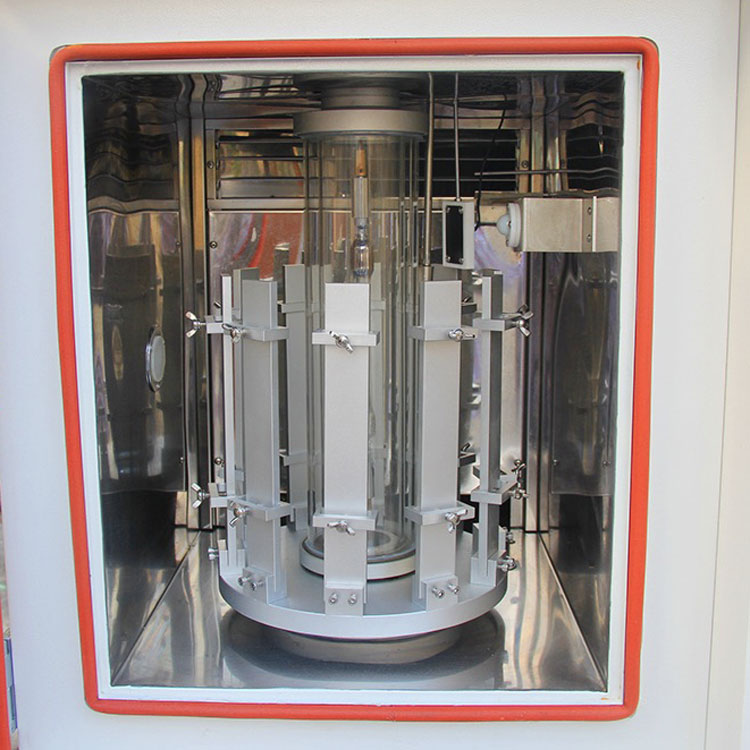

a set of radiation-proof glass window, dynamic testing sample shelf 1,
xenon lamp tube 2
|
|
Protector
|
Leakage, short circuit, over-temperature, water shortages,
motor overheating, over-current protection.
|
|
Power
|
AC380V±10% 50±0.5HZ, Three-phase five-wire system
|
|
Environmental temperature
|
±5°C~+30°C ≤85%R·H
|
Corresponding standard:
GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing
SQSimulation of solar radiation on the ground
Xenon lamp aging testing chamber is applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ... and so on.

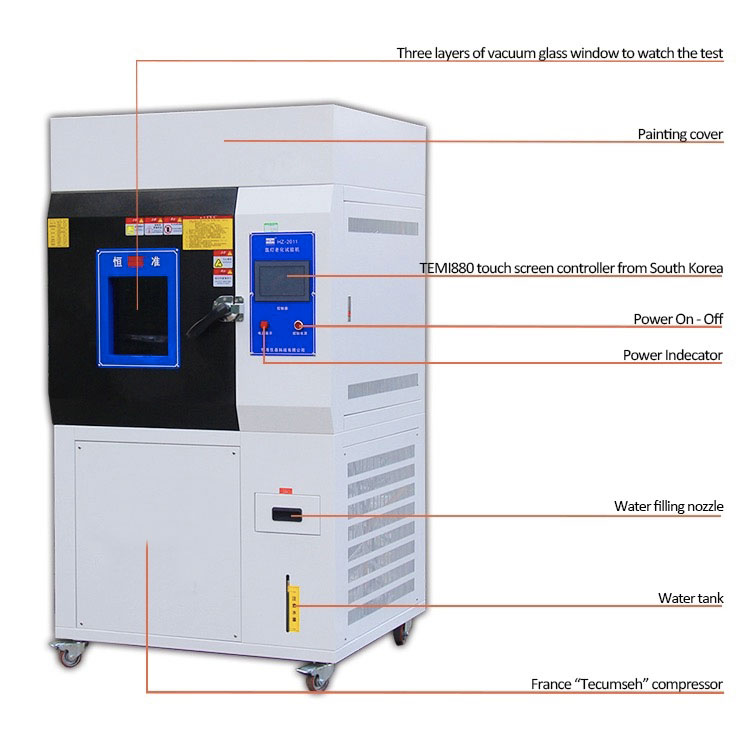

Xenon lamp test box (vertical climate resistance) the cold rolled steel sheet electrostatic pensu or high quality stainless steel sheet, the tank for high quality stainless steel plate. Radiation light source is the solar spectrum xenon lamp, automatically track irradiation intensity, precisely control the blackboard temperature, irradiation cycle, dark cycle, spray cycle all can set according to relevant test standards or customer's requirements . Xenon lamp box (desktop weather resistance test) according to the user's controller to choose imported touch screen control instrument or intelligent digital display controlling instrument.
Xenon lamp climate resistance test box with ultraviolet radiation sensors, it can amend the aging tube or any other changes in the light energy decrease in time. Ultraviolet radiation sensors allows you to select proper light irradiation during the test. Ultraviolet radiation sensors can monitor indoor light irradiation intensity continuously, and by adjusting the power of tubes, can accurately keep the irradiation intensity in operation value.
Water spray cycle can effectively simulate temperature changing and rain erode process. Because of the rain was often flush, coating layer of lumber(including paint and coloring), will have erosion phenomenon. Recent research results show that the rain layer washed the material itself thus the materials are directly exposed to UV and water. The rain spray function can reproduce such environmental conditions, and enhance some paint climate aging test.
Pre-Sales Service
Inquiry and consulting support.
Offering quotation and specifications.
Provide test solutions.

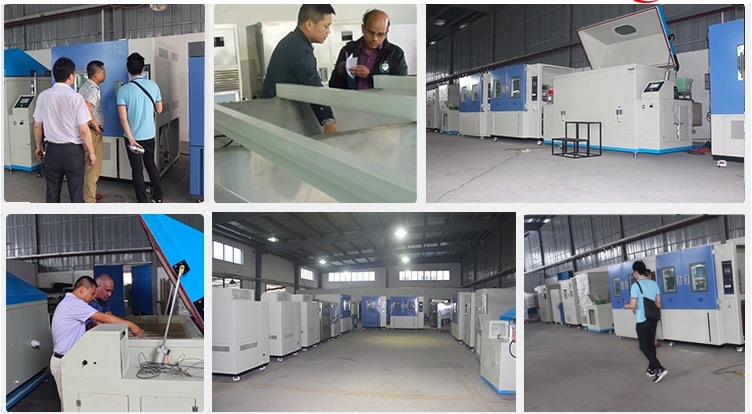

Visiting our factory.
Standard and custom
After-Sales Service
3 Years Warranty, Lifelong Follow-up Services.
Training how to install and operate the machine.
Training how to maintain the machine.
Response within 24 hours once got questions from customers.
Send spare parts within 2 days after got notice.
Engineers available to service machines overseas to install and commissioning.
Installation instructions
Operation manual and video available for installation & operation
Package with export standard wooden box, It can be used for sea, air, railway, truck transportation.
