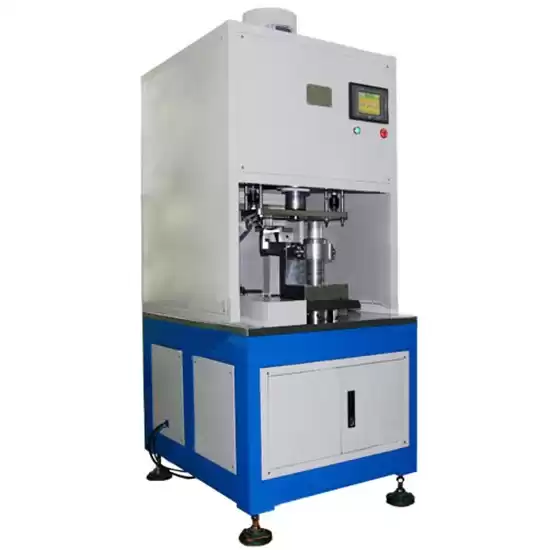

PLC Control Cylindrical Supercapacitor Sealing Machine
1. Functional overview
Suitable for the sealing operation of cylindrical supercapacitor.
2. Functional characteristics
1.PLC program control. Touch screen displays operation, and the user can control various functions easily.
2.Provide manual and automatic operating modes, enabling users to easily use, upkeep and maintain the machine.
3.Adopt high-precision spindle orientation, with high sealing precision and stable size.
3. Technical parameters
|
Power source
|
AC380V/50Hz
|
|
Air source
|
0.4~0.7MPa
|
|
Capacity
|
10~15ea/min
|
|
Applicable product specification
|
Φ60*100~140(H)mm(customized)
|
|
Sealing Accuracy (H)
|
±0.05mm
|
|
Rotating speed
|
80~2200rpm
|
|
Overall dimensions(LxWxH)
|
800*1000*1980mm
|
|
Weight
|
1200kg
|
