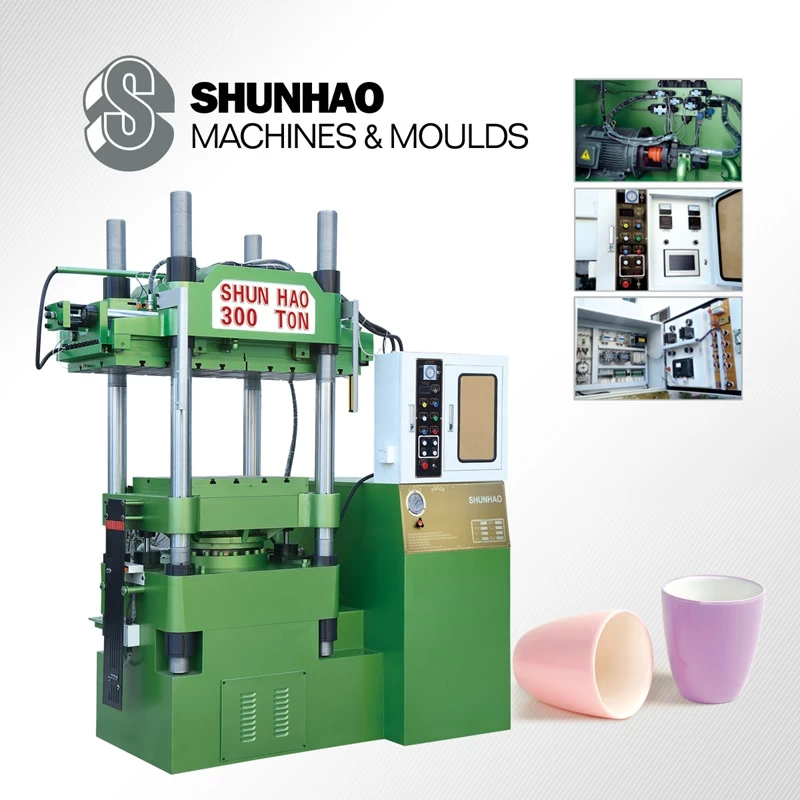

PLC Control Double Color Melamine Molding Machine

  • PLC Control system, high efficiency and stable production
  • Over 18 years melamine related machines and moulds production



  • Support ServiceLife-time Service
  • Trainning ServiceYes
  • Machine Weight8600KG
  • Machine Dimension2.3*1.78*2.9 M

Double Color Melamine Molding Machine-DTM 300TONS

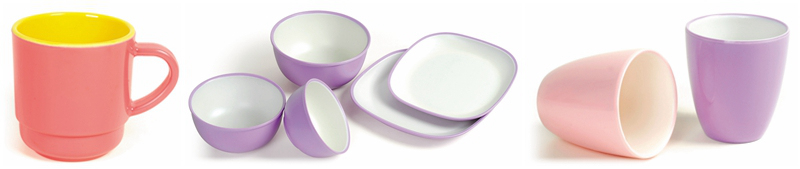

Mainly used to make the following products:

  Imitation porcelain tableware, kitchen supplies, daily necessities, trays, ashtrays, hotel supplies, pet supplies, handicrafts, toys, mahjong, and other items

Features:

1. PLC control system, using the imported computer, quick action, mute, stable work

2. Ventilation time, exhaust time, molding time, initial pressing time, decompression time, and finished product count can be freely set on the computer panel. The operation and adjustment are simple, precise and easy to manage.

3. The electro-hydraulic proportional valve system accurately controls the pressure and flow, and the speed can be adjusted freely.

4. The pressure system is top brand product, high-speed energy-saving, low failure rate, easy maintenance

5. Set an emergency stop device to protect the safety of operators and products.


300T Double color Melamine Moulding Machine



Technical Parameters

No.

Content

DTM 300

1

Main Cylinder Nominal Pressure

300Tons

3

Maximum Working Pressure

210kg/cm2

4

Main Cylinder Piston Diameter

Ø450mm

5

Main Cylinder Working Stroke

550mm

6

Adjustable Table Distance

500~850mm

7

Heating Plate Size

720*720/780*720mm

8

Working Layers

1 layer

9

Heating Plate Material

45#

10

Tension Column (Heat Treatment Grinding)

Ø120*2400mm

11

Oil Hydraulic Pump

21Mpa

12

Motor Specifications

15HP

13

Heating Sheet Total Power

27.45KW

14

Machine Total Power

38.45KW

15

Machine Size(length * width * height)

2.3*1.78*2.9 M

16

Machine Weight

8600KGS

PS: Specifications subject to change without notice


2 color melamine molding machine


FAQ

Q: How can I get the machine I want?

A: We will give professional advice according to the needs of customers' products, customers need to inform all the required details. We will provide the best solution.

Q: Is there a machine installation service?

A: 1. Shunhao Machine will arrange professional engineers to install the machine for free in your factory (you just need to pay for round-trip airfare, hotel)

2. Arrange professional staff to train machine operation methods and emergency treatment methods for free

3. Provide overseas after-sales service, online video guidance and answer

Q: What should I do if the machine can't run normally?

A: The melamine tableware molding machine from Shunhao has strict quality control and quality inspection, saving customers time and money. If the machine fails to work, our engineers will provide  online service to provide a quick solution by directly communicating using video & pictures.

melamine ware making machine manufacturers
