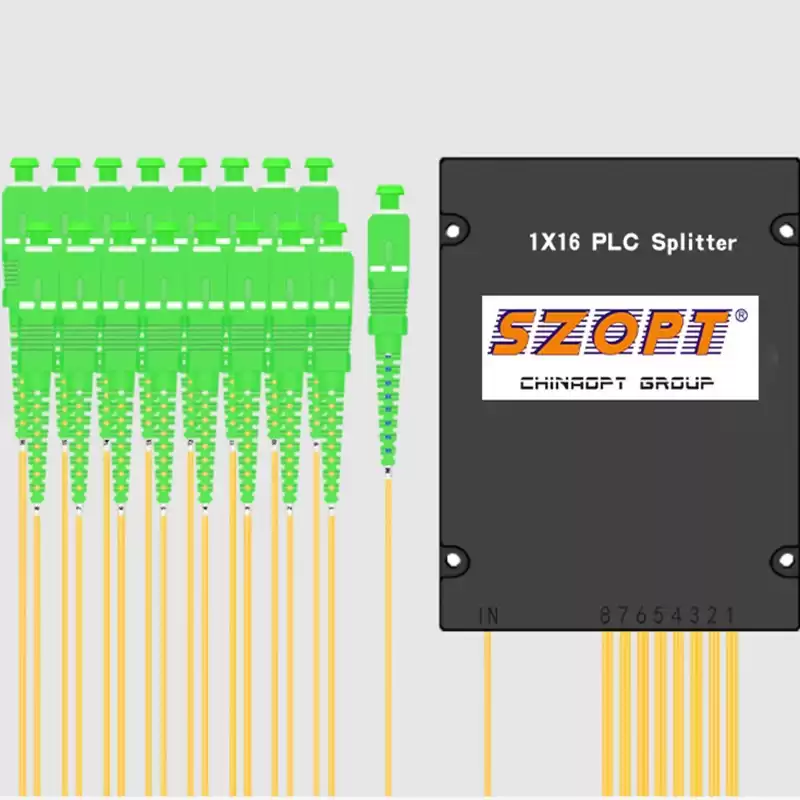

PLC Splitter 1X16 ABS BOX
This is a kind of ABS box PLC Splitter available with 1X4/1X8/1X16/1X32/1X64/1X128,2X4/2X8/2X16/2X32/2X64/2X128,the terminators can be sc/lc/fc/st in 3.0mm or 2.0mm cable,the cable length is usually 1-1.5m.Available wavelength is:1260-1650nm.
PLC Splitter 1X16 ABS BOX
To keep the whole quality of the splitter,we have the strict quality control system for all raw materials and every process during the production,only one has passed all the tests can be shipped to our customers.
Application:
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Feature:
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Package:
Each one is put in a glister box,then put into a carton box.
Specification:
operation wavelength |
1260 - 1650 |
|||||||
1*N PLC Splitter |
1*2 |
1*4 |
1*8 |
1*16 |
1*32 |
1*64 |
1*128 |
|
insertion loss (dB) |
MAX(p/s) |
3.8 /4.0 |
7.0 /7.4 |
10.5 /10.7 |
13.6 /13.9 |
16.6 /16.9 |
21 /21.5 |
24 /24.5 |
uniformity (dB) |
MAX(p/s) |
0.6 /0.6 |
0.6 /0.7 |
0.8 /1.0 |
0.9 /1.2 |
1.2 /*1.4 |
1.7 /1.9 |
2.2 /2.5 |
return loss (dB) |
MIN |
55 |
||||||
pdl (dB) |
MAX(p/s) |
0.15 /0.25 |
0.15 /0.25 |
0.2 /0.25 |
0.2 /0.3 |
0.25 /0.3 |
0.25 /0.35 |
0.4 /0.45 |
2*N PLC Splitter |
2*2 |
2*4 |
2*8 |
2*16 |
2*32 |
2*64 |
2*128 |
|
insertion loss (dB) |
MAX(p/s) |
4.0 /4.3 |
7.4 /7.6 |
10.7 /11.0 |
14 /14.5 |
17.5 /18 |
21.4 /21.9 |
*** |
uniformity (dB) |
MAX(p/s) |
0.9 /1.1 |
1.0 /1.2 |
1.0 /1.2 |
1.2 /1.5 |
1.5 /1.8 |
2.0 /2.3 |
*** |
return loss (dB) |
MIN |
55 |
||||||
pdl (dB) |
MAX(p/s) |
0.25 /0.3 |
0.25 /0.3 |
0.25 /0.3 |
0.3 /0.35 |
0.3 /0.35 |
0.35 /0.4 |
*** |
temperature stability(dB) |
MAX |
0.5(0.3) |
||||||
operation temperature ℃ |
-40 ~ 85 |
|||||||
storage temperature ℃ |
-40 ~ 85 |
