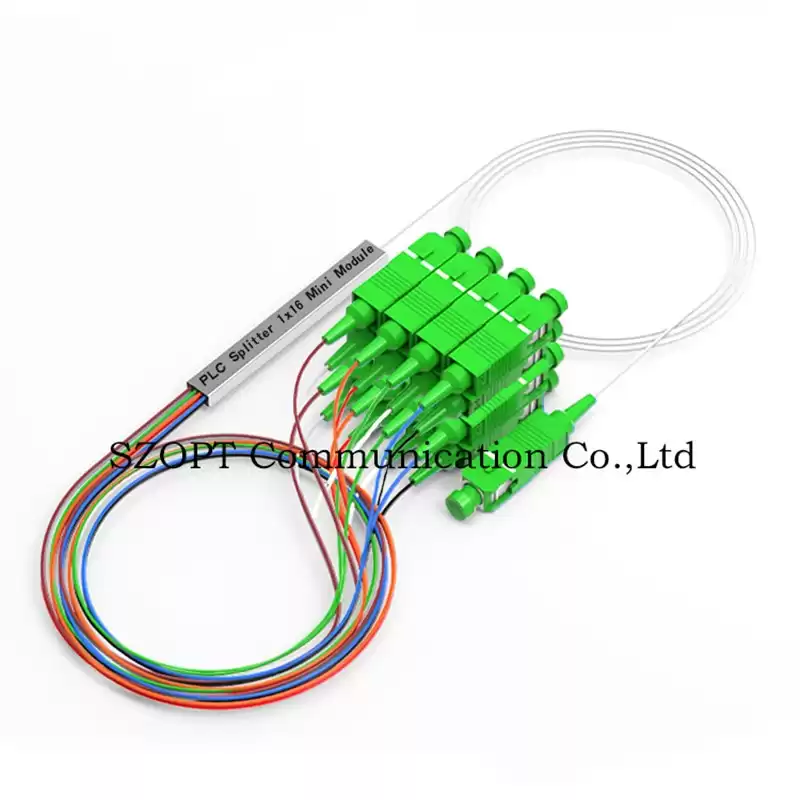

PLC Splitter 1X16 Mini Module

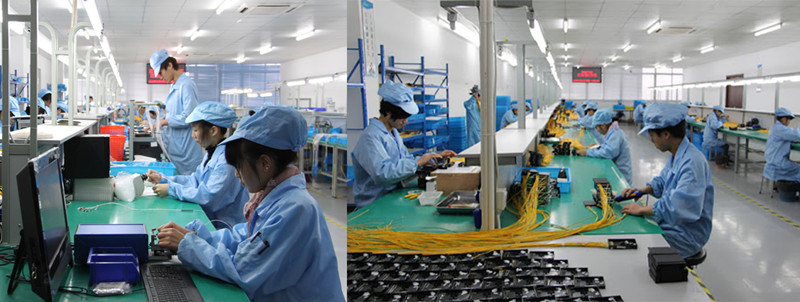

we have a complete strict quality control system,from
raw material,production process,inspection,packing,etc. to ensure the top quality
of the finished products reach 100% qualification before exporting . We
never let any defect out of factory.
Application:

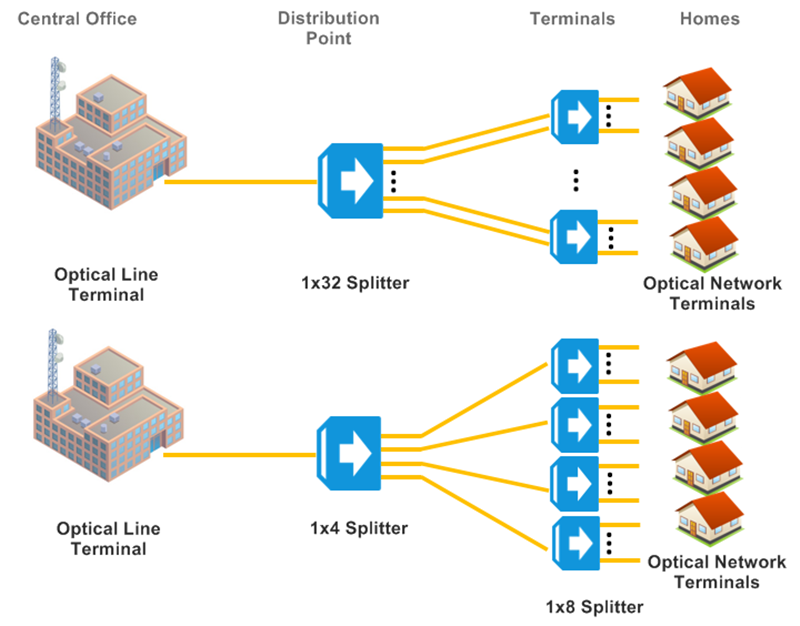

FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Feature:
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability

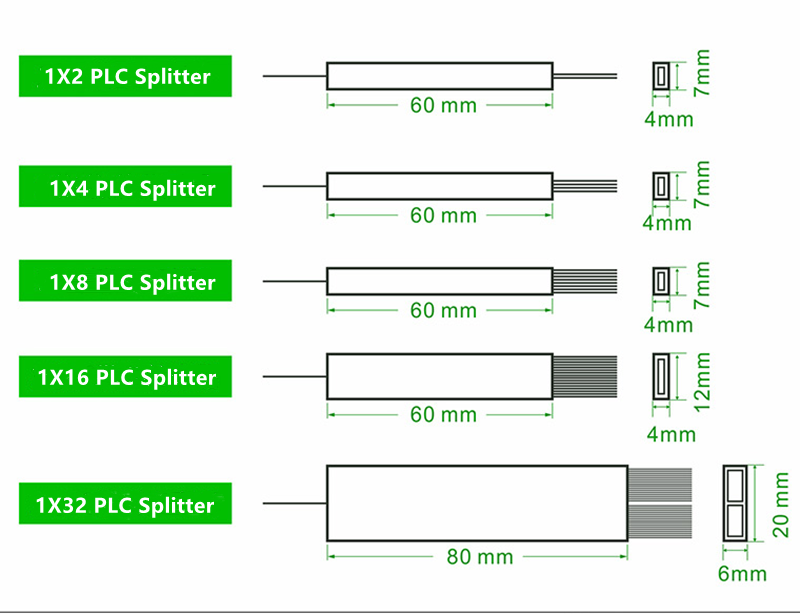

Compact size and various package
Package:
Each one is put in a glister box,then put into a carton box.
Specification:
|

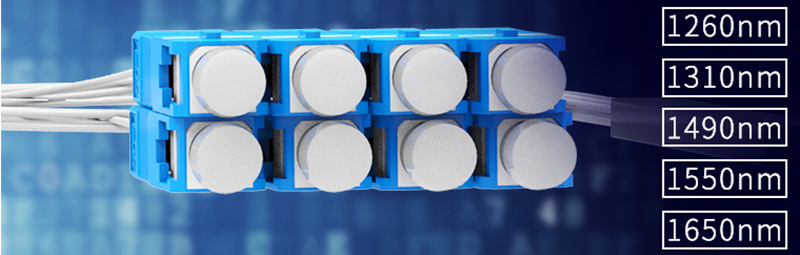

operation
wavelength
|
1260 - 1650
|
|
1*N PLC
Splitter
|
1*2
|
1*4
|
1*8
|
1*16
|
1*32
|
1*64
|
1*128
|
|
insertion
loss (dB)
|
MAX(p/s)
|
3.8
/4.0
|
7.0
/7.4
|
10.5
/10.7
|
13.6
/13.9
|
16.6
/16.9
|
21
/21.5
|
24
/24.5
|
|
uniformity
(dB)
|
MAX(p/s)
|
0.6
/0.6
|
0.6
/0.7
|
0.8
/1.0
|
0.9
/1.2
|
1.2
/*1.4
|
1.7
/1.9
|
2.2
/2.5
|
|
return
loss (dB)
|
MIN
|
55
|
|
pdl
(dB)
|
MAX(p/s)
|
0.15
/0.25
|
0.15
/0.25
|
0.2
/0.25
|
0.2
/0.3
|
0.25
/0.3
|
0.25
/0.35
|
0.4
/0.45
|
|
2*N PLC
Splitter
|
2*2
|
2*4
|
2*8
|
2*16
|
2*32
|
2*64
|
2*128
|
|
insertion
loss (dB)
|
MAX(p/s)
|
4.0
/4.3
|
7.4
/7.6
|
10.7
/11.0
|
14
/14.5
|
17.5
/18
|
21.4
/21.9
|
***
|
|
uniformity
(dB)
|
MAX(p/s)
|
0.9
/1.1
|
1.0
/1.2
|
1.0
/1.2
|
1.2
/1.5
|
1.5
/1.8
|
2.0
/2.3
|
***
|
|
return
loss (dB)
|
MIN
|
55
|
|
pdl
(dB)
|
MAX(p/s)
|
0.25
/0.3
|
0.25
/0.3
|
0.25
/0.3
|
0.3
/0.35
|
0.3
/0.35
|
0.35
/0.4
|
***
|
|
temperature
stability(dB)
|
MAX
|
0.5(0.3)
|
|
operation
temperature β
|
-40 ~ 85
|
|
storage
temperature β
|
-40 ~ 85
|
